14268855202: DescriptionAutomotive Fuses 58V 20A TOE; CategoryCircuit protection; File Size224KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

14268855202 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	14268855202	-	-	View	Buy Now

14268855202 Overview

Automotive Fuses 58V 20A TOE

14268855202 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Littelfuse
Product Category	Automotive Fuses
RoHS	Details
Product	Blade Fuse
Current Rating	20 A
Voltage Rating DC	58 VDC
Mounting Style	Holder
Termination Style	Blade
Fuse Type	Time Delay / Slow Blow
Color	Yellow
Indicator Style	Element Window
Fuse Size / Group	TOE MAXI
Packaging	Bulk
Resistance	0.0037 Ohms
Diameter	-
Height	21.3 mm
Length	29.7 mm
Type	TOE Maxi Style Blade Fuse
Width	9.1 mm
Interrupt Rating	1 kA at 58 VDC
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

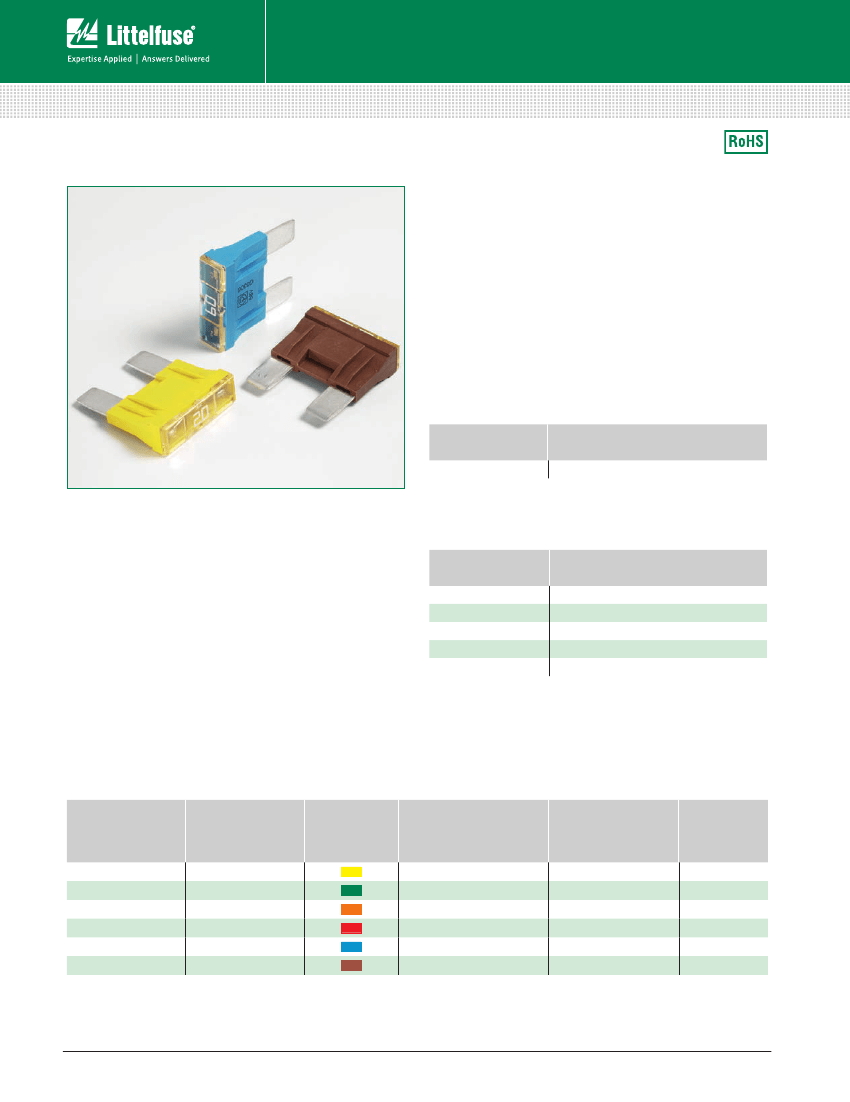

Blade Fuses

TOE MAXI

®

STYLE BLADE FUSE RATED 58V

Specifications

Insulating Body:

Cover:

Terminals:

Out of thermoplastic (UL 94-V0, heat-resistant)

Out of thermoplastic (V0, transparent),

Visible melting-element

Blade contacts

Copper alloy, gal, Sn / alliage cuivreux, gal. Sn

Edge-protected

1000 A @58 VDC

ISO 8820-3:2002(E)

UL 248 Special Purpose Fuses

Interrupting Rating:

Complies with:

Ordering Information

Part Number

142.6885.5xx2

Package Size

1000

Description

The TOE is a MAXI

®

style fuse rated at 58V, featuring three

piece design with copper contacts for excellent reliability in

harsh environment conditions and low voltage drop. Current

ratings 20A thru 70A. With see-through cover for easy detection

of blown fuses.

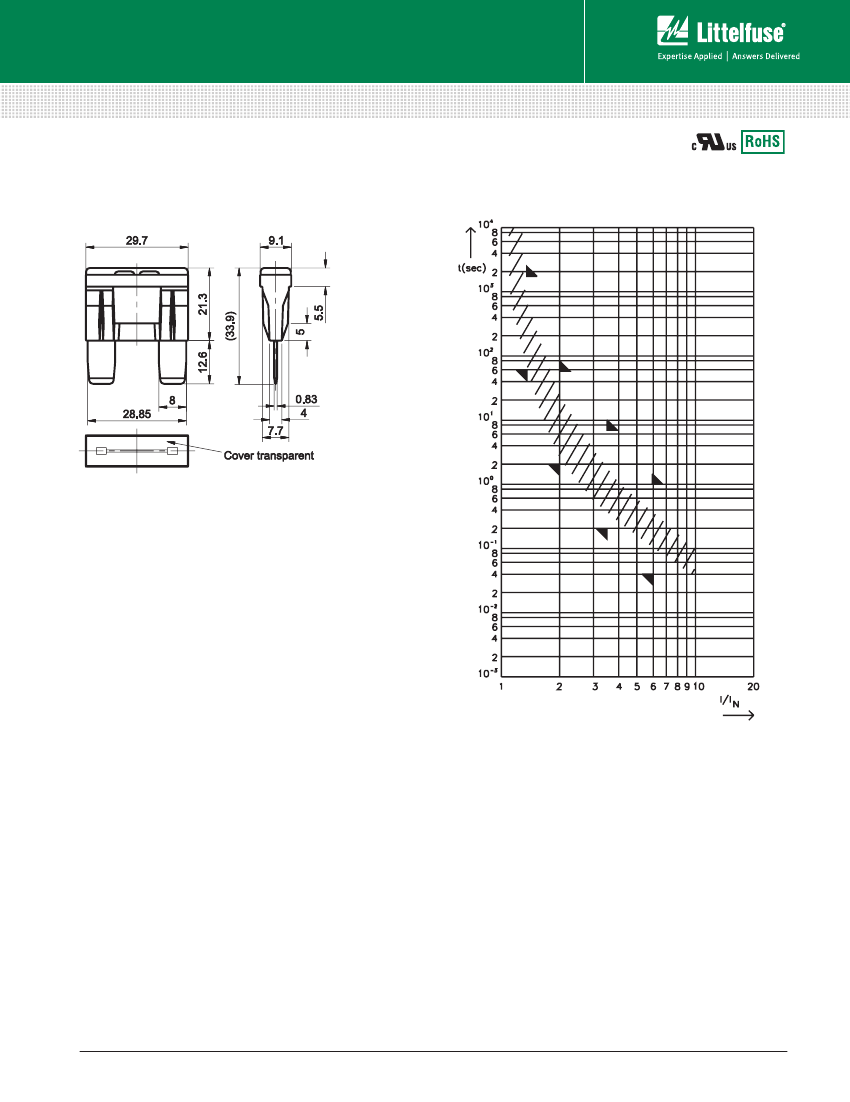

Time-Current Characteristics

% of Rating

100

135

200

350

600

Opening Time Min / Max (s)

360,000 s / –

60 s / 1,800 s

2 s / 60 s

0.20 s / 7 s

0.040 s / 1 s

Ratings

Part Number

142.6885.5202

142.6885.5302

142.6885.5402

142.6885.5502

142.6885.5602

142.6885.5702

Current Rating

20 A

30 A

40 A

50 A

60 A

70 A

Housing Color

Typ. Voltage Drop

Littelfuse max.

110 mV

100 mV

80 mV

85 mV

80 mV

Cold Resistance

3.70 mΩ

2.20 mΩ

1.60 mΩ

1.20 mΩ

0.90 mΩ

0.80 mΩ

I

2

t

1,900 A²s

6,000 A²s

12,000 A²s

26,000 A²s

45,000 A²s

70,000 A²s

Corresponding holder see Section “Fuse Holders.”

www.littelfuse.com
