Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
823 06 120 029
SMD size:
0603
Datum / Date :
ROHS Compliant
2013-01-16
0603 ESD Suppressor WE-VE "ULC"
A
Mechanische Abmessungen / dimensions :
SIZE
SISE
0402
0603
W
0.5
0.8
L
1.0
1.6
T
0.38
0.5
(Unit : mm)
a
0.25
0.3
B
Elektrische Eigenschaften / electrical properties :
TECHNICAL DATA
Part Number
Working
Voltage
DC
12
Max. Clamping
Voltage
V
(*1)
30 typ.
Trigger
Voltage
V
150
Leakage
Current
µA
(*2)
0.01
ESD Pulse
Withstand
ESD Voltage
air discharge
kV
(*3)
+/-15
Capacitance measured at:
Capacitance
pF
(*4)
0.2
1MHz
82306120029
>100
* 1 Max. Clamping Voltage is measured 30ns after ignition of EN61000-4-2 pulse; contact discharge mode
* 2 Leakage Current at max working voltage. For 0.05pf types the leakage current is measured at 6 VDC.
* 3. ESD Typ. Withstands Voltage design and method guarantee this property
* 4. Tolerance of capacitance is ± 0.05pF for 0.05pF types
Design and Specifications are subject to change without notice
REFERENCE DATA
Response time
Operating ambientg temperature
Storage temperature
Max. temperature solder
OTHER DATA
Body
End termination
Packaging
Complies with Standard
Marking
T
rise
<
1
-40½+85
-50½+125
260/10s
Ceramic
Ag/Ni/Sn
Reel
IEC61000-4-2
None
ns
℃
℃
℃
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
823 06 120 029
SMD size:
0603
0603 ESD Suppressor WE-VE "ULC"
C
Lötpad / soldering spec. :
RECOMMENDED SOLDER PAD LAYOUT
SISE
402
603
805
1206
1210
1812
2220
3220
A
0.4~0.6
0.8~1.2
1.0~1.5
1.8~2.5
1.8~2.5
2.5~3.5
3.5~4.6
5.2~6.4
B
1.0~1.8
1.7~3.0
2.1~3.8
3.0~5.8
3.2~6.1
4.0~7.3
5.0~8.5
9.5~10.8
C
0.6~0.7
1.2~1.6
1.5~2.1
1.8~2.6
2.8~3.8
3.3~4.5
5.2~6.2
5.6~6.0
(Unit : mm)
D
0.6~1.2
0.9~1.8
1.1~2.3
1.2~3.3
1.3~3.5
1.5~3.8
1.5~3.9
2.0~2.8
1 - The solder paste shall be printed in a thickness of 150 to 200μm.
2 - The SIR test of the solder paste shall be done（Based on JIS-Z-3284）
3 - IR reflow Pb Free Process suggestin profile (Based on J-STD-020-C):
Rapid heating, partial heating or rapid cooling will easily cause defect of the component. So preheating and gradual cooling process is
suggested. IR soldering has the highest yields due to controlled heating rates and solder liquidus times. Make sure that the element is not
subjected to a thermal gradient steeper than 3 degrees per second. 2 degrees per second is the ideal gradient. During the soldering process,
pre- heating to within 175 degrees of the solders peak temperature is essential to minimize thermal shock.
4 -
Soldering recommend paste is Sn 96.5/Ag 3.5
-
Preheat
1.The temperature rising speed is suggested to be 2~3℃/s.
2.Appropriate preheat time will be from 60 to 120 seconds.
3.Temp. maintain at 175 +/-25°C 120 seconds.
-
Heating
1.Careful about sudden rise in temperature as it may worsen
the solder ability.
2.Set the peak temperature in 235℃10-20s
or 260°C 3-10s.
-
Cooling
1.Ramp down rate 6°C/s max.
※Perform
adequate test in advance as the reflow temperature
profile will vary according to the conditions of the manufacturing
process, and the specification of the reflow furnace
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
823 06 120 029
SMD size:
0603
0603 ESD Suppressor WE-VE "ULC"
D
Rollenspezifikation / tape and reel specification :
1 - Carrier tape and transparent cover tape should be heat-sealed to carry the products, and the reel should be used
to reel the carrier tape.
2 - The adhesion of the heat-sealed cover tape shall be 40
﹢20/ ﹣15grams.
3 - Both the head and the end portion of the taping shall be empty for reel package and SMT auto-pickup machine.
And a normal paper tape shall be conected in the head of taping for the operator to handle.
(Unit : mm)

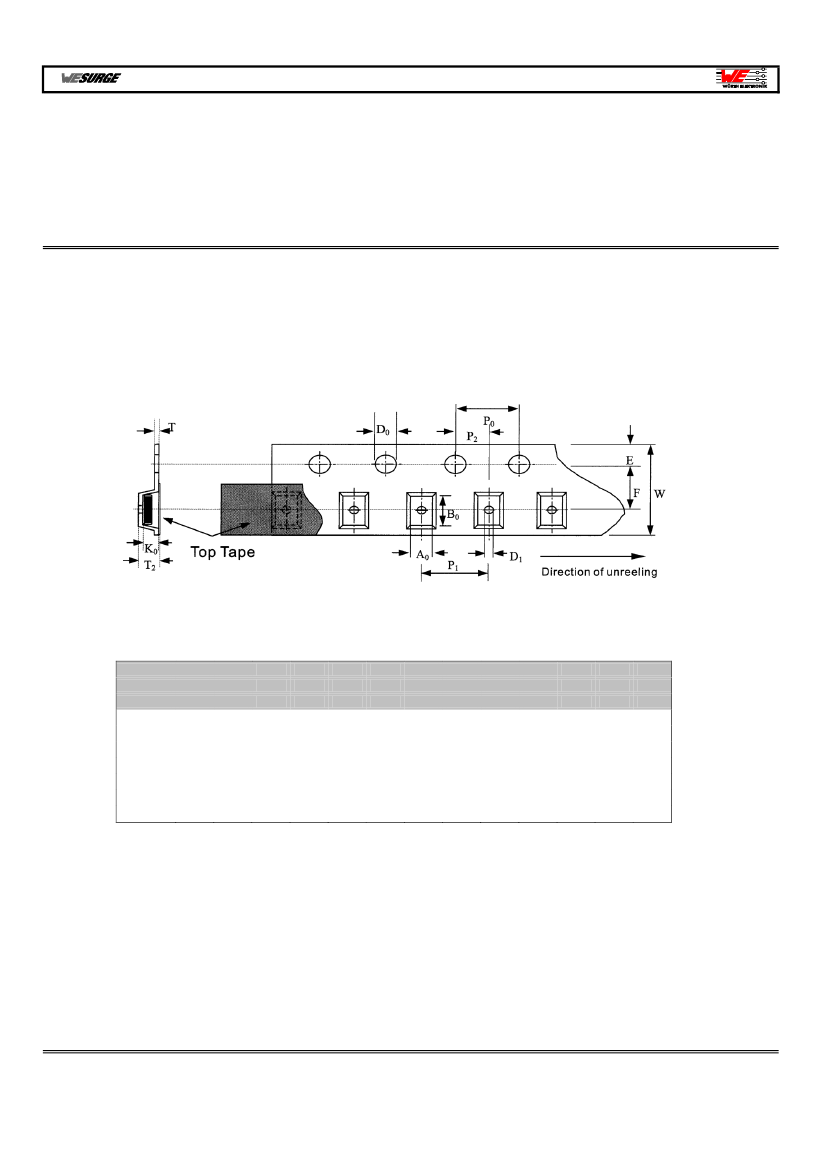

TAPE SPECIFICATION
Symbol
A
0
±0.10
0402
0603
0805
0.85
1.05
1.42
B
0
±0.10
1.25
1.88
2.30
K
0
±0.10
0.65
0.95
1.04
T
2
±0.05
0.22
0.22
0.22
T
±0.05
0.10
0.10
0.10
D
0
+0.10
-0.00
1.50
1.50
1.50
1.00
1.00
1.00
4.00
4.00
4.00
2.00
2.00
2.00
4.00
4.00
4.00
D
1
±0.05
P
1
±0.10
P
2
±0.05
P
0
±0.05
W
(Unit : mm)
E
±0.10
1.75
1.75
1.75
F
±0.05
3.50
3.50
3.50
±0.20
8.00
8.00
8.00
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
823 06 120 029
SMD size:
0603
0603 ESD Suppressor WE-VE "ULC"
D
Rollenspezifikation / tape and reel specification :
(Unit : mm)

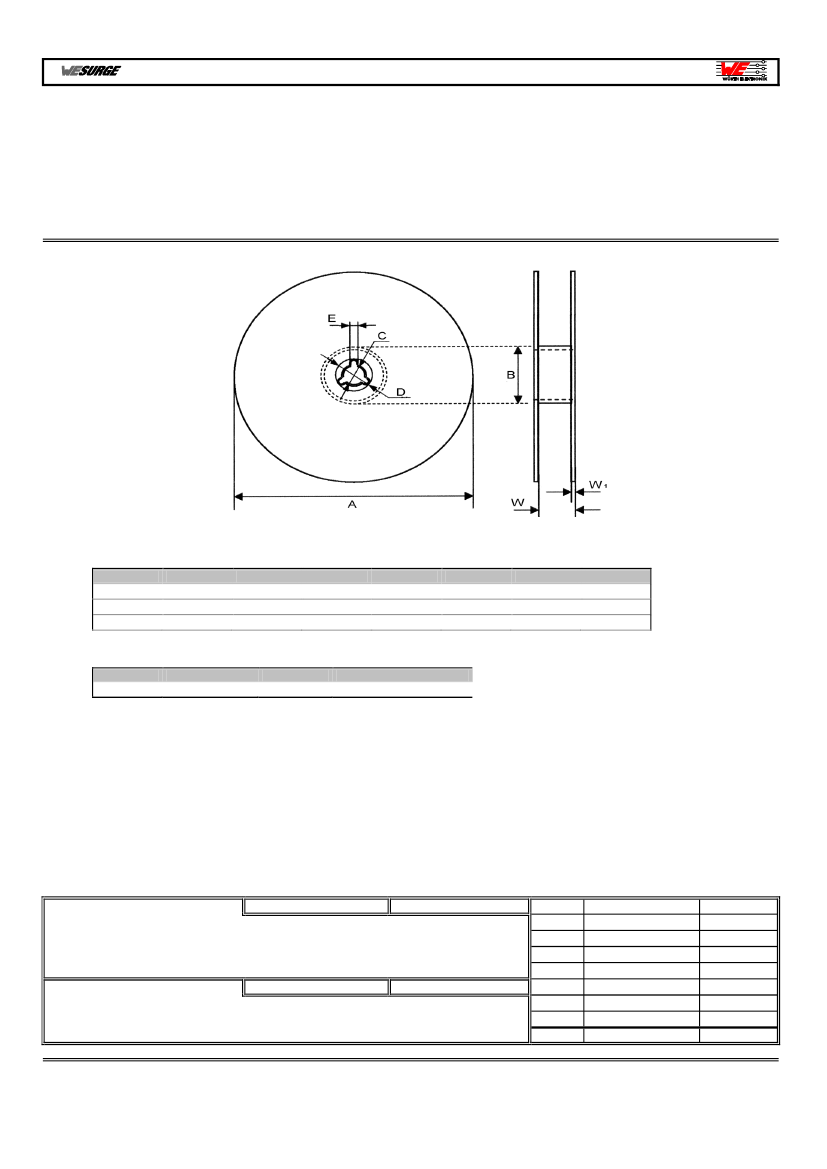

REEL DIMENSION
(Unit : mm)
Symbol
0402
0603
0805
A
178.0±1.0
178.0±1.0
178.0±1.0
B
60.0±0.5
60.0±0.5
60.0±0.5
C
13.0±0.2
13.0±0.2
13.0±0.2
D
21.0±0.2
21.0±0.2
21.0±0.2
E
2.0±0.5
2.0±0.5
2.0±0.5
W
9.0±0.50
9.0±0.50
9.0±0.50
W
1
1.5±0.15
1.5±0.15
1.5±0.15
Type
Pcs/reel
0402
10 000
0603
5 000
0603 @ 0.05pF
4 000
Freigabe erteilt /
general release:
Kunde / customer
Datum / date
Unterschrift / signature
Würth Elektronik
RoD
JB
Correction of Dimensions
Version 1
Änderung / modification
2013-01-16
2008-04-14
Geprüft / checked
2006-07-31
Kontrolliert / approved
JB
Name
Datum / date
Würth Elektronik eiSos GmbH & Co.KG - Radialex department
D-74638 Waldenburg · Max-Eyth-Straße 1 - 3 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.com
