P4KE180A-TP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> P4KE180A-TP

P4KE180A-TP: DescriptionESD Suppressors / TVS Diodes TVS DIODE 400W 1CH UNI DO41; CategoryCircuit protection; File Size704KB，4 Pages; ManufacturerMCC; Websitehttp://www.mccsemi.com

Download Datasheet Parametric View All

P4KE180A-TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	P4KE180A-TP	-	-	View	Buy Now

P4KE180A-TP Overview

ESD Suppressors / TVS Diodes TVS DIODE 400W 1CH UNI DO41

P4KE180A-TP Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	MCC
Product Category	ESD Suppressors / TVS Diodes
RoHS	Details
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Factory Pack Quantity	5000
Unit Weight	0.010582 oz

Preview

Download Datasheet

View All

MCC

Micro Commercial Components

omponents

20736 Marilla Street Chatsworth

!"#

$ % !"#

P4KE6.8(C)A

THRU

P4KE550(C)A

400 Watt

Transient Voltage

Suppressors

6.8 to 550 Volts

DO-41

Features

•

Halogen

free available upon request by adding suffix "-HF"

Unidirectional And Bidirectional

Low Zener Imdepance

High Temp Soldering: 260°C for 10 Seconds At Terminals

For Bidirectional Devices Add “C” To The Suffix Of The Part

Number: i.e. P4KE6.8C or P4KE6.8CA for 5% Tolerance Devices

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Lead Free Finish/RoHS Compliant (Note1) ("P"Suffix designates

Compliant. See ordering information)

•

Maximum Ratings

•

Operating Temperature: -55°C to +175°C

Storage Temperature: -55°C to +175°C

PPM=

400 Watt (Peak Pulse Power Dissipation at Ta=25

°C)

Response Time 1 x 10

-12

Seconds For Unidirectional and 5 x 10

-9

For Bidirectional

M(AV)

=1W(Steady state Power Dissipation at TL=75

°C)

Mechanical Data

•

UL Recognized File # E331408

Cathode

Mark

Polarity

:Color

band denotes cathodes except Bipolar

Mounting position

:Any

Weight

:0.012ounce,0.3grams

Note:

High Temperature Solder Exemption Applied, see EU Directive Annex 7.

DIMENSIONS

INCHES

MIN

.166

.080

.028

1.000

MAX

.205

.107

.034

---

MIN

4.10

2.00

.70

25.40

MAX

5.20

2.70

.90

---

NOTE

DIM

www.mccsemi.com

Revision: D

1 of 4

2013/07/18

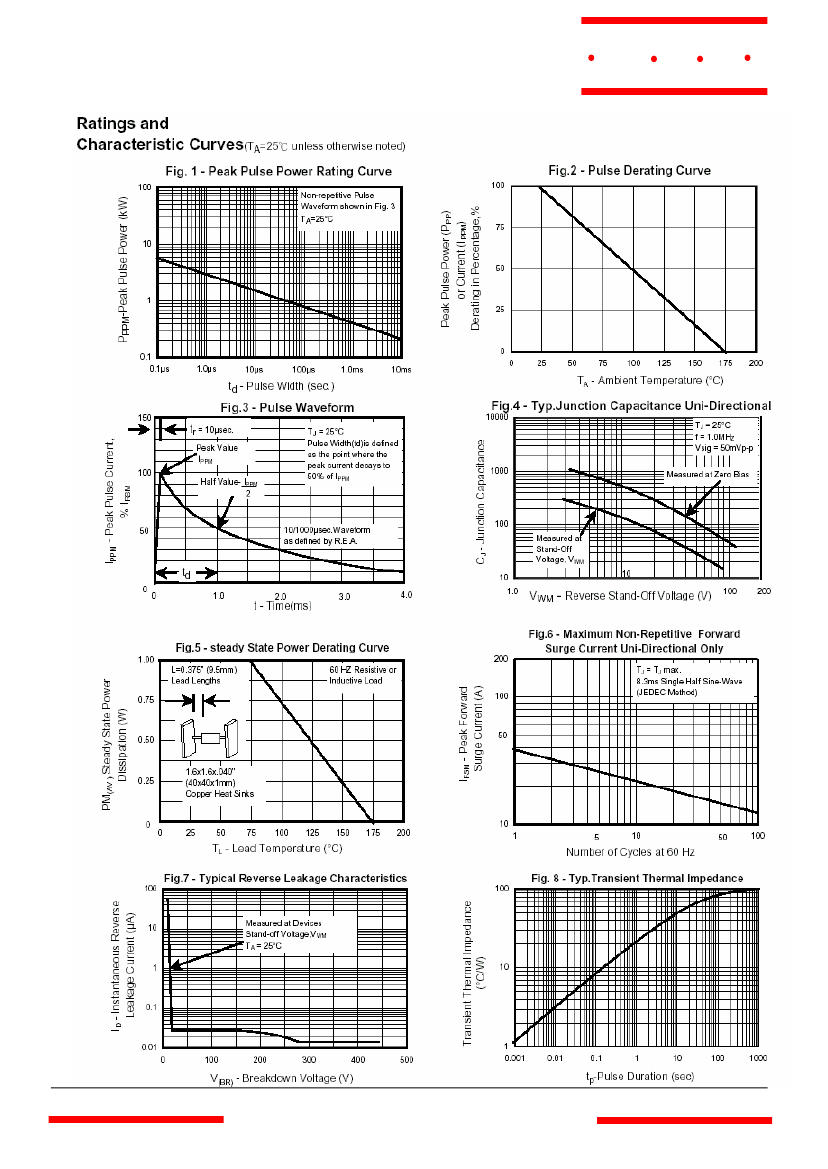

MCC

Micro Commercial Components

Ordering Information :

Device

Part Number-TP

Part Number-AP

Part Number-BP

Note : Adding "-HF" suffix for halogen free, eg. Part Number-TP-HF

Packing

Tape&Reel: 5Kpcs/Reel

Ammo Packing: 5Kpcs/Ammo Box

Bulk: 50Kpcs/Carton

***IMPORTANT NOTICE***

Micro Commercial Components Corp.

reserves the right to make changes without further notice to any product herein to

make corrections, modifications , enhancements , improvements , or other changes .

Micro Commercial Components

Corp .

does not assume any liability arising out of the application or use of any product described herein; neither does it

convey any license under its patent rights ,nor the rights of others . The user of products in such applications shall assume all

risks of such use and will agree to hold

Micro Commercial Components Corp .

and all the companies whose products are

represented on our website, harmless against all damages.

***LIFE SUPPORT***

MCC's products are not authorized for use as critical components in life support devices or systems without the express written

approval of Micro Commercial Components Corporation.

***CUSTOMER AWARENESS***

Counterfeiting of semiconductor parts is a growing problem in the industry. Micro Commercial Components (MCC) is taking

strong measures to protect ourselves and our customers from the proliferation of counterfeit parts. MCC strongly encourages

customers to purchase MCC parts either directly from MCC or from Authorized MCC Distributors who are listed by country on

our web page cited

below.

Products customers buy either from MCC directly or from Authorized MCC Distributors are genuine

parts, have full traceability, meet MCC's quality standards for handling and storage.

MCC will not provide any warranty

coverage or other assistance for parts bought from Unauthorized Sources.

MCC is committed to combat this global

problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized

distributors.

www.mccsemi.com

Revision: D

4 of 4

2013/07/18
