Fuseholders
Introduction
Bulgin’s
extensive range
of fuseholders are
designed
to give the degree of
protection
demanded in today’s sophisticated electronic
equipment. Carrying world-wide safety approvals
from
UL, VDE, CSA
and
IMQ,
all types are
manufactured from high grade flame retardant
nylon
and
polyester
materials.
Designed primarily for 5 x 20mm and 6.3 x 32mm size fuses with
protection against shock to categories PC1, PC2 and PC3. There’s a
choice of styles for in-line, PCB mounting and panel mounting (screw
or snap fit) with terminal options for solder, 2.8mm, 4.8mm or 6.3mm
tabs or PC spills.Dust and waterproof designs provide a front of
panel seal to IP68 in both 5 x 20mm and
6.3 x 32mm size fuses.
Fuse carrier styles include captive drawer, screw cap - with screw
driver release, bayonet cap - with screw driver release and screw cap
- with finger release.
Panel Mounting
IP68 Panel Mounting
IP66 Panel Mounting
PC Mounting
Base Mounting
In-line
303-309
310
311
312-313
314
315-316
Fuseholders 301
Protection Category
Category PC1:
No integral protection against electric shock. If required, Designers/
Manufacturers must provide additional protection against electric shock on
equipment.
Fuseholders
Category PC2:
With integral protection against electric shock. Fuseholders shall have
live parts inaccessible to IEC 60529 Standard Test Finger, when fully
assembled, without fuse carrier or fuse in place and when fuse carrier, with
fuse is being inserted or withdrawn.
Category PC3:
With integral protection against electric shock. Fuseholders shall have
live parts inaccessible to IEC 60529 1mm dia. rigid test wire when fully
assembled, without fuse carrier or fuse in place and when fuse carrier, with
fuse, is being inserted or withdrawn.

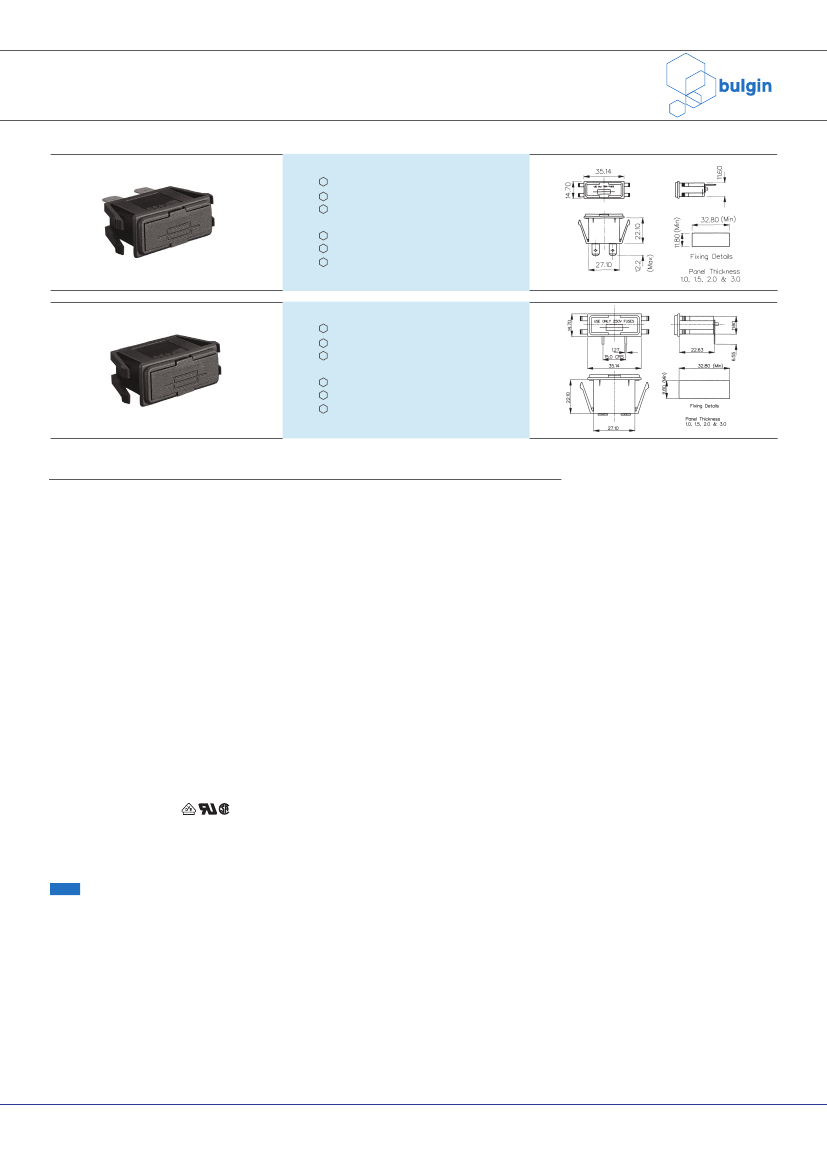

302 Fuseholders
Panel/PC Mounting Captive Carriers Touchproof, PC3
Snap Fit to Panel
Protection Category PC3
Fuse Size 5 x 20mm
Panel Sizes 1.0, 1.5, 2.0 and
3.0mm
Captive Drawer
10A, 250V (16A, 250V UL)
2.8, 4.8 or 6.3 tabs
FX0430/63
Snap Fit to Panel
Protection Category PC3
Fuse Size 5 x 20mm
Panel Sizes 1.0, 1.5, 2.0 and
3.0mm
Captive Drawer
10A, 250V (16A, 250V UL)
PC spills
FX0430/PC
Specifications
Fuse Size:
Fuse Carrier:
Terminations:
Max. Rating:
Max. Power Dissipation:
Insulation Resistance:
A.C. Breakdown:
Contact Resistance:
Operating Temp:
Mouldings:
Body/Drawer:
Cap:
Nut:
Contacts:
Approvals:
Accessories:
Note:
RoHS
Compliant
Compliant
Fuseholders
FX0430/Termination
5 x 20mm
Captive Drawer
/28 (2.8mm solder), /48 (4.8mm tab),
/63 (6.3mm tab)
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10MΩ @ 500V d.c.
>2kV
<10mΩ
–20°C to +85°C
(ambient air temp + fuse temp rise)
Nylon UL94V-0 rated
FX0430/PC
5 x 20mm
Captive Drawer
/PC (PC spills)
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10MΩ @ 500V d.c.
>2kV
<10mΩ
–20°C to +85°C
(ambient air temp + fuse temp rise)
Nylon UL94V-0 rated
Contact tags: Brass, Tin Plated
Fuse Clips: Phospher Bronze, Nickel
Plated
Contact tags: Brass, Tin Plated
Fuse Clips: Phospher Bronze, Nickel Plated

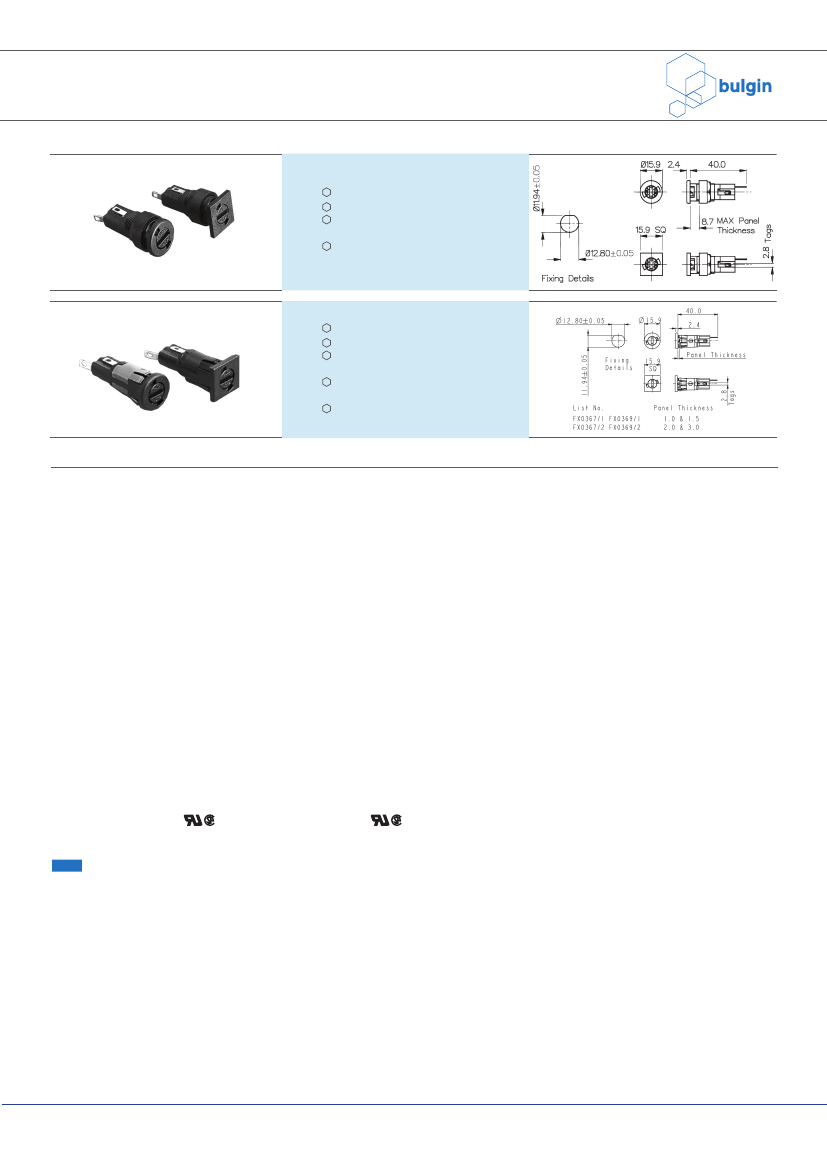

Fuseholders 303
Panel Mounting and Snap Fit Touchproof, PC2
Panel Mount
Protection Category PC2
Fuse Size 5 x 20mm
Bayonet Cap/Screwdriver
Release
10A, 250V (16A, 250V UL)
FX0357
Snap Fit to Panel
Protection Category PC2
Fuse Size 5 x 20mm
Panel Sizes 1.0 & 1.5 and
2.0 & 3.0mm
Bayonet Cap/Screwdriver
Release
10A, 250V (16A, 250V UL)
FX0367
Specifications
Fuse Size:
Panel Size:
Fuse Carrier:
Terminations:
Max. Rating:
Max. Power Dissipation:
Insulation Resistance:
A.C. Breakdown:
Contact Resistance:
Operating Temp:
Mouldings:
Body:
Cap:
Nut:
Contacts:
Approvals:
Accessories:
RoHS
Bayonet cap/Screwdriver release
Solder tags
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10²MΩ @ 500V d.c.
7kV @ 50Hz
<10mΩ
–20°C to +85°C
(ambient air temp + fuse temp rise)
Polyester UL94V-0 rated
Nylon UL94V-0 rated
Glass Filled Nylon UL94V-0 rated
Brass, Silver Plated
*VDE APPROVALS PENDING
P.No. 11327 (See page 206)
Compliant
Fuseholders
FX0359
FX0369
FX0357, FX0359
5 x 20mm
FX0367/Panel, FX0369/Panel
5 x 20mm
/1 (1.0-1.5mm panel, black sleeve)
/2 (2.0-3.0mm panel, grey sleeve)
Bayonet cap/Screwdriver release
Solder tags
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10²MΩ @ 500V d.c.
7kV @ 50Hz
<10mΩ
–20°C to +85°C
(ambient air temp + fuse temp rise)
Polyester UL94V-0 rated
Nylon UL94V-0 rated
Brass, Silver Plated
*VDE APPROVALS PENDING
P.No. 11327 (See page 205)
Compliant

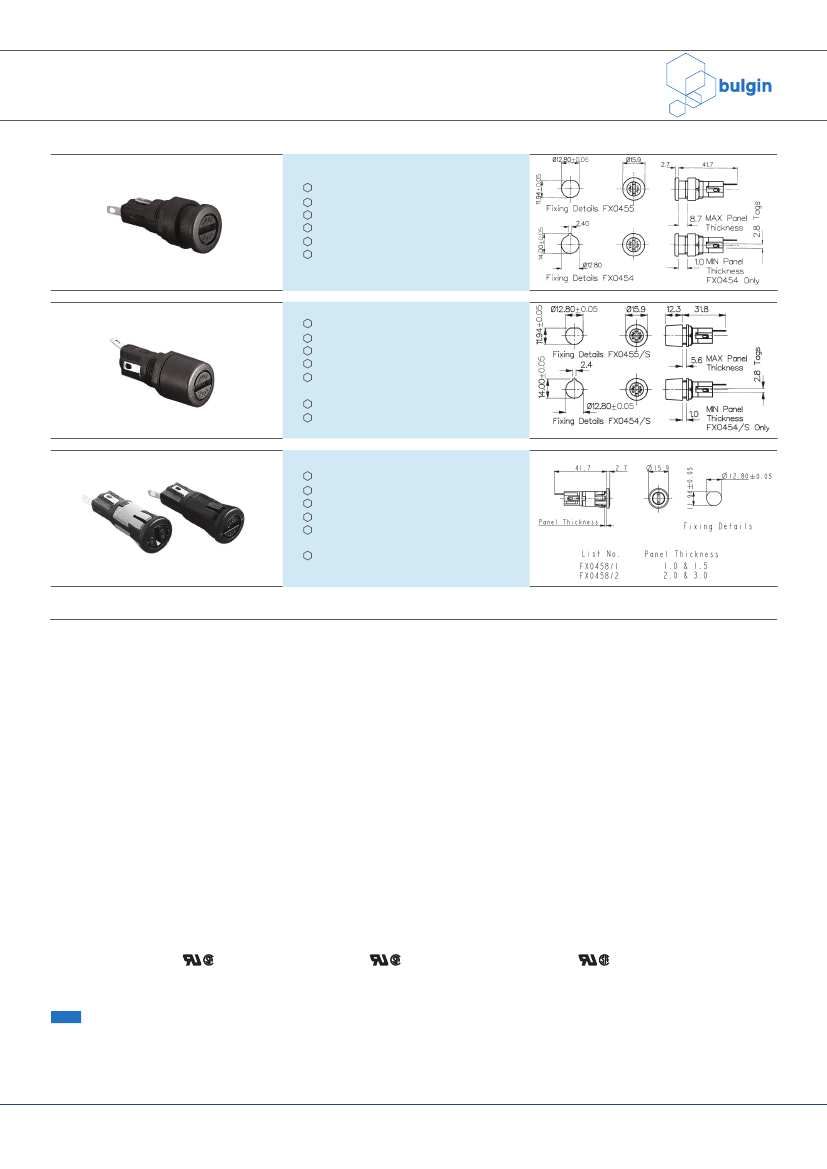

304 Fuseholders
Panel Mounting and Snap Fit Touchproof, PC2
Panel Mount
Protection Category PC2
Fuse Size 5 x 20mm
Screw Cap/Screwdriver Release
Keyway Panel Cutout (FX0454)
D Panel Cutout (FX0455)
10A, 250V (16A, 250V UL)
FX0454,
Panel Mount
FX0455
Protection Category PC2
Fuse Size 5 x 20mm
Screw Cap/Screwdriver Release
High Profile Bezel
Keyway Panel Cutout
(FX0454/S)
D Panel Cutout (FX0455/S)
10A, 250V (16A, 250V UL)
Fuseholders
FX0454/S,
Snap Fit to Panel
FX0455/S
Protection Category PC2
Fuse Size 5 x 20mm
Panel Sizes 1.0 & 1.5 and
2.0 & 3.0mm
Screw Cap/Screwdriver
Release
10A, 250V (16A, 250V UL)
FX0458
Specifications
Fuse Size:
Panel Size:
Fuse Carrier:
Terminations:
Max. Rating:
Max. Power Dissipation:
Insulation Resistance:
A.C. Breakdown:
Contact Resistance:
Operating Temp:
Mouldings:
Body:
Cap:
Nut:
Contacts:
Approvals:
Accessories:
RoHS
Screw cap/Screwdriver release
Solder tags
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10²MΩ @ 500V d.c.
7kV @ 50Hz
<10mΩ
–20°C to +85°C
(ambient air temp + fuse temp rise)
Polyester UL94V-0 rated
Nylon UL94V-0 rated
Glass Filled Nylon UL94V-0 rated
Brass, Silver Plated
*VDE APPROVALS PENDING
P.Nos. 11327, 12297 & 12298
(See page 206)
Compliant
Screw cap/Screwdriver release
Solder tags
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10²MΩ @ 500V d.c.
7kV @ 50Hz
<10mΩ
–20°C to +85°C
(ambient air temp + fuse temp rise)
Polyester UL94V-0 rated
Nylon UL94V-0 rated
Glass Filled Nylon UL94V-0 rated
Brass, Silver Plated
*VDE APPROVALS PENDING
P.Nos. 11327, 12297 & 12298
(See page 206)
Compliant
P.Nos. 11327
(See page 205)
Compliant
FX0454, FX0455
5 x 20mm
FX0454/S, FX0455/S
5 x 20mm
FX0458
5 x 20mm
/1 (1.0-1.5mm panel, black sleeve)
/2 (2.0-3.0mm panel, grey sleeve)
Screw cap/Screwdriver release
Solder tags
10A, 250V (16A, 250V a.c. UL)
2.5W (@ 23ºC)
>10²MΩ @ 500V d.c.
7kV @ 50Hz
<10mΩ
–20°C to +85°C
(ambient air temp + fuse temp rise)
Polyester UL94V-0 rated
Nylon UL94V-0 rated
Brass, Silver Plated
Fuseholders 305
