LC302J2J datasheet, PDF - EEWORLD Datasheet

LC302J2J: DescriptionNTC Thermistors Thermistor, NTC, 3K ohm +/- 5% Epoxy Coated; CategoryCircuit protection; File Size45KB，1 Pages; ManufacturerU.S. Sensor; Websitehttp://www.ussensor.com/

Download Datasheet Parametric View All

LC302J2J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LC302J2J	-	-	View	Buy Now

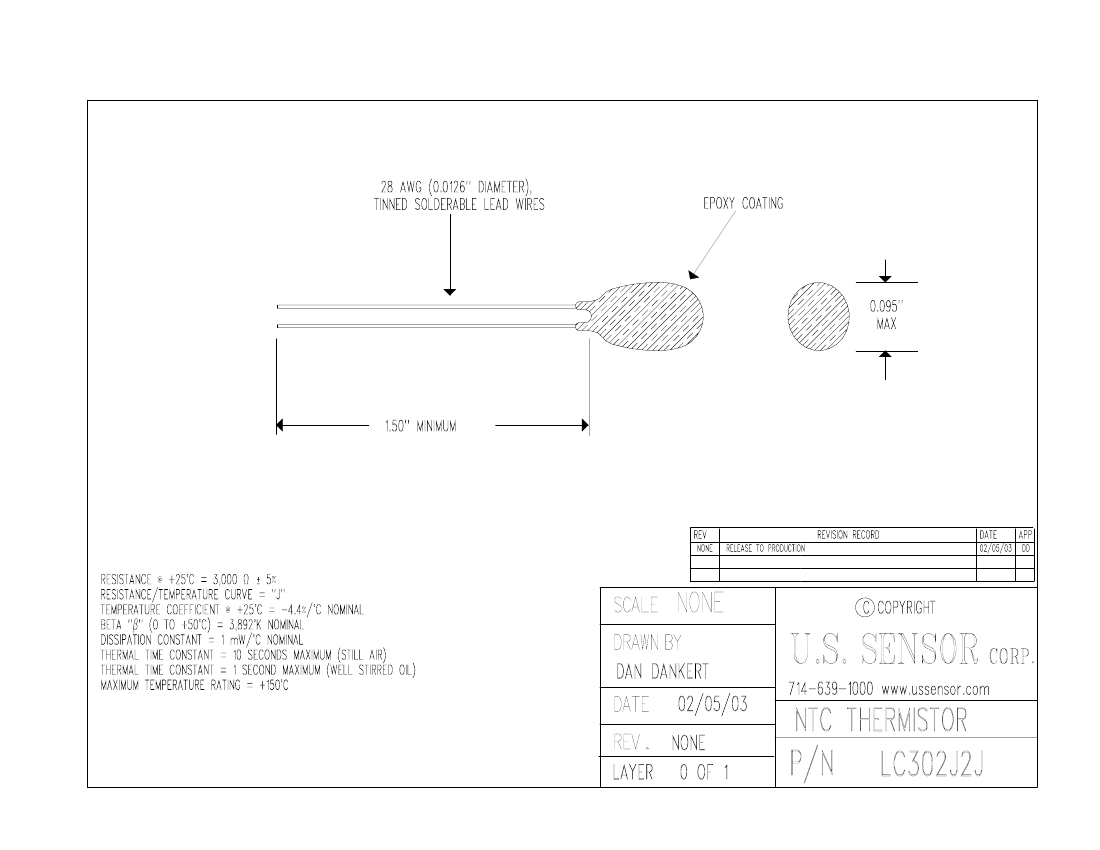

NTC Thermistors Thermistor, NTC, 3K ohm +/- 5% Epoxy Coated

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	U.S. Sensor
Product Category	NTC Thermistors
RoHS	Details
B Parameter	3892 K
Resistance	3 kOhms
Tolerance	5 %
Termination Style	Radial
Diameter	0.095 in
Packaging	Bulk
Temperature Coefficient	- 4.4 % / C
Type	NTC
Lead Diameter	0.0126 in
Maximum Operating Temperature	+ 150 C
Factory Pack Quantity	100
