Rev. Sep. 15
SolidMatrix
®

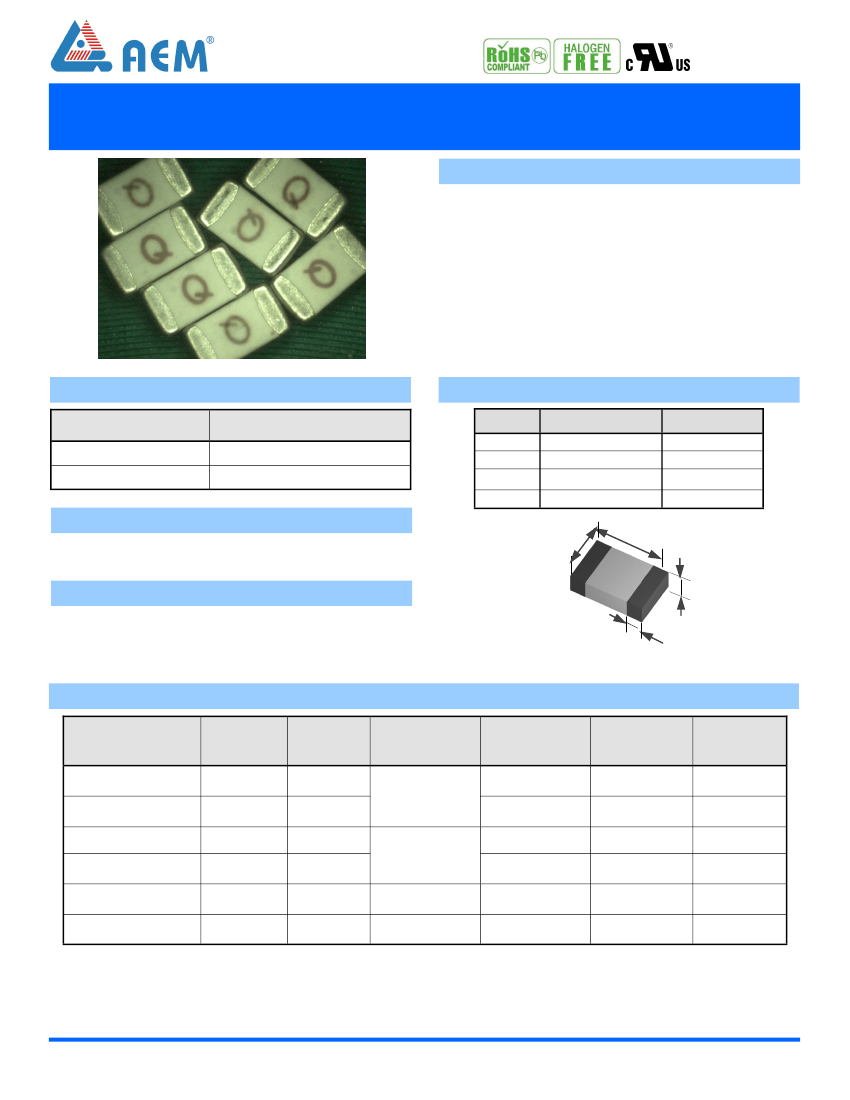

Surface Mount Fuses
HB Series (High Current), 1206 Size
Features:
Clearing Time Characteristics:
% of current rating
100%
350%
Special products for high current rating applications
Higher current ratings and excellent inrush current
withstanding capability (high I
2
t)
Glass ceramic monolithic structure
Silver fusing element and silver termination with nickel and
tin plating
Superior arc suppression capability
Symmetrical design with marking on both sides (optional)
Operating temperature range: -55° to 125° (with de-
C
C
rating)
Shape and Dimensions:
Unit
L
W
T
B
Clearing time at 25°
C
4 hours min.
5 seconds max.
Inch
0.126 ± 0.008
0.063 ± 0.008
0.038 ± 0.008
0.020 ± 0.010
mm
3.20 ± 0.20
1.60 ± 0.20
0.97 ± 0.20
0.51 ± 0.25
Agency Approval:
Recognized Under the Components Program of UL.
File Number: E232989.
W
L
Patents:
Patent numbers “US6,034,589”, “US6,602,766”, “US6,844,278”,
“ZL00134544.3”, “ZL02114719.1”, “ZL201020551360.8”,
“ZL201010299185.2”, “ZL201220030614.0”,
“ZL201210020693.1”.
T
B
Ordering Information:
Part Number
F1206HB10V024T
F1206HB12V024T
F1206HB15V024T
F1206HB20V024T
F1206HB25V024T
F1206HB30V024T
Current
Rating
(A)
10
12
15
20
25
30
Voltage
Rating
(VDC)
24
24
24
24
24
24
Interrupting
Ratings
150 A at rated
voltage
200 A at rated
voltage
250 A at rated
voltage
300 A at rated
voltage
Nominal Cold
DCR(Ω)
1
0.0045
0.0039
0.0031
0.0020
0.0016
0.0012
Nominal I
2
t
(A
2
s)
2
12
19
34
64
187
270
Marking
(Optional)
3
Q
X
Y
Z
S
V
1. Measured at ≤ 10% rated current and 25
o
C ambient.
2. Melting I
2
t at 1000% of current rating.
3. Red Marking Character Code.
Website:
www.aemchina.com & www.aemcomponents.com
28
Rev. Sep. 15
SolidMatrix
®
Surface Mount Fuses
HB Series (High Current), 1206 Size

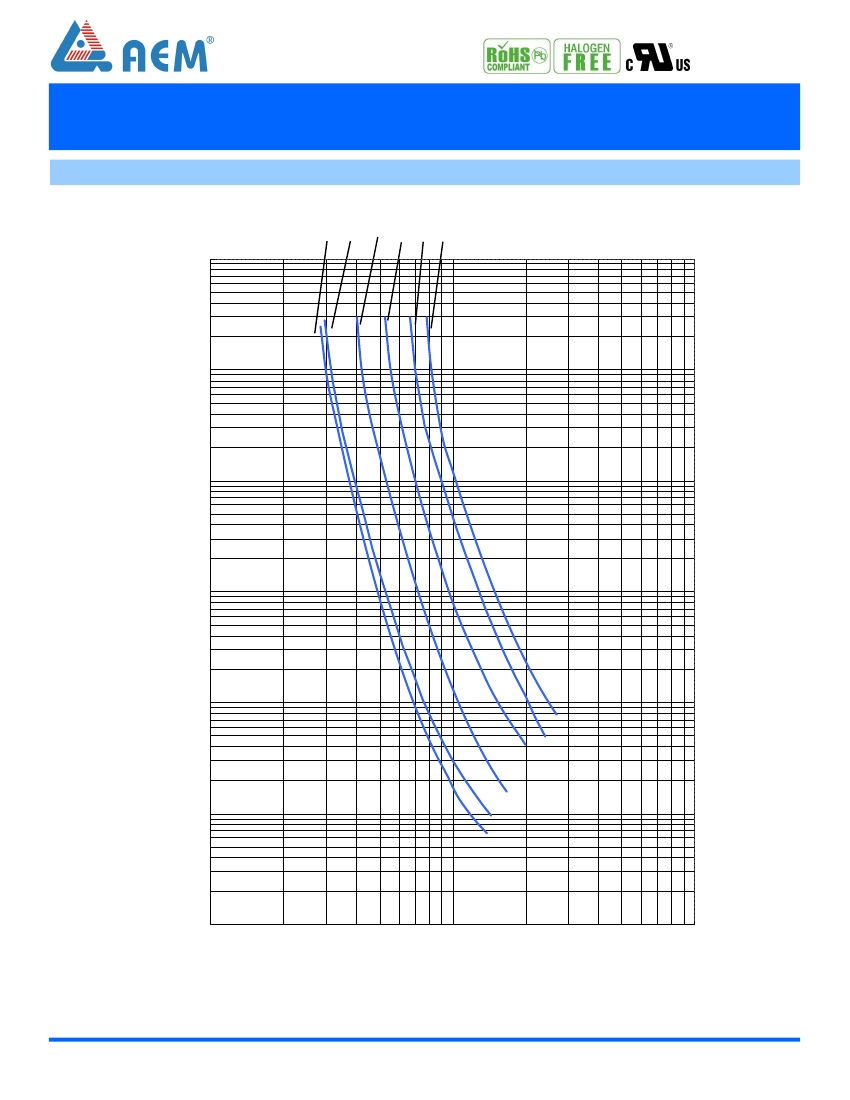

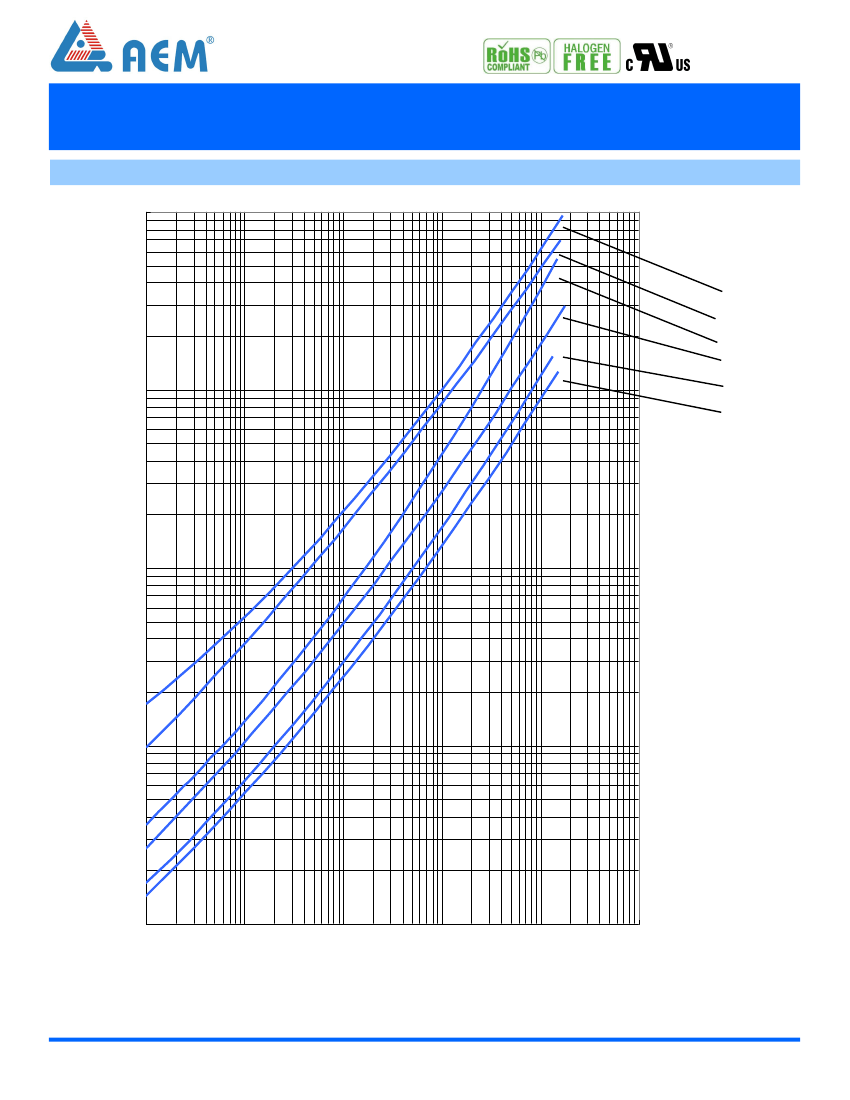

Average Pre-arcing Time Curves:
10 A
12 A
15 A
20 A
25 A
30 A
100
100
10
Clearing Time (s)
Pre-arcing Time (s)
1
0.1
0.01
0.001
0.0001
10
1000
Current (A)
29
Website:
www.aemchina.com & www.aemcomponents.com
