1. Always check applicable end use standards for required spacing between blocks, fuses or other hardware.
2. For applications above 700 V, consult appropriate electrical standard for proper creepage distances, clearance distances and insulator
voltage withstand ratings.
*
Applicable only to BH-200_ configuration — no agency information, no connector.
Dimensions: — mm/in

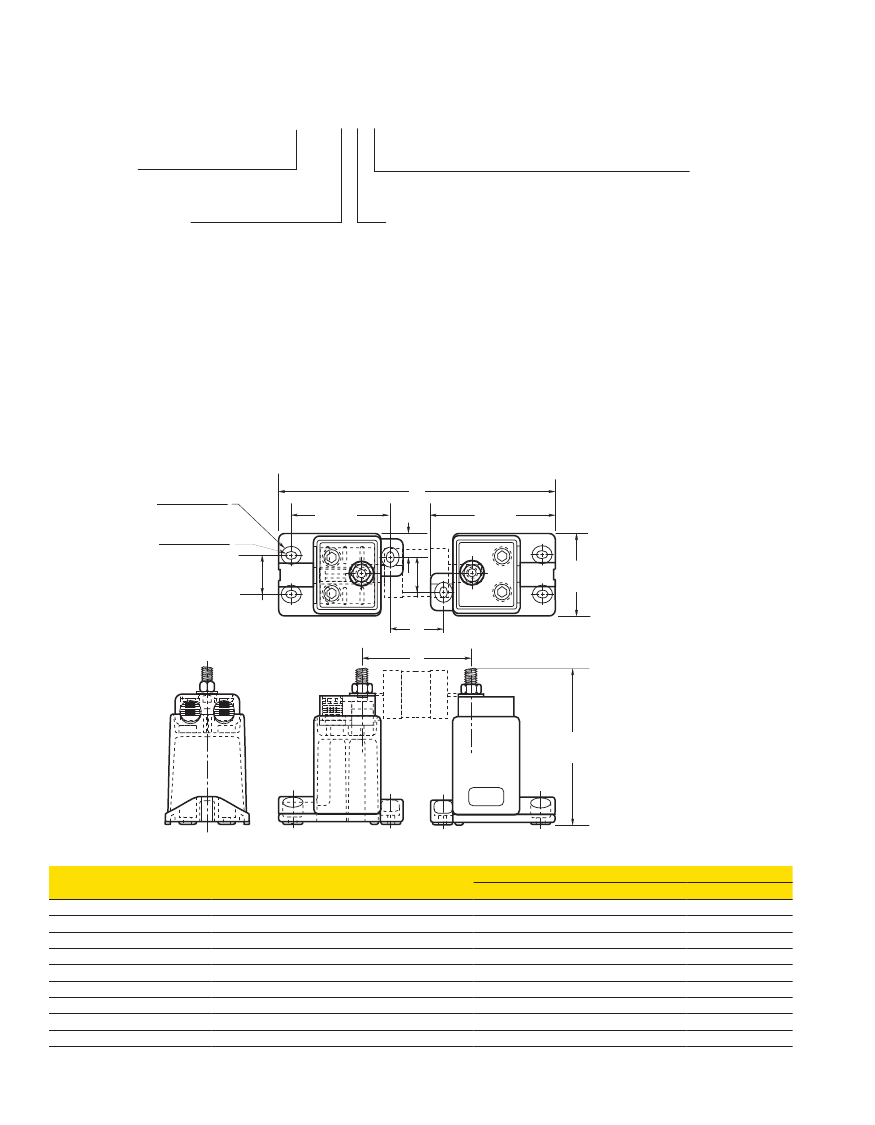

See Table 1 for A, B and C dimensions per fuse catalog symbol/
ampacity and block catalog number from build-a-code.
(Typ. 3)
13.97 x 15.62
0.55" x .615"
6.60 x 9.53
0.26" x 0.375"
(Typ. 3)
31.75
1.25"
79.50
3.13”
B
17.78
0.7"
99.82
3.93"
67.31
2.65"
31.75
1.25"
A
C
126.36
4.975"
Table 1. Mounting dimensions - mm (in)
Bussmann series fuse
catalog symbol (amp range)
170E7183
170E7184
170E7185
170E7187
170E7188
170E7189
170E8129
170E9629
170E9630
Fuse block cat.
no.
Stud dia. (in)
BH-2033
3/8
BH-2033
3/8
BH-2033
3/8
BH-2033
3/8
BH-2033
3/8
BH-2033
3/8
BH-2033
3/8
BH-2033
3/8
BH-2033
3/8
Fuse volts
5000
5000
5000
5000
5000
5000
3300
4000
4000
A
450.09 (17
.720)
450.09 (17
.720)
450.09 (17
.720)
450.09 (17
.720)
450.09 (17
.720)
450.09 (17
.720)
163.07 (6.420)
299.97 (11.810)
299.97 (11.810)
Dimensions — mm (in)
B
C
629.41 (24.780)
495.05 (19.490)
629.41 (24.780)
495.05 (19.490)
629.41 (24.780)
495.05 (19.490)
629.41 (24.780)
495.05 (19.490)
629.41 (24.780)
495.05 (19.490)
629.41 (24.780)
495.05 (19.490)
342.39 (13.480)
208.03 (8.190)
479.30 (18.870)
344.93 (13.580)
479.30 (18.870)
344.93 (13.580)
2
Eaton.com/bussmannseries
Technical Data 1202
Effective December 2016
BH-2 modular fuse blocks, 700 V, 400 A
The only controlled copy of this data sheet is the electronic read-only version located on the Eaton network drive. All other copies of this document are
by definition uncontrolled. This bulletin is intended to clearly present comprehensive product data and provide technical information that will help the
end user with design applications. Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit
distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin. Once
a product has been selected, it should be tested by the user in all possible applications.
