Z0109DA5AL2 datasheet, PDF - EEWORLD Datasheet

Z0109DA5AL2: Description400V, 0.8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-92; CategoryAnalog mixed-signal IC Trigger device; File Size89KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Related ProductsFound19parts with similar functions to Z0109DA5AL2

Download Datasheet Parametric Compare View All

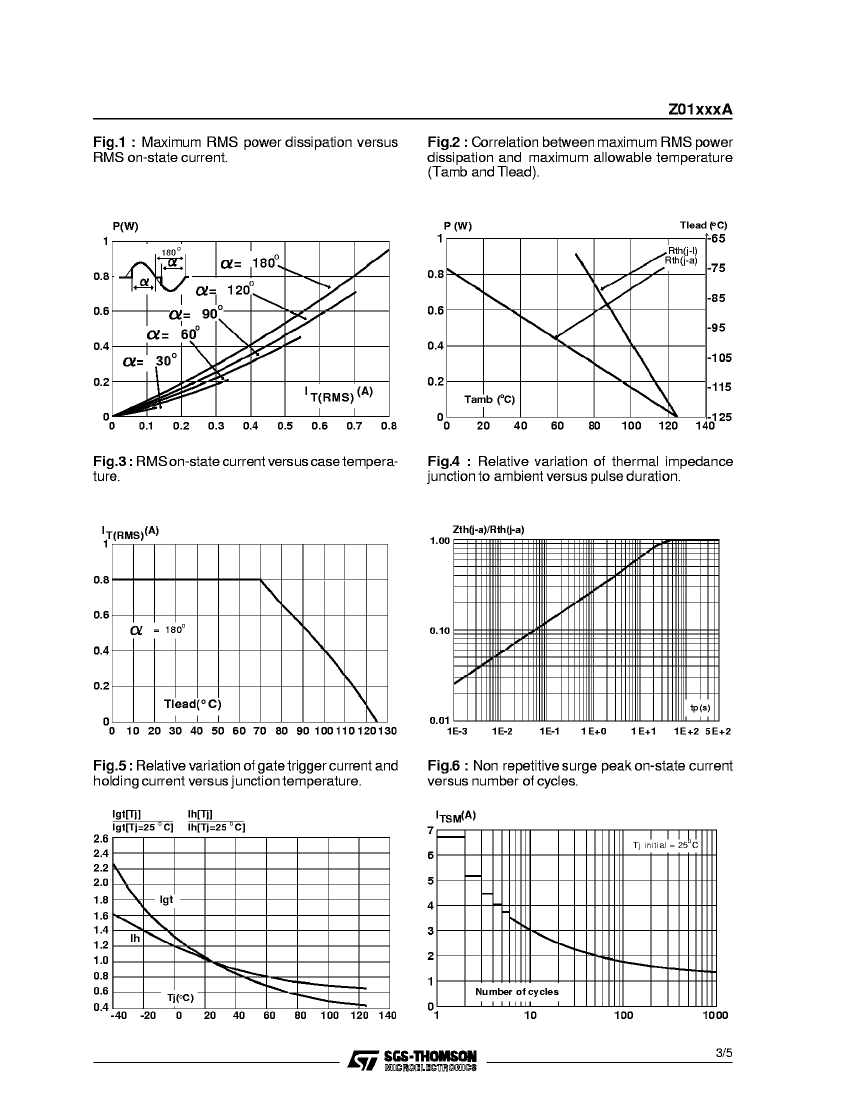

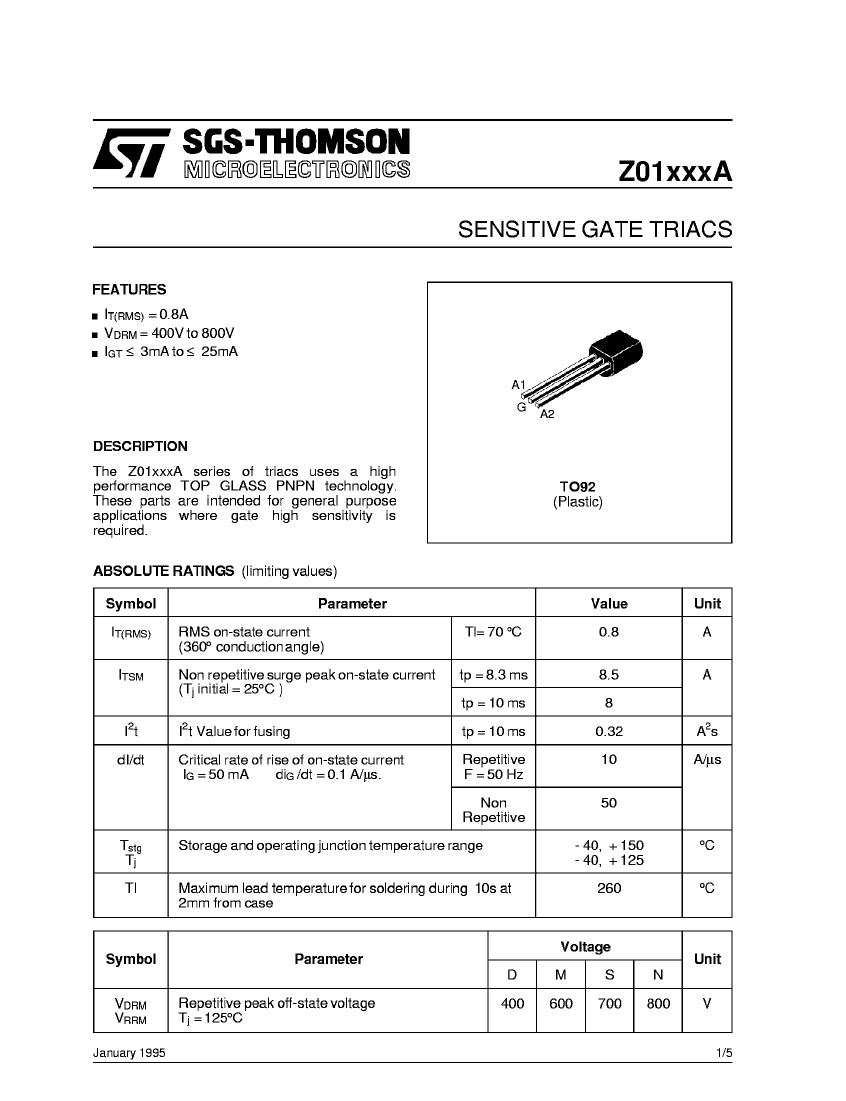

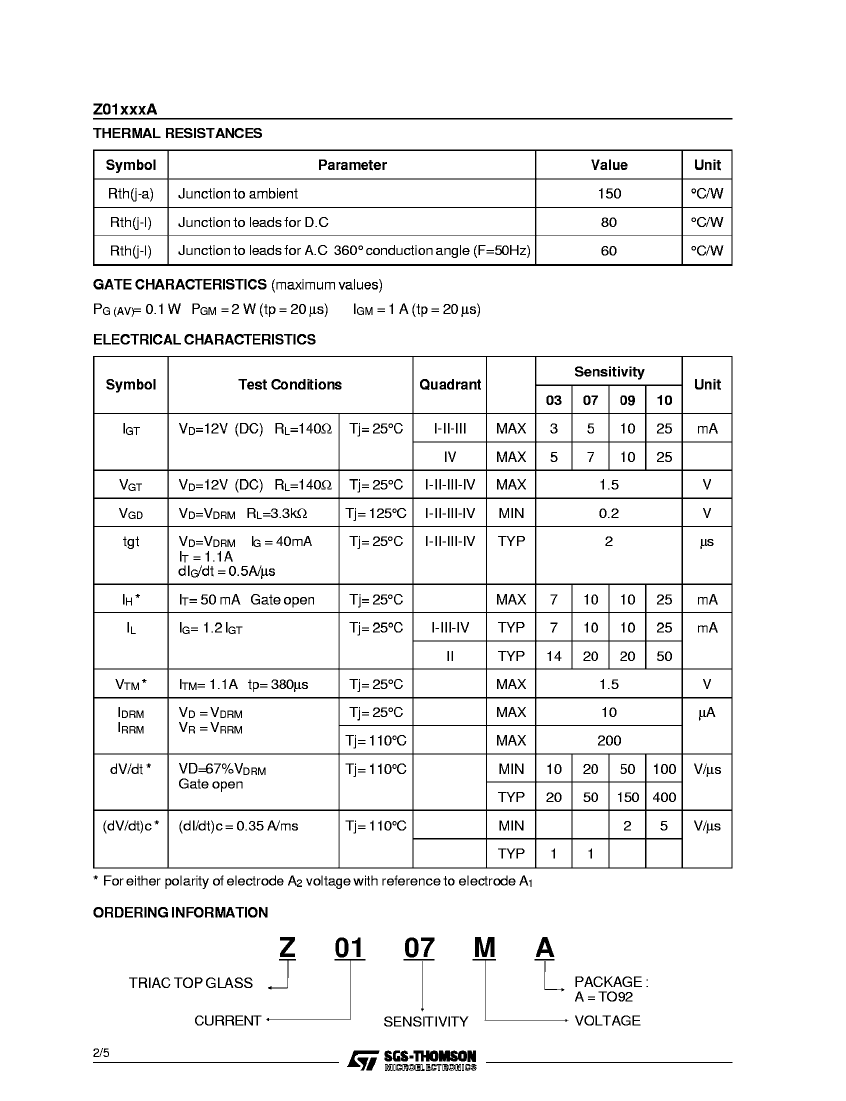

Z0109DA5AL2 Overview

400V, 0.8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-92

Parameter Name	Attribute value

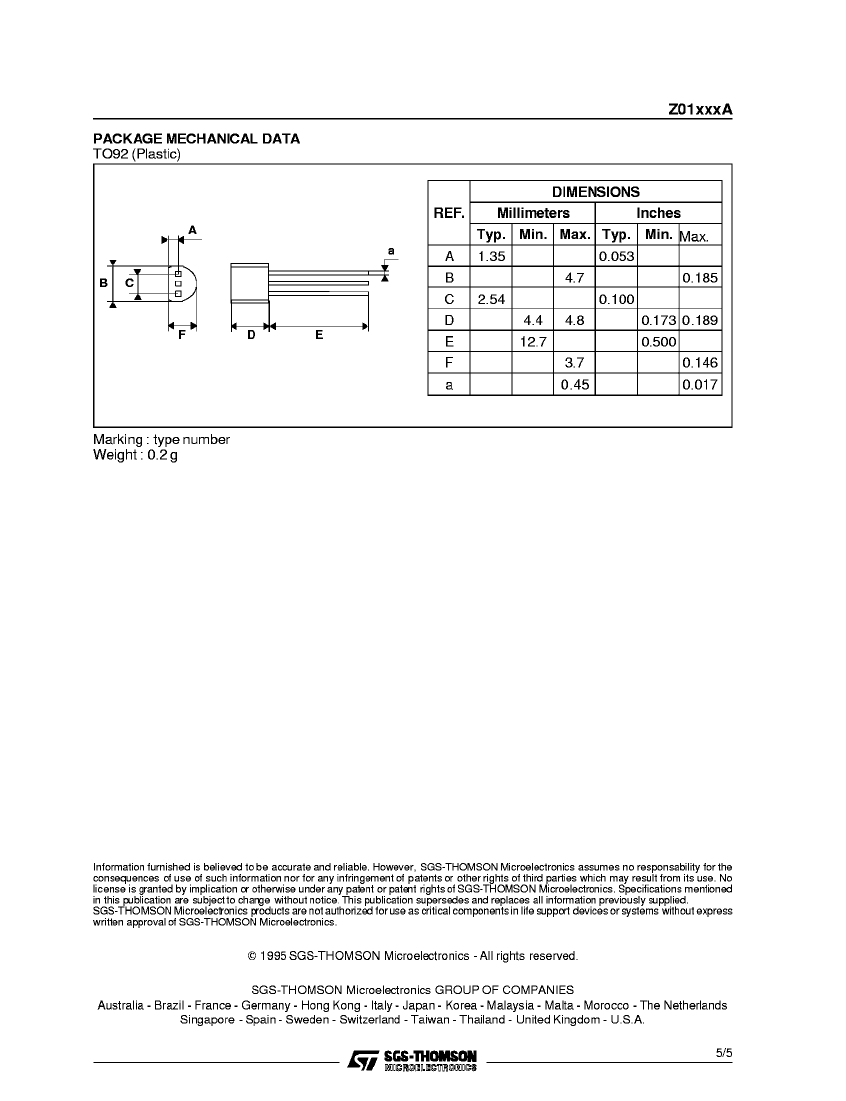

package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow
Other features	SENSITIVE GATE
Configuration	SINGLE
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Certification status	Not Qualified
Maximum rms on-state current	0.8 A
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1

	Z0109DA5AL2	Z0109DA	Z0107DA5AL2
Description	400V, 0.8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-92	400V, 0.8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-92	400V, 0.8A, 4 QUADRANT LOGIC LEVEL TRIAC, TO-92
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknow	not_compliant	unknown
Other features	SENSITIVE GATE	SENSITIVE GATE	SENSITIVE GATE
Configuration	SINGLE	SINGLE	SINGLE
JEDEC-95 code	TO-92	TO-92	TO-92
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1
Number of terminals	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	0.8 A	0.8 A	0.8 A
Off-state repetitive peak voltage	400 V	400 V	400 V
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC	4 QUADRANT LOGIC LEVEL TRIAC
Base Number Matches	1	1	-
Maker	-	STMicroelectronics	STMicroelectronics
