PTCSL03
www.vishay.com
Vishay BCcomponents

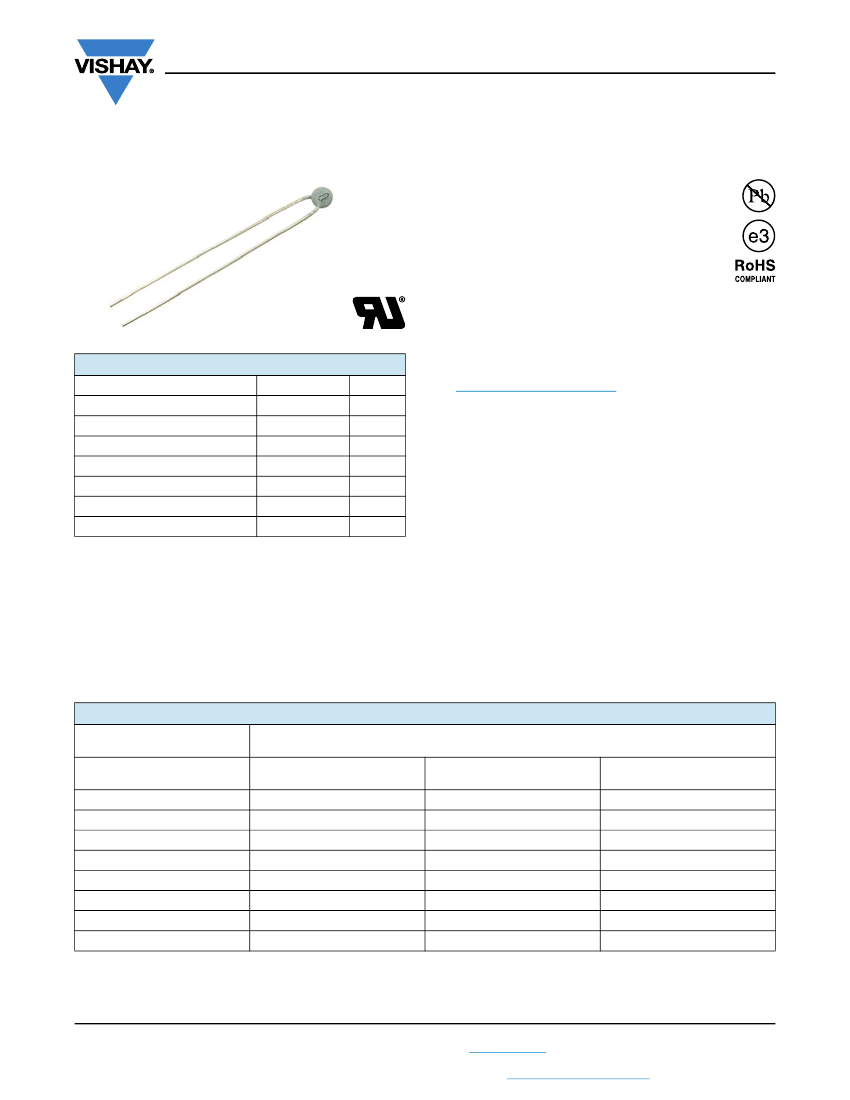

PTC Thermistors, Mini Radial Leaded
for Over-Temperature Protection
FEATURES
• Well-defined protection temperature levels
• Fast response time
• Accurate resistance for ease of circuit design
• Excellent long term behavior (T
1 °C after
1000 h at T
n
+ 15 °C)
• Wide range of protection temperatures (80 °C to 150 °C)
• Small size and rugged
• Coated leaded (bare pellets available)
• Material categorization:
for
definitions
of
compliance
www.vishay.com/doc?99912
QUICK REFERENCE DATA
PARAMETER
Resistance at 25 °C (R
25
)
Nominal working temperature T
n
Maximum voltage
Operating temperature range
(1)
Dissipation factor
Thermal time constant (still air)
Weight
VALUE
20 to 120
80 to 150
30
-40 to +165
5
6
0.12
UNIT
°C
V
°C
mW/K
s
g
please
see
APPLICATIONS
Over-temperature protection and control in:
• Industrial electronics, motor drives, and lighting drivers
• Power supplies, converters, and heat-sink
• Motor protection
DESCRIPTION
These PTC sensing thermistors consist of a medium
resistivity doped barium titanate ceramic with copper clad
steel wires lead (Pb)-free soldered to the Ag metalized pellet.
A high temperature silicone coating covers the sensing body
and has a temperature marking character.
Note
(1)
Max operating temperature range is T +15 °C, indicated value
n
is for T
n
= 150 °C.
PACKAGING
PTC thermistors are available in 500 pieces bulk packed or
2000 pieces tape on reel.
NOMINAL WORKING TEMPERATURES AND ORDERING INFORMATION
NOMINAL WORKING
TEMPERATURE
T
n
(°C)
80
90
100
110
120
130
140
150
BULK
PTCSL03T081DB1E
PTCSL03T091DB1E
PTCSL03T101DB1E
PTCSL03T111DB1E
PTCSL03T121DB1E
PTCSL03T131DB1E
PTCSL03T141DB1E
PTCSL03T151DB1E
VISHAY SAP ORDERING NUMBER
TAPE AND REEL
PTCSL03T081DT1E
PTCSL03T091DT1E
PTCSL03T101DT1E
PTCSL03T111DT1E
PTCSL03T121DT1E
PTCSL03T131DT1E
PTCSL03T141DT1E
PTCSL03T151DT1E
MARKING CODE
8
9
0
1
2
3
4
5
Note
• 2E pitch version in bulk or tape and reel available on request.
Revision: 02-Mar-16
Document Number: 29160
1
For technical questions, contact:
nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PTCSL03
www.vishay.com
Vishay BCcomponents
VALUES
20 to 120
250
300
550
1330
4000
30
UNIT
V (AC or DC)
ELECTRICAL CHARACTERISTICS
PARAMETER
Resistance at 25 °C
Maximum resistance between -20 °C and (T
n
- 20) °C
Maximum resistance at -40 °C
Maximum resistance at (T
n
- 5) °C
Minimum resistance at (T
n
+ 5) °C
Minimum resistance at (T
n
+ 15) °C
Maximum voltage

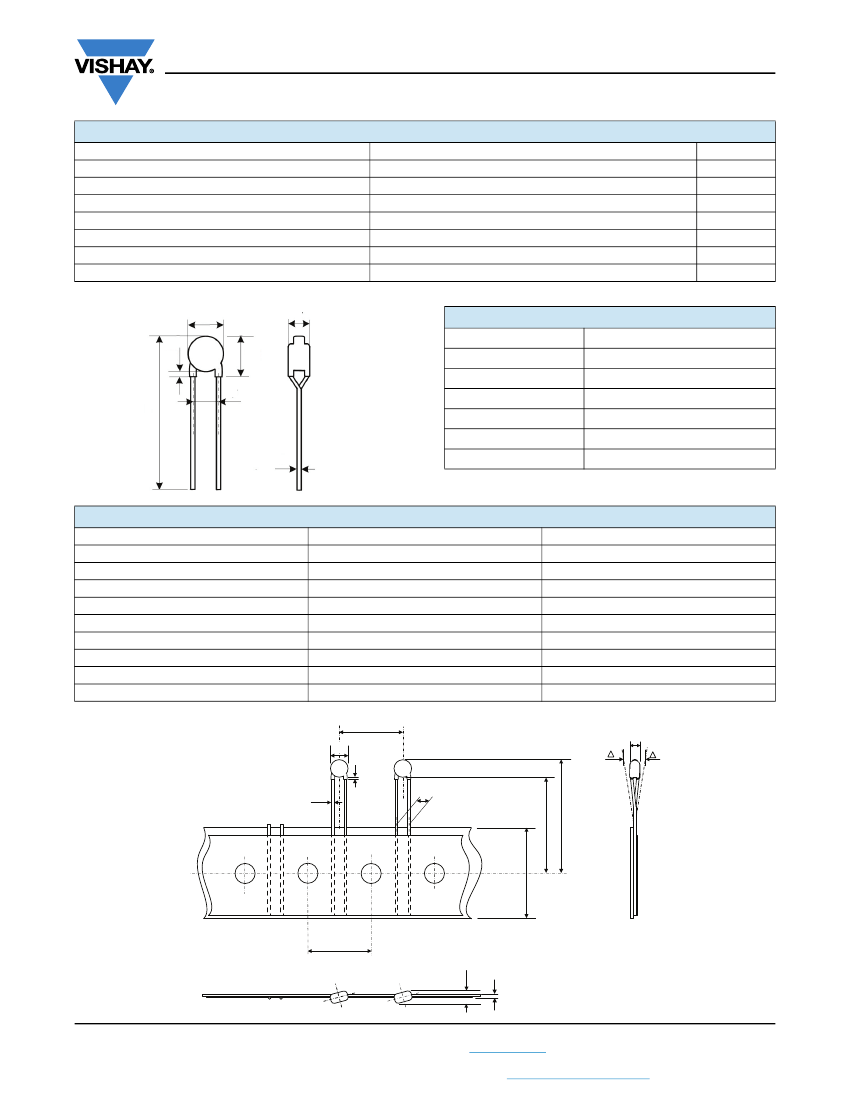

DIMENSIONS
in millimeters
D
H2
H1
T
COMPONENT DIMENSIONS
in millimeters
D
H1
H2
4.0 max.
7.0 max.
3 max.
0.5 ± 0.05
30 ± 3
2.5
3.0 max.
F
L
d
L
F
d
T
TAPING DATA DIMENSIONS
in millimeters (based on IEC 60286-2)
D
d
F
H
H1
h
P, P0
T
T1
W
P
D
H2
d
F
H
H1
T
h
h
Body Diameter
Lead Diameter
Lead to lead center distance
Component seating plane to tape-center
Component top to tape-center
Component alignment
Component pitch, sprocket hole pitch
Total thickness
Total thickness in line of tape
Tape width
4.0 max.
0.5 ± 0.05
2.5 + 0.5 / - 0.2
18.0 + 2.0
25 max.
0±2
12.7
3.0 max.
3.5 max.
18 + 1.0 / - 0.5
W
P0
T1
t
Revision: 02-Mar-16
Document Number: 29160
2
For technical questions, contact:
nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
PTCSL03
www.vishay.com

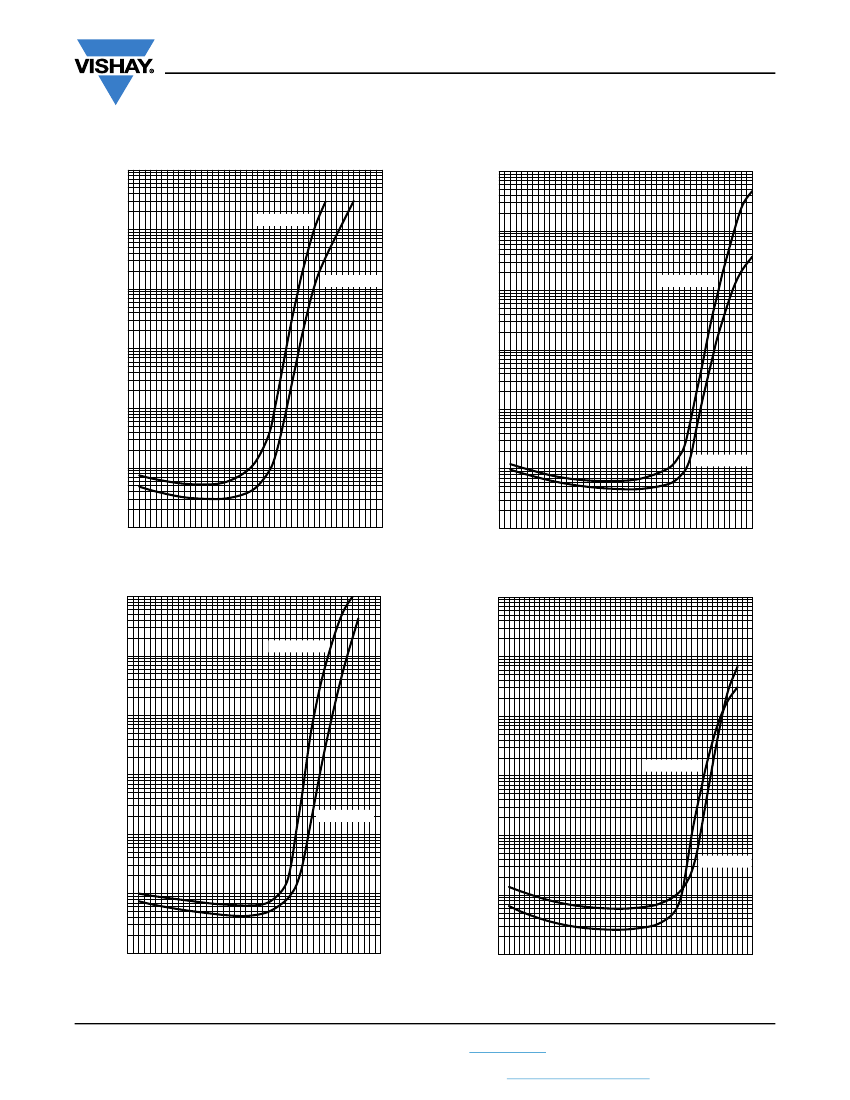

RESISTANCE vs. TEMPERATURE
Typical ( 5 V
DC
)
10
7
10
7
Vishay BCcomponents
10
6
Tn = 80 °C
10
6
10
5
Resistance ()
Tn = 90 °C
10
5
Resistance ()
Tn = 120 °C
10
4
10
4
10
3
10
3
10
2
10
2
Tn = 130 °C
10
-50
-25
0
25
50
75
100
125
150
175
10
-50
-25
0
25
50
75
100
125
150
175
Temperature (°C)
Temperature (°C)
10
7
10
7
10
6
Tn = 100 °C
10
6
10
5
Resistance ()
Resistance ()
10
5
10
4
10
4
Tn = 140 °C
Tn = 110 °C
10
3
10
3
Tn = 150 °C
10
2
10
2
10
-50
-25
0
25
50
75
100
125
150
175
10
-50
-25
0
25
50
75
100 125 150 175 200
Temperature (°C)
Temperature (°C)
Revision: 02-Mar-16
Document Number: 29160
3
For technical questions, contact:
nlr@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
