15656105801

Description
Automotive Fuses STRIP 30 80A W/O HOUSING
CategoryCircuit protection
File Size110KB，1 Pages
ManufacturerLittelfuse
Websitehttp://www.littelfuse.com
Download Datasheet Parametric Compare View All

15656105801 Online Shopping

Suppliers Part Number Price MOQ In stock
15656105801 - - View Buy Now

15656105801 Overview

Automotive Fuses STRIP 30 80A W/O HOUSING

15656105801 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerLittelfuse
Product CategoryAutomotive Fuses
RoHSDetails
ProductBolt Down Fuse
Current Rating80 A
Voltage Rating DC36 VDC
Mounting StyleStud
Termination StyleBolt Down
Fuse TypeFast Blow
Color-
Indicator StyleElement Window
Fuse Size / GroupFUSE STRIP
PackagingBulk
Diameter-
Height0.15 mm
Length41 mm
TypeFuse Strip for Diesel Vehicle
Width11 mm
Factory Pack Quantity100

Preview

Download Datasheet

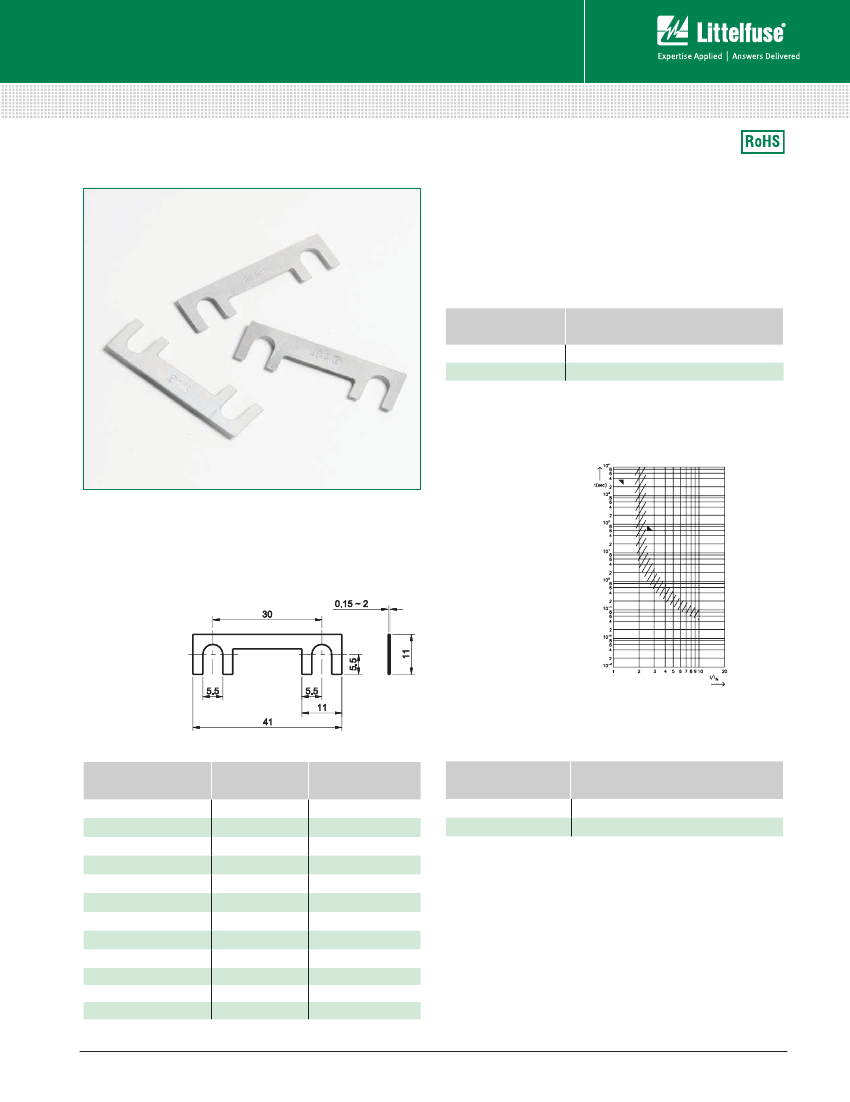

Bolt-down Fuses
FUSE STRIPS FOR DIESEL RATED 36V
Specifications
Metal Parts:
Complies with:
Zinc-alloy
DIN 72581/2
Ordering Information
Part Number
156.5610.xxx1
156.5610.xxx2
Package Size
100
2000
Pre-arcing Time-limits
Description
Non-housed fuse strips for Diesel vehicles.
Current rating 25A - 150A, 36 VDC. 90° fork type lugs.
Dimensions
Dimensions in mm
FI = 1.00 (max. operating current: 1.0 x I
rat
at 23°C)
Ratings
Part Number
156.5610.525_
156.5610.530_
156.5610.540_
156.5610.550_
156.5610.560_
156.5610.570_
156.5610.580_
156.5610.610_
156.5610.611_
156.5610.612_
156.5610.615_
156.5610.625_
Time-Current Characteristics
Current Rating
25 A*
30 A
40 A*
50 A
60 A*
70 A*
80 A
100 A
120 A*
125 A*
150 A*
250A*
Typ. Voltage Drop
70 mV
70 mV
70 mV
70 mV
70 mV
70 mV
70 mV
70 mV
70 mV
70 mV
70 mV
70 mV
% of Rating
130
250
Opening Time Min / Max (s)
3,600 s / –
– / 60 s
*Not mentioned in the standards
Corresponding holder see Section “Fuse Holders.”
© 2012 Littelfuse • Transportation Products Catalog
www.littelfuse.com

15656105801 Related Products

15656105801 15656105501 15656106101 15656105301 15656105401 156.5610.6151 156.5610.6102
