TVS Diodes
Surface Mount – 1500W > TPSMC series
TPSMC Series
Uni-directional
Bi-directional
Description
RoHS
Pb
e3
The TPSMC series is designed specifically to protect
sensitive electronic equipment from voltage transients
induced by lightning and other transient voltage events.
Features
• Hi reliability application
and automotive grade
AEC-Q101 qualified
• For surface mounted
applications to optimize
board space
• Low profile package.
• Typical failure mode is
short from over-specified
voltage or current
• Whisker test is conducted
based on JEDEC
JESD201A per its table 4a
and 4c
• IEC-61000-4-2 ESD
30kV(Air), 30kV (Contact)
• ESD protection of data
lines in accordance with
IEC 61000-4-2
• EFT protection of data
lines in accordance with
IEC 61000-4-4
• Built-in strain relief
•
V
BR
@T
J
= V
BR
@25°C x (1+αT
x (T
J
- 25))
(αT:Temperature Coefficient)
Agency Approvals
AGENCY
AGENCY FILE NUMBER
E230531
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Parameter
Peak Pulse Power Dissipation at
T
A
=25ºC by 10/1000µs Waveform
(Fig.2)(Note 1), (Note 2)
Power Dissipation on Infinite Heat
Sink at T
A
=50
O
C
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
Only
Operating Junction and Storage
Temperature Range
Typical Thermal Resistance Junction
to Lead
Typical Thermal Resistance Junction
to Ambient
Symbol
P
PPM
P
M(AV)
I
FSM
V
F
T
J
, T
STG
R
uJL
R
uJA
Value
1500
6.5
200
3.5
-65 to 150
15
75
Unit
W
W
A
V
°C
°C/W
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 4 and derated above T
A
= 25
O
C per Fig. 3.
2. Mounted on copper pad area of 0.31x0.31” (8.0 x 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only, duty cycle=4 per minute maximum.
• Glass passivated chip
junction
• 1500W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• Fast response time:
typically less than 1.0ps
from 0V to BV min
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical I
R
less than 1µA
above 13V
• High temperature
soldering guaranteed:
260°C/10 seconds at
terminals
• Plastic package is
flammability rated V-0 per
Underwriters Laboratories
• Meet MSL level1, per
J-STD-020, LF maximun
peak of 260
°
C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
• Pb-free E3 means 2nd
level interconnect is
Pb-free and the terminal
finish material is tin(Sn)
(IPC/JEDEC J-STD-
609A.01)

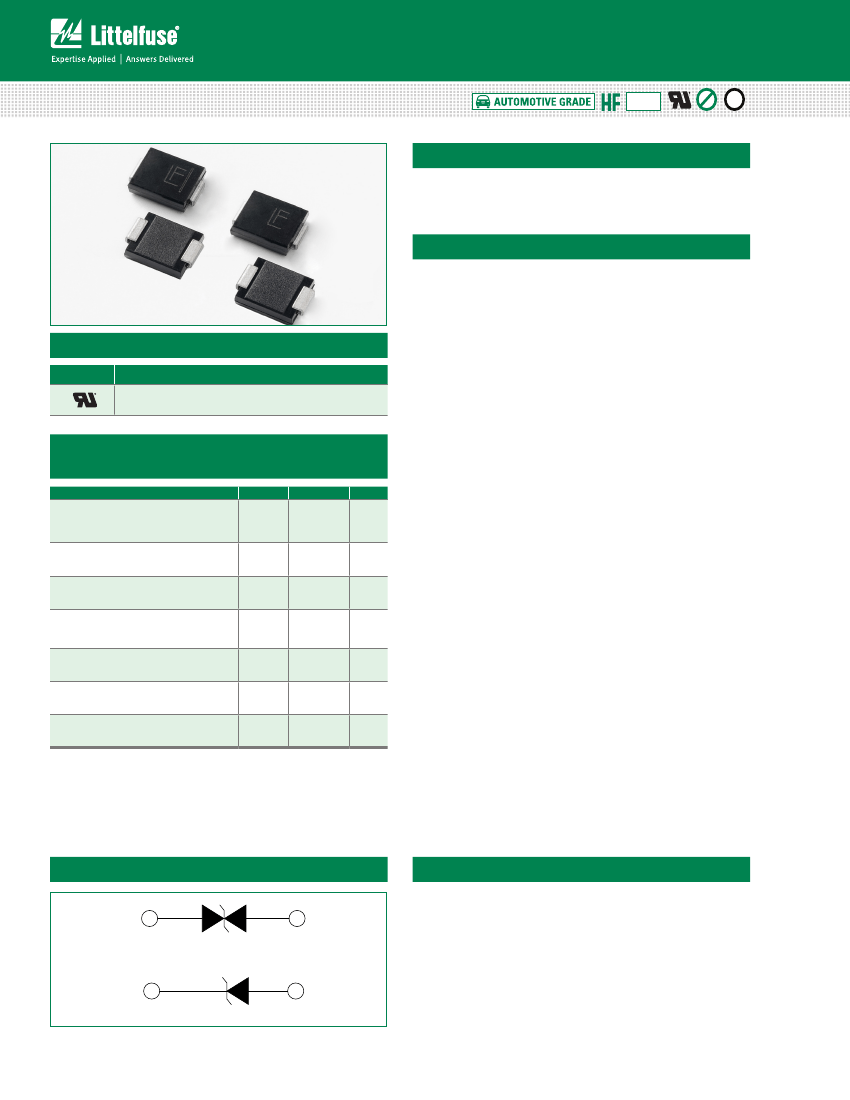

Functional Diagram
Applications
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
Bi-directional
Cathode
Uni-directional
Anode
1
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
TVS Diodes
Surface Mount – 1500W > TPSMC series
Electrical Characteristics
Part
Number
(Uni)
TPSMC12A
TPSMC13A
TPSMC15A
TPSMC16A
TPSMC18A
TPSMC20A
TPSMC22A
TPSMC24A
TPSMC27A
TPSMC30A
TPSMC33A
TPSMC36A
TPSMC39A
TPSMC43A
TPSMC47A
TPSMC51A
TPSMC56A
TPSMC62A
TPSMC68A
TPSMC75A
TPSMC82A
TPSMC91A
Part
Number
(Bi)
TPSMC12CA
TPSMC13CA
TPSMC15CA
TPSMC16CA
TPSMC18CA
TPSMC20CA
TPSMC22CA
TPSMC24CA
TPSMC27CA
TPSMC30CA
TPSMC33CA
TPSMC36CA
TPSMC39CA
TPSMC43CA
TPSMC47CA
TPSMC51CA
TPSMC56CA
TPSMC62CA
TPSMC68CA
TPSMC75CA
TPSMC82CA
TPSMC91CA
Marking
UNI
12AA
13AA
15AA
16AA
18AA
20AA
22AA
24AA
27AA
30AA
33AA
36AA
39AA
43AA
47AA
51AA
56AA
62AA
68AA
75AA
82AA
91AA
BI
12CA
13CA
15CA
16CA
18CA
20CA
22CA
24CA
27CA
30CA
33CA
36CA
39CA
43CA
47CA
51CA
56CA
62CA
68CA
75CA
82CA
91CA
Reverse
Stand off
Voltage
V
R
(Volts)
10.20
11.10
12.80
13.60
15.30
17
.10
18.80
20.50
23.10
25.60
28.20
30.80
33.30
36.80
40.20
43.60
47
.80
53.00
58.10
64.10
70.10
77
.80
Breakdown
Voltage V
BR
(Volts) @ I
T
MIN
11.40
12.40
14.30
15.20
17
.10
19.00
20.90
22.80
25.70
28.50
31.40
34.20
37
.10
40.90
44.70
48.50
53.20
58.90
64.60
71.30
77
.90
86.50
MAX
12.60
13.70
15.80
16.80
18.90
21.00
23.10
25.20
28.40
31.50
34.70
37
.80
41.00
45.20
49.40
53.60
58.80
65.10
71.40
78.80
86.10
95.50
Test
Current
I
T
(mA)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Maximum Maximum Maximum
Clamping
Peak
Reverse
Voltage V
C
Pulse
Leakage I
R
@ I
pp
Current I
pp
@ V
R
(V)
(A)
(µA)
16.7
18.2
21.2
22.5
25.2
27
.7
30.6
33.2
37
.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77
.0
85.0
92.0
103.0
113.0
125.0
91.0
83.5
71.7
67
.6
60.3
54.9
49.7
45.8
40.5
36.7
33.3
30.5
28.2
25.6
23.5
21.7
19.7
17
.9
16.5
14.8
13.5
12.2
5
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Agency
Approval
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
For bidirectional type having V
R
of 10 volts and less, the I
R
limit is double.
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
2
TVS Diodes
Surface Mount – 1500W > TPSMC series

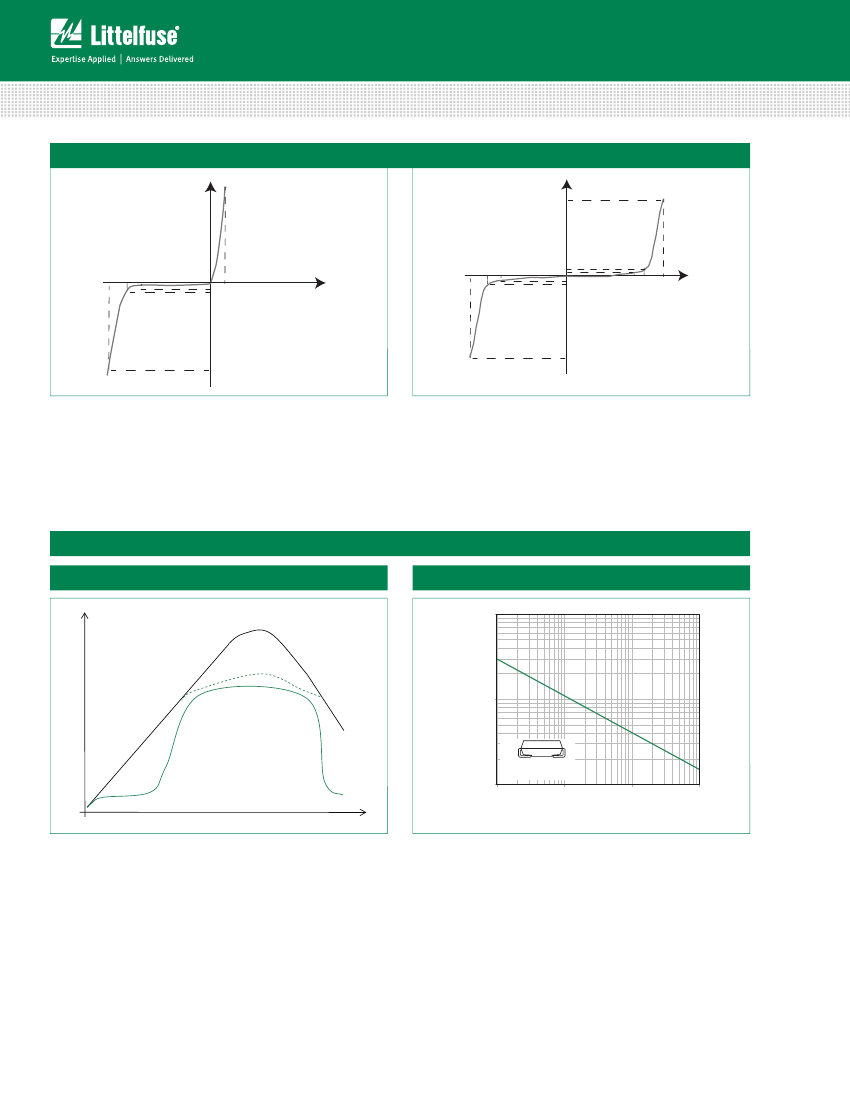

I-V Curve Characteristics
Uni-directional
Bi-directional
I
pp
Vc V
BR
V
R
I
R
V
F
I
T
V
Vc V
BR
V
R
I
T
I
R
I
R
I
T
V
R
V
BR
Vc
V
I
pp
I
pp
P
PPM
V
R
V
BR
V
C
I
R
V
F
Peak Pulse Power Dissipation
-- Max power dissipation
Stand-off Voltage
-- Maximum voltage that can be applied to the TVS without operation
Breakdown Voltage
-- Maximum voltage that flows though the TVS at a specified test current (I
T
)
Clamping Voltage
-- Peak voltage measured across the TVS at a specified Ippm (peak impulse current)
Reverse Leakage Current
-- Current measured at V
R
Forward Voltage Drop for Uni-directional

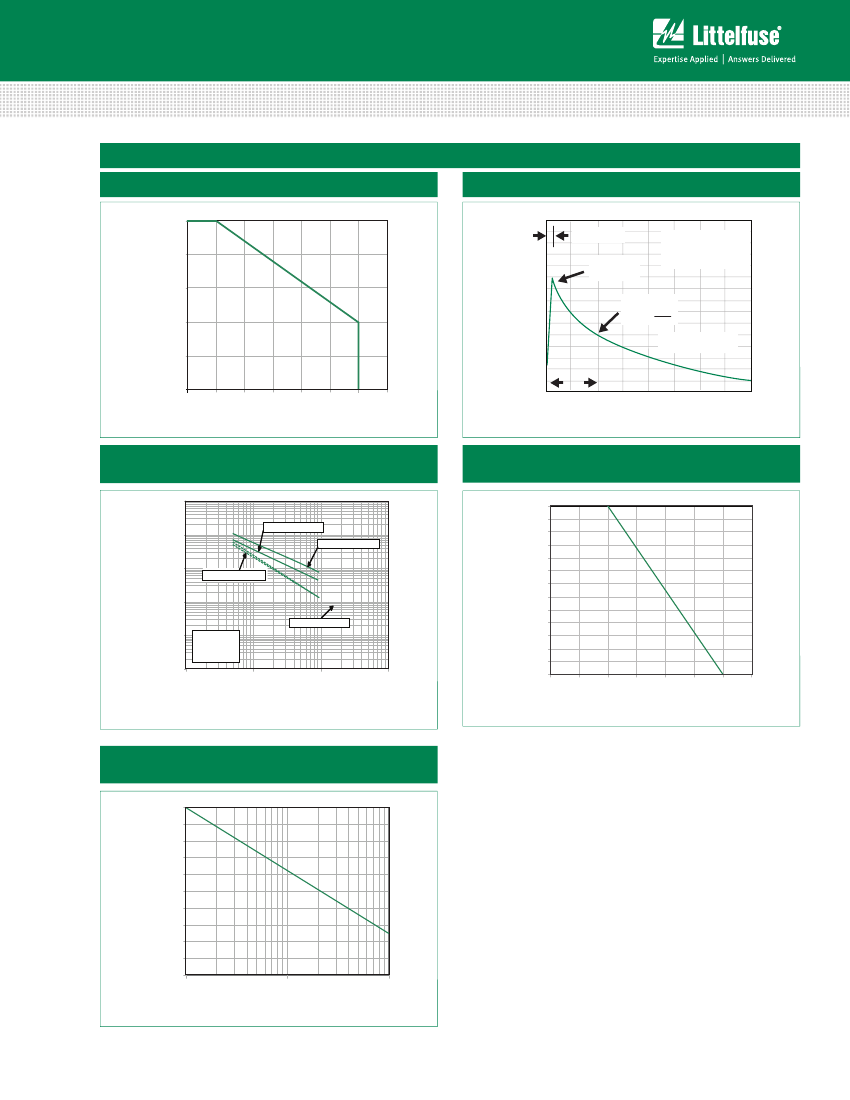

Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
A
Figure 1 - TVS Transients Clamping Waveform
Voltage Transients
Figure 2 - Peak Pulse Power Rating
100
P
PPM
-Peak Pulse Power (kW)
Voltage Across TVS
Voltage or Current
Current Through TVS
10
1
0.000001
Time
0.31x0.31" (8.0x8.0mm)
Copper Pad Area
0.00001
0.0001
0.001
t
d
-Pulse Width (sec.)
continues on next page.
3
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
TVS Diodes
Surface Mount – 1500W > TPSMC series
Ratings and Characteristic Curves
(T =25°C unless otherwise noted)
(Continued)
A
Figure 3 - Peak Pulse Power Derating Curve
100
Peak Pulse Power (P
PP
) or Current (I
PP
)
Derating in Percentage %
Figure 4 - Pulse Waveform
150
I
PPM
- Peak Pulse Current, % I
RSM
tr=10µsec
Peak Value
IPPM
TJ=25°C
Pulse Width(td) is defined
as the point where the peak
current decays to 50% of IPPM
80
60
40
20
0
100
Half Value
IPPM
IPPM
2
( )
10/1000µsec. Waveform
as defined by R.E.A
50
0
25
50
75
100 125 150
T
J
- Initial Junction Temperature (ºC)
175
0
td
0
1.0
2.0
t-Time (ms)
3.0
4.0
Figure 5 - Typical Junction Capacitance
100000
10000
1000
100
Bi-directional @V
R
Bi-directional V=0V
Uni-directional V=0V
Figure 6 - Steady State Power Dissipation Derating
Curve
6.5
6
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
Cj (pF)
Uni-directional @V
R
10
1
1.0
Tj=25C
f=1.0MHz
Vsig=50mVp-p
10.0
100.0
1000.0
V
BR
- Reverse Breakdown Voltage (V)
P
M(AV)
, Steady Sate Power
Dissipation (W)
0
25
50
75
100
125
150
175
T
A
- Ambient Temperature (ºC)
Figure 7 - Maximum Non-Repetitive Peak Forward
Surge Current Uni-Directional Only
200
I
FSM
- Peak Forward Surge Current (A)
180
160
140
120
100
80
60
40
20
0
1
10
Number of Cycles at 60 Hz
100
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
4
TVS Diodes
Surface Mount – 1500W > TPSMC series
Soldering Parameters
Reflow Condition
- Temperature Min (T
s(min)
)
Pre Heat
- Temperature Max (T
s(max)
)
- Time (min to max) (t
s
)
Average ramp up rate (Liquidus Temp (T
L
)
to peak
T
S(max)
to T
L
- Ramp-up Rate
Reflow
- Temperature (T
L
) (Liquidus)
- Time (min to max) (t
s
)
Lead–free assembly
150°C
200°C
60 – 120 secs
3°C/second max
3°C/second max
217°C
60 – 150 seconds
260
+0/-5
°C
30 seconds max
6°C/second max
8 minutes max.
260°C
Temperature (T)
T
P
Ramp-up
t
p
Critical Zone
T
L
to T
P
T
L
T
s(max)
t
L
T
s(min)
Ramp-down
Preheat
t
s
25˚C
t 25˚C to Peak
Peak Temperature (T
P
)
Time within 5°C of actual peak
Temperature (t
p
)
Ramp-down Rate
Time 25°C to peak Temperature (T
P
)
Do not exceed
Time (t)
Environmental Specifications
High Temp. Storage
JESD22-A103
JESD22-A108
JESD22-A104
JEDEC-J-STD-020, Level 1
JESD22-A101
JESD22--A111
Physical Specifications
Weight
Case
Polarity
Terminal
0.007 ounce, 0.21 grams
JEDEC DO214AB. Molded plastic body
over glass passivated junction
Color band denotes positive end (cathode)
except Bidirectional.
Matte Tin-plated leads, Solderable per
JESD22-B102
HTRB
Temperature Cycling
MSL
H3TRB
RSH
Dimensions
DO-214AB (SMC J-Bend)
Cathode Band
(for Uni-directional products only)
Dimensions
A
B
C
Inches
Min
0.114
0.260
0.220
0.079
0.030
-
0.305
0.006
0.129
0.094
-
0.094
Max
0.126
0.280
0.245
0.103
0.060
0.008
0.320
0.012
-
-
0.165
-
Millimeters
Min
2.900
6.600
5.590
2.060
0.760
-
7
.750
0.152
3.300
2.400
-
2.400
Max
3.200
7
.110
6.220
2.620
1.520
0.203
8.130
0.305
-
-
4.200
-
A
B
H
D
F
G
C
D
E
F
G
H
I
J
K
E
J
K
L
I
Solder Pads
(all dimensions in mm)
L
© 2016 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 09/10/16
京公网安备 11010802033920号
EEWORLD
