SM08503395 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> SM08503395

SM08503395: DescriptionNTC Thermistors 50Kohm B-3950K SMD 0805; CategoryCircuit protection; File Size1MB，2 Pages; ManufacturerAmetherm; Websitehttp://www.ametherm.com/

Download Datasheet Parametric View All

SM08503395 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SM08503395	-	-	View	Buy Now

SM08503395 Overview

NTC Thermistors 50Kohm B-3950K SMD 0805

SM08503395 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Ametherm
Product Category	NTC Thermistors
RoHS	Details
B Parameter	3950 K
Resistance	50 kOhms
Power Rating	250 mW
Tolerance	10 %
Termination Style	SMD/SMT
Operating Temperature Range	- 40 C to + 125 C
Package / Case	2012
Length	2 mm
Width	1.25 mm
Height	0.55 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Type	NTC
Maximum Operating Temperature	+ 150 C
Minimum Operating Temperature	- 50 C
Factory Pack Quantity	500

Preview

Download Datasheet

View All

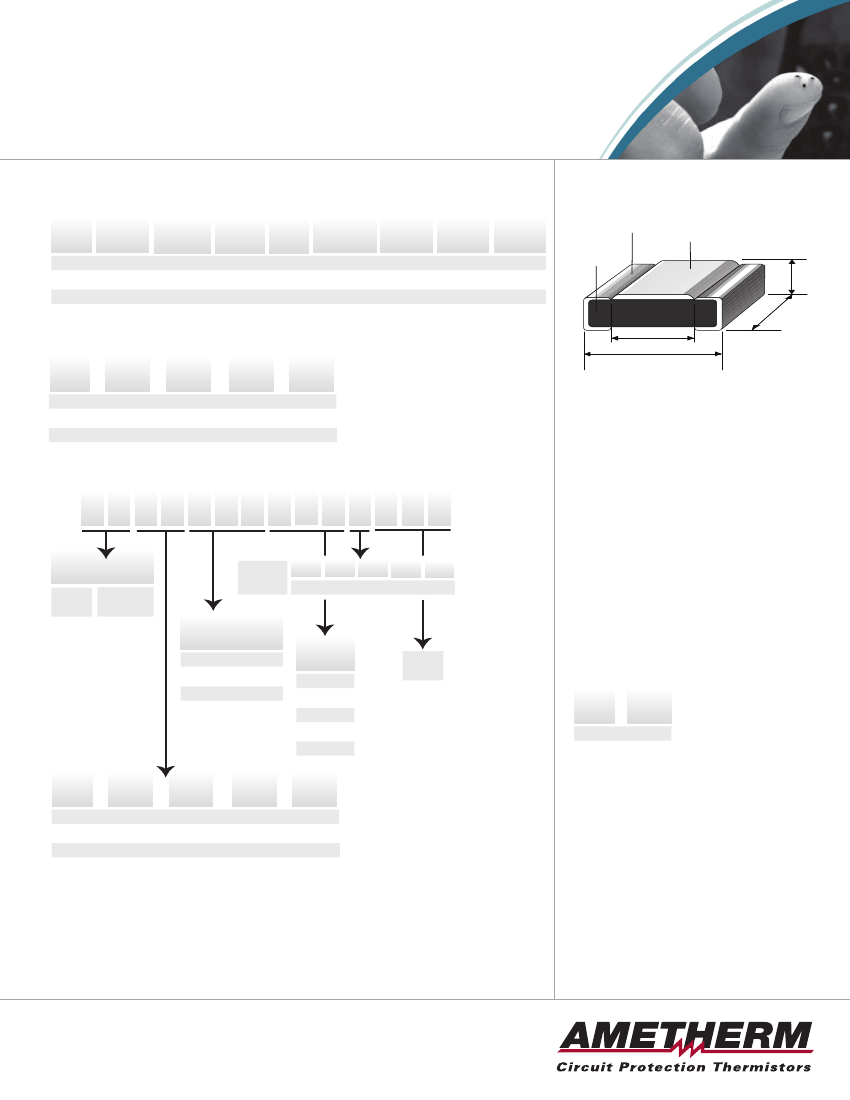

Surface Mount

Thermistors

ELE CTR IC AL SP ECIF ICATION S

TYPE

SM08

SM06

SM04

Resistance

Range

2-250 k

0.25-470 k

0.3-470 k

Resistance

Tolerance

1,2,3,5,10%

Beta

Range

3450-4500

2750-4500

Beta

Tolerance

3,2,1%

Operating

Temp.

-40°C – +125°C

Dissipation

Constant

2.00mW/°C

1.50mW/°C

1.10mW/°C

Thermal Time

Constant

2.5 sec.

2.0 sec.

1.5 sec.

Maximum

Power

250 mW

200 mW

125 mW

Nickel Barrier

Termination

Alumina

Substrate

Glass

Overcoat

M EC H AN ICAL SPE CIFICATIO N S

TYPE

SM08

SM06

SM04

L (mm)

2.00 ± 0.2

1.60 ± 0.15

1.00 ± 0.05

L1 (mm)

1.20 ± 0.2

1.0 ± 0.15

0.50 ± 0.05

W (mm)

1.25 ± 0.2

0.80 ± 0.15

0.50 ± 0.05

T (mm)

0.55 ± 0.10

0.50 ± 0.10

0.35 ± 0.05

AP P LI CAT IO NS

•

Temperature Compensation Circuits

•

Relay Coils

•

LCD Controls

•

Temperature Measurement

PART N UMBE RING SYS TE M

F EATU RE S

•

Nickel Barrier Termination

•

Suitable for wave or reflow solder

•

Packaging T/R STD QTY 100-5000

•

Moisture Sensitivity Level: 2

PRODUCT TYPE

Ametherm

Surface Mount

TOLERANCE

(Blank)

±10%

±5%

±3%

±2%

±1%

ZERO POWER RESISTANCE

AT 25ºC

)

103 10x10

=1000

253 25x10

=25000

474 47x10

=47000

503 50x10

=50000

BETA

275 2750 K

302 3000 K

345 3450 K

411 4110 K

452 4500 K

Custom

S O LD E RI NG WAV E

O R R E FL O W

TIME

10 sec.

TEMP

270°C

SIZE

L (mm)

2.00 ± 0.2

1.60 ± 0.15

1.00 ± 0.05

L1 (mm)

1.20 ± 0.2

1.0 ± 0.15

0.50 ± 0.05

W (mm)

1.25 ± 0.2

0.80 ± 0.15

0.50 ± 0.05

T (mm)

0.55 ± 0.10

0.50 ± 0.10

0.35 ± 0.05

(Outside the US and Canada)

T: 800-808-2434

775-884-2434

F: 775-884-0670

www.ametherm.com

info@ametherm.com

3111 N. Deer Run Road

Carson City, Nevada

89701 USA
