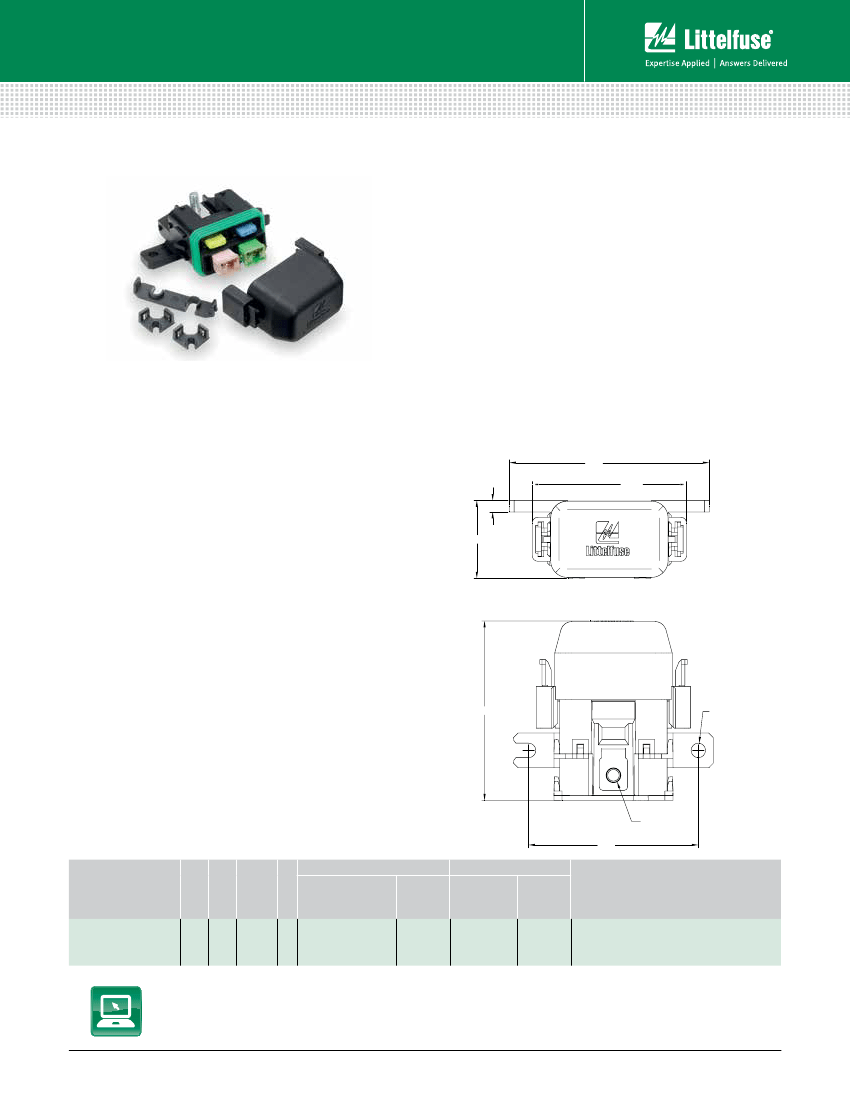

Commercial Vehicle Product Datasheet
MTR SERIES POWER DISTRIBUTION MODULE
2-60 A • MINI
®
& JCASE
®
Fuse • 4 Position • Sealed
Specifications Overview
Max Voltage:
Max Input Current:
Input Hardware:
Input Torque:
Mounting Torque:
Operating Temp:
Ingress Protection:
Material:
32 Vdc
100 A
M6x1.0 Bolt & Washer
(sold separately)
6-8 Nm
6-8 Nm
-40°C to +85°C
IP67
Body & Cover: UL94-V0
Stud: Zinc-Plated Steel
Bus Bar: In-Plated Copper
Gasket: Silicone
JCASE
®
: Delphi Ducon 6.3 Sealed Male
MINI
®
: Delphi Metri-Pack 280 Sealed Female
Description
The MTR Series (2+2) Power Distribution Fuse Holder
accommodates two MINI
®
fuses and two JCASE
®
fuses.
The use of these fuse types provides an amperage range of
2A to 60A in a compact package. The four fuses are bussed
internally to the main input power stud. This allows the user
to reduce wiring by making one input connection to power
four fuse circuits.
The MTR (2+2) PDM is a sealed module enabling it to be
used in heavy duty environments. TPAs are included to
provide secondary locking of each wire terminal.
Mating Terminals &
Seals:
Dimensions in millimeters
86.5
66.86
5
33.53
Features and Benefits
• Compact holder houses two JCASE
®
cartridge fuses and
two MINI
®
bladed fuses
• Holder is gasket-sealed to protect fuses from moisture and
contamination
• Fuses are internally bussed to a single main power stud –
one input powers four fuse circuits
Web Resources
Download 2D print and technical resources at:
littelfuse.com/mtr
77.25
(2)
∅6.25
Ordering Information
PART NUMBER
FUSE
TYPE
POSITIONS
AMPERAGE
VOLTAGE
INPUT HARDWARE
SIZE
M6x1.0
Bolt & Lock Washer
(sold separately)
TORQUE
MOUNTING HARDWARE
SIZE
TORQUE
M6 INPUT
STUD
73.5
NOTES
Complete Assembly
Base, cover & gasket shipped assembled
TPAs shipped bulk
BPDMA104HXF1
32
2-60
MINI
®
JCASE
®
4
6-8 Nm
–
6-8 Nm
Visit
Littelfuse.com
for the most up-to-date product information. Littelfuse reserves the right to make product changes, without notice.
Material in this document is as accurate as known at the time of publication.
littelfuse.com
1 of 1
© 2017 Littelfuse Commercial Vehicle Products
Rev: 101217
