Technical Data 1032
Effective May 2016
Supersedes August 2002
BUSSMANN
SERIES

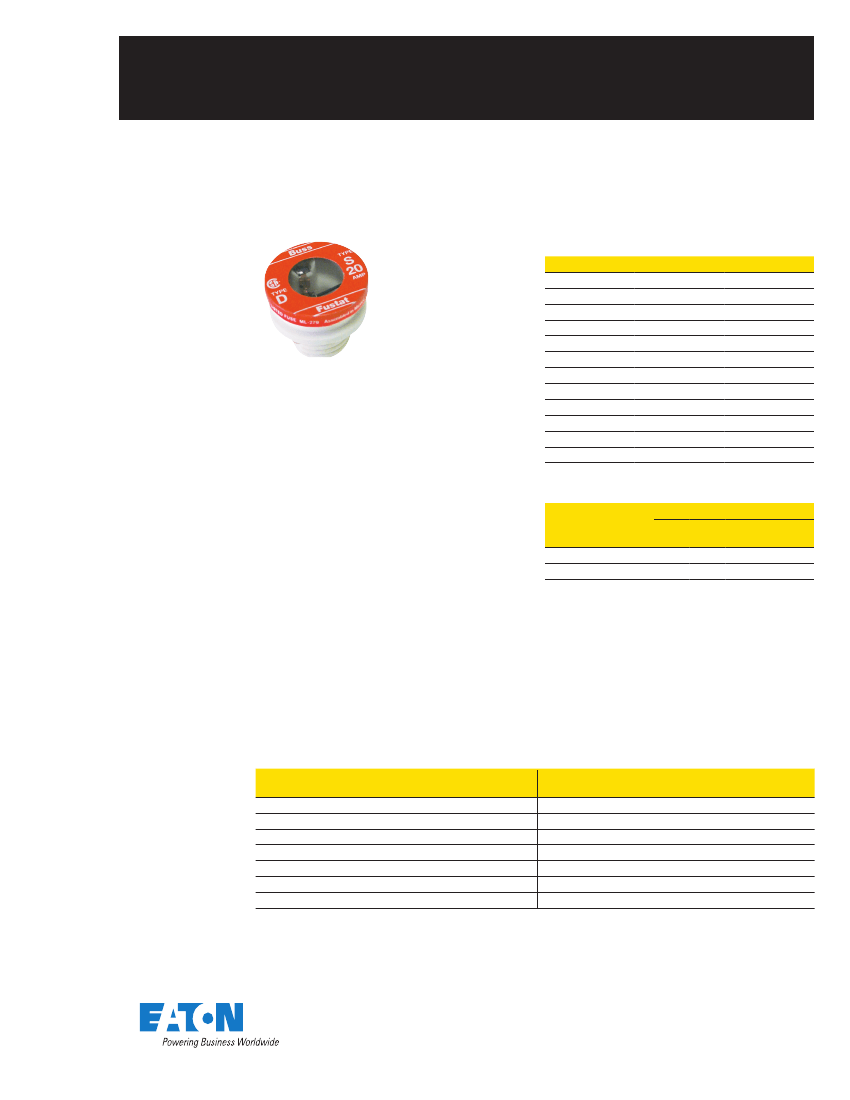

Rejection base plug fuses – dual-element,
time-delay 125 volt, up to 30 amps
Catalog numbers (amps)
S - 1/4
S - 3/10
S - 4/10
S - 1/2
S - 6/10
S - 8/10
S-2
S - 2-1/4
S - 2-1/2
S - 2-8/10
S-3
S - 3-2/10
S - 3-1/2
S-4
S - 4-1/2
S-5
S - 5-6/10
S-6
S - 6-1/4
S-7
S-8
S-9
S - 10
S - 12
S - 14
S - 15
S - 20
S - 25
S - 30
—
Catalog symbol:
•
•
S-1
S - 1-1/8
S - 1-1/4
S - 1-4/10
S - 1-6/10
S - 1-8/10
S - (amps)
BP/S - (amps)
Description:
Bussmann
®
series dual-element, time-delay
rejection base plug fuse.
Package quantity and weight
Quantity
Amp
ratings
1/4 to 14 A
15 to 30 A
Per
box
4
4
Per
card
1
2
Weight
Per
box
0.24
0.24
Per 5
cards
0.43
0.68
Specifications:
Ratings
•
•
•
Volts — 125 Vac or less
Amps — 1/4 to 30 A
Interrupting rating — 10 kA RMS Sym
UL
®
Listed (up to 6-1/4 A), Std. 248-11, Guide
JFHR, File E56412, (7 to 30 A) Guide JEFV,
File E12112
CSA
®
Certified, Class 1423-01, File 53787
CE
Agency Information
•
•
•
Edison base adaptors
Adaptor
SA-1
SA-1-1/4
SA-1-6/10
SA-2
SA-2-1/2
SA-3-2/10
SA-4
Accepts
fuses
S-1 or smaller
S-1-1/4 or smaller
S-1-6/10 or smaller
S-2 or S-1-8/10
S-2-1/2 to S-1-8/10
S-3-2/10 to S-1-8/10
S-4 to S-3-1/2
Adaptor
SA-5
SA-6-1/4
SA-8
SA-10
SA-15
SA-20
SA-30
Accepts
fuses
S-5 to S-3-1/2
S-6-1/4 to S-3-1/2
S-8 to S-7
S-10 to S-7
S-15 to S-7
S-20
S-30 to S-20
Technical Data 1032
Effective May 2016
Rejection base plug fuses
dual-element, time-delay 125 volt, up to 30 amp
Time-current curve – average
melt
100
15
20
30
Features:
•
•
Heavy duty, dual-element, time-delay rejection base fuse
Use to protect critical motor circuits or motors that cycle on/
off frequently
Features non-interchangeable body
An industrial/commerical grade product with dual-element
construction
These fuses thread into SA adaptors
Industrial strength, featuring exclusive dual-element
construction
This spring loaded design provides superior short circuit and
overload protection
More time-delay than the medium duty Type SL fuses in order
to better protect industrial motors and critical residential
circuits
Amp
rating
•
•
•
•
10
•
•
Time in seconds
1
0.1
Current in amps
