HCAA60W-A+G Overview

AC-DC Regulated Power Supply Module

HCAA60W-A+G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	,
Reach Compliance Code	unknown
Factory Lead Time	15 weeks
Other features	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE
Certification	UL, CSA, TUV, CE
Efficiency (main output)	45%
high	69.85 mm
Maximum input voltage	240 V
Minimum input voltage	100 V
length	228.6 mm
Maximum grid adjustment rate	0.05%
Maximum load regulation	0.05%
Maximum operating temperature	50 °C
Minimum operating temperature
Maximum output current	6 A
Nominal output voltage	5 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple voltage (main output)	0.001 Vrms
width	123.95 mm
Base Number Matches	1

Preview

Download Datasheet

View All

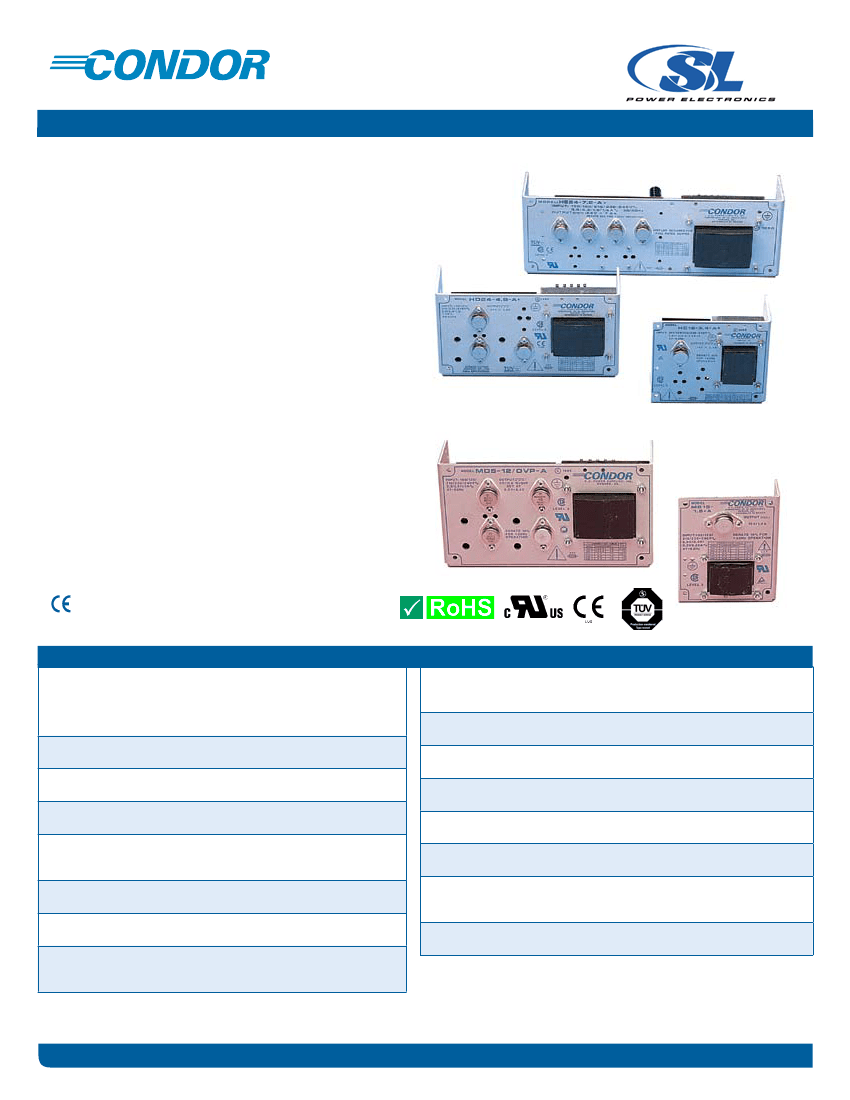

DC Power Supplies

Commercial/Medical

International + Linears

Summary:

• World-wide ac input ranges and safety

standards

• Industry standard packages

• Commercial UL/CSA TUV/IEC approved—

models to UL/CSA 60950; EN/IEC60950-1

• Burn-in with cycling; 3-year warranty

• Capacitors have highest CV & ripple current

ratings

• Medical Approved to UL2601-1/60601-1,

IEC60601-1 and CSA601.1

• Medical leakage 10 μA

• MTBF 200,000+ hours per MIL-HDBK-217D

(most units)

• All electrolytic caps rated at 105°C

• Transformer insulation meets Class F (155°C)

• Exceed FCC and CISPR22, Class B conducted

emissions

• RoHS Compliant models available (G suffix)

•

marked to LVD

SPECIFICATIONS

Ac Input

100, 120 and 240 Vac: +10%, -13%; 215 Vac: +12%, -11%; 47 to 63Hz. Toler-

ance for 230 Vac operation is +15%, -10%. Derate output current 10% for 50

Hz operation.

Dc Output

See voltage rating chart. Adjustment range ±5% minimum except HA series.

Line Regulation

±0.05% for a 10% change.

Load Regulation

± 0.05% for a 50% load change.

Output Ripple

3 mV +0.05% of output voltage, peak to peak maximum. All “3-terminal regu-

lator” outputs: 3 mV +0.2% peak to peak maximum.

Transient Response

<50 microseconds for 50% load change.

Short Circuit Protection

Automatic current limit/foldback.

Overvoltage Protection

Built-in on all 5 V models, set at 6.2 V ±0.4 V. Other models use optional over-

voltage protection.

Remote Sensing

Provided on all models; open sense lead protection built-in (except HA & HTAA

series).

Stability

±0.05% for 24 hours after warmup.

Temperature Rating

0 to 50°C full rated, derated linearly to 40% at 70°C.

Temperature Coefficient

±0.01%/°C maximum.

Efficiency

5 V units: 45%; 12 and 15 V units: 55%; 20 and 24 V units: 60%.

Logic Inhibit and Current-Share

F & G models.

Medical Stock and Vibration

Per Mil-Std-810D, Method 514.3, Category 1, Procedure 1.

Per Mil-Std-810D, Method 516.3, Procedure III.

Storage

-40 to +85 °C.

All specifications are typical at nominal input, full load at 25

C unless otherwise stated

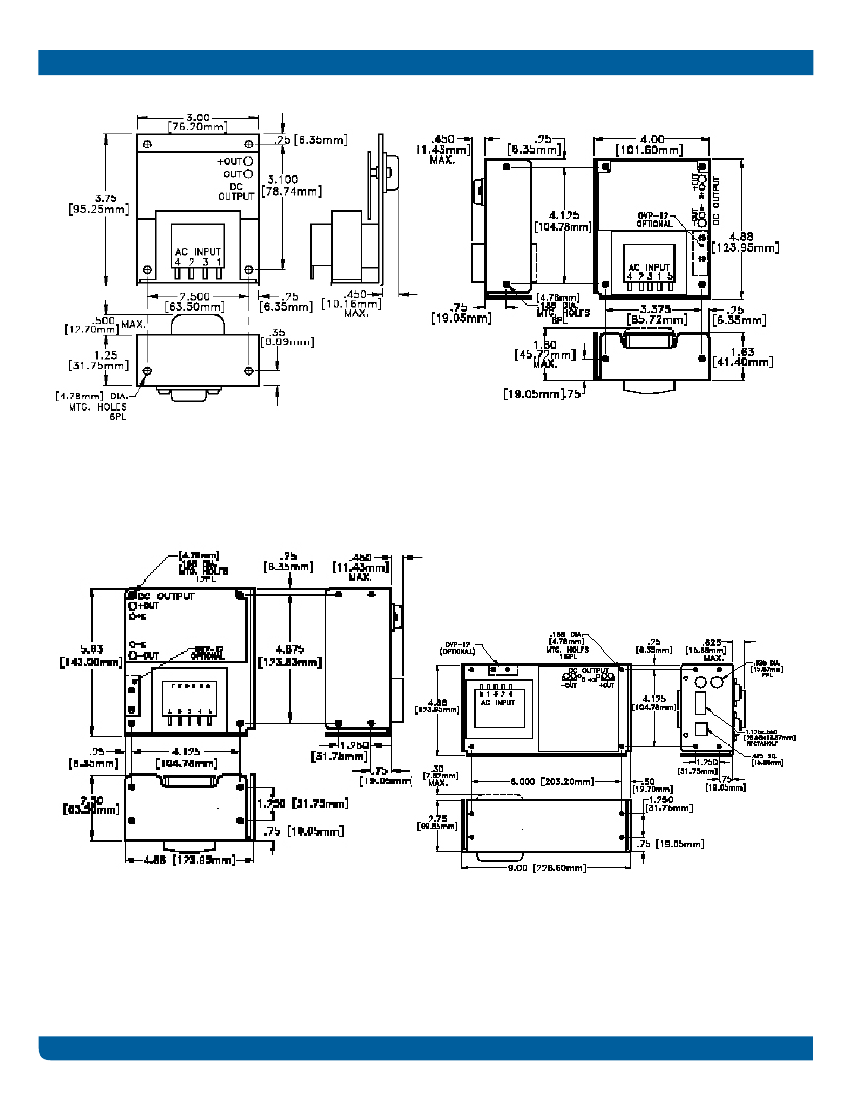

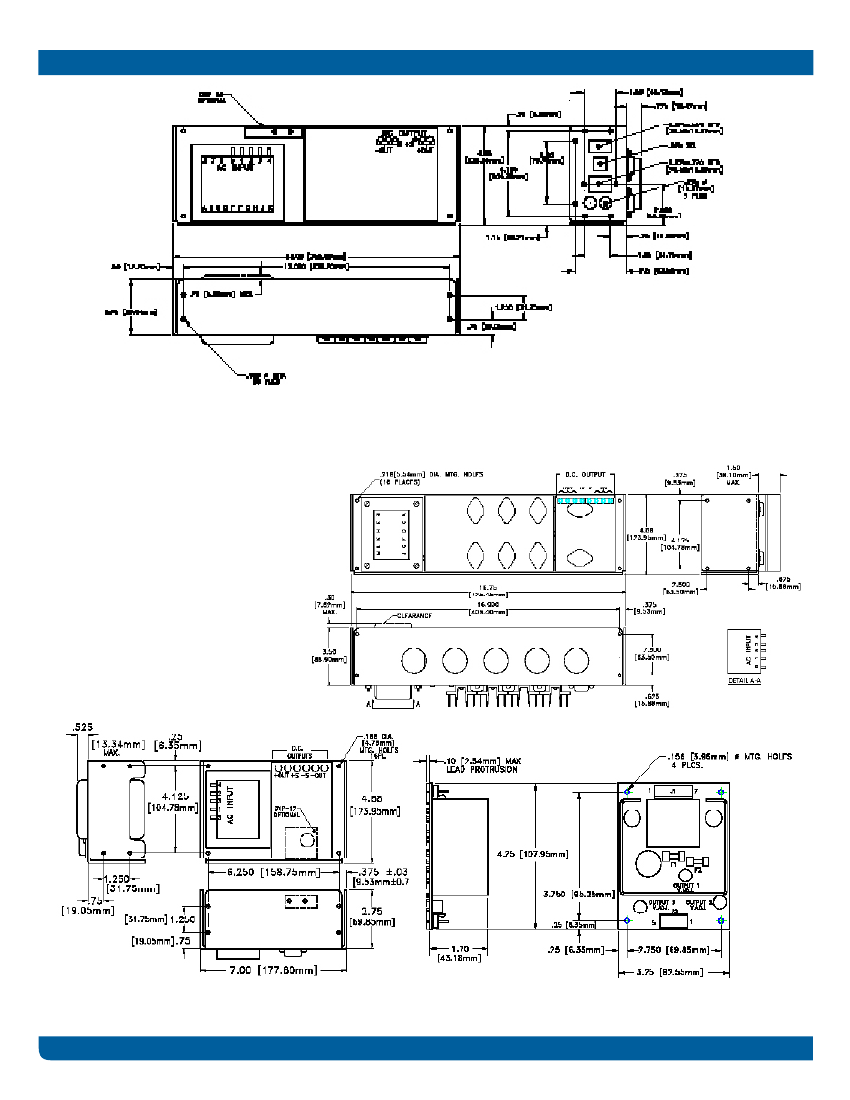

HCAA60W-A+G Related Products

	HCAA60W-A+G	HN24-3.6-A+G	HBAA40W-A+G	HC12-3.4-A+G	HD24-4.8-A+G	HN15-4.5-A+G
Description	AC-DC Regulated Power Supply Module	AC-DC Regulated Power Supply Module	AC-DC Regulated Power Supply Module	AC-DC Regulated Power Supply Module	AC-DC Regulated Power Supply Module	AC-DC Regulated Power Supply Module
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Factory Lead Time	15 weeks	15 weeks	15 weeks	15 weeks	15 weeks	15 weeks
Other features	REMOTE SHUTDOWN	REMOTE SHUTDOWN	REMOTE SHUTDOWN	REMOTE SHUTDOWN	REMOTE SHUTDOWN	REMOTE SHUTDOWN
Analog Integrated Circuits - Other Types	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE	AC-DC REGULATED POWER SUPPLY MODULE
Certification	UL, CSA, TUV, CE	UL, CSA, TUV, CE	UL, CSA, TUV, CE	UL, CSA, TUV, CE	UL, CSA, TUV, CE	UL, CSA, TUV, CE
Efficiency (main output)	45%	60%	45%	55%	60%	55%
high	69.85 mm	69.85 mm	63.5 mm	63.5 mm	69.85 mm	69.85 mm
Maximum input voltage	240 V	240 V	240 V	240 V	240 V	240 V
Minimum input voltage	100 V	100 V	100 V	100 V	100 V	100 V
length	228.6 mm	177.8 mm	260.35 mm	143 mm	228.6 mm	177.8 mm
Maximum grid adjustment rate	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%
Maximum load regulation	0.05%	0.05%	0.05%	0.05%	0.05%	0.05%
Maximum operating temperature	50 °C	50 °C	50 °C	50 °C	50 °C	50 °C
Maximum output current	6 A	3.6 A	3 A	3.4 A	4.8 A	4.5 A
Nominal output voltage	5 V	24 V	5 V	12 V	24 V	15 V
Protect	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE	OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple voltage (main output)	0.001 Vrms	0.001 Vrms	0.001 Vrms	0.001 Vrms	0.001 Vrms	0.001 Vrms
width	123.95 mm	123.95 mm	101.6 mm	123.95 mm	123.95 mm	123.95 mm
Base Number Matches	1	1	1	1	1	1
