Bussmann
®
HRCII-C Current-Limiting Fuses
600 Volt, 1 to 600 Amps

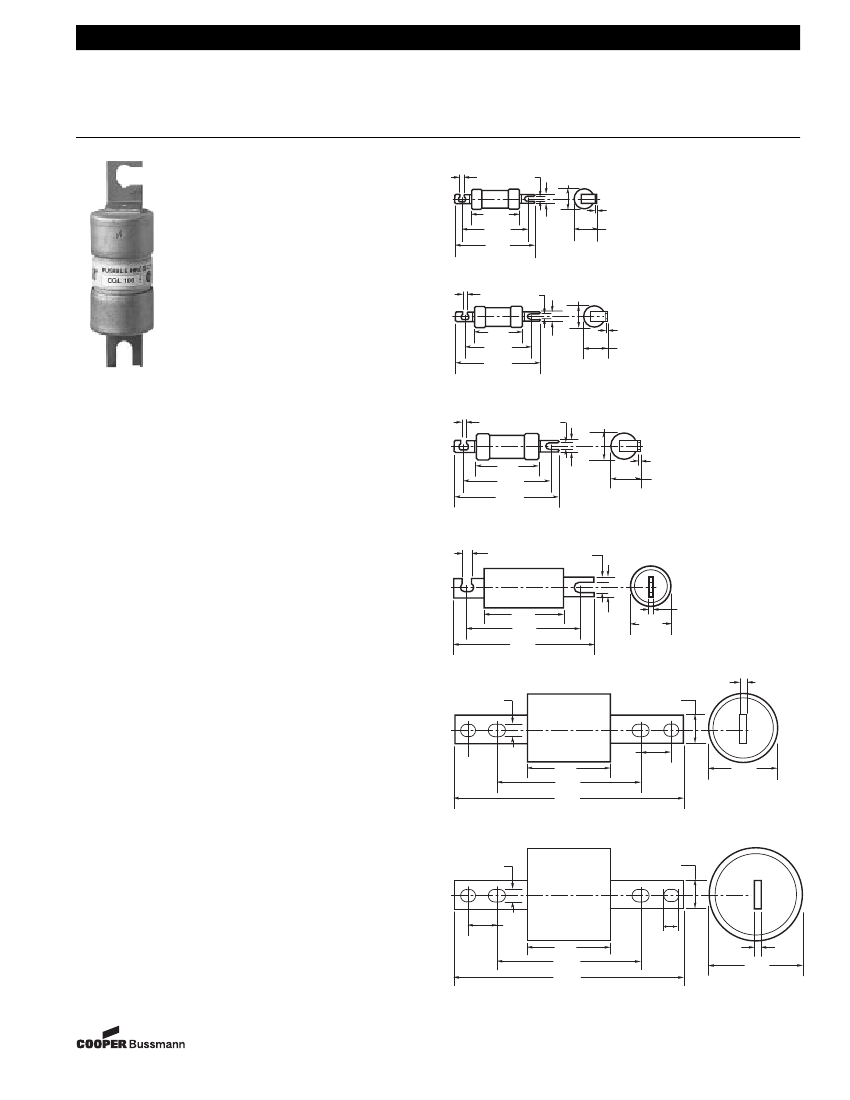

Dimensional Data
0.22"
0.22"
0.81"
(20.64mm)
(5.56mm) (5.56mm)
CGL
2.0"
(50.8mm)
0.06"
0.34"
(8.73mm)
(1.59mm)
2.80"
(71.04mm)
0.94"
(23.81mm)
3.31"
(84.14mm)
CGL 1-30
0.22"
0.22"
0.81"
(20.64mm)
(5.56mm) (5.56mm)
2.0"
(50.8mm)
0.06"
0.50"
(12.7mm)
(1.59mm)
2.80"
(71.04mm)
1.06"
(26.92mm)
3.5"
(88.9mm)
CGL 40-50
Catalog Symbol:
CGL
Current-Limiting
Ampere Rating:
1 to 600 Amperes
Voltage Rating:
600 Volts AC (or less)
1 to 30 Amps, 250 Volts DC (or less)
Interrupting Rating:
200,000A RMS Sym.
40,000A DC (1 to 30A)
Agency Approval:
CSA Certified, C22.2106, Class 1422, File 53787
General Information:
TRON
®
HRC FORM II Class C Fuses
• TRON
®
HRCII-C fuses are designed to withstand inrush
currents on typical motor start-ups while offering high
current limitation in the short-circuit region.
• The TRON
®
HRCII-C fuses can be sized close to the motor
nameplate rating.
• Closer protection is offered for many motor sizes with the
availability of these additional fuse ratings.
• TRON
®
HRCII-C fuses have a high degree of current-limitation
greatly reducing the magnetic forces and thermal stresses
produced in today’s high capacity systems.
• TRON
®
HRCII-C fuses have an interrupting rating of 200,000
RMS symmetrical amperes at 600 volts.
• TRON
®
HRCII-C fuses are dimensionally interchangeable with
other Form II fuses on the market and can be used with the
same confidence as other High Quality Buss Fuses.
0.343"
(8.71mm)
0.343"
(8.71mm)
1.34"
(34.04mm)
2.39"
(60.72mm)
0.09"
0.75"
(19.05mm)
(2.29mm)
3.64"
(92.47mm)
1.375"
(34.93mm)
4.31"
(109.54mm)
CGL 70-100
0.343"
(8.71mm)
0.343
(8.71mm)
3.00"
(76.2mm)
0.125"
0.75"
(19.05mm)
(3.18mm)
4.30"
(109.22mm)
1.50"
(38.1mm)
5.31"
(134.87mm)
CGL 125-200
0.19"
(4.76mm)
0.38"
(9.53mm)
1.0"
(25.4mm)
1.0"
(25.4mm)
3.0"
(76.2mm)
2.38"
(60.33mm)
5.25"
(133.35mm)
8.19"
(207.96mm)
CGL 225-400
0.41"
(10.32mm)
1.0"
(25.4mm)
1.0"
(25.4mm)
.60"
3.0"
(76.2mm)
(15.24mm)
0.375"
(9.53mm)
5.25"
(133.35mm)
3.00"
(76.2mm)
8.19"
(207.96mm)
CGL 450-600
5-02-01
SB01155
Form No. CGL
Page 1 of 3
BIF Doc #4125
Bussmann
®
HRCII-C Current-Limiting Fuses
600 Volt, 1 to 600 Amps
CGL LIMITRON

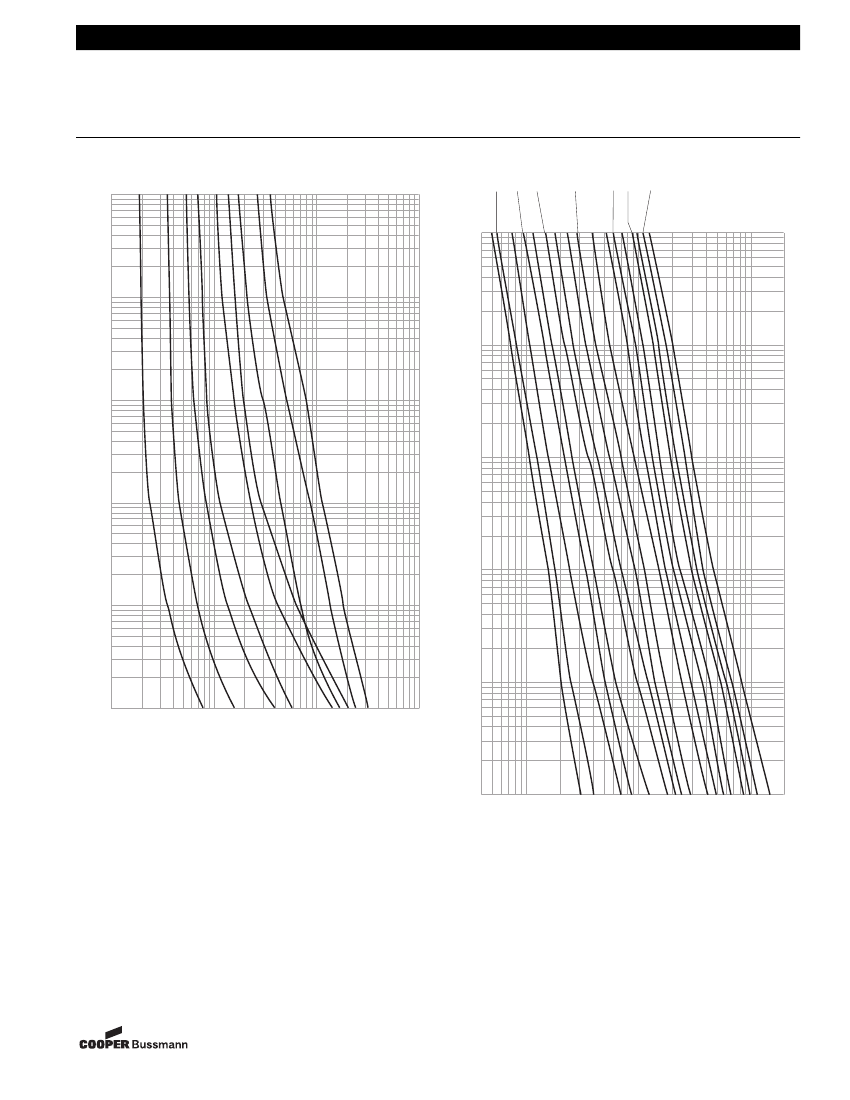

INSTANTANEOUS PEAK LET-THROUGH CURRENT IN AMPS
400,000
B
AMPERE
RATING
CGL
100,000
600
400
200
100
60
10,000
30
A
10,000
100,000
PROSPECTIVE SHORT-CIRCUIT CURRENT
SYMMETRICAL RMS AMPS
The only controlled copy of this BIF document is the electronic read-only version located on the Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Bussmann also reserves the right to change or update, without notice, any technical information contained
in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
200,000
1,000
1,000
5-02-01
SB01155
Form No. CGL
Page 3 of 3
BIF Doc #4125
