Datasheet> All Categories > Circuit protection> MS32-0R540

Preview

MS32-0R540: DescriptionInrush Current Limiters 32mm .5ohms 40A INRSH CURR LIMITER; CategoryCircuit protection; File Size23KB，1 Pages; ManufacturerAmetherm; Websitehttp://www.ametherm.com/

Download Datasheet Parametric View All

MS32-0R540 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MS32-0R540	-	-	View	Buy Now

MS32-0R540 Overview

Inrush Current Limiters 32mm .5ohms 40A INRSH CURR LIMITER

MS32-0R540 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Ametherm
Product Category	Inrush Current Limiters
RoHS	Details
Current Rating	40 A
Voltage	120 VAC, 240 VAC, 480 VAC, 680 VAC
Resistance	0.5 Ohms
Tolerance	25 %
Diameter	31 mm
Width	7 mm
Lead Diameter	1 mm
Lead Spacing	7.8 mm
Packaging	Bulk
Pitch Spacing	4.5 mm
Type	Inrush Current Limiter Thermistors
Dissipation Factor DF	79.8 mW/C
Factory Pack Quantity	100

Preview

Download Datasheet

View All

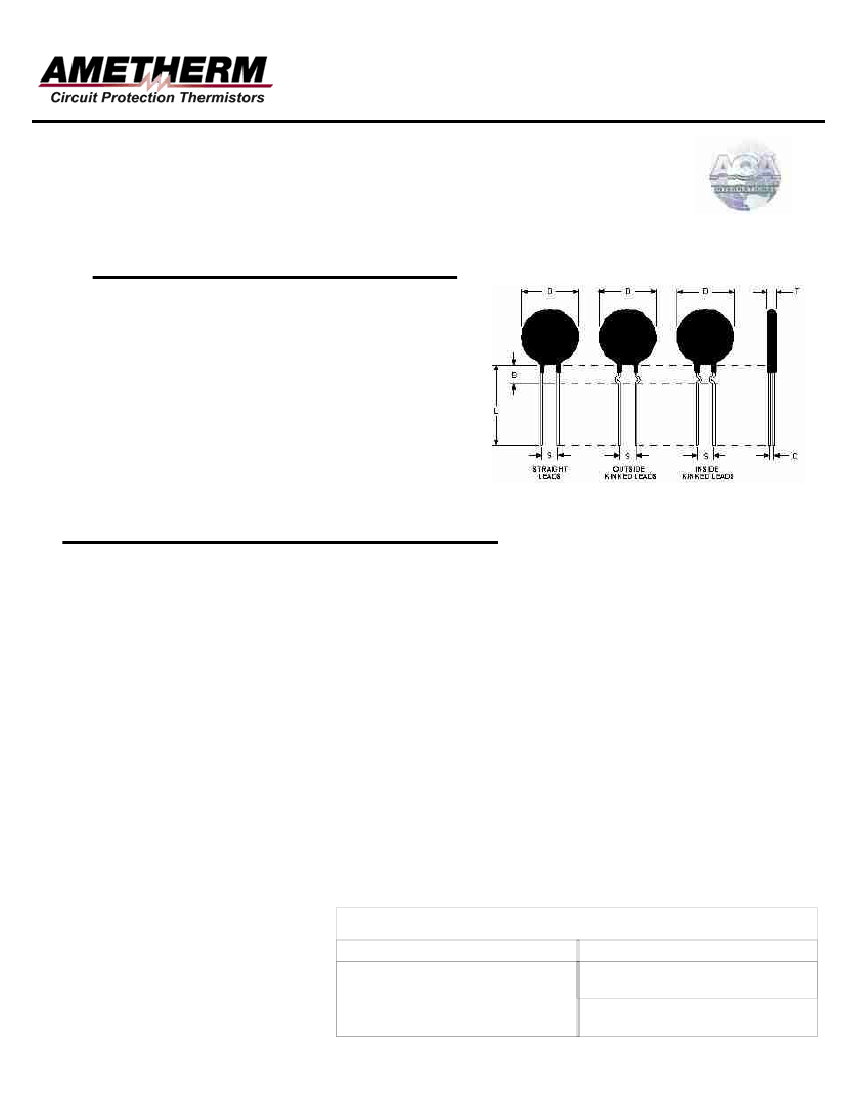

Data Sheet

MS32 0R540

ISO9001:2008 Certified

Mechanical Specifications (mm)

D:

T:

Lead Diameter

S:

L:

Coating Lead Run Down

(straight Leads)

B:

C:

31.0

±

max

7.0 ± max

1.0

±

nom

7.8

38.0

4.0

7.80

4.50

±

nom

max

nom

±

Electrical Specifications

Resistance:

Max Steady State Current upto 65°c:

Max Rec. Energy Rating:

Actual Failure Instantaneous Energy:

Maximum Capacitance @ 120 VAC:

Maximum Capacitance @ 240 VAC:

Maximum Capacitance @ 440 VAC:

Maximum Capacitance @ 680 VAC:

Resistance @ 100% Max Current:

Resistance @ 50% Max Current:

Body Temperature at 100% Max Current:

Dissipation Constant:

Thermal Time Constant:

Material Type (for Beta and Curve):

0.5

250

400

13,500

4,341

1,003

500

0.01

224.00

79.8

194

A

Ω

±

25 %

40.00

A

J

µf

Ω

°c

mw/°c

Sec.

MS32 0R540

Date: 11/11/2008

Ametherm, Inc.

3111 N. Deer Run Road

Carson City, Nevada USA 89701

www.ametherm.com

Drawn by: Erin Landis

Approved By: Mehdi Samii

Revison: a
