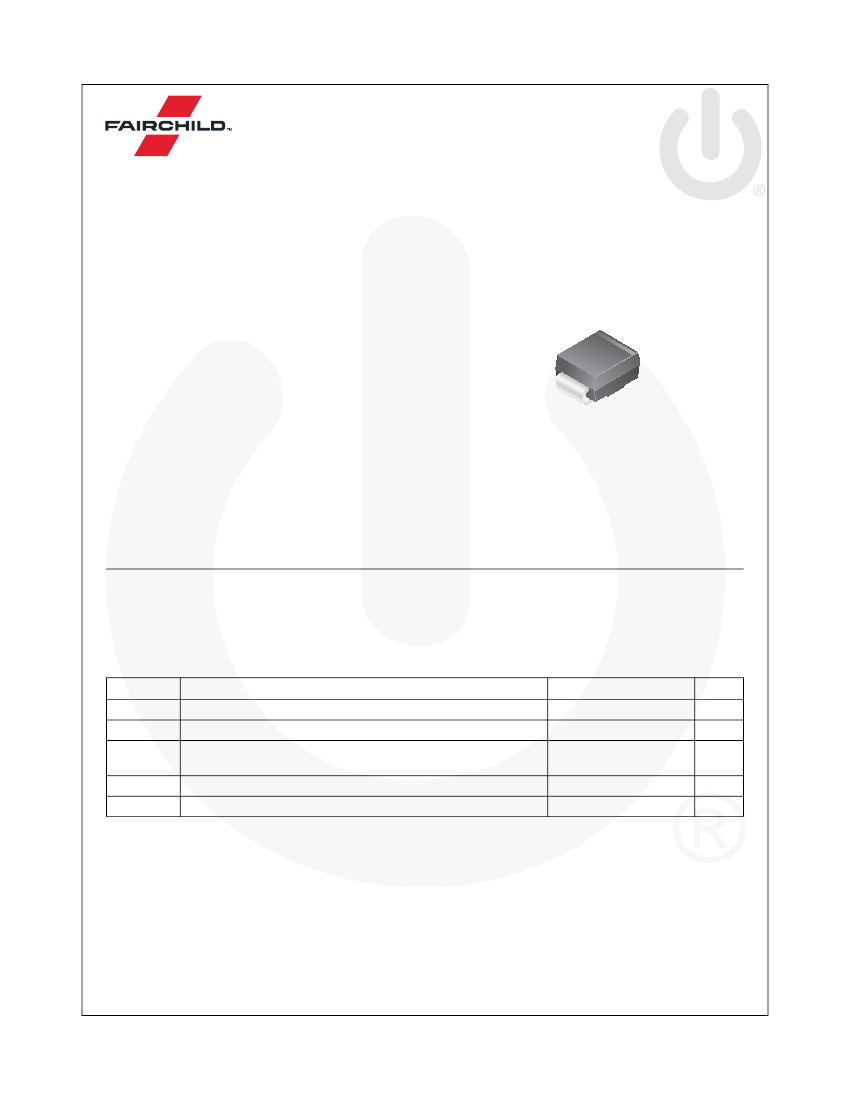

SMBJ5V0(C)A - SMBJ170(C)A — 600 Watt Transient Voltage Suppressors
November 2014
SMBJ5V0(C)A - SMBJ170(C)A
600 Watt Transient Voltage Suppressors
Features
• Glass-Passivated Junction
• 600 W Peak Pulse Power Capability
on 10/1000
μs
Waveform.
• Excellent Clamping Capability
• Low-Incremental Surge Resistance
• Fast Response Time: Typically Less than 1.0 ps from 0 V
to BV minimum for Unidirectional and 5.0 ns for Bidirectional
• Typical I
R
Less than 1.0
μA
Above 10 V
• UL Certificate #E258596
SMB/DO-214AA
Band denotes cathode on unidirectional devices only.
No band on bi-directional devices. Bi-directional types
have CA suffix where electrical characteristics apply in
both directions suitable for bi-directional applications.
Absolute Maximum Ratings
Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be opera-
ble above the recommended operating conditions and stressing the parts to these levels is not recommended. In addi-
tion, extended exposure to stresses above the recommended operating conditions may affect device reliability. The
absolute maximum ratings are stress ratings only. Values are at T
A
= 25°C unless otherwise noted.
Symbol
P
PPM
I
PPM
I
FSM
T
STG
T
J
Parameter
Peak Pulse Power Dissipation on 10/1000
μs
Waveform
Peak Pulse Current on 10/1000
μs
Waveform
Non-Repetitive Peak Forward Surge Current
Superimposed on Rated Load (JEDEC Method)
(1)
Storage Temperature Range
Operating Junction Temperature Range
Value
600
See Table
100
-55 to 150
-55 to 150
Unit
W
A
A
°C
°C
Note:
1. Measured on 8.3 ms single half-sine wave or equivalent square wave: duty cycle = 4 pulses per minute maximum.
