A22W-2MR-12A-11 datasheet, PDF

Datasheet> All Categories > Mechanical and electronic products> switch> A22W-2MR-12A-11

A22W-2MR-12A-11: DescriptionRotary Switches 2PosMnt12VSPST-NO+NC IL RED SELECTOR SWCH; CategoryMechanical and electronic products switch; File Size3MB，12 Pages; ManufacturerOMRON; Websitehttps://www.omron.com

Download Datasheet Parametric View All

A22W-2MR-12A-11 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	A22W-2MR-12A-11	-	-	View	Buy Now

A22W-2MR-12A-11 Overview

Rotary Switches 2PosMnt12VSPST-NO+NC IL RED SELECTOR SWCH

A22W-2MR-12A-11 Parametric

Parameter Name	Attribute value
Maker	OMRON
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator type	KNOB TYPE
body height	48.8 mm
Body length or diameter	34 mm
Graduation angle	90 deg
Manufacturer's serial number	A22
Installation features	PANEL MOUNT-THREADED
Number of positions	1
Number of switching segments	1
seal	IP65
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	ROTARY SWITCH
Termination type	SCREW

Preview

Download Datasheet

View All

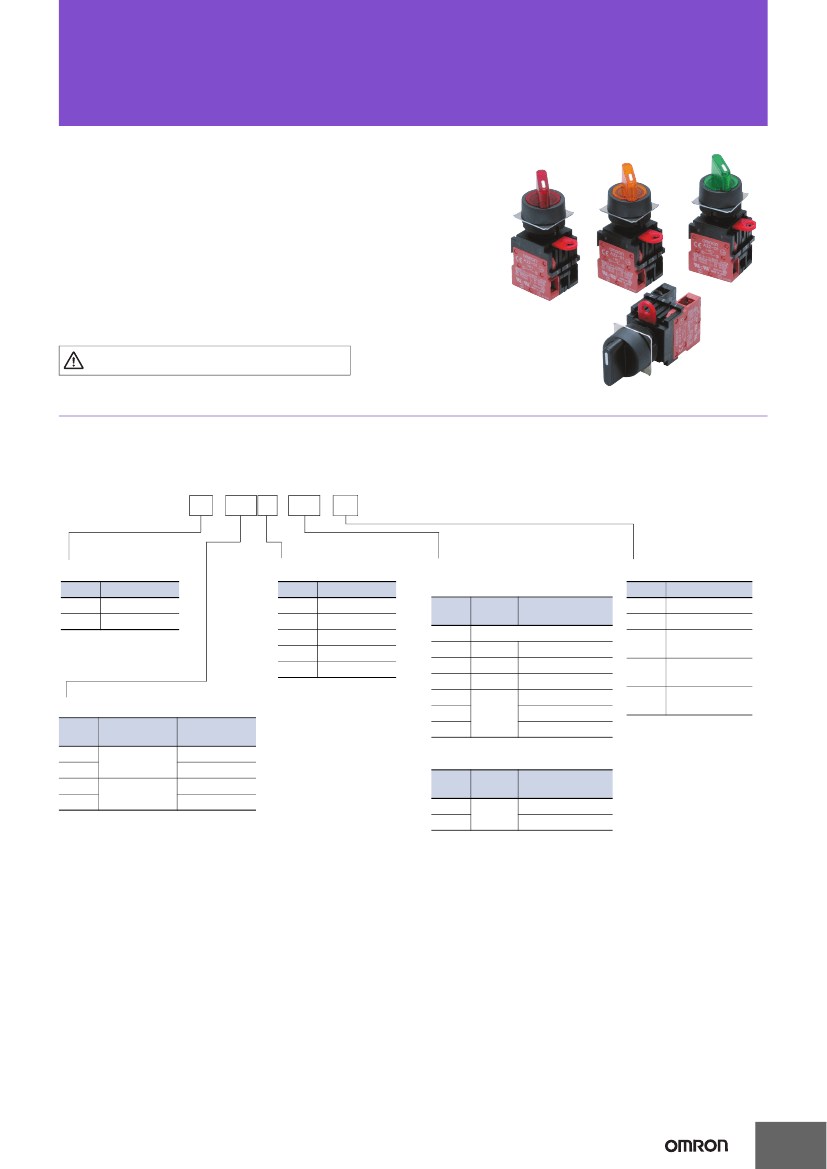

Knob-type Selector Switch (Cylindrical 22/25-dia.)

A22@

CSM_A22@_DS_E_4_1

Install in 22-dia. or 25-dia. Panel Cutout

• Lever for easily mounting and removing the Switch Unit

• Finger protection mechanism on Switch Unit provided as a standard

feature.

• Use 25-dia. ring to install in 25-dia. panel cutouts.

• Mounted using either open-type (fork-type) or closed-type (round-type)

crimp terminals.

• IP65 oil resistance (non-lighted models)

IP65 (lighted models)

Refer to

Safety Precautions for All Pushbutton Switches/

Indicators

and

Safety Precautions

for the A22.

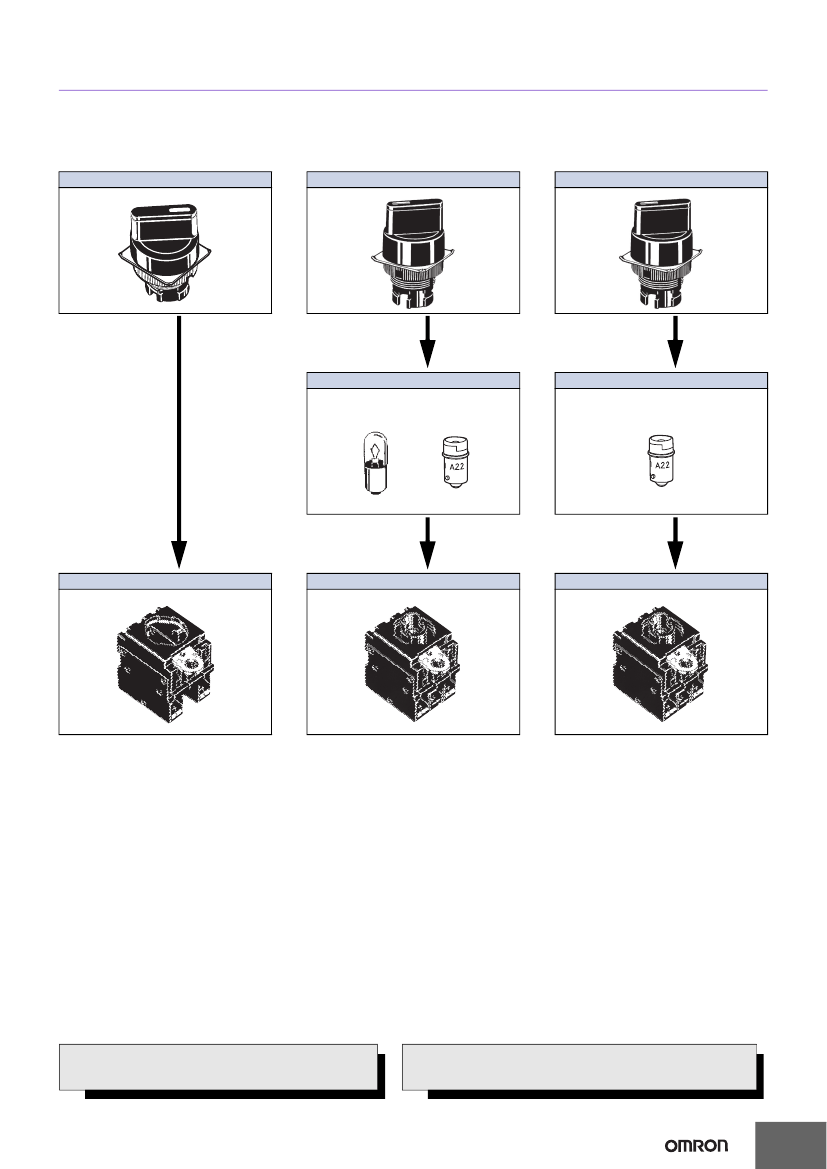

Model Number Structure

Model Number Legend

................... Shipped as a set which includes the Selector, Lamp (lighted models only), and Switch.

For information on combinations, refer to

Ordering Information

on pages 2 to 4.

(1)

(2) (3)

(4)

(5)

A 22 W - 2M G - 6A - 11

(1) Lighted/Non-lighted

Code

Description

Non-lighted

Lighted

(3) Illumination Color

Code

None

Color

Red

Green

Yellow

Blue

Black*

(4) Light Source

(5) Contacts

Without Voltage Reduction Unit

Code Description

Code

None

12A

24A

Operating

Voltage

Non-lighted

LED

6 VAC/VDC

12 VAC/VDC

24 VAC/VDC

5 VAC/VDC

Incan-

descent

12 VAC/VDC

lamp

24 VAC/VDC

Type

SPST-NO

SPST-NC

SPST-NO +

SPST-NC

SPST-NO +

SPST-NO

SPST-NC +

SPST-NC

* For non-lighted models only

(2) Number of Notches/Reset Method

Code

Number of

Notches

2 notches

3 notches

Reset Method

Manual

Automatic

Manual

Automatic

With Voltage Reduction Unit

Code

Type

LED

Operating

Voltage

100 VAC

200 VAC

* For models with 2 notches

Note: The contacts are rated

for standard loads. For

microloads, refer to

Accessories section for

the A22.

•

LED incorporates the 24-VAC/VDC

models.
