3314-L203 datasheet, PDF - EEWORLD Datasheet

3314-L203: Description28 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size108KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

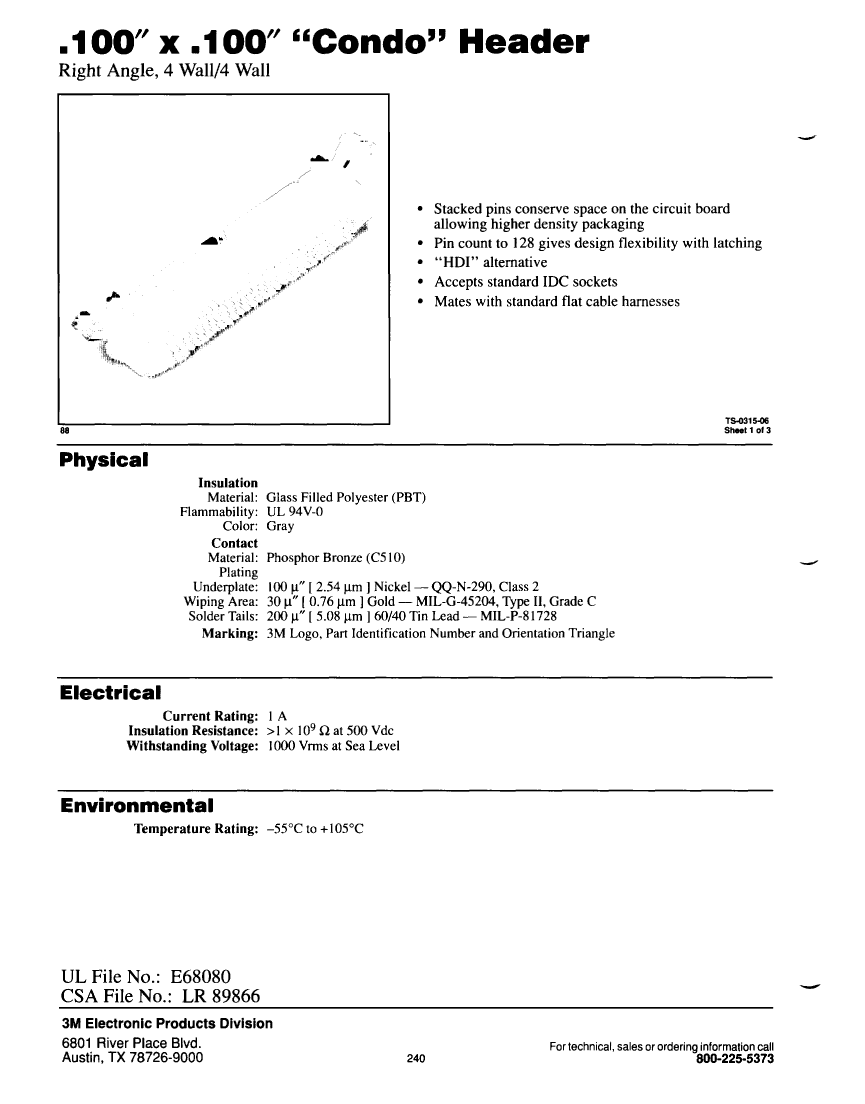

3314-L203 Overview

28 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	EJECTOR, LATCHED, POLARIZED

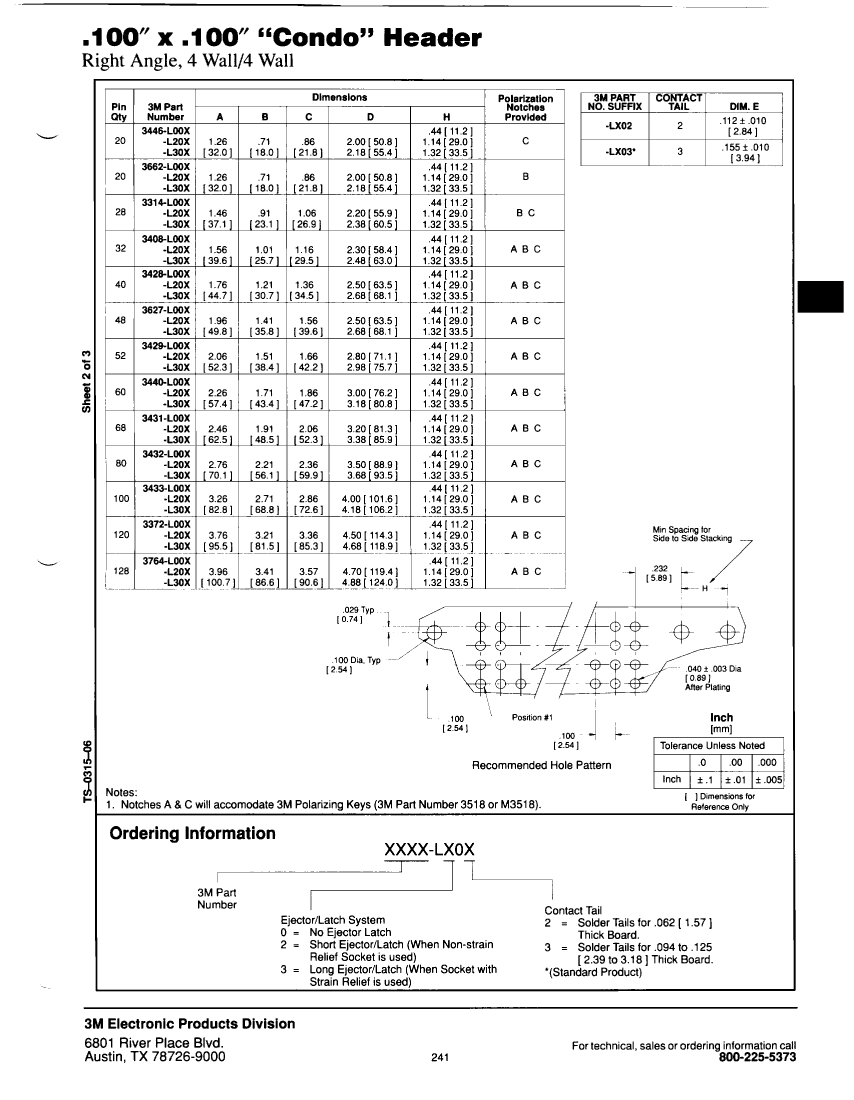

Board mount options	HOLE .099-.111

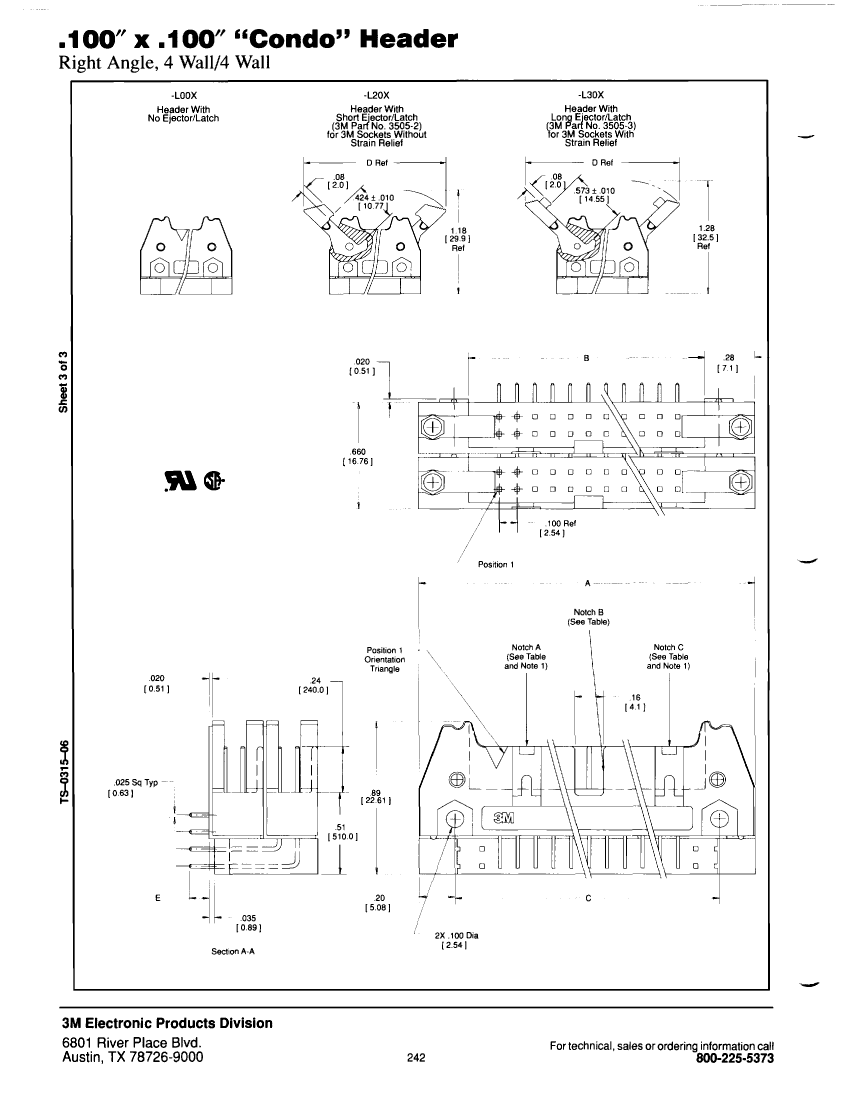

body width	0.68 inch
subject depth	0.89 inch
body length	1.465 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	TIN LEAD (200) OVER NICKEL (100)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	GRAY
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	3314
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	TWO
PCB row number	2+2
Number of rows loaded	4
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.155 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	28
UL Flammability Code	94V-0
Base Number Matches	1
