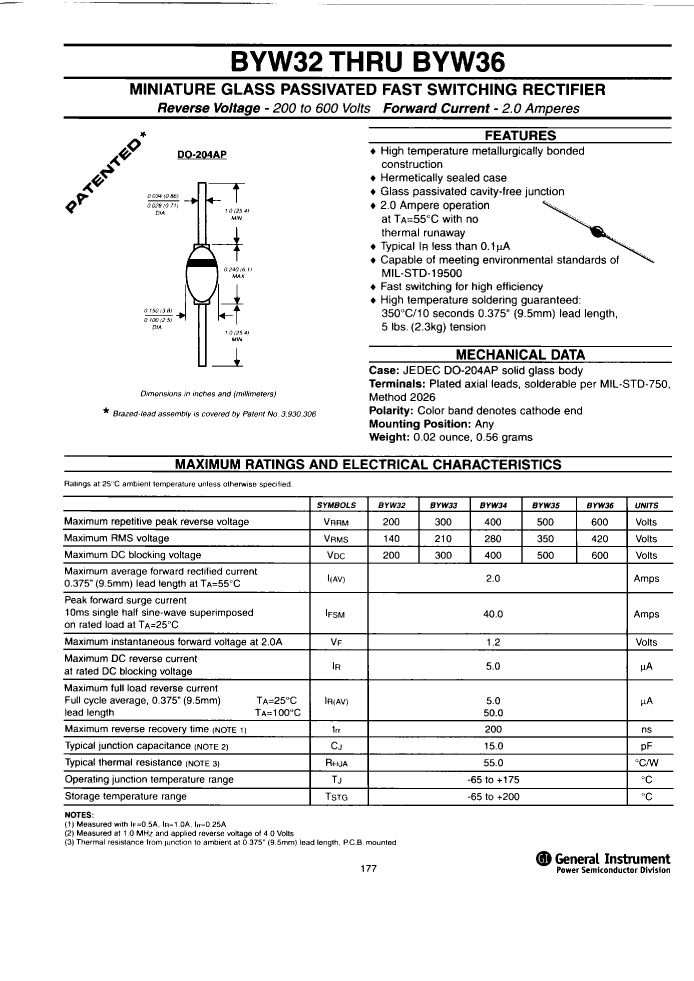

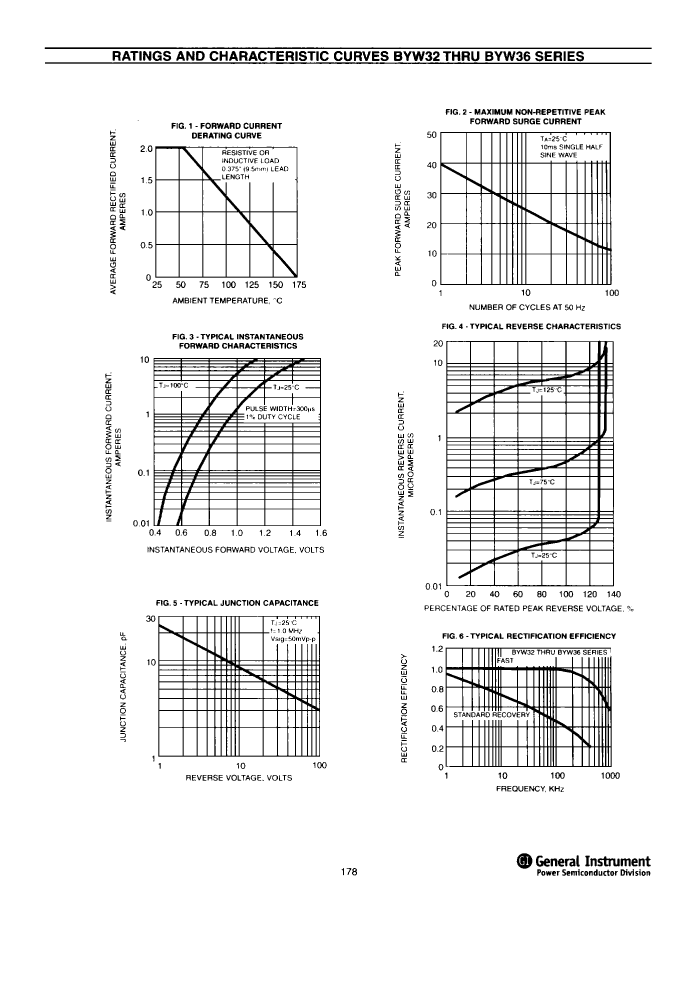

Preview

BYW33: DescriptionRectifier Diode, 1 Phase, 1 Element, 2A, 300V V(RRM), Silicon, DO-204AP,; CategoryDiscrete semiconductor diode; File Size69KB，2 Pages; ManufacturerGeneral Instrument Corp

Download Datasheet Parametric Compare View All

BYW33 Overview

Rectifier Diode, 1 Phase, 1 Element, 2A, 300V V(RRM), Silicon, DO-204AP,

BYW33 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	PATENTED DEVICE
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JEDEC-95 code	DO-204AP
JESD-30 code	E-LALF-W2
Maximum non-repetitive peak forward current	40 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-65 °C
Maximum output current	2 A
Package body material	GLASS
Package shape	ELLIPTICAL
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	300 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.2 µs
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

Preview

Download Datasheet

View All

BYW33 Related Products

	BYW33	BYW36	BYW35	BYW34
Description	Rectifier Diode, 1 Phase, 1 Element, 2A, 300V V(RRM), Silicon, DO-204AP,	Rectifier Diode, 1 Phase, 1 Element, 2A, 600V V(RRM), Silicon, DO-204AP,	Rectifier Diode, 1 Phase, 1 Element, 2A, 500V V(RRM), Silicon, DO-204AP,	Rectifier Diode, 1 Phase, 1 Element, 2A, 400V V(RRM), Silicon, DO-204AP,
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	PATENTED DEVICE	PATENTED DEVICE	PATENTED DEVICE	PATENTED DEVICE
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V
JEDEC-95 code	DO-204AP	DO-204AP	DO-204AP	DO-204AP
JESD-30 code	E-LALF-W2	E-LALF-W2	E-LALF-W2	E-LALF-W2
Maximum non-repetitive peak forward current	40 A	40 A	40 A	40 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C
Maximum output current	2 A	2 A	2 A	2 A
Package body material	GLASS	GLASS	GLASS	GLASS
Package shape	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL	ELLIPTICAL
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	300 V	600 V	500 V	400 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.2 µs	0.2 µs	0.2 µs	0.2 µs
surface mount	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL
Base Number Matches	1	1	1	-
Maker	-	General Instrument Corp	General Instrument Corp	General Instrument Corp
