380-005
EMI/RFI Non-Environmental Backshell
Heavy-Duty with Strain Relief
Type C - Rotatable Coupling - Low Profile
38
CONNECTOR
DESIGNATORS
380 F S 005 M 16 10 M 6
Product Series
Connector
Designator
Angle and Profile
A = 90°
B = 45°
S = Straight
Basic Part No.
Finish (Table II)
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style
(M, D)
Cable Entry (Table X)
Shell Size (Table I)
A-F-H-L-S
ROTATABLE
COUPLING

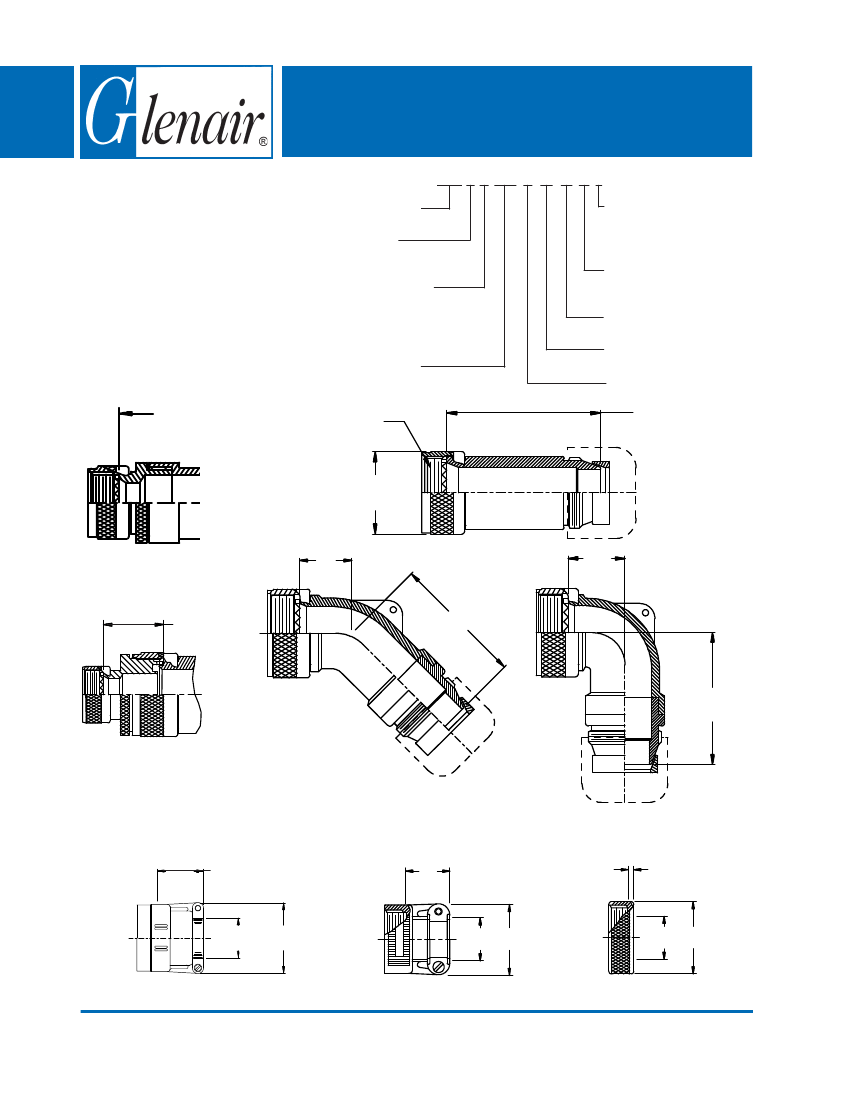

TYPE C OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
A Thread
(Table I)
Length ± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)
C
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4) Max
E
(Table III)
G
(Table III)
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE M
Medium Duty - Dash No. 01-04
(Table X)
.850 (21.6)
Max
STYLE M
Medium Duty - Dash No. 10-28
(Table X)
X
STYLE D
Medium Duty
(Table X)
.135 (3.4)
Max
Cable
Range
Y
Cable
Range
Y
Cable
Range
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 26
Heavy-Duty with Strain Relief
Type C - Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
E
Max
.457 (11.6)
.520 (13.2)
.582 (14.8)
.645 (16.4)
.738 (18.7)
.926 (23.5)
.926 (23.5)
1.020 (25.9)
1.020 (25.9)
1.145 (29.1)
1.207 (30.7)
1.238 (31.4)
F
Max
1.848 (46.9)
1.908 (48.5)
1.968 (50.0)
2.347 (59.6)
2.457 (62.4)
2.647 (67.2)
2.647 (67.2)
2.922 (74.2)
2.922 (74.2)
2.972 (75.5)
3.072 (78.0)
3.162 (80.3)
G
Max
.500 (12.7)
.595 (15.1)
.610 (15.5)
.700 (17.8)
.885 (22.5)
.975 (24.8)
.975 (24.8)
1.125 (28.6)
1.125 (28.6)
1.225 (31.1)
1.575 (40.0)
1.775 (45.1)
H
Max
1.858 (47.2)
1.978 (50.2)
1.998 (50.7)
2.357 (59.9)
2.447 (62.2)
2.617 (66.5)
2.617 (66.5)
2.852 (72.4)
2.852 (72.4)
3.022 (76.8)
3.272 (83.1)
3.272 (83.1)
Dash
No.
01
02
03
04
10
12
16
20
24
28
X
Max
.850 (21.6)
.850 (21.6)
.850 (21.6)
.850 (21.6)
.760 (19.3)
.760 (19.3)
1.073 (27.3)
1.323 (33.6)
1.323 (33.6)
1.572 (39.9)
TABLE X: CABLE ENTRY
Y
Cable Range
Z
Max
Max
Min
Max
.781 (19.8)
.593 (15.1)
.125 (3.2)
.062 (1.6)
.968 (24.6)
.718 (18.2)
.125 (3.2)
.250 (6.4)
1.046 (26.6)
.843 (21.4)
.250 (6.4)
.375 (9.5)
1.156 (29.4)
.968 (24.6)
.375 (9.5)
.500 (12.7)
1.281 (32.5)
1.192 (30.3)
.375 (9.5)
.625 (15.9)
1.500 (38.1)
1.380 (35.1)
.438 (11.1)
.750 (19.1)
1.719 (43.7)
1.535 (39.0)
.562 (14.3)
.938 (23.8)
2.062 (52.4)
1.848 (46.9)
.750 (19.1)
1.250 (31.8)
2.312 (58.7)
2.255 (57.3)
.875 (22.2)
1.375 (34.9)
2.719 (69.1)
2.505 (63.6)
1.125 (28.6)
1.625 (41.3)
1. When maximum cable entry (page 21) is exceeded, Style 2 will
be supplied.
Dimensions E, F, G and H will not apply. Please consult
factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the
wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for shorter lengths on straight backshells.
© 2005 Glenair, Inc.
CAGE Code 06324
TABLE Il: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 27
38
380-005
EMI/RFI Non-Environmental Backshell
