3M™ Scotchcast™ Multi-Mold Power

CableSplice Kits 85 Series

Instructions

1.0 Applications

Designed for insulating and sealing cables rated up to a maximum of 1000 volts. These kits will accommodate

the following connectors and conductor sizes:

Kit No.

Connector Type

Maximum

Conductor Size*

Max. Connector Size

(height plus width)

Max. Sheath

Opening

Max. Cable O.D.*

Wye or 4-Way

85-10

85-12

85-14

85-16

Split Bolt

H & C Tap Compression

Split Bolt

H & C Tap Compression

Split Bolt

H & C Tap Compression

Inline Compression

Split Bolt

H & C Tap

Compression

#8 Stranded AWG

#4 Stranded AWG

#1 Stranded AWG

2/0 Stranded AWG

4/0 Stranded AWG

750 kcmil

1 3/4"

2 3/4"

3 1/4"

N/A

3 3/4"

3 1/2"

6 1/2"

Run &Tap – 7/16"

Run &Tap – 3/4"

Run &Tap – 7/8"

Inline – 1 1/2"

250 kcmil (Run)

2/0 Stranded AWG (Tap)

500 kcmil (Run)

4/0 Stranded AWG (Tap)

Run & Tap – 7/8"

* Assuming wye or 4-way connection using same cable sizes. For other information’s and configurations, see back of instruction sheet.

2.0 Kit Contents

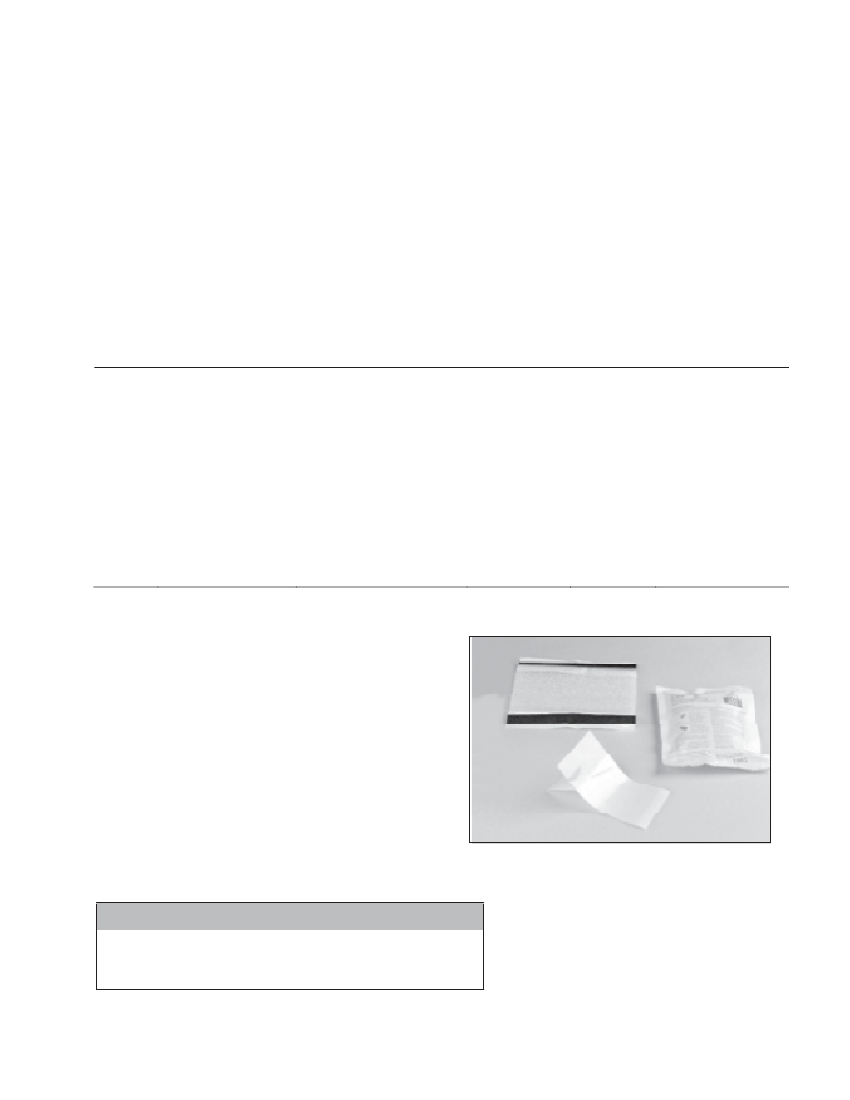

Mold Body................................................ A

Sealing Mastic

(attached to mold body) ........................... B

3M™ Scotchcast™ Resin 2104 ............... C

Adhesive Film Strip.................................. D

CAUTION

Working around energized electrical systems may cause serious injury

or death. Installation should be performed by personnel familiar with

good safety practice in handling electrical equipment. De-energize and

ground all electrical systems before installing product.

4.5

4.6

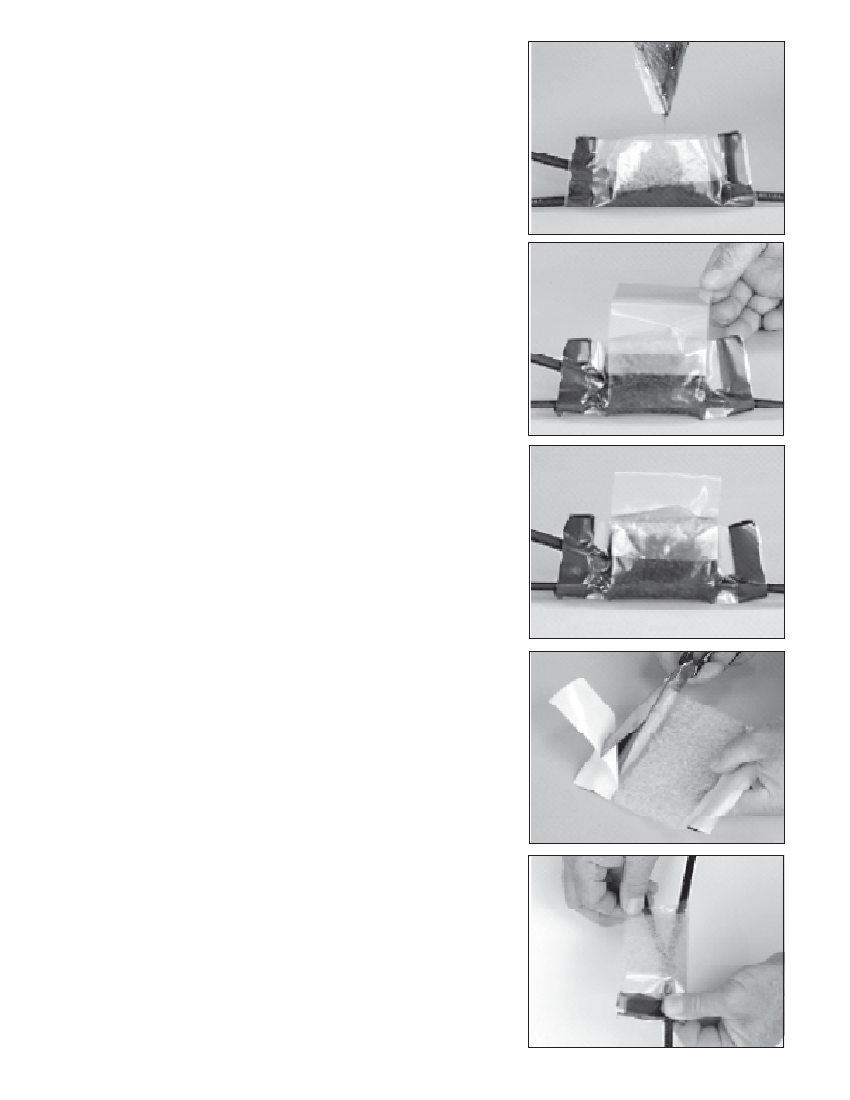

Remove liner from adhesive film strip supplied with kit.

Seal the open side of mold. Bring the mold's edges

together, fold over and compress the adhesive film strip.

Be sure the seal is complete.

4.7

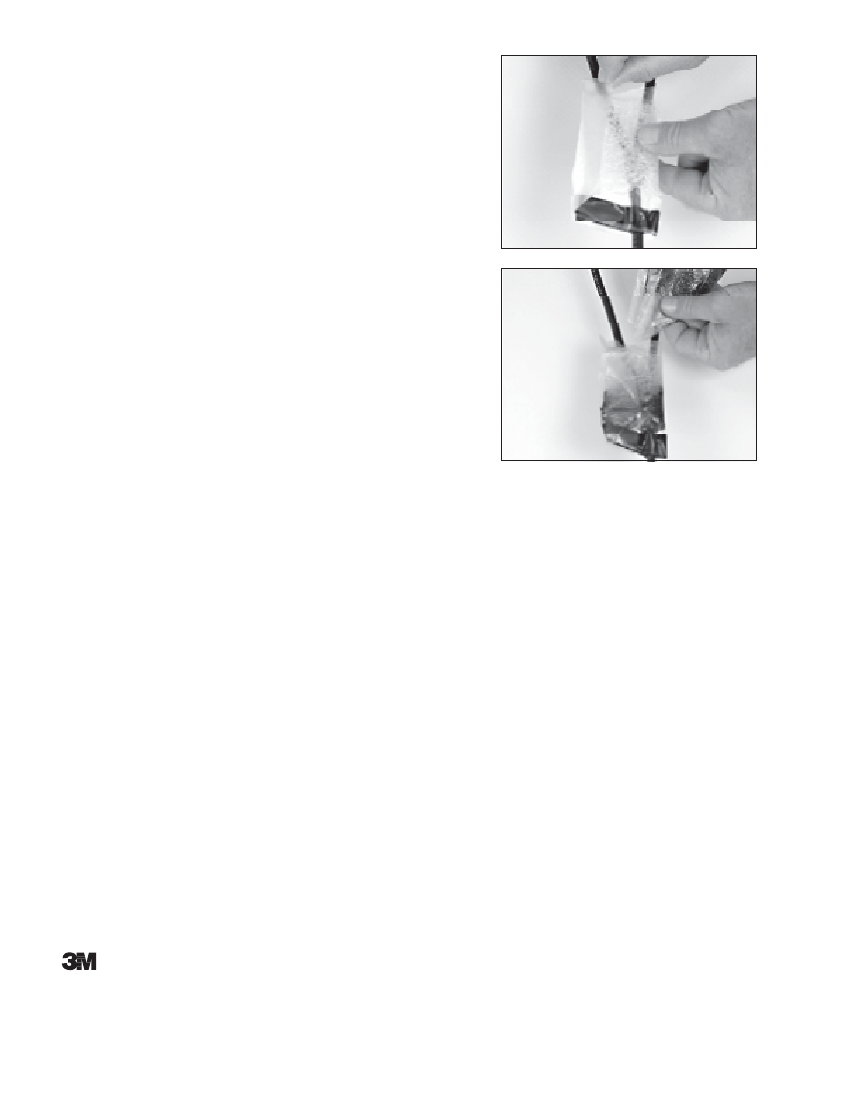

Mix the resin per instructions on resin package. Pour

into mold.

NOTE: DO NOT MOVE CABLES OR SPLICE UNTIL

RESIN HAS COMPLETELY HARDENED.

Typical Minimum Cure Times

Temp.

Cure

70°F (21°C)

1 Hour

20°F (-4°C)

20 Hours

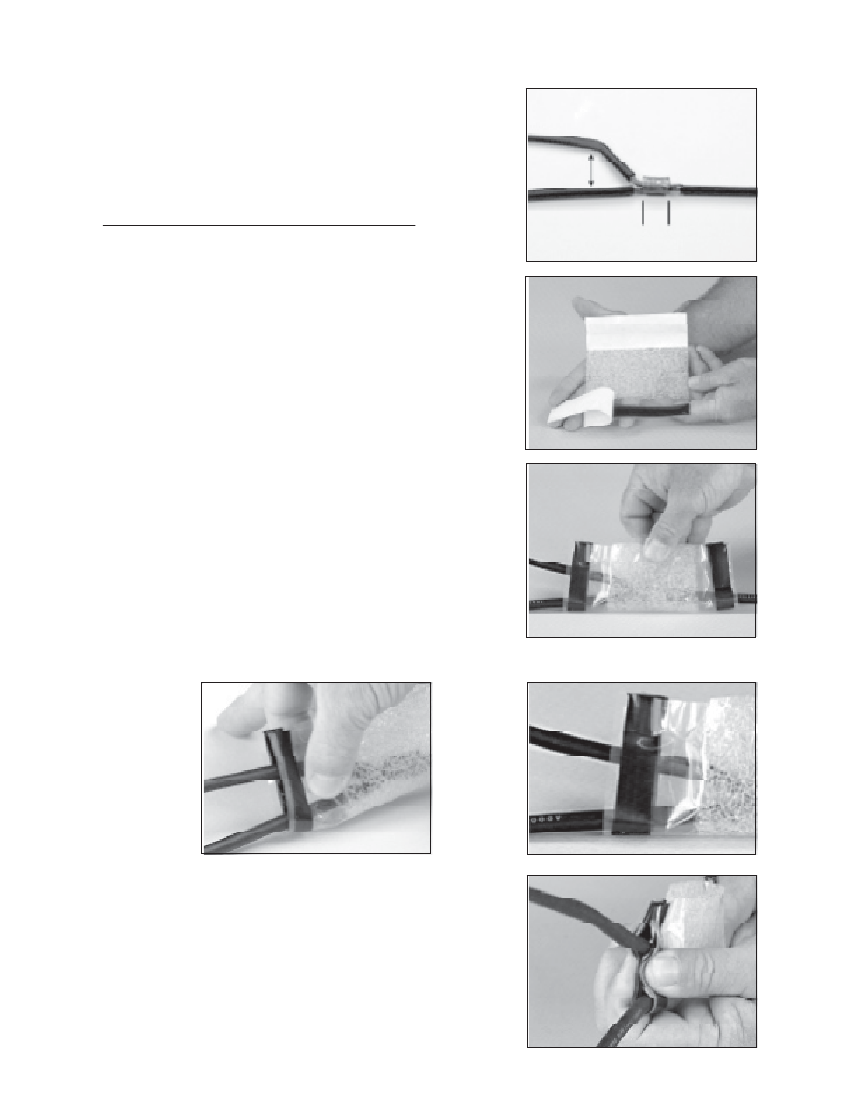

5.0 Other Installation Hints

5.1

The 3M™ Scotchcast™ Multi-mold Kits can insulate many more splice configurations. These

instructions show only a typical tap splice. Some general rules for insulating multiple splice

configurations follow.

For Multiple Tap Connections.

Follow the same procedures in these instructions. The number of taps

the multi-mode kit can handle will depend on the connector and the size of the cables being spliced. The

following guidelines should be used:

a) In making horizontal splices, cables should be brought out of the splice from the sides (through the

sealing mastic) and not out of the top of the splice. This will ensure the proper length of cable to be

sealed in resin.

b) Resin coverage along cable sheath or jacket must be a minimum of 1" for a proper moisture seal.

c) The sealing mastic must surround each cable to ensure a resin tight seal.

d) In making vertical splices, cables can be brought out the top of the mold.

3M and Scotchcast are trademarks of 3M Company.

Important Notice

All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the

accuracy or completeness is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended

application. You assume all risks and liability associated with such use. Any statements related to the product which are not contained in

3M’s current publications, or any contrary statements contained on your purchase order shall have no force or effect unless expressly agreed

upon, in writing, by an authorized ofﬁcer of 3M.

Warranty; Limited Remedy; Limited Liability.

This product will be free from defects in material and manufacture at the time of purchase.

3M MAKES NO OTHER WARRANTIES

INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR

A PARTICULAR PURPOSE.

If this product is defective within the warranty period stated above, your exclusive remedy shall be, at 3M’s

option, to replace or repair the 3M product or refund the purchase price of the 3M product.

Except where prohibited by law, 3M will not

be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of the legal

theory asserted.

5.2

Electrical Markets Division

6801 River Place Blvd.

Austin, TX 78726-9000

800-245-3573

Fax 800-245-0329

www.3M.com/electrical

Please Recycle, Printed in USA

78-8124-4519-1 Rev C
