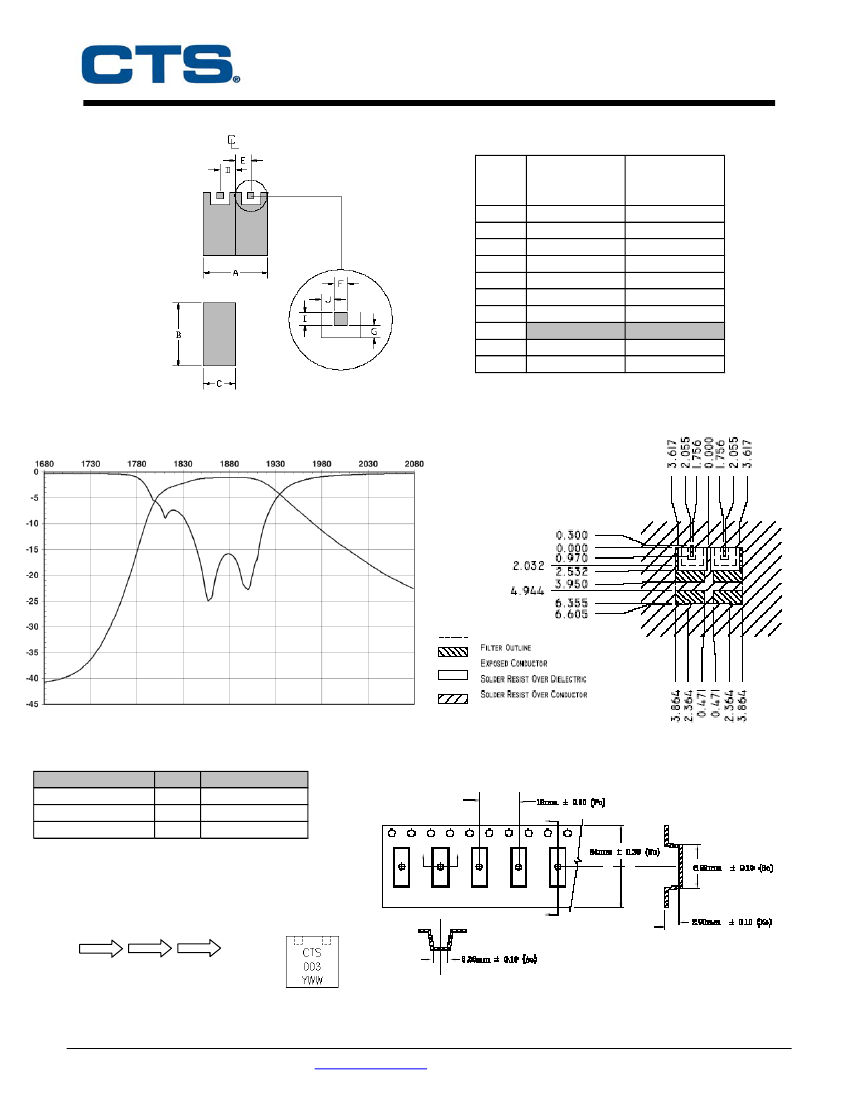

CER0003A
1880 MHz PCS BPF
Rev 0 – Origin Date: July 11, 2005 – Revision Date: July 11, 2005
Features
• Low Loss
• Excellent Low Side Rejection
• Small Size
Description

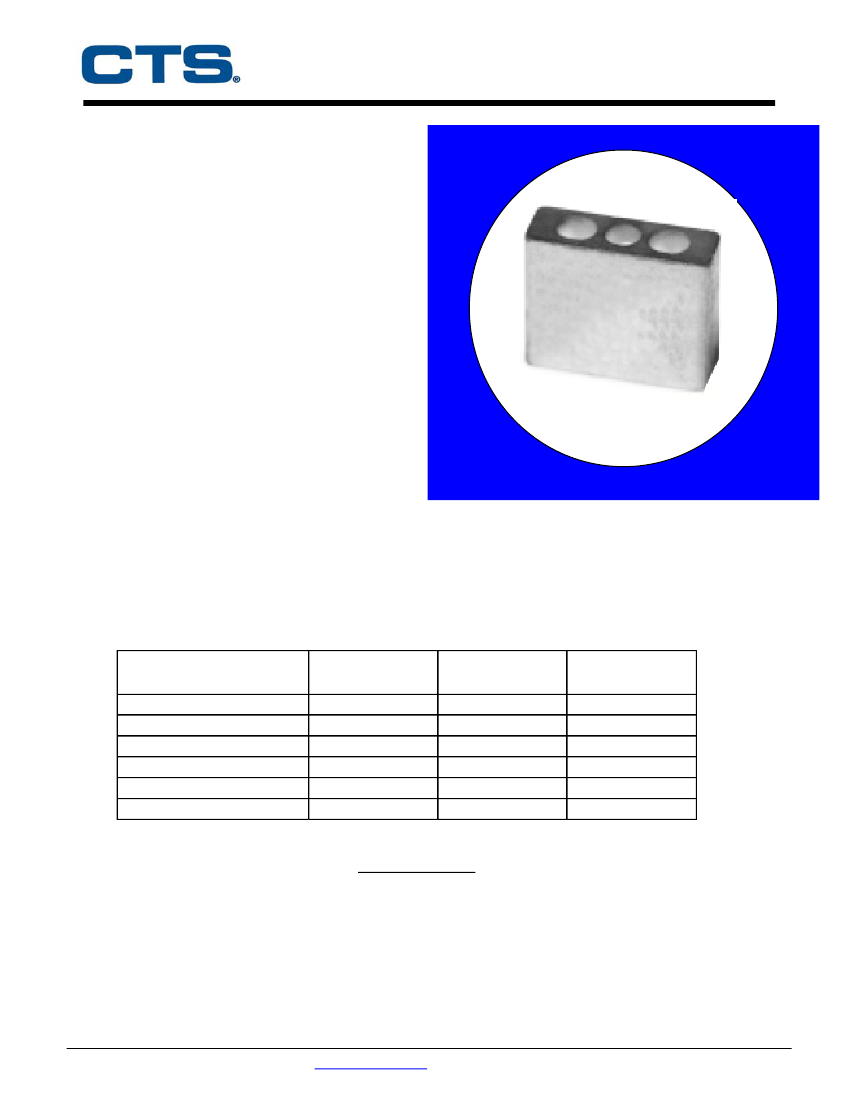

Surface mount, silver (Ag) coated ceramic
filter. Developed for use in PCS
infrastructure applications.
Weight: 2.1 grams typical
Material: Filter is composed of a ceramic
block plated with Ag.
Filter complies with RoHS standards.
Electrical Specifications
Parameter
Passband Insertion Loss
Passband Return Loss
Attenuation
Frequency
(MHz)
1850-1910
1850-1910
1574
1740
2018
2352
Typical @ 25ºC
1.7 dB
14.5 dB
35.0 dB
34.0 dB
16.5 dB
24.0 dB
Spec. @
25ºC
1.9 dB max
10.0 dB min
33.0 dB min
26.0 dB min
14.0 dB min
21.0 dB min
Note: Supplier shall test each filter to the critical electrical specifications of the above table. Any subsequent audits may deviate from in value due to
measurement repeatability among different test systems. Such deviations shall not exceed the following limits:
Specification Allowance
Insertion Loss
0.1 dB
Return Loss
1.0 dB
Stopbands
1.0 dB
•“This product is covered by one or more of the following U.S. and foreign patents including: US 4,692,726;US 4,742,562; US 4,800,348;US 4,829,274;US 5,146,193;EP 0573597;DE 0573597;FR 0573597;JP 508149/92;KR 142171;US
5,162,760;US 5,218,329;US 5,250,916;US 5,327,109;US 5,488,335;CA 2114029;FR 9306297;GB 2273393;JP 3205337;KR 115113;CN 93106228.4;US 5,512,866;EP 0706719;DE 0706719;FR 0706719;GB 0706719;CN 95190359.4;US
5,602,518;US 5,721,520;US 5,745,018;EP 0910875;DE 0910875;DK 0910875;FR 0910875;GB 0910875;IE 0910875;JP 505182/98;KR 10-323013;US 5,994,978;US 6,462,629;CN 00810420.4;US 6,559,735;US 6,650,202;US 6,834,429.Other
US and foreign patents pending.
•CTS Corporation 2006 reserves all copyrights in the layout, design and configuration of the patterns on this product.”
Document No. 008-0256-0
Page 1 of 2
Rev. X4VH
- CTS Electronic Components -
www.ctscorp.com
- 171 Covington Drive - Bloomingdale, IL 60108 -
