IPR3SAD1L0S

Description
Illuminated Pushbutton Switches SPST 0.5A 48VAC LED RED 2VDC
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size267KB,6 Pages
ManufacturerAPEM
Download Datasheet Parametric View All

IPR3SAD1L0S Online Shopping

Suppliers Part Number Price MOQ In stock
IPR3SAD1L0S - - View Buy Now

IPR3SAD1L0S Overview

Illuminated Pushbutton Switches SPST 0.5A 48VAC LED RED 2VDC

IPR3SAD1L0S Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerAPEM
Product CategoryIlluminated Pushbutton Switches
RoHSDetails
Switch FunctionOFF - (ON)
Current Rating500 mA
Voltage Rating AC250 VAC
Voltage Rating DC50 VDC
IP RatingIP67
Factory Pack Quantity50
IP series

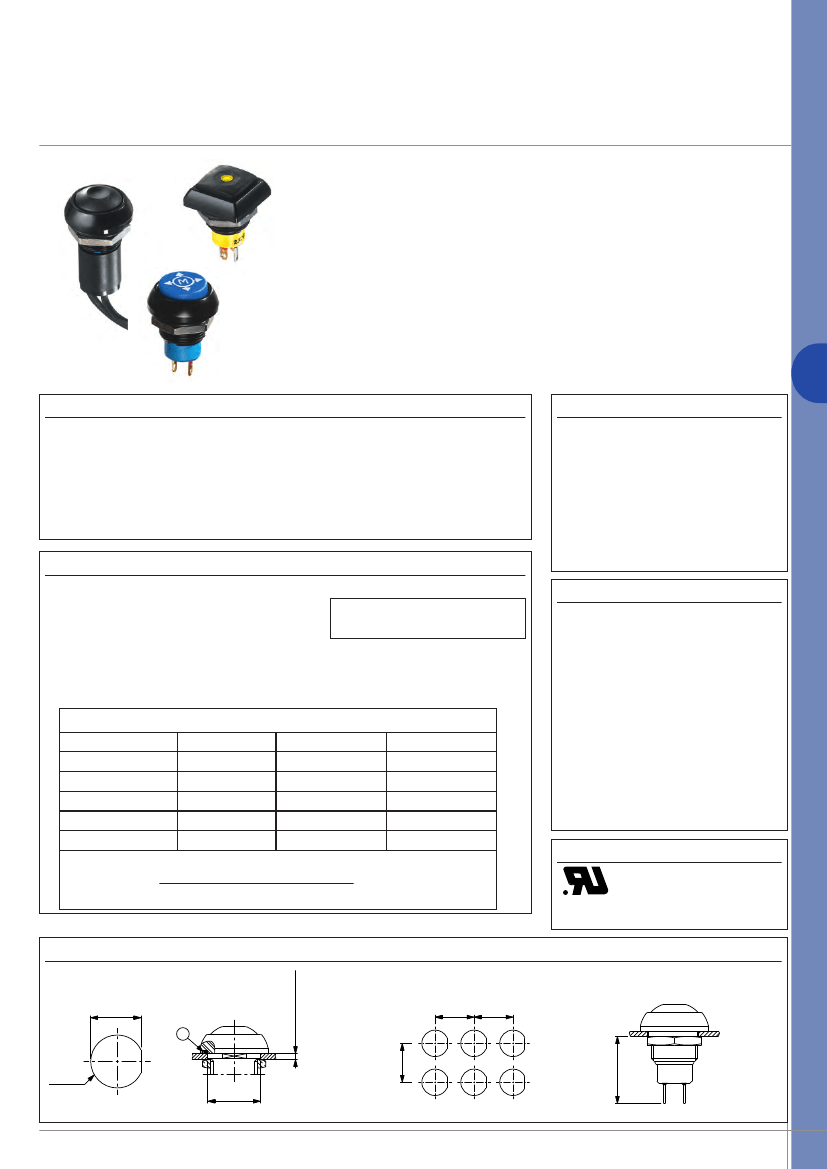

Pushbutton switches for harsh environments - bushing Ø 12 mm - momentary
Distinctive features and specifications
UG1410A
K
Illuminated or non-illuminated
K
Tactile feedback
K
Wide variety of configurations
K
Flat round actuator for optional marking
K
Sealed to IP67
B1
ENVIRONMENTAL SPECIFICATIONS
GENERAL SPECIFICATIONS
• Front panel sealing : IP67 according to IEC 60529
IP69K according to DIN 40050-9 (non-illuminated) with cap U5125
• Shock resistance : 100 g according to IEC 512-4, test 6c
• Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d
• Salt spray : IEC 512-6, test 11f
• Robustness (non-illuminated) : IK06 according to EN 50102 (1 joule)
• Operating temperature : -40°C to +85°C
ELECTRICAL SPECIFICATIONS
• Panel thickness : 1,5 mm (.059) min.
4 mm (.157 max.)
• Total travel :
Funct. 3 : 1,7 mm (.067)
+/- 0,3 mm
Funct. 5 : 1,3 mm (.051)
+/- 0,3 mm
• Typical operating force : 6N
+/- 2N
• Low level/mech. life : 1.000.000 cycles
• Torque : 1,5 Nm max. applied to nut
• Soldering : 320°C max. for 3 sec.
MATERIALS
• Max. current/voltage rating with resistive load (gold plated silver contacts):
5A 28VDC, 70.000 cycles
For W terminals, current has to
0,2A 48VDC, 500.000 cycles
be limited to 400mA.
0,5A 48VAC, 500.000 cycles
• Initial contact resistance : 100 mΩ max.
• Insulation resistance : 1 GΩ min. at 500VDC
• Dielectric strength : 1.500 Vrms
• Contact bounce : 10 ms
LED COMPONENT SPECIFICATIONS
LED colour
Super red (L0S)
Yellow (L0Y)
Green (L0G)
Blue (L0B)
White (L0W)
Forward current
20mA
20mA
20mA
20mA
20mA
Typ. forward voltage Max. forward voltage
2,1V
2,1V
2,1V
3,2V
3,35V
2,3V
2,3V
2,3V
3,8V
4,25V
• Case : thermoplastic UL94-V0
• Actuator : polyamide 6/6
• Bushing/bezel : zinc die-cast
(zamac), black painted
• Contacts : silver, gold plated (std)
brass, gold plated (for option 104)
• Output wires (flying lead terminals) :
F version : AWG20, section 0,6 mm
2
W version : AWG24, section 0,23 mm
2
• LED wires :
F version : AWG26, section 0,12 mm
2
W version : AWG24, section 0,23 mm
2
• Lens : polycarbonate
• Terminal seal : epoxy
AGENCY APPROVAL
2A 125VAC/250VAC
File E83438
Se
e following pages.
A resistor must be series-connected by the user.
Resistor value = supply voltage - LED forward voltage
LED forward current
MOUNTING
Panel cut-out
1.50min-4Max
(.059 min-.157max)
12.90
(.507)
Matrix mounting
20.00
(.787)
20.00
(.787)
Back of panel space requirement
1
Ø13.60
(.535DIA)
20.00
(.787)
Œ
O-ring
APEM
Ø13.50
(.531DIA)
www.apem.com
17.50
(.688)
B1-15
