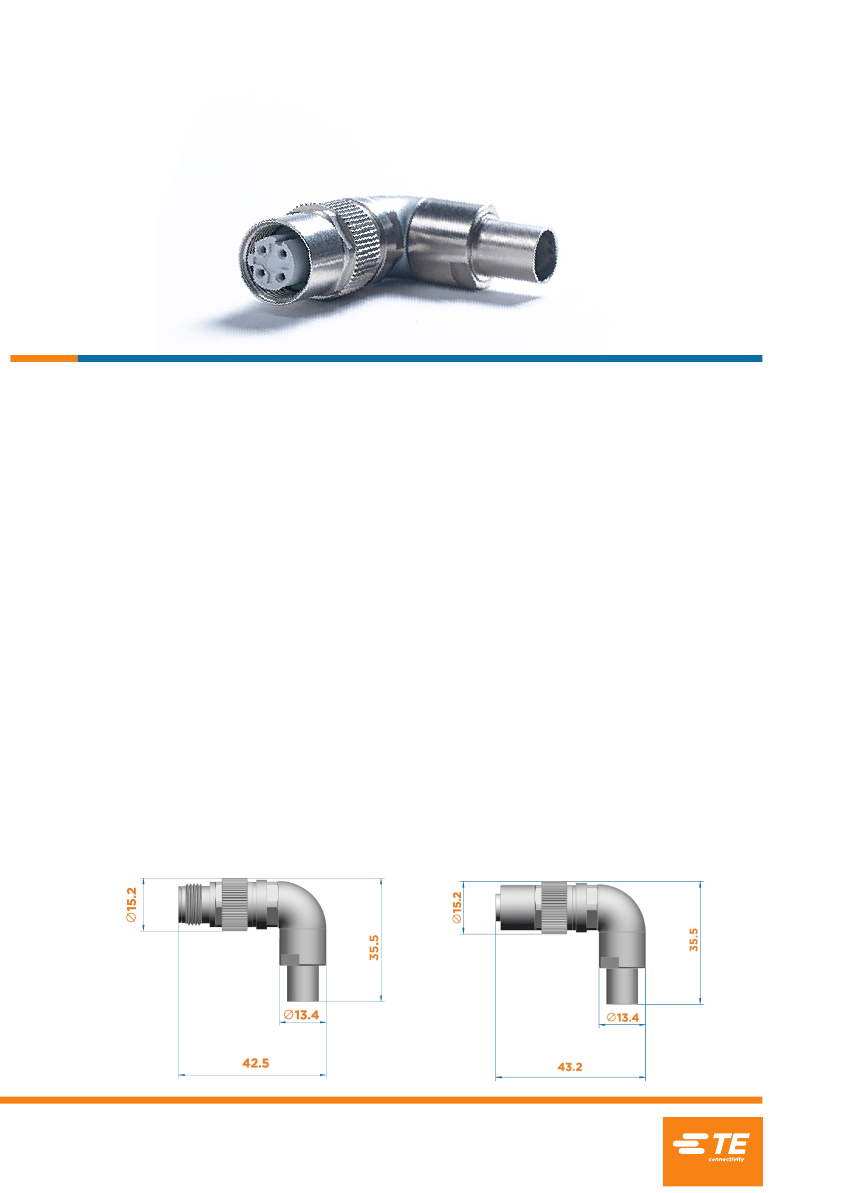

M12 RAIL 90
cable exit to solve tight installation condition.
O
FIELD INSTALLABLE CONNECTORS
The angled M12 Rail 90
o
cable connector is field installable and developed for the fault-free data transfer in harsh
environments and for difficult installation conditions. The connector is specifically suited for harsh conditions due to the
crimp termination for the signal contact and for the cable shield. The special design provides the flexibility for the angled
Technical Features
•
•
•
•
•
•
•
•
•
•
•
Flexible cable exit 90
o
Field installable.
8 cable exit options (8 x 45
o
) for any installment condition
Simple selection of the position and lock against rotation of the cable outlet
Male and female versions
Coding: A-coding 5 poles and A-Coding 8 poles plus D-Coding 4 poles
Effective 360
o
EMI/RFI shielding due to special fully housing and crimp flange/crimp sleeve system
Torsion - and vibration-proof strain relief
Easy assembly due to only a few single parts
Compact dimensions with small diameter
M12 Locking nut with combined knurled and hexagon combination shape for tightening with defined torque
M12 90
O
CONNECTOR
/// DATA SHEET
M12 SERIES

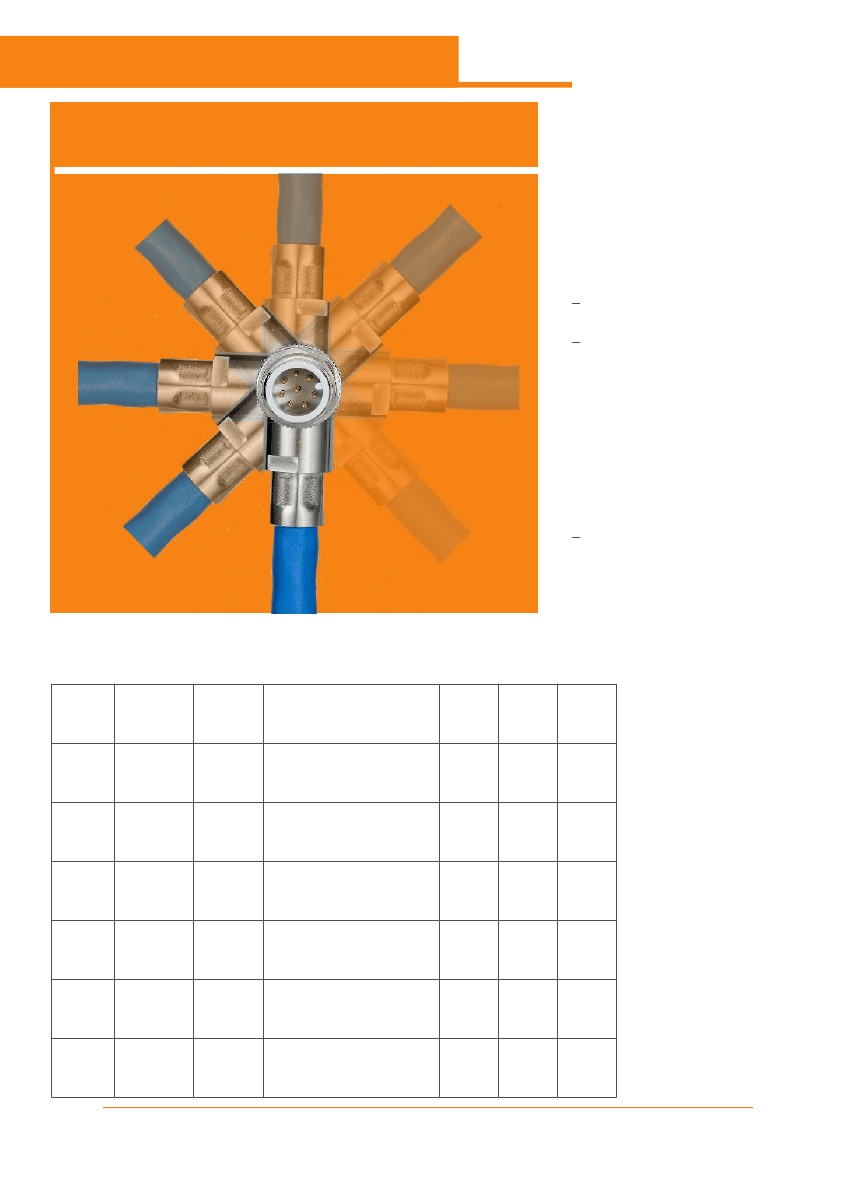

Rotatable in
8 steps (45
o
)
315
0
o
Temperature Range
-40°C to 70 °C
Current rating:
D-4: 4A / A-8: 2 A
Operational Voltage:
A-5 / D-4: 50 V DC / A-8: 30 V
DC
Contact Resistance:
< 5 mΩ
Insulation resistance:
> 100 mΩ
Data transmission
characteristics:
Class D according to IEC
o
45
o
270
o
90
o
225
o
11801:2002
Data transmission rate:
10/100 Mbit/s
IP rating:
IP67
Mating Cycles:
> 100 mating cycles
Standards:
EN 61373 Class 1
Fire Performance EN 45545
NFF 16101, 16102
180
o
135
o
Selection Guide
Code
Part Number
Cable
Description
No.
Positions
Male
Female
D-Code
1-2823588-1
CAT 5
RADOX
7.3mm H&S
CAT 5
RADOX
7.3mm H&S
M12 D-Code Male cable mount
4
x
D-Code
1-2823588-2
M12 D-Code Female cable mount
4
x
D-Code
1-2823588-3
TE CAT 5
M12 D-Code Male cable mount
4
x
D-Code
1-2823588-4
TE CAT 5
M12 D-Code Female cable mount
4
x
A-Code
1-2823587-2
TE CAT 5
M12 A-Code Male cable mount
5
x
A-Code
1-2823587-3
TE CAT 7
M12 A-Code Male cable mount
8
x
A-Code
1-2823587-4
TE CAT 7
M12 A-Code Female cable mount
8
x
M12 SERIES
/// DATA SHEET
PAGE 2
1-1773872-4 CC 0516
© 2016 TE Connectivity Ltd. family of companies. All Rights Reserved
