Stacking Height 5 to 11mm Half Pitch Connector
FX4 Series
Stacking Height Flexible
5 to 11mm
DIP type
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
The mounting area 70% reduced, compared with
conventional product (FX2 series)
FX2 series
FX4 series
(Compared with 60 contacts)
sFeatures
The FX4 series is a miniature board to board connectors, where the stacking height can be set at the 1mm interval.
qThrough
hole Type
1. Small and Light
The mounting space and weight is reduced about 30%, compared to the conventional product (HRS FX2 series),
respectively, and the mounting area about 70% reduced, compared to the conventional one.
2. Stacking Height 5 to 11mm
The board to board stacking height can be set per 1mm from 5mm up to 11mm.
3. Flux Swell Prevention
When solder is dipped, the flux swell from the board rear side is completely prevented.
4. Mis-insertion Prevention and Low Insertion/Extraction Force Mechanism
The connection area is designed to completely prevent the mis-insertion.
Moreover, the low insertion/extraction mechanism is adopted.
sApplications
Computers, peripheral equipments, business equipments, etc.
A119
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
5 to 11mm
soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX4 SeriesqStacking Height
be discontinued
Half Pitch Connector
sProduct
Specifications
Rating
Current rating 0.5A
Voltage rating 125V AC
Operating Temperature Range -55ç to +85ç (Note 1)
Operating Humidity Range 40% to 80%
Storage Temperature Range -10ç
to
+60ç (Note 2)
Storage Humidity Range 40%
to
70%
Item
1. Insulation Resistance
2. Withstanding Voltage
3. Resistance
4. Vibration
100M
ohms
min.
Specification
Measured at 250V PC
300V AC for 1 minute
100mA
Condition
No flashover or insulation breakdown.
45m
ohms
max.
No electrical discontinuity of 1µs or more
Contact resistance : 55m
ohms
max.
Insulation resistance : 100M
ohms
min.
Frequency: 10 to 55 Hz, single amplitude of 0.75 mm, 2 hours in each of the 3 directions.
(-55ç: 30 minutes 15
to
35ç: 2
to
3 minutes
(-85ç:
30 minutes 15
to
35ç: 2
to
3minutes) 5 cycles
300 cycles
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
5.
Humidity (Steady state)
Contact resistance: 55m
ohms
max. Insulation resistance: 100M
ohms
min.
96 hours at temperature of 40ç and humidity of 90% to 95%
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
FX4 SeriesqStacking Height 5 to 11mm Half Pitch
sales representative.

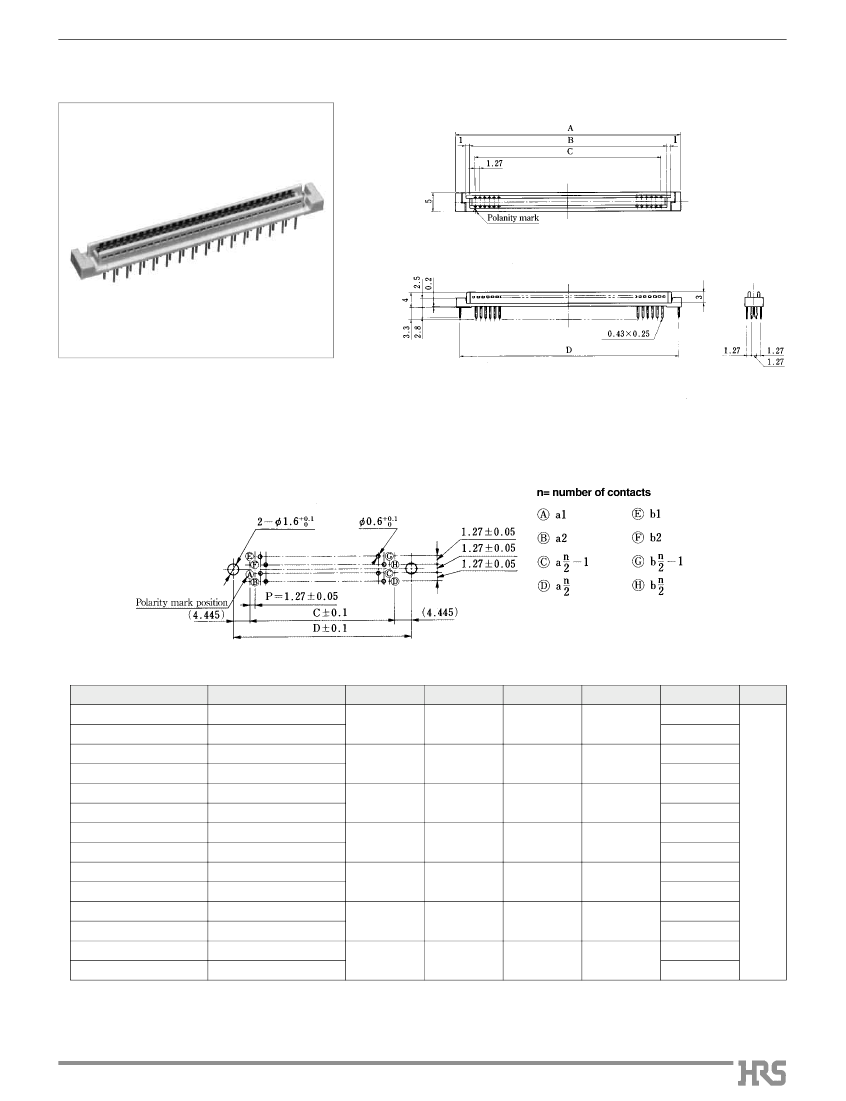

sHeader
(Through hole Type)-Stacking Height: Standard type
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
BPCB
mounting pattern
Unit: mm
Part Number
FX4C-20P-1.27DSA(71)
FX4C-20P-1.27DSAL(71)
FX4C-32P-1.27DSA(71)
FX4C-32P-1.27DSAL(71)
FX4C-40P-1.27DSA(71)
FX4C-40P-1.27DSAL(71)
FX4C-52P-1.27DSA(71)
FX4C-52P-1.27DSAL(71)
FX4C-60P-1.27DSA(71)
FX4C-60P-1.27DSAL(71)
FX4C-68P-1.27DSA(71)
FX4C-68P-1.27DSAL(71)
FX4C-80P-1.27DSA(71)
FX4C-80P-1.27DSAL(71)
CL No.
574-0001-0-71
574-0051-9-71
574-0002-3-71
574-0052-1-71
574-0003-6-71
574-0053-4-71
574-0004-9-71
574-0054-7-71
574-0005-1-71
574-0055-0-71
574-0006-4-71
574-0056-2-71
574-0007-7-71
574-0057-5-71
Number of Contacts
20
32
40
52
60
68
80
A
21.87
29.49
34.57
42.19
47.27
52.35
59.97
B
14.58
22.2
27.28
34.9
39.98
45.06
52.68
C
11.43
19.05
24.13
31.75
36.83
41.91
49.53
D
___
___
__
20.32
___
___
__
27.94
___
___
__
33.02
___
___
__
40.64
___
___
__
45.72
___
___
__
50.8
___
___
__
58.42
YES
RoHS
A121
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will
5 to 11mm
soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
FX4 SeriesqStacking Height
be discontinued
Half Pitch Connector

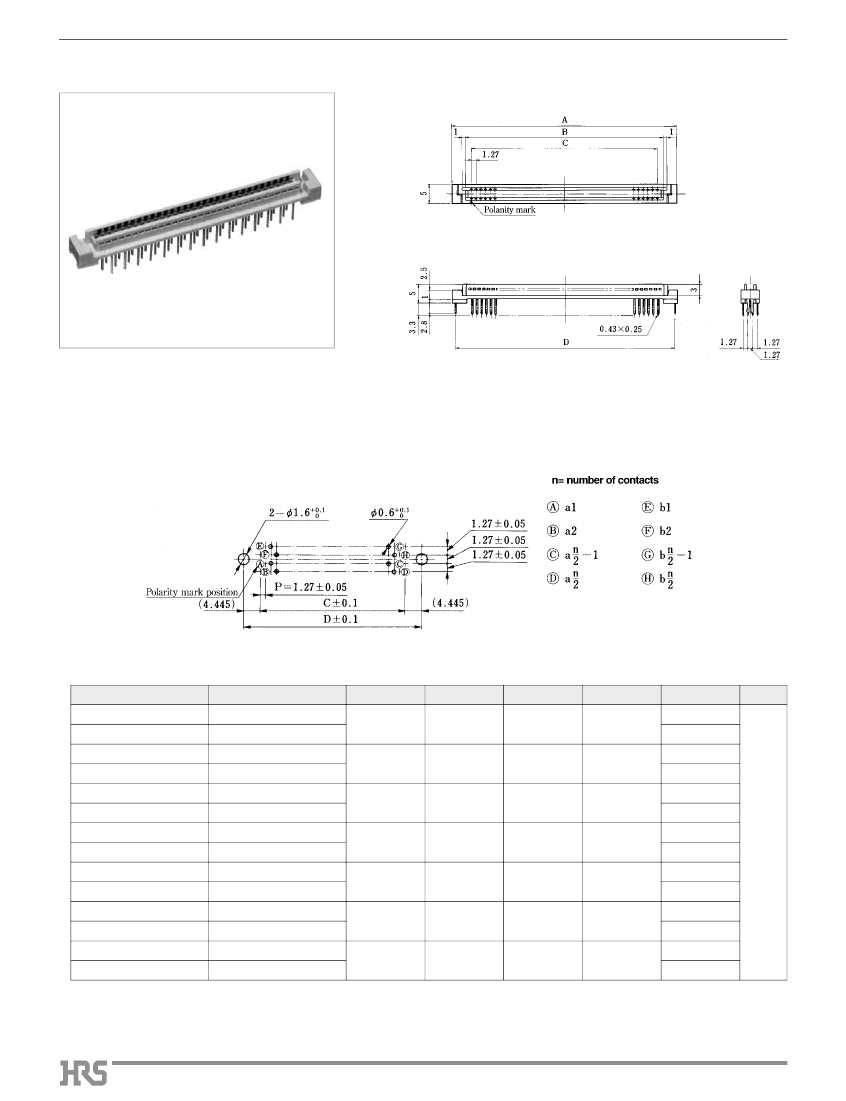

sHeader
(Through hole Type)-Stacking Height: Standard+1mm type
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2016
BPCB
mounting pattern
Unit: mm
Part Number
FX4C1-20P-1.27DSA(71)
FX4C1-20P-1.27DSAL(71)
FX4C1-32P-1.27DSA(71)
FX4C1-32P-1.27DSAL(71)
FX4C1-40P-1.27DSA(71)
FX4C1-40P-1.27DSAL(71)
FX4C1-52P-1.27DSA(71)
FX4C1-52P-1.27DSAL(71)
FX4C1-60P-1.27DSA(71)
FX4C1-60P-1.27DSAL(71)
FX4C1-68P-1.27DSA(71)
FX4C1-68P-1.27DSAL(71)
FX4C1-80P-1.27DSA(71)
FX4C1-80P-1.27DSAL(71)
CL No.
574-0011-4-71
574-0061-2-71
574-0012-7-71
574-0062-5-71
574-0013-0-71
574-0063-8-71
574-0014-2-71
574-0064-0-71
574-0015-5-71
574-0065-3-71
574-0016-8-71
574-0066-6-71
574-0017-0-71
574-0067-9-71
Number of Contacts
20
32
40
52
60
68
80
A
21.87
29.49
34.57
42.19
47.27
52.35
59.97
B
14.58
22.2
27.28
34.9
39.98
45.06
52.68
C
11.43
19.05
24.13
31.75
36.83
41.91
49.53
D
___
___
__
20.32
___
___
__
27.94
___
___
__
33.02
___
___
__
40.64
___
___
__
45.72
___
___
__
50.8
___
___
__
58.42
YES
RoHS
A122
The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.
All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose
Connector
FX4 SeriesqStacking Height 5 to 11mm Half Pitch
sales representative.

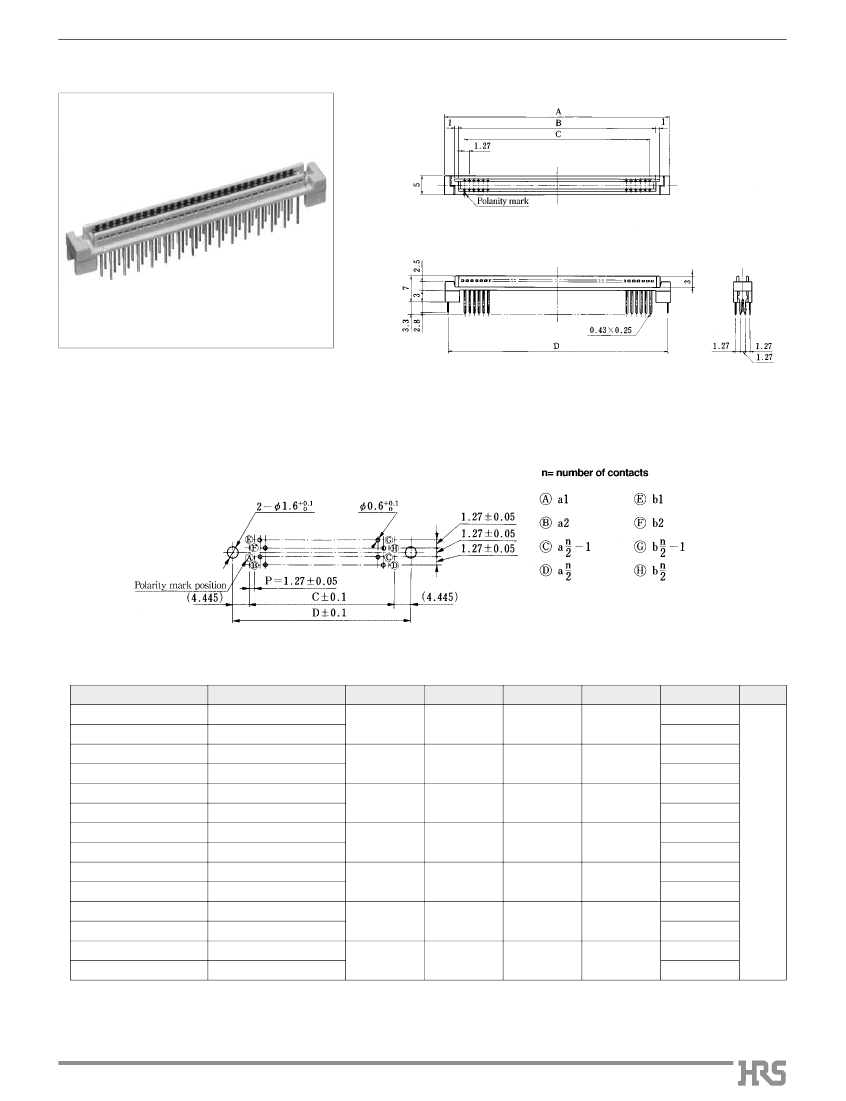

sHeader
(Through hole Type)-Stacking Height: Standard+3mm type
Mar.1.2018
Nov.1.2016 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
