8-1813099-2 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 8-1813099-2

Preview

8-1813099-2: Description2.5mm SOCKET HSG ASSEMBLY(BLUE 3 POS); CategoryThe connector; File Size158KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

8-1813099-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8-1813099-2	-	-	View	Buy Now

8-1813099-2 Overview

2.5mm SOCKET HSG ASSEMBLY(BLUE 3 POS)

8-1813099-2 Parametric

Parameter Name	Attribute value
Connector type	Female terminal housing
Connector System	line to line
Sealable	yes
Hybrid connector	no
Main locking features	on the terminal
strain relief	no
Line spacing	7 mm [ .276 in ]
Number of Positions	3
Rows	2
Blank hole position	4
Nominal Voltage Structure (V)	12, 24, 42, 48
Operating voltage (VDC)	12
color	blue
Main material	PBT GF
Engage pin diameter	2.5 mm [ .098 in ]
Terminal position guarantee	no
polarization	no
Centerline (Pitch)	7 mm [ .276 in ]
width	31 mm [ 1.22 in ]
high	32.9 mm [ 1.2952 in ]
length	32.9 mm [ 1.2953 in ]
Working group temperature range	-40 – 120 °C [ -40 – 248 °F ]
protection level	IP69K
UL flammability rating	UL 94-HB
Encapsulation method	bag
Package quantity	100
Able to ensure connector position	no

Preview

Download Datasheet

View All

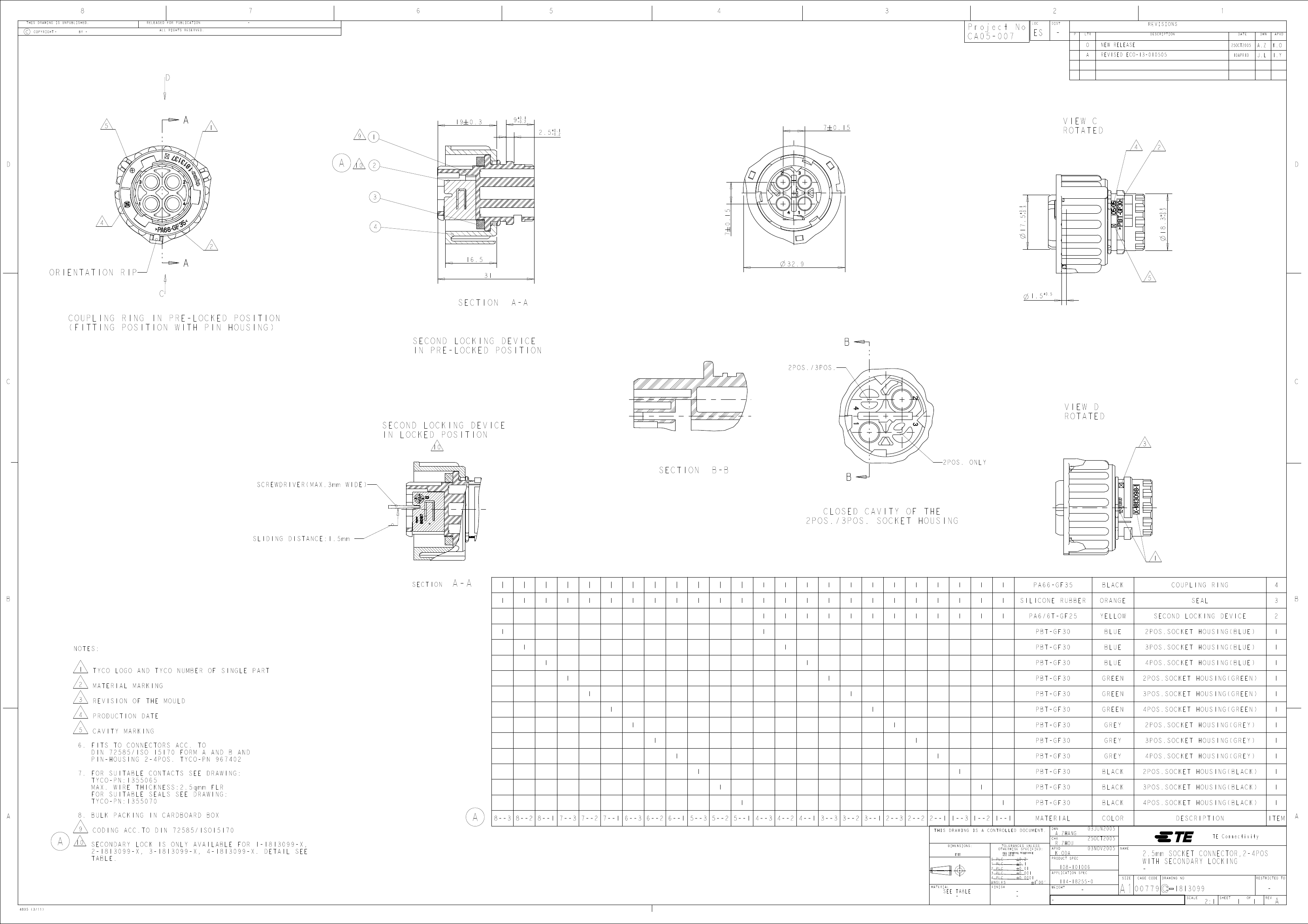

8
