High reliability, green solution for pulse or backup
power applications
Maintenance free
Applications
•
•
•
Description

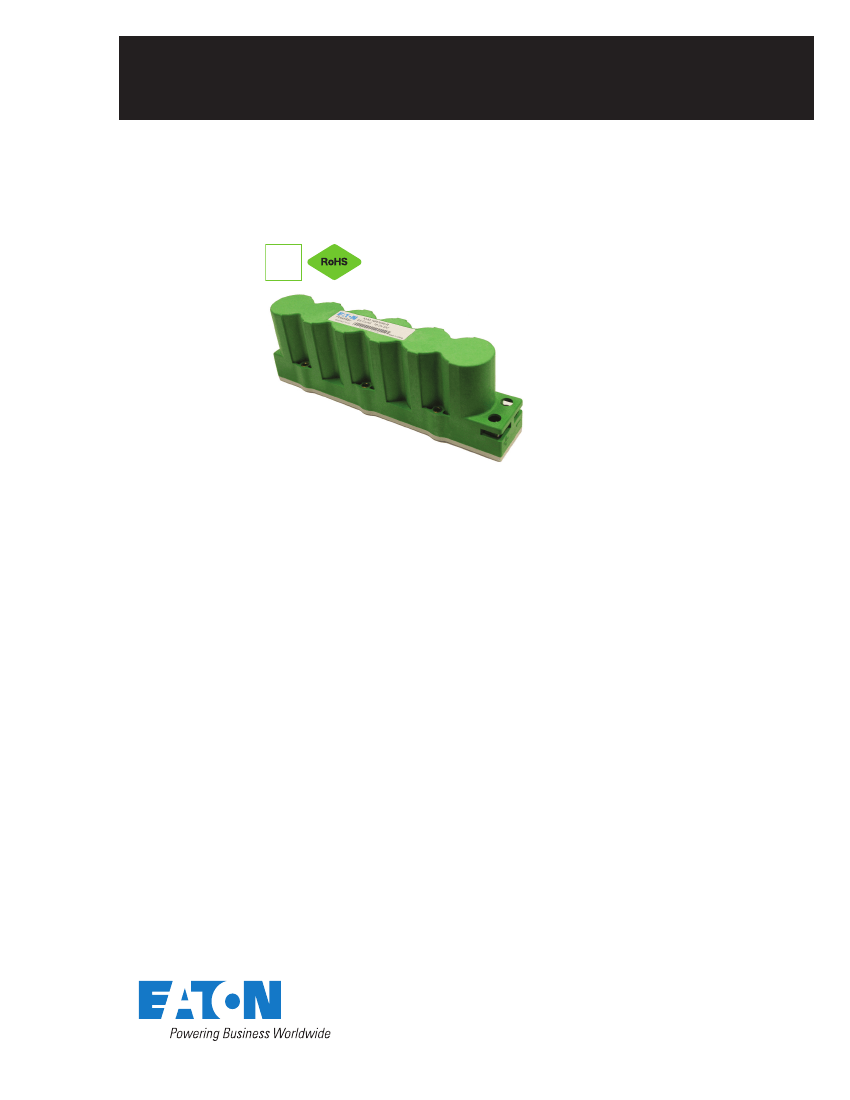

Eaton supercapacitors are unique, ultra-high
capacitance devices utilizing electrochemical
double layer capacitor (EDLC) construction
combined with new, high performance materials.
This combination of advanced technologies
allows Eaton to offer a wide variety of capacitor
solutions tailored to specific applications.
The 16 V XVM supercapacitor module offers a
means to easily achieve higher voltage, power or
discharge time through series or parallel
connection of multiple modules.
Industrial computer and emergency backup
energy
Battery assist engine starting, especially for cold
or frequent starts
Graceful system shutdown for robotics, PLCs
and electrical switches
Technical Data
10105
Effective
October
2017
XVM
Supercapacitors
16 V, 65 F module
Ratings
Capacitance
Working voltage
Surge voltage
Capacitance tolerance
Operating temperature range
65 F
16.2 V
17 V
0% to +20% (+20 °C)
-40 °C to +65 °C
Specifications
Maximum initial
DC ESR
1
(mΩ)
(Equivalent Series
Resistance)
Capacitance
1
(F)
Part Number
Max
continuous
current
(A)
Max
leakage
current
1
(mA)
Max
power
2
(kW)
Stored
energy
3
(Wh)
Typical
mass
(kg)
65
XVM-16R2656-R
22
20
23
3.0
2.4
0.75
1. Capacitance, ESR and Leakage current are all measured according to IEC 62391-1 at +20 °C
2. Max. Power = Working Voltage
2
/ 4 / DC ESR
3. Stored energy = ½ Capacitance x Working Voltage
2
/ 3600
Performance
Parameter
Capacitance change
(% of initial value)
ESR
(% of initial value)
Life (1500 hours @ +65 °C @ 16.2 Vdc)
Storage life- (Uncharged, non-condensing atmosphere, 1 year @ -40 °C to +70 °C)
≤
20%
≤
5%
≤
200%
≤
10%
Safety and certifications
Regulatory
Environmental
Vibration specification
Shock specification
Cooling
UL810A recognized file: MH46887
IP54, RoHS, Halogen free
IEC 60068-2-6
IEC 60068-2-27, -29
Natural convection
2
www.eaton.com/electronics
XVM
Supercapacitors
16 V, 65 F module
Technical Data
10105
Effective
October
2017

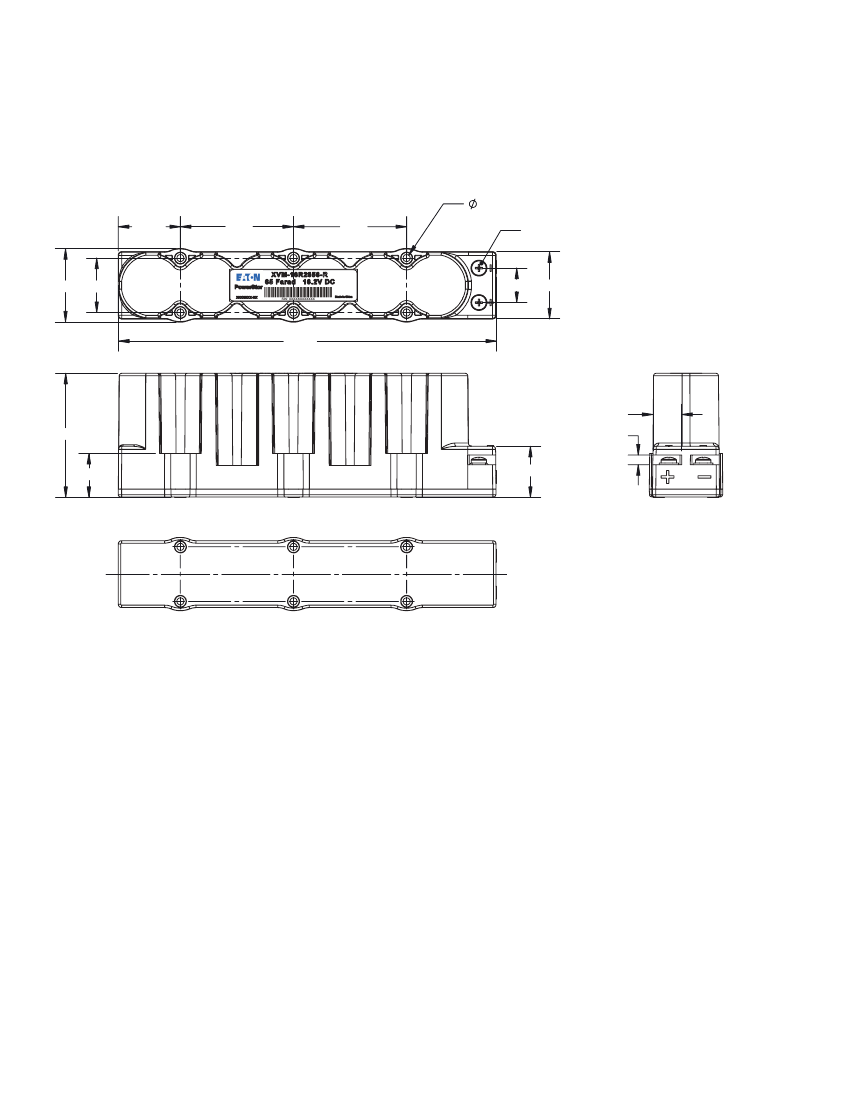

Dimensions- mm
4.40 Thru (6X)
38.78
70.6
70.6
M5 Terminal (2X)
45.8 34.0
21.5
41.8
236.0
18.0 (2X)
77.5
27.5
32.0
6.0 (2X)
C
L
C
L
Mechanical specifications
•
Terminal Screws: M5 Philslot,
Nickel-Plated Brass
Max Torque 4N•m
Mounting Points: Six, Brass Reinforced,
Accommodate M4 Screws,
Min Length 27.5 mm
Max Torque 4N•m
Mounting Orientation: No Restriction
•
•
www.eaton.com/electronics
3
Technical Data
10105
Effective
October
2017
XVM
Supercapacitors
16 V, 65 F module

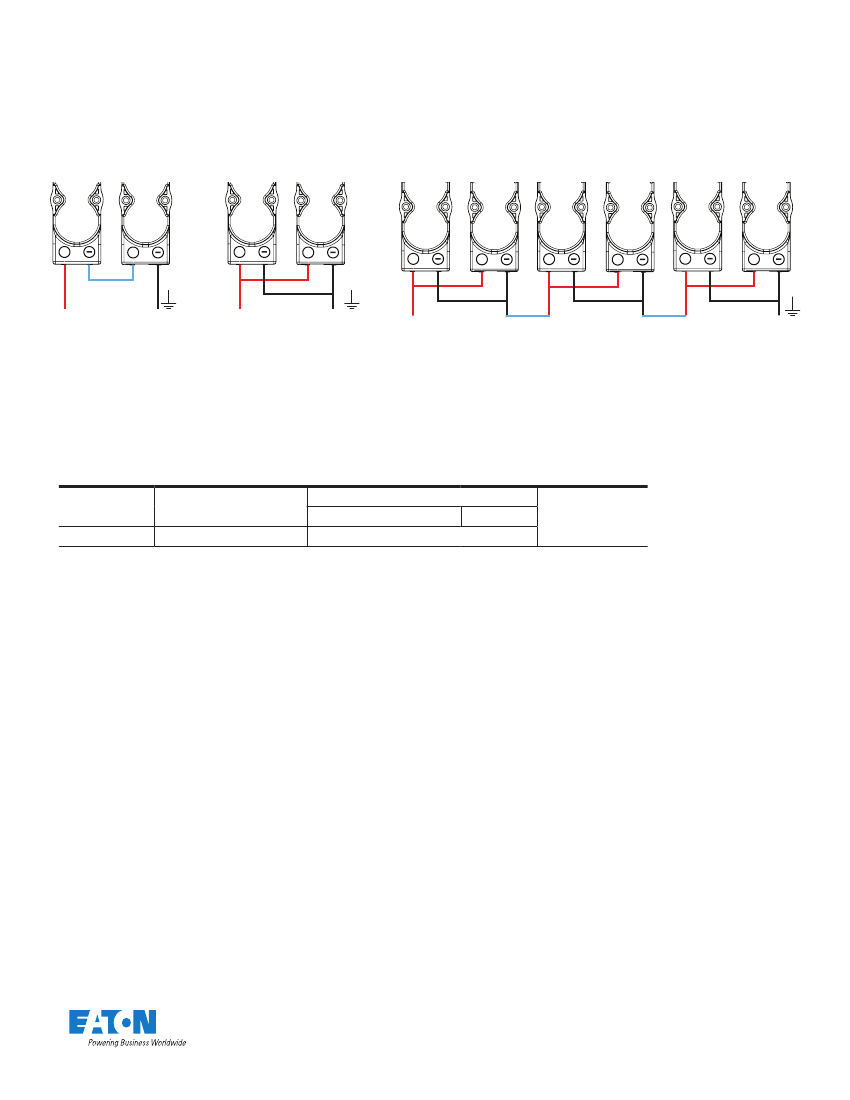

Wiring configuration examples
+
+
+
+
+
+
+
+
+
+
Series*
32.4 V, 32.5 F, 20 A
* Maximum
operating
voltage 640 V.
Parallel
16.2 V, 130 F, 40 A
Series/parallel*
48.6 V, 43.3 F, 40 A
Part numbering system
XVM
-16R2
65
6
-R
Family Code
XVM = Family code
Voltage (V)
R = decimal
16R2
=
16.2
V
Capacitance (µF)
Value
Example
656
=
65
x 10
6
(µF) or
65
F
Multiplier
Standard product
Packaging information
•
Part marking
•
•
•
•
•
Standard packaging: Bulk,
1
part
per box
10 boxes per carton
Manufacturer
Capacitance (F)
Working
voltage (V)
Family code (or part number)
Polarity
Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express written
approval of an officer of the Compan . Life support systems are devices which support or sustain life, and whose failure to perform, when properly
used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the use .
Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also
reserves the right to change or update, without notice, any technical information contained in this bulletin.
