B952AS-H-180M=P3

Description
Fixed Inductors 18uH 79mOhms 3.4A +/-20%
CategoryPassive components
File Size976KB,2 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Download Datasheet Parametric View All

B952AS-H-180M=P3 Online Shopping

Suppliers Part Number Price MOQ In stock
B952AS-H-180M=P3 - - View Buy Now

B952AS-H-180M=P3 Overview

Fixed Inductors 18uH 79mOhms 3.4A +/-20%

B952AS-H-180M=P3 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMurata
Product CategoryFixed Inductors
RoHSDetails
Inductance18 uH
Tolerance20 %
Maximum DC Current3.4 A
Maximum DC Resistance79 mOhms
Q Minimum-
Test Frequency-
ProductPower Inductors
Termination StyleSMD/SMT
Termination-
Mounting StyleSMD/SMT
Package / Case-
Length10.4 mm
Width10.4 mm
Height4.8 mm
Diameter-
PackagingCut Tape
PackagingMouseReel
PackagingReel
TypeFerrite Inductors
Core MaterialFerrite
Operating Temperature Range-
Self Resonant Frequency-
Lead Diameter-
Lead Spacing-
Factory Pack Quantity500
Unit Weight0.070548 oz

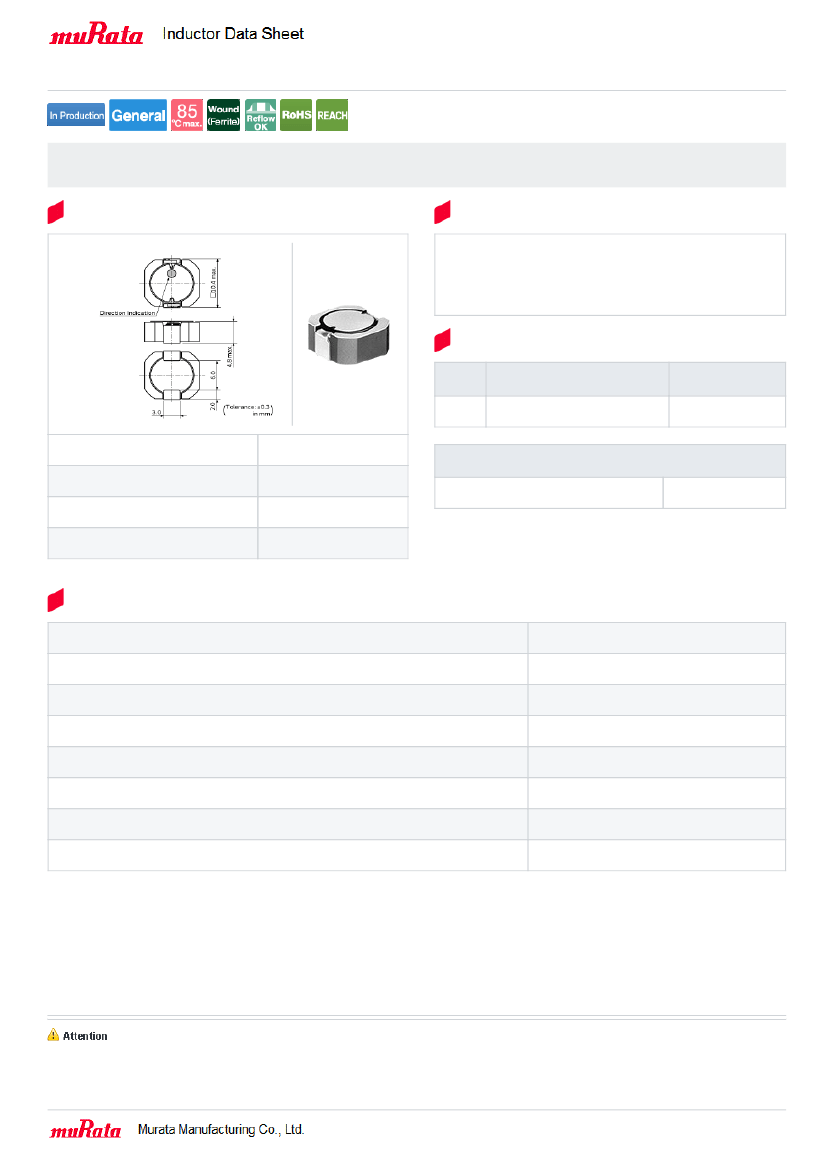

#B952AS-H-180M=P3
< List of part numbers with package codes >
#B952AS-H-180M=P3
Shape
Notes
Rated current (Isat) is specified when the decrease of the initial
inductance value at 10%. (The ambient reference temperature is 20℃.)
Rated current (Itemp) is specified when temperature of inductor the is
raised 40℃ by DC current. (The ambient reference temperature is 20℃.)
References
Packaging
code
=P3
Specifications
φ330mm
Embossed taping
Minimum quantity
500
L size
W size
T size
Size code in inch (mm)
10.1 ±0.3mm
10.1 ±0.3mm
4.8 mm
4040 (101101)
Mass (Typ.)
1 piece
1.694g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Operating temperature range (Self-temperature rise is included)
Class of magnetic shield
Series
18µH ±20%
0.1MHz
2700mA
2000mA
0.079Ω
-40〜85℃
Ferrite Core
DS104C2
1 of 2
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : https://www.murata.com/
Last updated: 2018/02/18
