60PN32204040J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 60PN32204040J

60PN32204040J: DescriptionFilm Capacitor,; CategoryPassive components capacitor; File Size2MB，22 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

60PN32204040J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	60PN32204040J	-	-	View	Buy Now

60PN32204040J Overview

Film Capacitor,

60PN32204040J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2066715839
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.85
capacitance	0.22 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYETHYLENE TEREPHTHALATE
high	15 mm
JESD-609 code	e3
length	26.5 mm
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	BULK
positive tolerance	5%
Rated (AC) voltage (URac)	220 V
Rated (DC) voltage (URdc)	630 V
Guideline	AEC-Q200
surface mount	NO
Terminal surface	TIN
Terminal pitch	22.5 mm
Terminal shape	WIRE
width	6 mm

Preview

Download Datasheet

View All

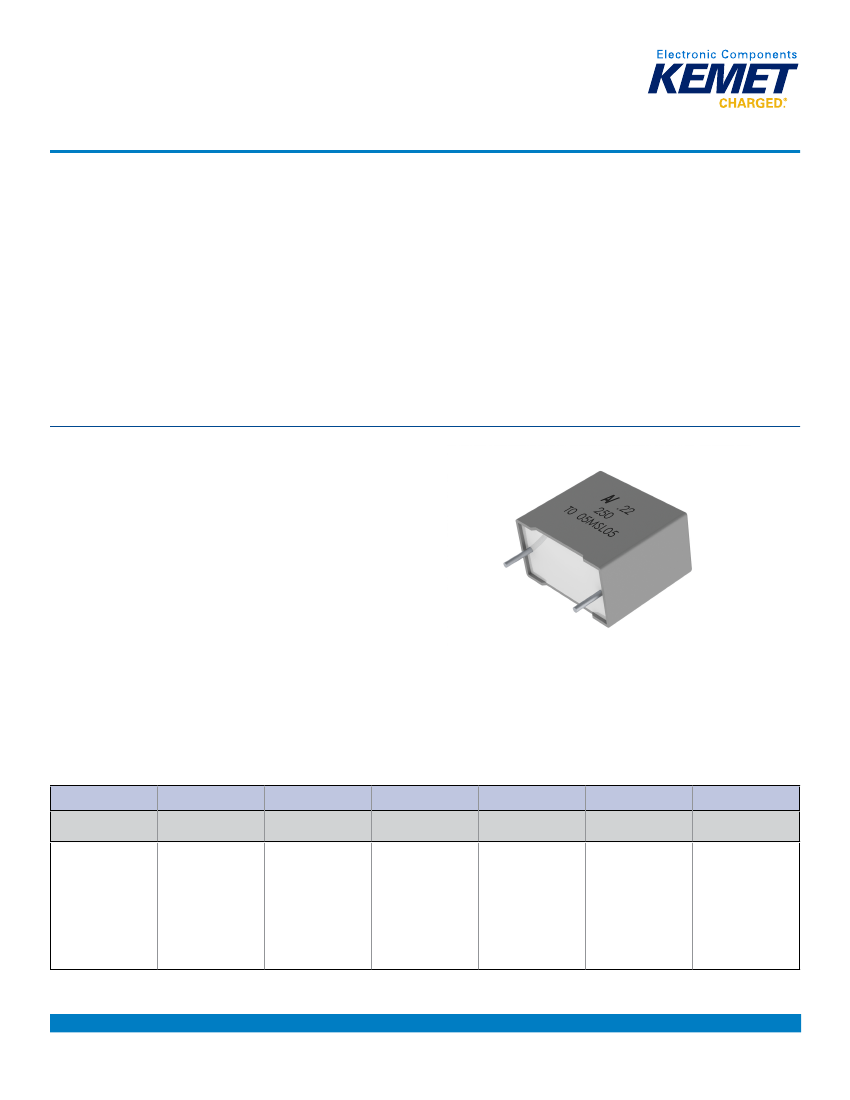

General Purpose Metallized Polyester Film Capacitors

R60, Radial, 10 – 37.5 mm Lead Spacing,

50 – 1,000 VDC (Automotive Grade)

Overview

The R60 is constructed of metallized polyester film (wound

or stacked technology) with radial leads of tinned wire.

Radial leads are electrically welded to the contact metal

layer on the ends of the capacitor winding. The capacitor

is encapsulated with thermosetting resin in a box material

meeting the UL 94V–0 requirements.

R60 components (up to lead spacing 22.5 mm) meet the

demanding Automotive Electronics Council's AEC–Q200

qualification requirements.

Applications

Typical applications include blocking, coupling, decoupling,

bypassing and interference suppression in low voltage

applications such as automotive. Not suitable for across-

the-line application (see suppressor capacitors).

Benefits

• Voltage range: 50 – 1000 VDC

• Capacitance range: 0.001 – 150.0 µF

• Lead spacing: 10.0 – 37.5 mm

• Capacitance tolerance: ±5%, ±10%, ±20%

• Climatic category: 55/105/56

• Operating temperature range of −55°C to +105°C

• RoHS compliance and lead (Pb)-free terminations

• Tape and reel packaging in accordance with IEC 60286–2

• Self-healing

• Automotive (AEC–Q200) grades up to pitch 22.5 mm

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Part Number System

R60

Series

Metallized

Polyester

Rated Voltage (VDC)

C = 50

D = 63

E = 100

G = 160

I = 250

M = 400

P = 630

Q = 1,000

Length (mm)

F = 10

I = 15

N = 22.5

R = 27.5

W = 37.5

2470

Capacitance Code

(pF)

The last three

digits represent

significant figures.

First digit specifies

the number of zeros

to be added.

Packaging

See Ordering

Options Table

Internal Use

Capacitance

Tolerance

J = ±5%

K = ±10%

M = ±20%

One world. One KEMET

F3103_R60 • 2/27/2018
