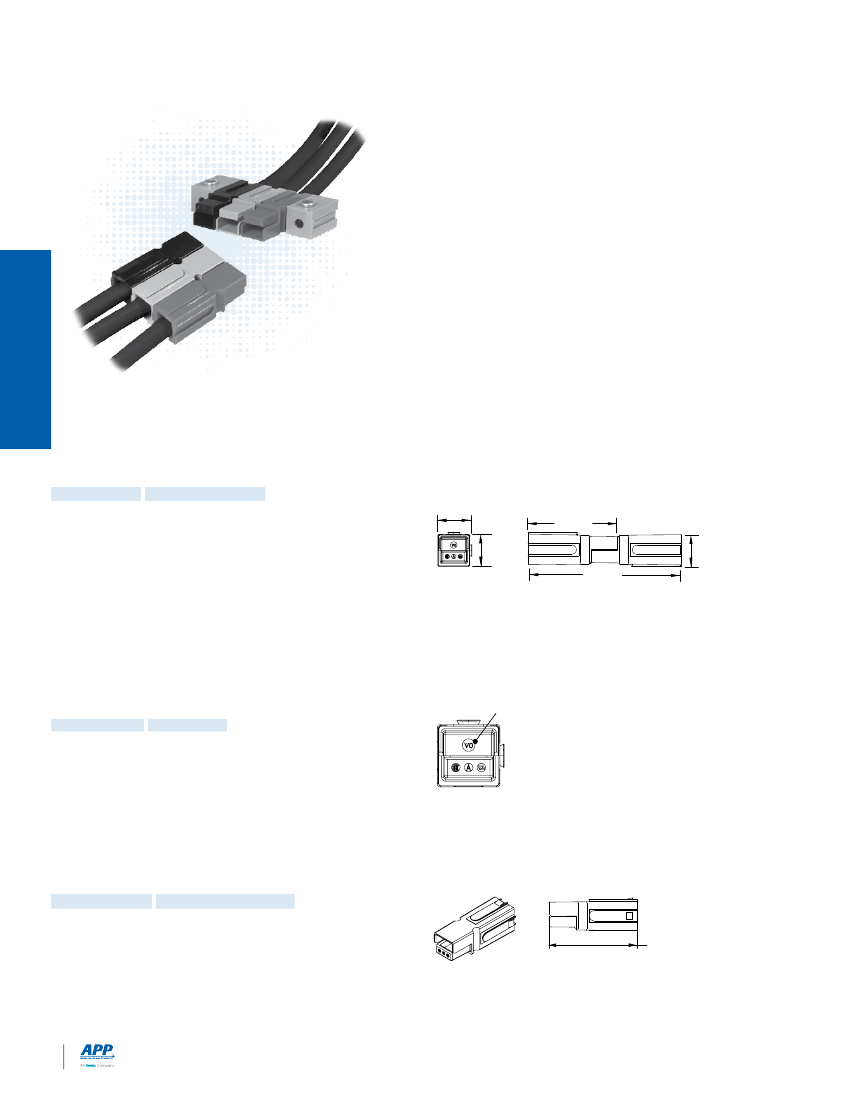

Offers a first-mate, last-break connection when stacked together with PP75
housings. Stacks together with PP75 standard and chemical resistant housings.
Housings are mechanically keyed to prevent cross mating with power positions.
Description
Minimum Quantity....
Green
------- Part Numbers -------
1,000
100 ...
5927G6-BK 5927G6
Mated Length
[ 83.1 ]
3.20
PP75 Silver Plated Wire Contacts
Silver plated contacts offer the best electrical performance and durability up to
10,000 mating cycles. See reducing bushings in accessory section for smaller wires.
Mating
AWG
mm²
Force
Minimum Quantity ........................
6
13.3
Low
6
13.3
High
8
8.4
High
12 to 10
3.3 to 5.3 Low
12 to 10
3.3 to 5.3 High
Loose Piece
-- Part Numbers --
1,000
100
1307-BK 1307
5900-BK 5900
5952-BK 5952
5953-BK 5953
5915-BK 5915
Dimensions
- A -
inches mm
........................
0.22
5.59
0.22
5.59
0.19
4.83
0.14
3.56
0.14
3.56
Powerpole
®
PP75
SECTION 2
[ 11.1 ]
0.44
A
[ 7.2 ]
0.28
[ 30.0 ]
1.18
[ 7.1 ]
0.28

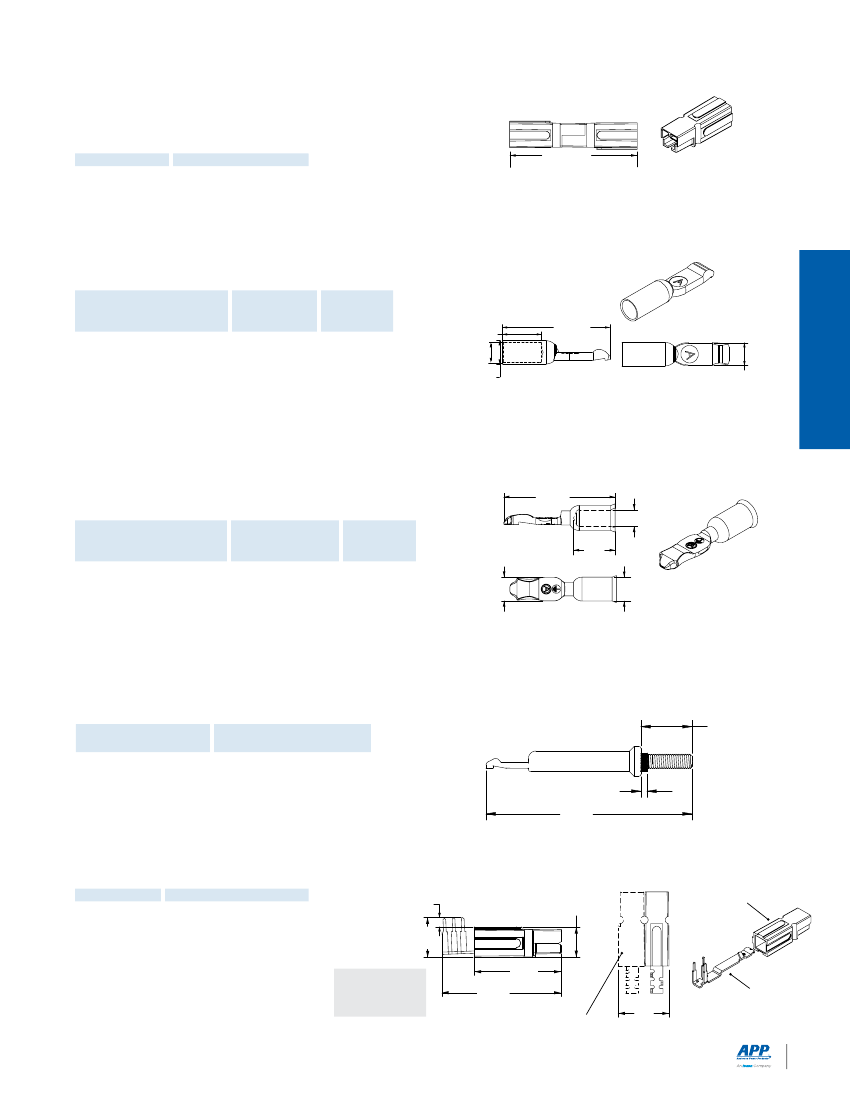

PP75 Premate Ground Wire Contacts
Silver plated contacts for use with the PP75 Premate Ground Housing. Rated to
10,000 mating cycles.
Type
AWG
mm²
Minimum Quantity ........................
Individual 6
13.3
Individual 8
8.4
Individual 12 to 10 3.3 to 5.3
Loose Piece
----- Part Numbers -----
1,000
100
1875G1-BK 1875G1
1875G2-BK 1875G2
1875G3-BK 1875G3
Dimensions
- A -
inches mm
........................
0.22 5.59
0.19 4.83
0.14 3.56
[ 32.0 ]
1.26
[ 11.9 ]
0.47
[ 7.1 ]
0.28
"A"
[ 7.2 ]
Ø 0.28
PP75 Silver Plated Busbar Contacts
Provide a quick disconnect input or output busbar connection. Busbar contacts are
for mating with wire contacts only. Part number 75BBS includes lock nuts. Locknuts
must be ordered separately for B01915P1.
Mating
Type
Thread Force ------------- Part Numbers --------------
Minimum Quantity ................. 1,000
20
10 ...
Busbar
#10-24 High
B01915P1 -
75BBS
Lock Nut #10-24 -
H1216P8 110G54
-
See Busbar contact drawing on
website for further detail.
[ 17.1 ]
0.68
[ 2.0 ]
0.08
[ 69.1 ]
2.72
55A Right Angle Standard Powerclaw PCB Contacts
Standard Powerclaw contacts are for use inside a PP75 housing and
provide a color coded right angle connection to the PCB.
Description --- Loose Piece Part Numbers --
Minimum Quantity ..
500
100 ........
Tin Plated
PC5930T-BK PC5930T
Silver Plated
PC5930S-BK PC5930S
[ 5.2 ]
0.20
[ 22.2 ]
0.87
See PCB contact
drawing on website
for further detail.
[ 48.0 ]
1.89
[ 66.0 ]
2.60
[ 17.0 ]
0.67
PP75 Housing
Second housing and contact
in two pole version only.
All Data Subject To Change Without Notice
[ 32.8 ]
1.29
Standard
Powerclaw
Contact
www.andersonpower.com
- 31 -
55A Right Angle Mini Powerclaw PCB Contacts
Right angle Mini Powerclaw contacts can be used on the PCB edge
without a PP75 housing on the PCB side. A self polarizing design only
allow PP75 wire housings to mate to PCB contacts one way.
Loose Piece
Description
-------- Part Numbers --------
Minimum Quantity ... 1,000
100 ......
Tin Plated
PC5934T-BK PC5934T
Silver Plated
PC5934S-BK PC5934S
[ 58.4 ]
2.30
[ 8.1 ]
0.32
[ 15.6 ]
0.61
[ 7.6 ]
0.30
[ 2.42 ]
0.095
[ 6.10 ]
0.240
[ 24.6 ]
0.97
[ 12.19 ]
0.480
[ 17.5 ]
0.69
[ 25.4 ]
1.00
[ 1.27 ]
0.050
55A Vertical Mini Powerclaw PCB Contacts
Vertical Mini Powerclaw contacts save space by not
requiring a PP75 housing on the PCB side. The guide
housing is required for 2 pole applications to provide a
polarized connection. (See PP75 accessories).
[ 24.3 ]
0.96
[ 9.7 ]
0.38
[2.32]
0.091
[ 12.2 ]
0.48
[ 6.25 ]
0.246
Powerpole
®
PP75
SECTION 2
Loose Piece
Description
--------- Part Numbers -------
Minimum Quantity ...
1,500
100 ......
Tin Plated
PC5933T-BK PC5933T
Silver Plated
PC5933S-BK PC5933S
[ 10.29 ]
0.405
[ 1.27 ]
0.050
[ 4.98 ]
0.196
See PCB contact drawing on website for further detail.

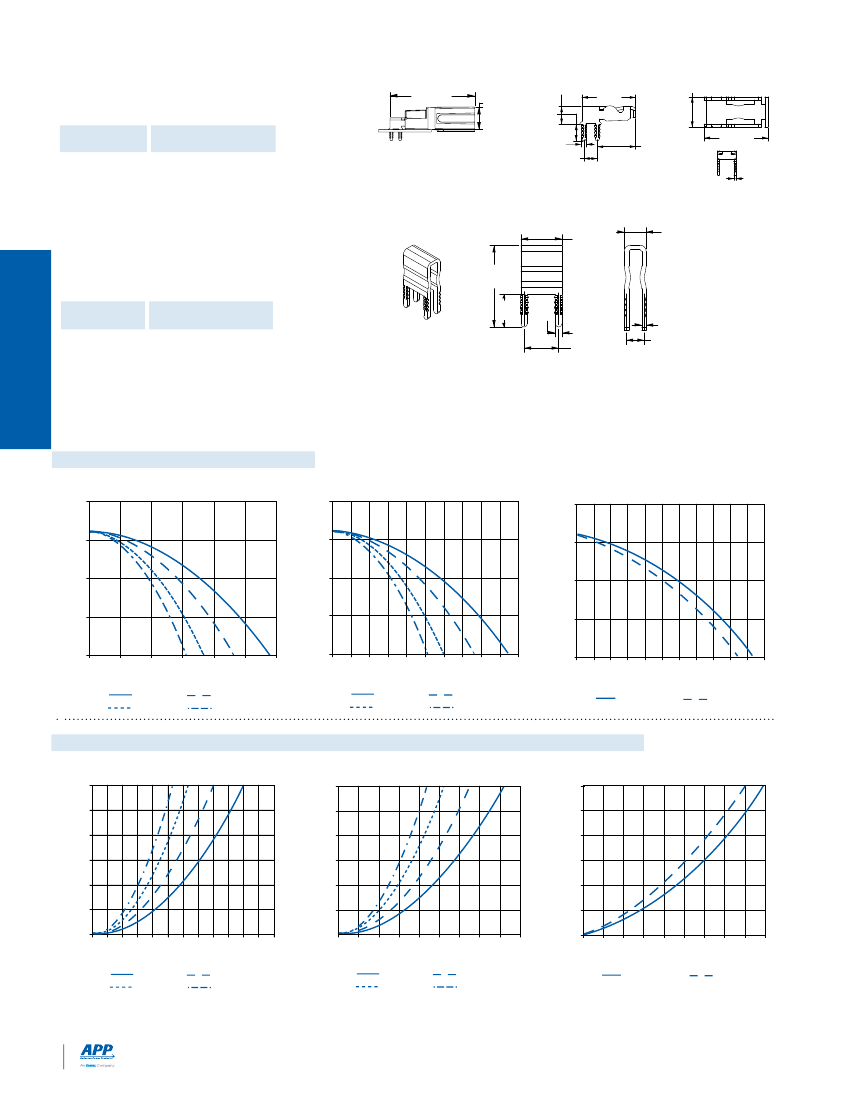

| PP75 TEMPERATURE CHARTS |
Current - Temperature Derating per IEC 60512-5-2 Test 5B
Temperature rise charts are based on a 25°C ambient temperature.
125
Ambient Temperature (°C)
PP75 Singlepole
Derating vs. Ambient Temperature
Ambient Temperature (°C)
125
PP75 Multipole
Derating vs. Ambient Temperature
125
Ambient Temperature (°C)
Mini Powerclaw
Derating vs. Ambient Temperature
100
100
100
75
75
75
50
50
50
25
25
0
20
40
60
80
100
120
25
0 10 20 30 40 50 60 70 80 90 100
Amperes Applied
6 AWG
8 AWG
10 AWG
12 AWG
Amperes Applied
6 AWG
8 AWG
10 AWG
12 AWG
0 10 20 30 40 50 60 70 80 90 100110
Amperes Applied
Singlepole
2-Pole
For Temperature Rise Above 60°C, Consult the Extended Temperature Rise Charts in the Appropriate Product Section on the Website.
PP75 Singlepole Loose Piece Contact
Temperature Rise at Constant Current
PP75 Multipole Loose Piece Contact
Temperature Rise at Constant Current
60
Temperature Rise
Above Ambient (°C)
50
40
30
20
10
0
60
Temperature Rise
Above Ambient (°C)
50
60
50
Temperature Rise
Above Ambient (°C)
40
30
20
10
0
Mini Powerclaw
Temperature Rise at Constant Current
40
30
20
10
0 10 20 30 40 50 60 70 80 90 100 110 120
Amperes Applied
6 AWG
8 AWG
10 AWG
12 AWG
0
0
10 20 30 40 50 60 70 80 90
Amperes Applied
6 AWG
8 AWG
10 AWG
12 AWG
0
10 20 30 40 50 60 70 80 90
Amperes Applied
Singlepole
2-Pole
NOTE: Powerclaw charts are based on #8 AWG equivalent copper foil on board side, mated to #6 AWG conductor on wire side.
- 32 -
www.andersonpower.com
All Data Subject To Change Without Notice
