950450-8200-AR-TP datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 950450-8200-AR-TP

Preview

950450-8200-AR-TP: DescriptionHeaders & Wire Housings 50P BD MNT SKT 2R RA SMT 10U AU; CategoryThe connector The connector; File Size440KB，3 Pages; Manufacturer3M; Websitehttp://3M.com/esd; Environmental Compliance

Download Datasheet Parametric Compare View All

950450-8200-AR-TP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	950450-8200-AR-TP	-	-	View	Buy Now

950450-8200-AR-TP Overview

Headers & Wire Housings 50P BD MNT SKT 2R RA SMT 10U AU

950450-8200-AR-TP Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	3M
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	3M
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

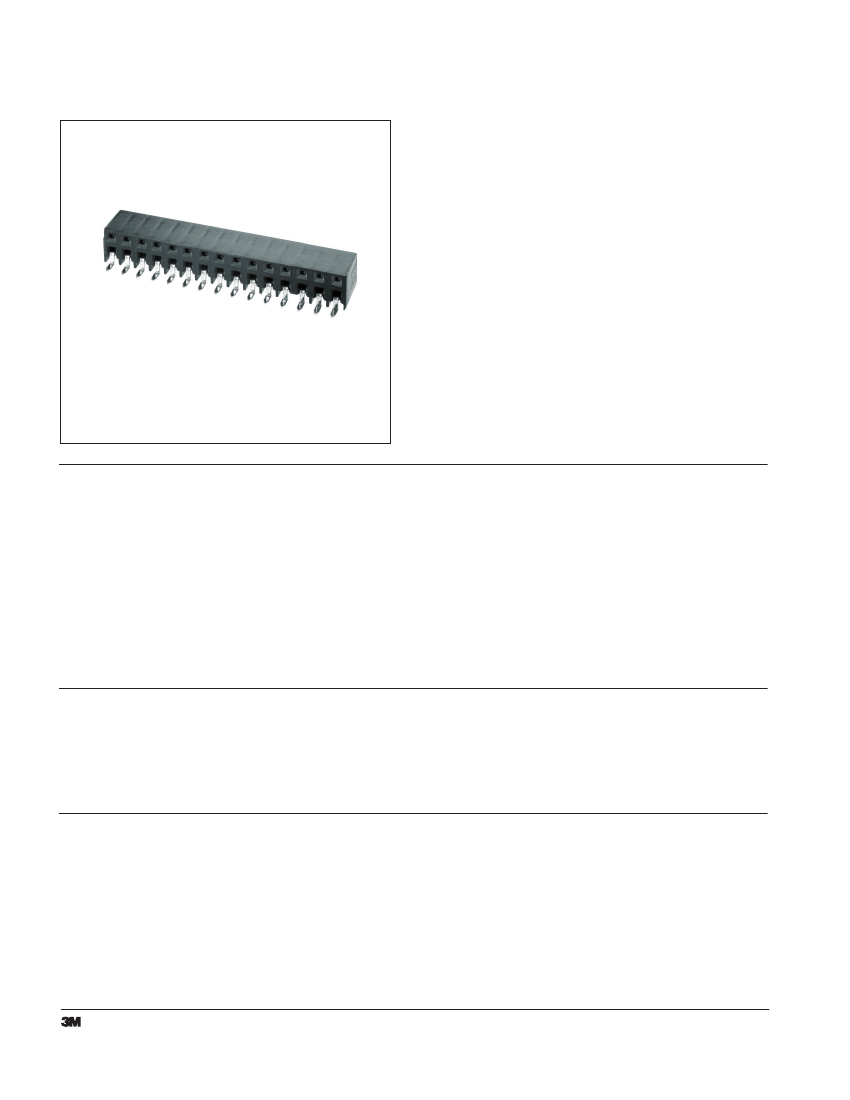

3M

™

Boardmount Socket

2 mm x 2 mm Right Angle, Surface Mount

950 Series

•

Optimizes use of PC board space

•

High temperature dielectric

•

“No lead” reflow solder compatible

•

Dual row design, 6–50 pins

•

Mates with pin-strip header products

•

RoHS Compliant. See the Regulatory Information

Appendix (RIA) in the RoHS compliance section of

www.3Mconnectors.com for compliance information

(RIA E1 & C1 apply)

1/

17

Date Modified: November 26, 2012

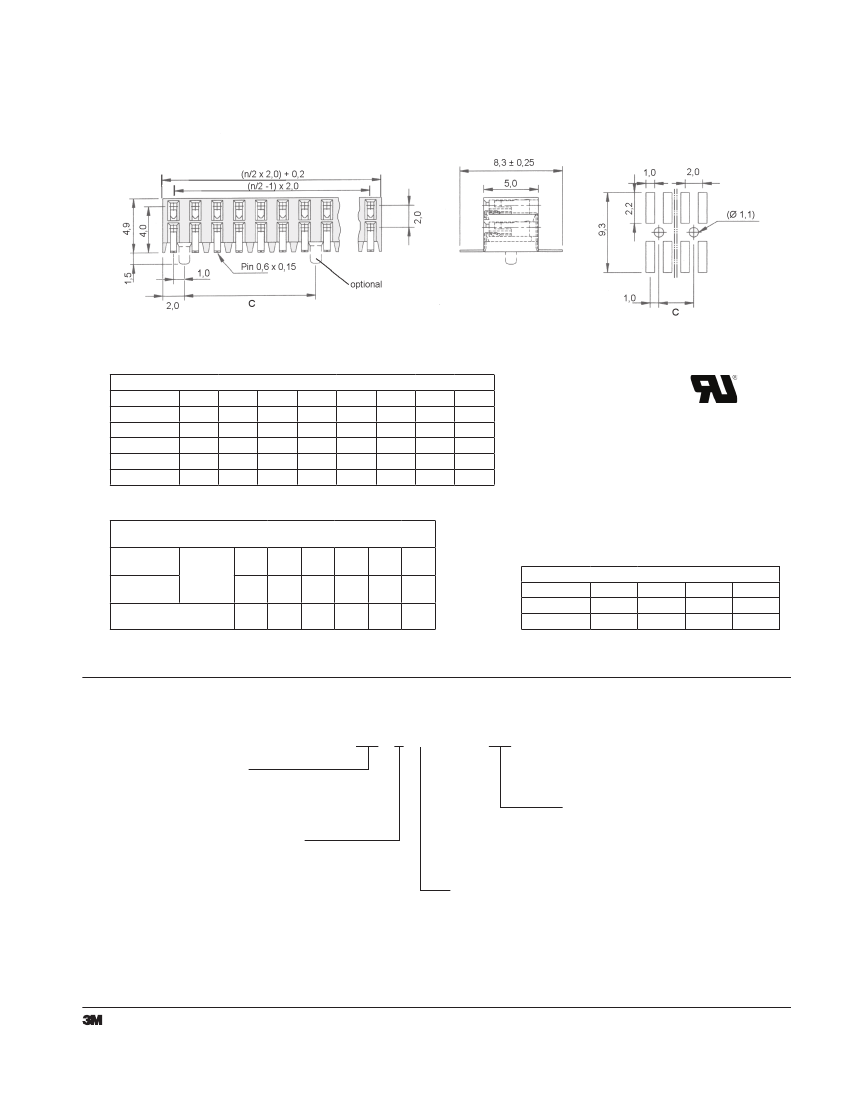

TS-2167-F

Sheet 1 of 2

Electrical

Current Rating:

Insulation Resistance:

Withstanding Voltage:

Transition Resistance:

Environmental

Temperature Range:

-40 °C to +105 °C

Processing Temperature:

max. 260 °C (Profile per J-STD-020C)

Moisture Sensitivity Level:

1 (per J-STD-020C)

UL File No.: E68080

3M is a trademark of the 3M Company

For technical, sales or ordering information

call your Local 3M Service Center

Interconnect Solutions

www.3Mconnectors.com

D

IS

1A

> 5 x 10

8

Ohm at 100 V

DC

1000 V

DC

≤

20 mOhm

C

Insulation

Material:

Flammability:

Color:

Contact

Material:

Plating

Underplating:

Wiping Area:

Solder Tail Area:

Copper Alloy

1.25–2.5 µm [50-100 µ"] Nickel

Flash Gold

1–3 µm [40–118 µ"] Matte Tin

O

N

T

IN

High Temperature Thermoplastic

UL 94V-0

Black

U

E

Physical

D

950450-8200-AR-TP Related Products

	950450-8200-AR-TP	950450-8200-AR-TR	950406-8220-AR-TP	950448-8200-AR-TP	950422-8200-AR-TR	950410-8220-AR-TP	950446-8200-AR-TP	950444-8200-AR-TP
Description	Headers & Wire Housings 50P BD MNT SKT 2R RA SMT 10U AU	Headers & Wire Housings 50P BD MNT SKT 2R RA SMT 10U AU	Headers & Wire Housings 6P BD MNT SKT 2R RA SMT 10U AU	Headers & Wire Housings 48P BD MNT SKT 2R RA SMT 10U AU	22 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SURFACE MOUNT, SOCKET, ROHS COMPLIANT	Headers & Wire Housings 10P BD MNT SKT 2R RA SMT 10U AU	Headers & Wire Housings 46P BD MNT SKT 2R RA SMT 10U AU	Headers & Wire Housings 44P BD MNT SKT 2R RA SMT 10U AU
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	3M	3M	3M	3M	3M	3M	3M	3M
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)	GOLD (10) OVER NICKEL (100)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm	2 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	50	6	48	22	10	46	44
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	3M	3M	3M	3M	-	3M	3M	3M
