Part Number

Search

5-2834006-2

Description
2P MRPK _WE/RD
CategoryThe connector    terminals
File Size655KB,4 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5-2834006-2 Online Shopping

Suppliers Part Number Price MOQ In stock
5-2834006-2 - - View Buy Now

5-2834006-2 Overview

2P MRPK _WE/RD

5-2834006-2 Parametric

Parameter NameAttribute value
Brand NameTE Connectivity
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Factory Lead Time11 weeks
Terminal and terminal strip typesBARRIER STRIP TERMINAL BLOCK
Base Number Matches1
4

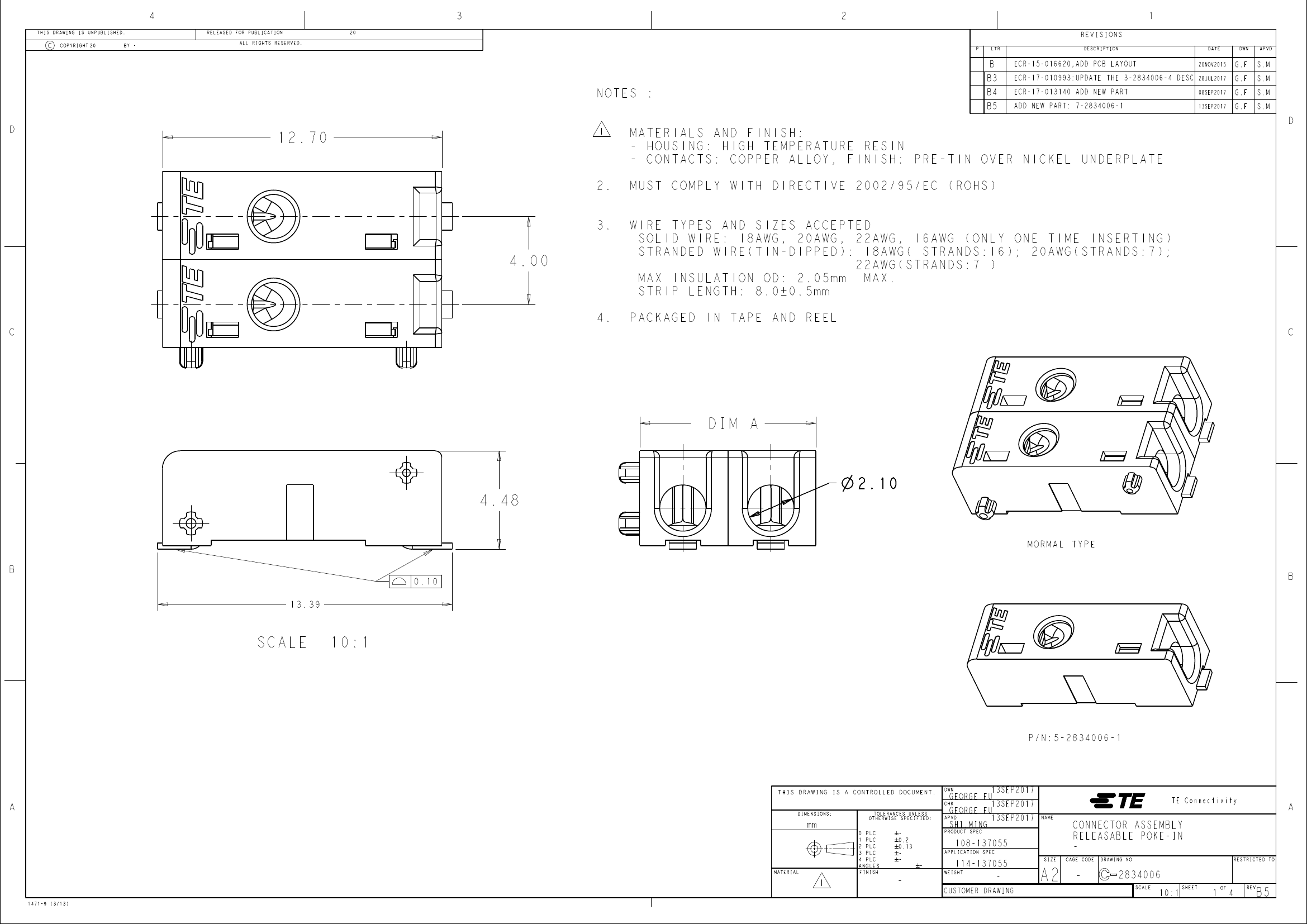

THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
20
3
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
20
NOTES :
D
B3
B4
B5
B

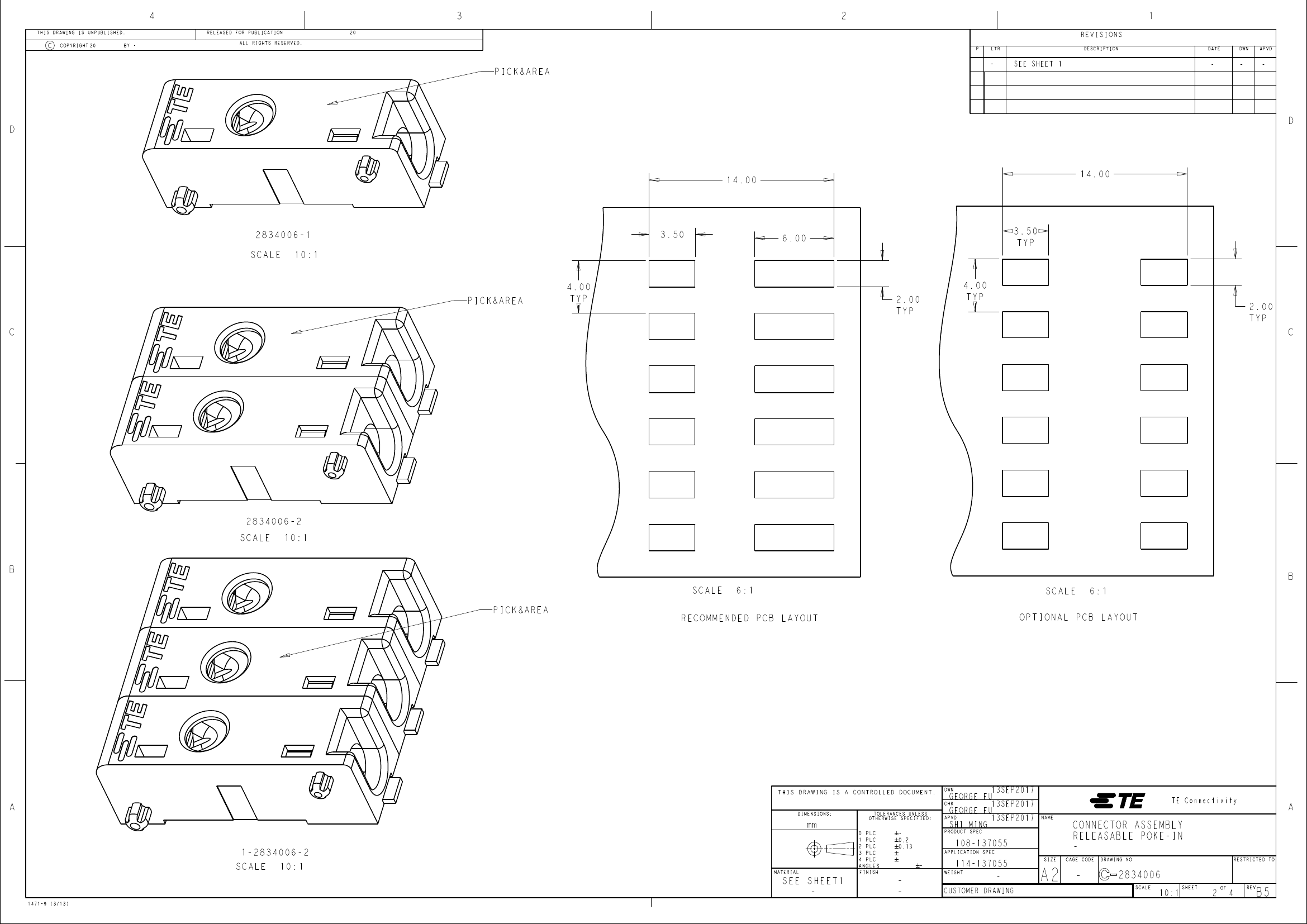

ECR-15-016620,ADD PCB LAYOUT
ECR-17-010993:UPDATE THE 3-2834006-4 DESC
ECR-17-013140 ADD NEW PART
ADD NEW PART: 7-2834006-1
20NOV2015
28JUL2017
08SEP2017
13SEP2017
G.F
G.F
G.F
G.F
S.M
S.M
S.M
S.M
12.70
1
MATERIALS AND FINISH:
- HOUSING: HIGH TEMPERATURE RESIN
- CONTACTS: COPPER ALLOY, FINISH: PRE-TIN OVER NICKEL UNDERPLATE
MUST COMPLY WITH DIRECTIVE 2002/95/EC (ROHS)
WIRE TYPES AND SIZES ACCEPTED
SOLID WIRE: 18AWG, 20AWG, 22AWG, 16AWG (ONLY ONE TIME INSERTING)
STRANDED WIRE(TIN-DIPPED): 18AWG( STRANDS:16); 20AWG(STRANDS:7);
22AWG(STRANDS:7 )
MAX INSULATION OD: 2.05mm MAX.
STRIP LENGTH: 8.0±0.5mm

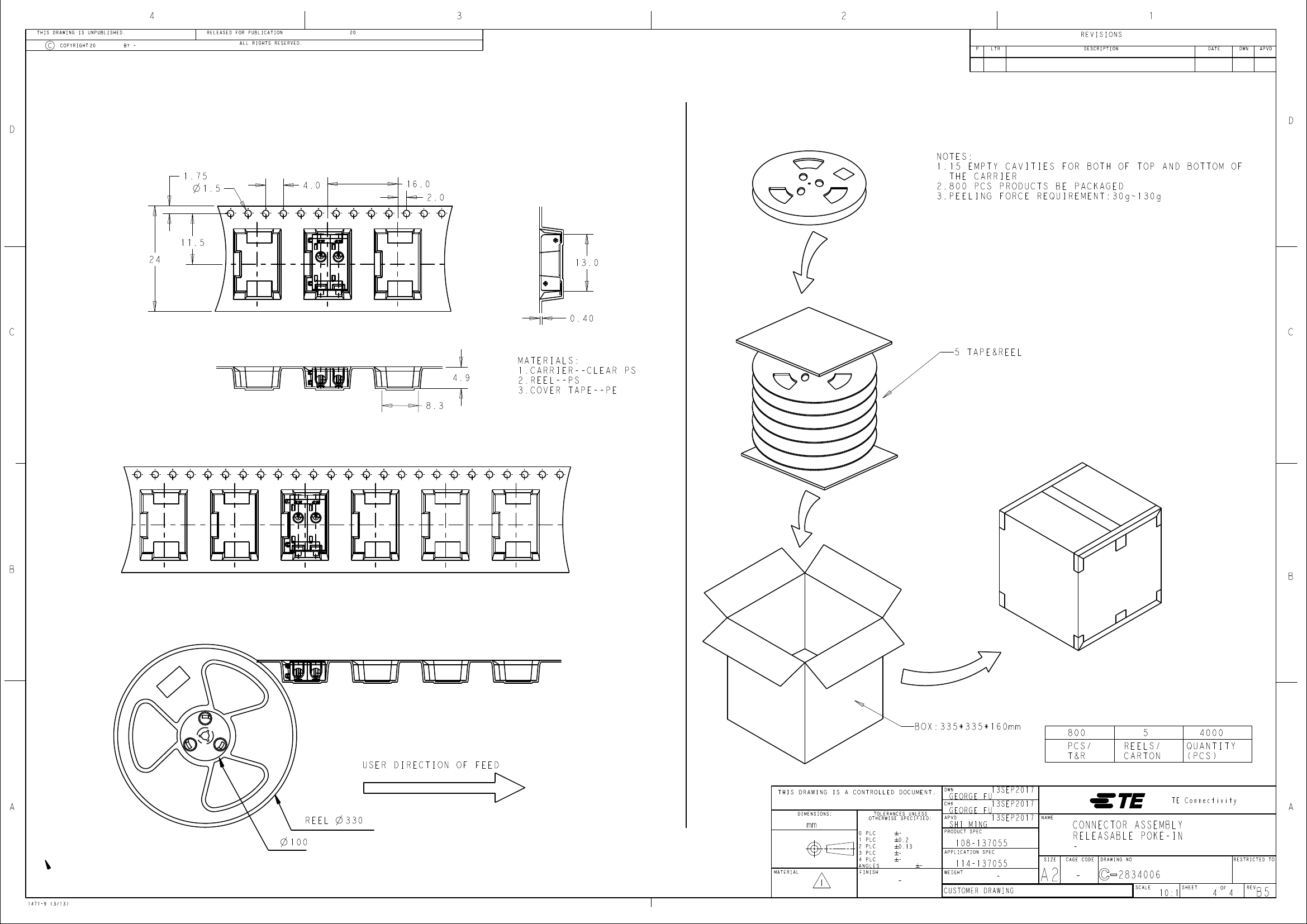

PACKAGED IN TAPE AND REEL
D
2.
3.
4.00
4.
C
C
DIM A
2.10
4.48
MORMAL TYPE
B
13.39
B
SCALE
10:1
P/N:5-2834006-1
THIS DRAWING IS A CONTROLLED DOCUMENT.
DWN
CHK
A
GEORGE FU
GEORGE FU
13SEP2017
13SEP2017
13SEP2017
NAME
TE Connectivity
DIMENSIONS:
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
MATERIAL
0 PLC
1 PLC
2 PLC
3 PLC
4 PLC
ANGLES
FINISH
-
0.2
0.13
-
-
PRODUCT SPEC
SHI.MING
APPLICATION SPEC
108-137055
-
1
1471-9 (3/13)
-
114-137055
WEIGHT
-
CUSTOMER DRAWING
A2
SIZE
CAGE CODE
CONNECTOR ASSEMBLY
RELEASABLE POKE-IN
-
DRAWING NO
RESTRICTED TO
-
2834006
SCALE
10:1
SHEET
1
OF
4
REV
B5

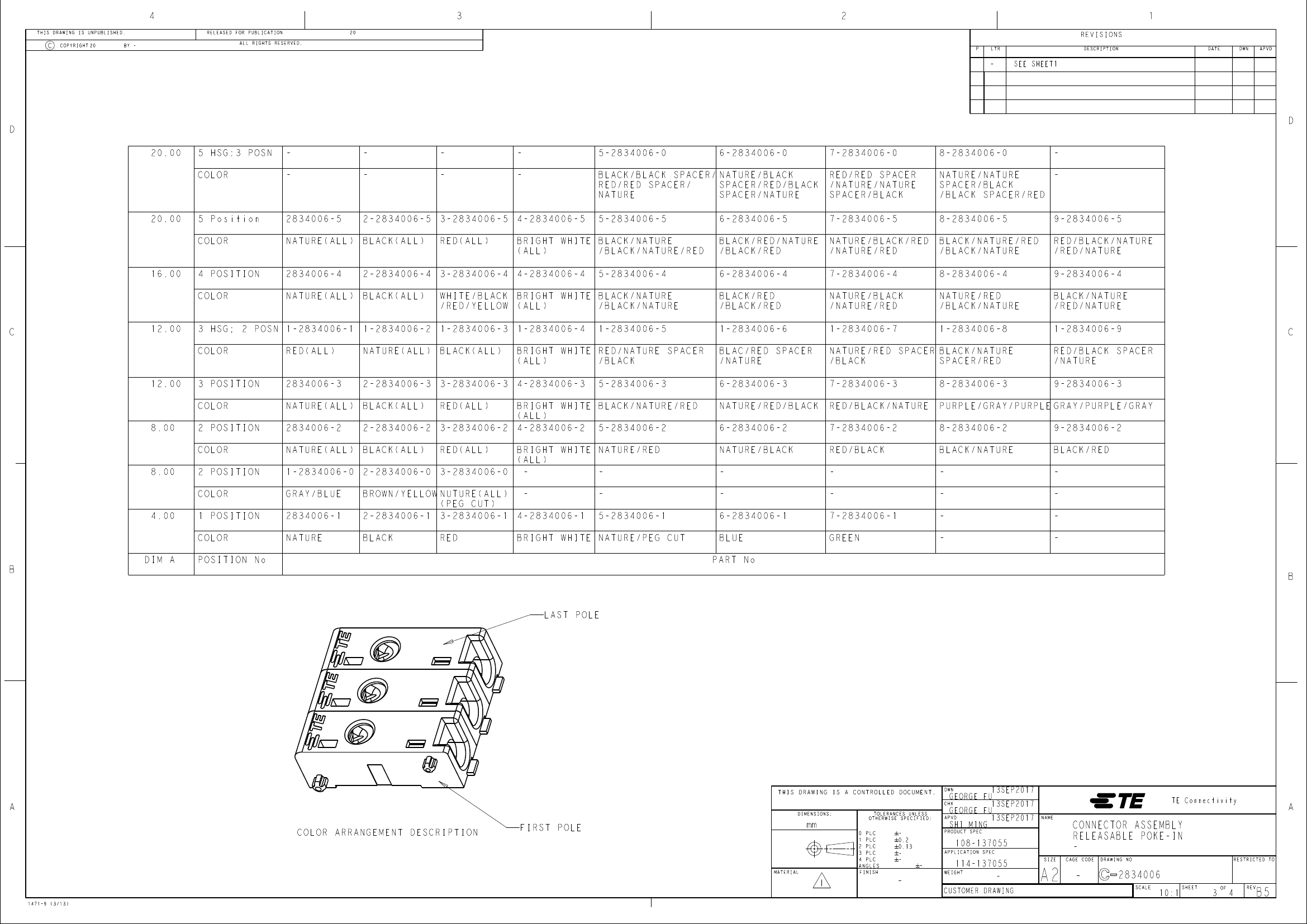

5-2834006-2 Related Products

5-2834006-2 8-2834006-2 1-2834006-0
Description 2P MRPK _WE/RD 2P MRPK CONN_BK/WE 2P RELEASE POKE-IN CONNECTOR_GY/BE
Brand Name TE Connectivity TE Connectivity -
Is it Rohs certified? conform to conform to -
Reach Compliance Code compliant unknown -
Factory Lead Time 11 weeks 11 weeks -
Terminal and terminal strip types BARRIER STRIP TERMINAL BLOCK BARRIER STRIP TERMINAL BLOCK -
Base Number Matches 1 1 -
