DF20A-20DS-1C

Description
Headers & Wire Housings Housing SKT 20 POS 1mm ST
CategoryThe connector    The connector
File Size179KB,7 Pages
ManufacturerHirose
Websitehttp://www.hirose-connectors.com/
Environmental Compliance
Download Datasheet Parametric Compare View All

DF20A-20DS-1C Online Shopping

Suppliers Part Number Price MOQ In stock
DF20A-20DS-1C - - View Buy Now

DF20A-20DS-1C Overview

Headers & Wire Housings Housing SKT 20 POS 1mm ST

DF20A-20DS-1C Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerHirose
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionHirose DF20 Series 20 Way 2 Row Female Straight PCB Housing
Other featuresCOMPATIBLE CONTACTS: DF20F-2830SCFA(41); DF20F-2830SCFA(04)
body width0.197 inch
subject depth0.161 inch
body length0.48 inch
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGold (Au)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance30 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage300VAC V
Durability50 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force2.0016 N
Insulation resistance500000000 Ω
Insulator colorBEIGE
insulator materialPOLYAMIDE
JESD-609 codee4
MIL complianceNO
Plug contact pitch0.039 inch
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation typeCABLE
Number of connectorsONE
Number of rows loaded2
Maximum operating temperature85 °C
Minimum operating temperature-35 °C
OptionsWITH CABLE ASSEMBLY
polarization keyPOLARIZED HOUSING
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts20
UL Flammability Code94V-0
Maximum wire diameter28 AWG
Minimum wire diameter32 AWG
Evacuation force-minimum value.199882 N
1mm Pitch Double Rows Low Profile Wire-to-Board Connectors
DF20 series
5.4
Socket
DF20A-
**DS-1C
DF20F(G)-
**DP-1V(56)
Pin
Header
5.8
Cable
Mar.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
PCB
DF20A-
**DS-1C
Socket
Cable
6.2
DF20F
**DP-1H(59)
Pin
Header
5.5
PCB
DF20A-**DS-1C
Socket
DF20F(G)-**DP-1V(56)
Pin Header
1

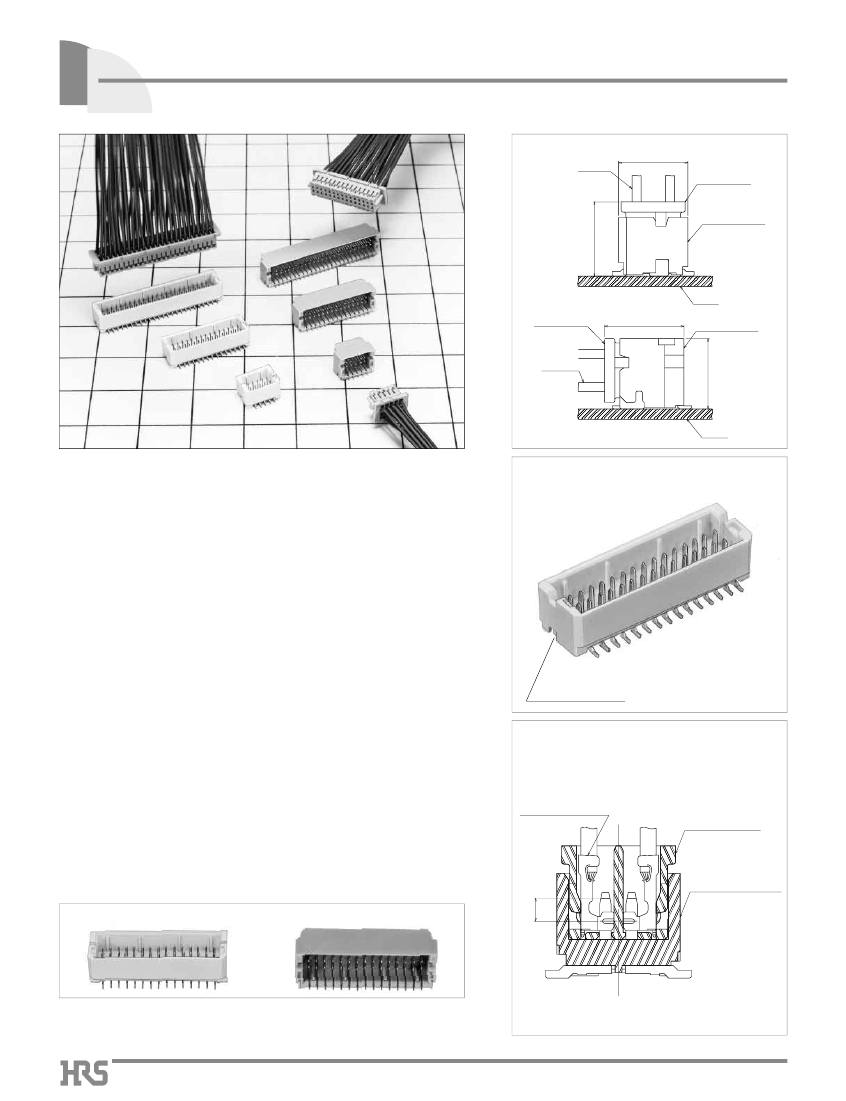

■Features
1. Contact Pitch
1mm contact pitch allows reliable solder and cable
termination.
Narrower external width and length
2. Reliable electrical connection wipe
Effective electrical connection is assured with a 1mm wipe of
mating contacts.
3. Narrower external width and length
Redesigned metal fittings decreased the overall length of the
board- mount receptacle and permit end-to-end mounting of
several connectors.
4. Automatic equipment board placement
Straight type pin headers are supplied with a 5.4mm X 4.6mm
flat platform to allow vacuum pick-up and placement on the
board.
Metal fitting
5. Product variations
(1) Available with 10, 20, 30, 40, and 50 contacts.
(2) Pin headers are available in two types : with or without
board positioning bosses.
(3) Depending on specific application pin headers can be
ordered in straight or right angle types.
■Applications
DF20F-****SCFA
Contact
Notebook PC, small office automation equipment, small
consumer devices, portable devices.
Any application requiring low profile reliable board-to-cable
connection with a 28 AWG, 30 AWG, 32 AWG conductors.
1mm Pitch, Double Rows
B266
