KF86X-ED-15S-BR30 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> KF86X-ED-15S-BR30

Preview

KF86X-ED-15S-BR30: DescriptionD-Sub High Density Connectors D15 FML HI-PROF MACH FE-RND RIV J/S; CategoryThe connector The connector; File Size899KB，1 Pages; ManufacturerKycon; Environmental Compliance

Download Datasheet Parametric Compare View All

KF86X-ED-15S-BR30 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KF86X-ED-15S-BR30	-	-	View	Buy Now

KF86X-ED-15S-BR30 Overview

D-Sub High Density Connectors D15 FML HI-PROF MACH FE-RND RIV J/S

KF86X-ED-15S-BR30 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kycon
package instruction	HIGH DENSITY D-SUBNIMIATURE CONNETOR
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
body width	0.494 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.09 inch
Match contact row spacing	0.07 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.3208 mm
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	1/E
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	15
Base Number Matches	1

Preview

Download Datasheet

View All

2D Drawing

Solder Profile

Certificate of Origin

IGES

CofC RoHS Compliant

Check Stock

STEP

CofC REACH Compliant

Request a Sample

3D PDF

UL Plastic File

Send Us An Email

Generated Part Number

KF86X-ED-15P

Part Number Builder

LR78160

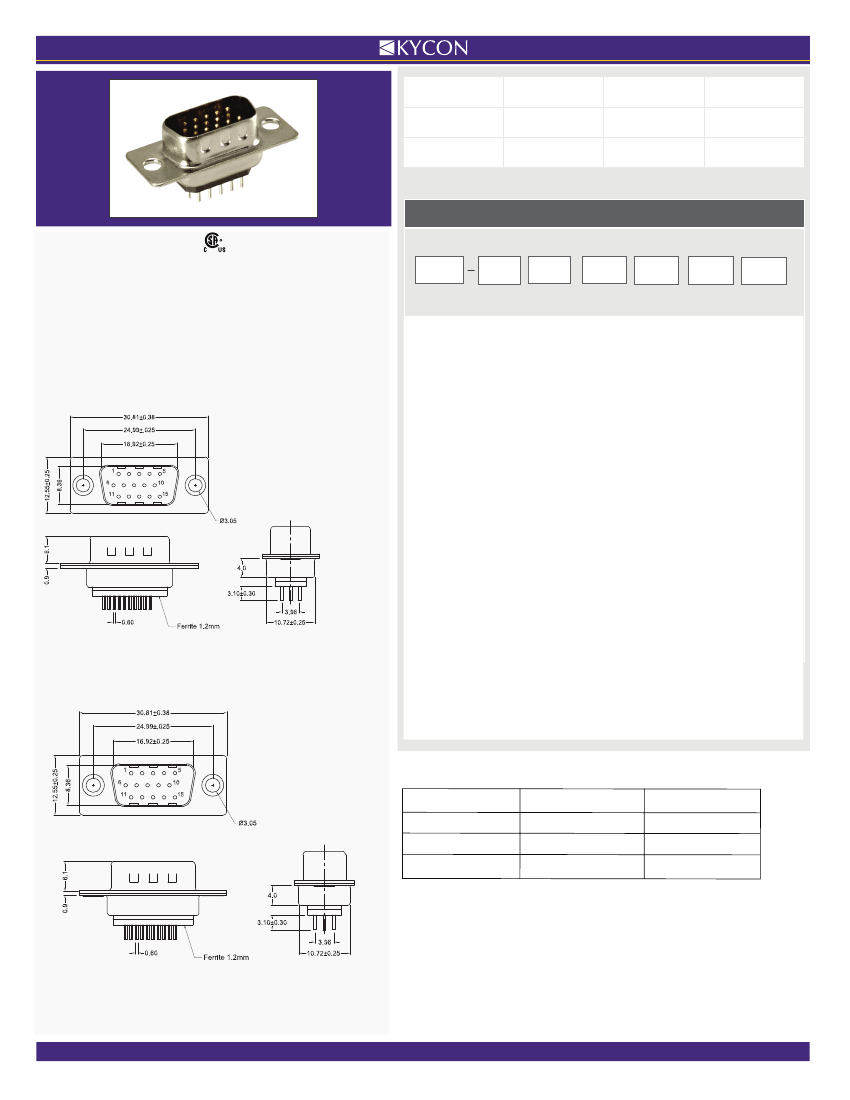

D-SUBMINIATURE CONNECTORS:

KF86X

Series

KF86X

Series

E

Shell

Type

D

Type

15

Contact

Option

P

Contact

Type

Mounting

Option

Plating

Option

Vertical PCB Mount

High Density with Ferrite

KF86X-ED-15S Dimensions

Dimensions in mm

Series

KF86X

-

D-Subminiature

Vertical

Connector

Contact Shell Size

E

- 15 Contacts

Contact Construction, Pin Type

D

- Precision Formed

Contact Type

P

- Pin Contact (Plug)

S

- Socket Contact (Receptacle)

Mounting Option

Blank

- Through Hole

BR

- With #4-40 Tin Plated 7.00mm Long Boardlocks

BRJ

- With #4-40 Tin Plated 7.00mm Long Boardlocks

and #4-40 Jackscrews

K

- With #4-40 Bushings

KJ

- With #4-40 Bushings and #4-40 Jackscrews

Plating Option

Blank

- Gold Flash

30

- 30µ” Gold

Contact Kycon for Other Options

KF86X-ED-15P Dimensions

Dimensions in mm

Ferrite Specifications

Test Frequency

30 Mhz

50 Mhz

100 Mhz

Outer Row

10-14 Ohms

12-18 Ohms

15-20 Ohms

Inner Row

13-17 Ohms

15-19 Ohms

19-24 Ohms

Phone: +1.408.494.0330

l

Fax: +1.408.494.0325

l

WWW.KYCON.COM

l

0616

KF86X-ED-15S-BR30 Related Products

	KF86X-ED-15S-BR30	KF86X-ED-15P-30	KF86X-ED-15P-15	KF86X-ED-15P-BR30	KF86X-ED-15P-K30	KF86X-ED-15S-BR15
Description	D-Sub High Density Connectors D15 FML HI-PROF MACH FE-RND RIV J/S	D-Sub High Density Connectors HD15 FML VFORMED 1.2MM FE-B/L J/S 30U	D-Sub High Density Connectors HD15 FML VFORMED 1.2MM FE-B/L J/S 15U	D-Sub High Density Connectors HD15 FML VFORMED 1.2MM FE-W/BSH 30U	D-Sub High Density Connectors HD15 FML VFORMED J/S 1.2MM FE-RND RIV 30U	D-Sub High Density Connectors D15 FML HI-PROF MACH FE-W/BSH J/S
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
package instruction	HIGH DENSITY D-SUBNIMIATURE CONNETOR	HIGH DENSITY D-SUBNIMIATURE CONNETOR	HIGH DENSITY D-SUBNIMIATURE CONNETOR	HIGH DENSITY D-SUBNIMIATURE CONNETOR	HIGH DENSITY D-SUBNIMIATURE CONNETOR	HIGH DENSITY D-SUBNIMIATURE CONNETOR
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Body/casing type	RECEPTACLE	PLUG	PLUG	PLUG	PLUG	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD (30)	GOLD (30)	GOLD (15)	GOLD (30)	GOLD (30)	GOLD (15)
Contact completed and terminated	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	MALE	MALE	MALE	MALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
JESD-609 code	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Housing size	1/E	1/E	1/E	1/E	1/E	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	15	15	15	15	15
ECCN code	EAR99	EAR99	-	EAR99	EAR99	-
body width	0.494 inch	0.494 inch	-	0.494 inch	0.494 inch	0.494 inch
body length	1.213 inch	1.213 inch	-	1.213 inch	1.213 inch	1.213 inch
contact mode	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED
Contact resistance	13 mΩ	13 mΩ	-	13 mΩ	13 mΩ	13 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1400VAC V	1400VAC V	-	1400VAC V	1400VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	-	BLACK	BLACK	BLACK
Plug contact pitch	0.09 inch	0.09 inch	-	0.09 inch	0.09 inch	0.09 inch
Match contact row spacing	0.07 inch	0.07 inch	-	0.07 inch	0.07 inch	0.078 inch
Installation option 1	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
PCB row number	3	3	-	3	3	3
Number of rows loaded	3	3	-	3	3	3
Maximum operating temperature	105 °C	105 °C	-	105 °C	105 °C	75 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	1.3208 mm	1.3208 mm	-	1.3208 mm	1.3208 mm	1.9812 mm
Plating thickness	30u inch	30u inch	-	30u inch	30u inch	15u inch
Rated current (signal)	1.5 A	1.5 A	-	1.5 A	1.5 A	1.5 A
Guideline	UL	UL	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN OVER NICKEL	-	TIN OVER NICKEL	TIN	TIN
Shell material	STEEL	STEEL	-	STEEL	STEEL	STEEL
