D73312GQ: DescriptionCrystal Filter, 1 Function(s), 73.35MHz, 6kHz BW(delta f), Monolithic, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN; Categoryfilter; File Size492KB，1 Pages; ManufacturerDaishinku Corp.; Websitehttp://www.kds.info/; Environmental Compliance

Download Datasheet Parametric Compare View All

D73312GQ Overview

Crystal Filter, 1 Function(s), 73.35MHz, 6kHz BW(delta f), Monolithic, ROHS COMPLIANT, MINIATURE, SMD, 6 PIN

D73312GQ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Daishinku Corp.
Reach Compliance Code	unknown
Other features	4 POLE; TAPE AND REEL
Maximum attenuation frequency (+/- delta f)	25 kHz
Attenuation at maximum frequency	40 dB
Bandwidth (+/- delta f)	6 kHz
Center frequency or cutoff frequency (fo/fc)	73.35 MHz
structure	MONOLITHIC
filter type	CRYSTAL FILTER
high	1.3 mm
Input/output impedance	450 OHM//4
Maximum insertion loss	5 dB
JESD-609 code	e4
length	7 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Terminal surface	Gold (Au)
width	5 mm
Base Number Matches	1

Preview

Download Datasheet

View All

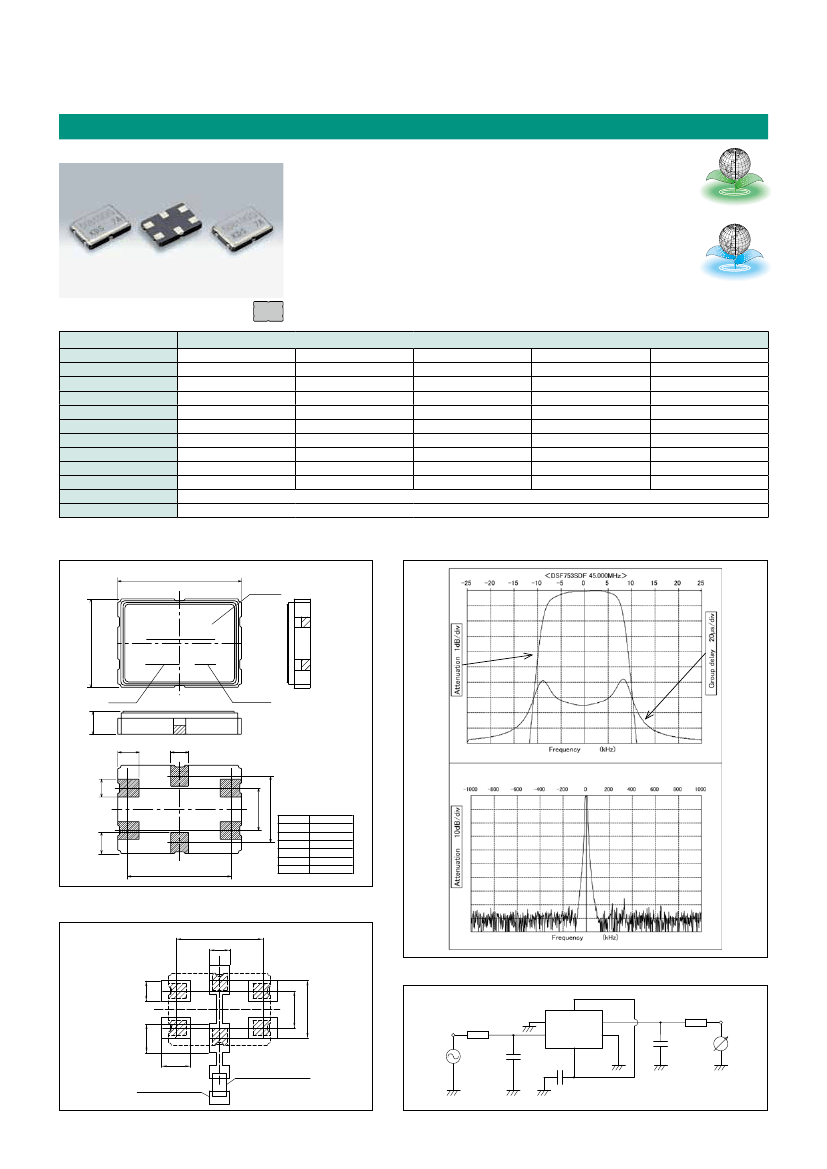

SMD Monolithic Crystal Filters

DSF753S 4POLE（SDF TYPE）

■

Features

●

7.0×5.0×1.3mm, lightweight (0.15g) and miniature

SMD crystal filter.

●

4 pole function in a single package.

●

Excellent guaranteed attenuation.

●

Excellent shock and vibration resistance.

■

Applications

●

Radio communications

Pb-Free

RoHS Compliant

■ Standard Specification

Type

Actual size

DSF753SDF

D45015GQ

4

Fundamental

45.000 MHz

±7.5 Hz min./3dB

½

±25 Hz max./30dB

½

1½B max.

4½B max.

80½B min.

570Ω//3pF　Cc=11pF

D46307GQ

D50810GQ

4

Fundamental

46.350 MHz

50.850 MHz

±3.5 Hz min./3dB

½

±5 Hz min./3dB

½

±18 Hz max./40dB

½

±20 Hz max./40dB

½

1½B max.

5½B max.

80½B min.

200Ω//5pF　Cc=23pF 560Ω//4pF　Cc=9.7pF

−20½+70℃

1000pcs./reel(φ180)

D73312GQ

4

Fundamental

73.350 MHz

±6 Hz min./3dB

½

±25 Hz max./40dB

½

1½B max.

5½B max.

80½B min.

450Ω//4pF　Cc=9.2pF

Model

D21406GQ

Pole

4

Overtone Order

Fundamental

Nominal Frequency

21.400 MHz

Pass Bandwidth

±3.0 Hz min./3dB

½

Stop Bandwidth

±6.25 Hz max./18dB

½

Ripple

1½B max.

Insertion Loss

6½B max.

Guaranteed Attenuation

80½B min.

Terminating Impedance 910Ω//4pF　Cc=14.5½F

Operating Temperature Range

Packing Unit

Consult our sales representative for other specifications.

■ Dimensions[mm]

7.0±0.2

Model

■ Characteristics Chart fo=45MHz、

（

P=±7.5kHz）

5.0±0.2

50810GQ

ＫＳ 7Ａ

Ｄ

Logo

Lot No.

1.3±0.2

1.2

＃2

1.0

＃3

＃4

1.0

2.54

3.8

1.2

＃1

＃6

5.8

＃5

Pin No. Connection

＃1

INPUT

＃2

GND.

＃3

Connect with ＃6

＃4

OUTPUT

＃5

GND.

＃6

Connect with ＃3

■ Recommended Land Pattern

〈Top View〉

6.0

1.4

[mm]

■ Measurement Circuit

1.4

2.54

4.0

#3

MCF

#6

R(Ω)

(=Rt-50)

Ct(pF)

L.M

50Ω

R(Ω)

#2

#1

#4

#5

2.0

(=Rt-50)

2.0

Coupling Capacitor

Connect to GND

S.G

50Ω

Ct(pF)

Cc(pF)
