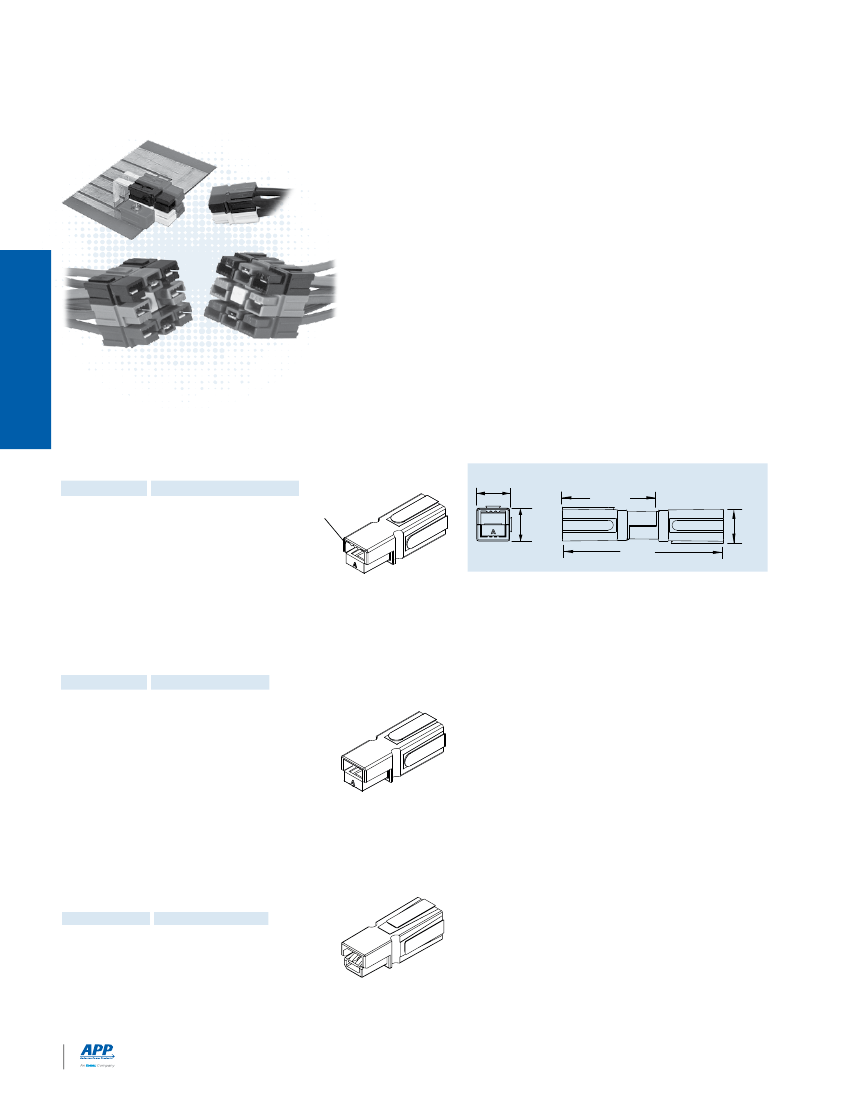

Powerpole
®
Connectors
- PP15 to PP45 :
up to 55 Amps
PP15-45 series are the smallest Powerpole
®
housings. They can
be used for wire-to-wire or wire-to-board applications. Wire sizes
from #20 AWG (0.75 mm²) to #10 (6 mm²) offer power capabilities
up to 55 amps per pole. Finger proof housings and the ability
to incorporate first-mate last-break ground connectors enhance the
capabilities of this Powerpole
®
series.
High Power Density
• Up to 55 amps in a compact footprint
Wire-to Wire & Wire-to-Board Configurations
Powerpole
®
PP15 to 45
Finger Proof Housings Available
• Wire & PCB contacts can be used in the same housings
• Protects against accidental contact with live circuits
SECTION 2
| PP15-45 ORDERING INFORMATION |
PP15-45 Finger Proof Housings
Improved on the original APP design by adding ribs to mating interface to
protect against accidental contact with live circuits. Meets the requirements
of UL1977 section 10.2 and is rated IP20. Will not mate with standard housings.
Description
------------ Part Numbers ------------
Minimum Quantity ... 2,500
200 .....
Red
1327FP-BK
1327FP
Green
1327G5FP-BK
1327G5FP
Black
1327G6FP-BK
1327G6FP
White
1327G7FP-BK
1327G7FP
Blue
1327G8FP-BK
1327G8FP
Yellow
1327G16FP-BK
1327G16FP
Finger Proof
Rib Feature
PP15-45 Finger Proof & Standard & Ground
Housing Dimensions
[ 7.9 ] Front View
0.31
Mated Length
[ 24.6 ]
0.97
[ 7.9 ]
0.31
[ 41.2 ]
1.62
[ 8.4 ]
0.33
PP15-45 Standard Housings
This original housing design has an open interface and is available
in a wide array of colors. Will not mate with finger proof housings.
Description
------- Part Numbers ------
Minimum Quantity ... 2,500
200 ...
Red
1327-BK
1327
Green
1327G5-BK
1327G5
Black
1327G6-BK
1327G6
White
1327G7-BK
1327G7
Blue
1327G8-BK
1327G8
Yellow
1327G16-BK 1327G16
Orange
1327G17-BK 1327G17
Gray
1327G18-BK 1327G18
Brown
1327G21-BK 1327G21
Pink
1327G22-BK 1327G22
Purple
1327G23-BK 1327G23
45A Premate Ground Housings
Green housings are keyed to prevent accidental mating with
standard or finger proof Powerpole
®
housings.
Description
------ Part Numbers -----
Minimum Quantity ... 2,500
200 ...
Green
1827G1-BK 1827G1
© 2017 Anderson Power Products, Inc. All rights reserved. APP®, Anderson Power Products®, A®, Powerpole®, SPEC Pak® and the APP Logo are registered trademarks of
Anderson Power Products, Inc.
- 20 -
www.andersonpower.com
All Data Subject To Change Without Notice
Offer cost effective performance up to 1,500 mating cycles. See specifications and temperature
charts for amperage ratings by wire size.
Dimensions
Mating Loose Piece Reeled - A -
Barrel AWG
mm²
Force -------- Part Numbers ------- inches mm
Minimum Quantity ....................................... 200
5,000 .........................
Open 14 to 10 K*
2.1 to 5.3
High
269G3-LPBK
269G3
0.21
5.33
Open 14 to 10 K*
2.1 to 5.3
Low
261G2-LPBK
261G2
0.20
5.08
Open 14 to 10 SF* 2.1 to 6.0
High
201G1H-LPBK 201G1H 0.24
6.10
Open 14 to 10 SF* 2.1 to 6.0
Low
200G1L-LPBK 200G1L 0.24
6.10
Open 16 to 12
1.3 to 3.3
High
269G1-LPBK
269G1
0.18
4.57
Open 16 to 12
1.3 to 3.3
Low
261G1-LPBK
261G1
0.18
4.57
Open 20 to 16
0.52 to 1.3 High
269G2-LPBK
269G2
0.16
4.06
Open 20 to 16
0.52 to 1.3 Low
262G1-LPBK
262G1
0.16
4.06
K* - For #10 AWG class K stranded wire or smaller. For larger wires use superflex contacts.
SF*- Indicates wires with high stranding such as Super Flex.
PP15-45 Tin Plated Power Contacts
Open Barrel Contact
[ 3.6 ]
0.14
[ 6.4 ]
0.25
A
[ 17.2 ]
0.68
[ 3.6 ]
0.14
Powerpole
®
PP15 to 45
SECTION 2
PP15-45 Silver Plated Power Contacts
Maximize performance by offering up to 10,000 mating cycles and are recommended for circuit interrupt or
hot plug applications. See specifications and temperature charts for amperage ratings by wire size. Only closed
barrel contacts are suitable for soldering.
Mating Loose Piece
Barrel
AWG
mm²
Force ------- Part Numbers --------
Minimum Quantity .......................................... 5,000
200
Open
14 to 10 K* 2.1 to 5.3 Low
-
261G3-LPBK
Open
14 to 10 SF* 2.1 to 6.0 Low -
200G3L-LPBK
Open
20 to 16
0.52 to 1.3 Low -
262G2-LPBK
Closed
16 to 12
1.3 to 3.3 Low 1331-BK 1331
Closed
20 to 16
0.52 to 1.3 Low 1332-BK 1332
Dimensions
Reeled
-A-
-B-
Part Numbers inches mm inches mm
5,000 .................................................
261G3
0.20 5.08 -
-
200G3L
0.24 6.10 -
-
262G2
0.16 4.06 -
-
-
0.15 3.81 0.10 2.54
-
0.12 3.05 0.07 1.78
Open Barrel Contact
[ 17.27 ]
0.68
[ 3.81 ]
0.15
A
[ 6.35 ]
0.25
Closed Barrel Contact
[ 16.26 ]
0.64
[ 3.81 ]
0.15
B
A
[ 7.35 ]
0.29
K* - For #10 AWG class K stranded wire or smaller. For larger wires use superflex contacts.
SF*- Indicates wires with high stranding such as Super Flex.
45A Premate Ground Wire Contacts
Tin or silver plated contacts are rated for ground or power. Hand tools are available for loose piece
contacts. Reeled contacts can be used with high volume press and applicator tooling. Tin contacts
are rated for up to 1,500 mating cycles. Silver contacts are rated up to 10,000 mating cycles.
Mating
Type
AWG
mm²
Force
Minimum Quantity .............................................
Open, Tin
14 to 10 2.1 to 6.0 Low
Open, Silver 14 to 10 2.1 to 6.0 Low
Reeled
Loose Piece
Part
- Part Numbers - - Numbers -
200
5,000 .....
1830G1-LPBK
1830G1
1830G2-LPBK
1830G2
Open Barrel Premate Contact
[ 3.6 ]
0.14
[ 19.1 ]
0.75
[ 6.4 ]
0.25
[ 6.1 ]
0.24
[ 6.1 ]
0.24
Suitable for right angle applications up to 25A per pole. Tin plating enhances solderability.
Cannot be mixed with 45A PCB contacts. For mating with wire contacts only.
Mating Loose Piece
Row
Force
------- Part Numbers -------
Minimum Quantity ... 1,000
100
Top
Low
1377G1-BK 1377G1
High
1317G1-BK 1317G1
Bottom
Low
1377G2-BK 1377G2
High
1317G2-BK 1317G2
Top
Low
1377G11-BK 1377G11
High
1317G11-BK 1317G11
Bottom
Low
1377G12-BK 1377G12
High
1317G12-BK 1317G12
Dimensions
- A -
- B -
inches mm
inches mm
...................................................
0.59 14.80 1.52
38.60
0.29 7.20 1.36
34.50
0.59 14.80 1.21
30.70
0.29 7.20 1.01
25.70
25A Right Angle PCB Contacts Tin Plated
A
[ 9.9 ]
0.39
B
Use mounting staples with right angle contacts
(see accessories).
See website for PCB layout drawing.
25A Vertical PCB Contacts Tin Plated
For mating with wire contacts only. Suitable for vertical applications up to 25A per pole,
tin plating enhances solderability.
Dimensions
Mating
Loose Piece
-A-
Force
---------------- Part Numbers --------------- inches mm
Minimum Quantity .... 1,000
100
.......................
Low
1377G3-BK 1377G3 2.22 56.40
High
1317G3-BK 1317G3 2.22 56.40
Low
1377G4-BK 1377G4 1.76 44.70
High
1317G4-BK 1317G4 1.76 44.70
Low
1377G13-BK 1377G13 1.17 29.70
High
1317G13-BK 1317G13 1.17 29.70
All Data Subject To Change Without Notice
[ 3.1 ]
0.12
Housing end
A
www.andersonpower.com
- 21 -
45A Right Angle and Vertical PCB Contacts Tin Plated
Suitable for right angle or vertical applications up to 45A per pole. Tin plating
enhances solderability. Right angle contacts cannot be mixed with 25A PCB
contacts. For mating with wire contacts only.
Description
Minimum Quantity .............
Vertical
Right Angle Bottom Row
Right Angle Top Row
Loose Piece
----------- Part Numbers -----------
1,000
100 ....................
3-5911P1
1335G1
3-5912P1
1336G1
3-5913P1
1337G1
Vertical
[ 29.7 ]
1.17
REF
[ 7.9 ]
0.31
TYP
[ 5.8 ]
0.23
[ 7.9 ]
0.31
TYP
[ 5.1 ]
0.20
[ 36.5 ]
1.44
[ 28.6 ]
1.13
[ 16.3 ]
0.64
PP15/45 Housings
(1327 Series)
Use mounting staples with right angle
contacts (see accessories).
Right Angle Contact
Horizontal (bottom)
Cat.No. 1336G1
Right Angle Contact
Horizontal (top), Cat.No. 1337G1
45A Premate Ground PCB Contacts
Right angle contacts are suitable for power or ground. Use to mate with 45A
ground wire contacts. Tin plated contacts are rated up to 1,500 mating cycles.
Can be used with other 45A PCB connectors in the bottom row.
Mating
Loose Piece
Force
-------
Part Numbers -------
Minimum Quantity ...................
1000
100 ....
PCB, Bottom Row Low
3-5952P1 1836G1
[ 14.7 ]
0.578
[ 3.6 ]
0.14
[ 45.3 ]
1.78 [ 41.2 ]
1.62
[ 5.6 ]
0.22
[ 7.9 ]
0.31 TYP
[ 8.4 ]
0.33 TYP
Powerpole
®
PP15 to 45
[ 28.1 ]
1.11
Pre-mate wire
[ 7.9 ]
connector
0.31
Mated Pair
SECTION 2

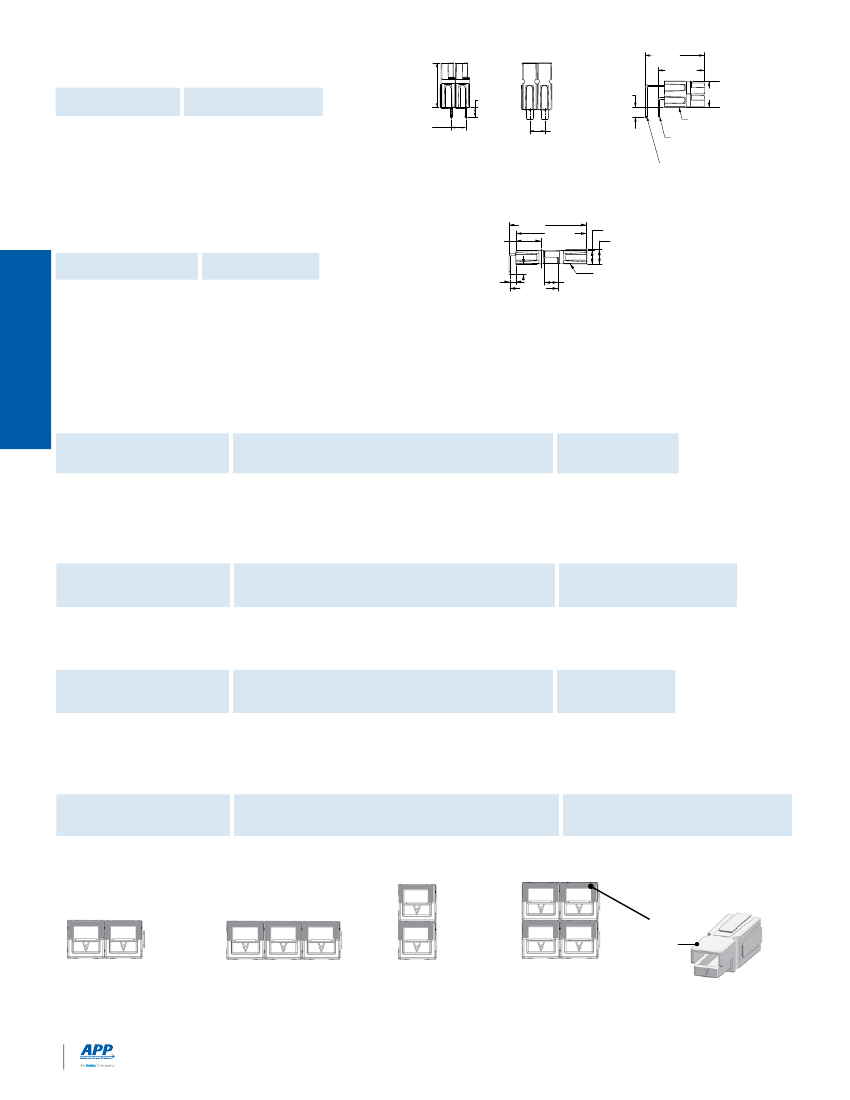

| PP15-45 ULTRASONICALLY BONDED ASSEMBLIES |
Assemblies feature housings that are ultrasonically welded to create a one piece connector unit using an APP special process. After welding, retaining pins are
no longer required to secure the stacked housings to each other. This allows Powerpole
®
15-45 connectors to be used as a durable one piece connector header.
Contact customer service for configurations not shown below.
Single Row 1x2 Assemblies
Circuit Description
Minimum Quantity ................................
DC 2 Wire Standard Housings
DC 2 Wire Reverse Standard Housings
DC 2 Wire Finger Proof
DC 2 Wire Finger Proof Reverse
Housings Only
500
ASMPP30-1X2-RK
ASMPP30-1X2-KR
ASMFP30-1X2-RK
ASMFP30-1X2-KR
Housings with
45A Vertical
PCB Contacts
500
ASMPV45-1X2-RK
ASMPV45-1X2-KR
ASMFV45-1X2-RK
ASMFV45-1X2-KR
Housings with
45A Right Angle
PCB Contacts
500 .....
ASMPR45-1X2-RK
ASMPR45-1X2-KR
ASMFR45-1X2-RK
ASMFR45-1X2-KR
Color & Type
Position Matrix
1
2
RED / STD BLK / STD
BLK / STD RED / STD
RED / FP BLK / FP
BLK / FP
RED / FP
Single Row 1x3 Assemblies
Circuit Description
Minimum Quantity ................................
DC 2 Wire Finger Proof with Ground
AC Single Phase Finger Proof
Housings Only
500
ASMFP30-1X3-KER
ASMFP30-1X3-KEW
Housings with
45A Vertical
PCB Contacts
500
N/A
ASMFV45-1X3-KEW
Housings with
45A Right Angle
PCB Contacts
500 .....
ASMFR45-1X3-KER
ASMFR45-1X3-KEW
Color & Type
Position Matrix
1
2
3
BLK / FP
GRN / GND RED / FP
BLK / FP
GRN / GND WHT / FP
Two Row 2x1 Assemblies
Circuit Description
Minimum Quantity ................................
DC 2 Wire Finger Proof
DC 2 Wire Finger Proof Mate
Housings Only
500
ASMFP30-2X1-KR
ASMFP30-2X1-RK
Housings with
45A Vertical
PCB Contacts
500
ASMFV45-2X1-KR
ASMFV45-2X1-RK
Housings with
45A Right Angle
Color & Type
PCB Contacts
Position Matrix
500 .... 1
2
ASMFR45-2X1-KR
BLK / FP
RED / FP
ASMFR45-2X1-RK
RED / FP BLK / FP
Two Row 2x2 Assemblies
Housings with
45A Vertical
Circuit Description
Housings Only
PCB Contacts
Minimum Quantity ................................ 500
500
AC 3 Phase, 3 Wire Finger Proof
ASMFP30-2X2-KRWE N/A
AC 3 Phase, 3 Wire Finger Proof Mate ASMFP30-2X2-WEKR N/A
Housings with
45A Right Angle
Color & Type
PCB Contacts
Position Matrix
500 ..... 1
2
3
N/A
BLK / FP RED / FP
WHT / FP
ASMFR45-2X2-WEKR WHT / FP GRN / GND BLK / FP
4
GRN / GND
RED / FP
1
1
2
1
2
3
2
1
3
2
4
Hood Up
Single Row 1x2 Assembly Single Row 1x3 Assembly Two Row 2x1 Assembly Two Row 2x2 Assembly
Type
STD = Standard Housing FP = Finger Proof Housing GND = Ground Housing
- 22 -
www.andersonpower.com
All Data Subject To Change Without Notice

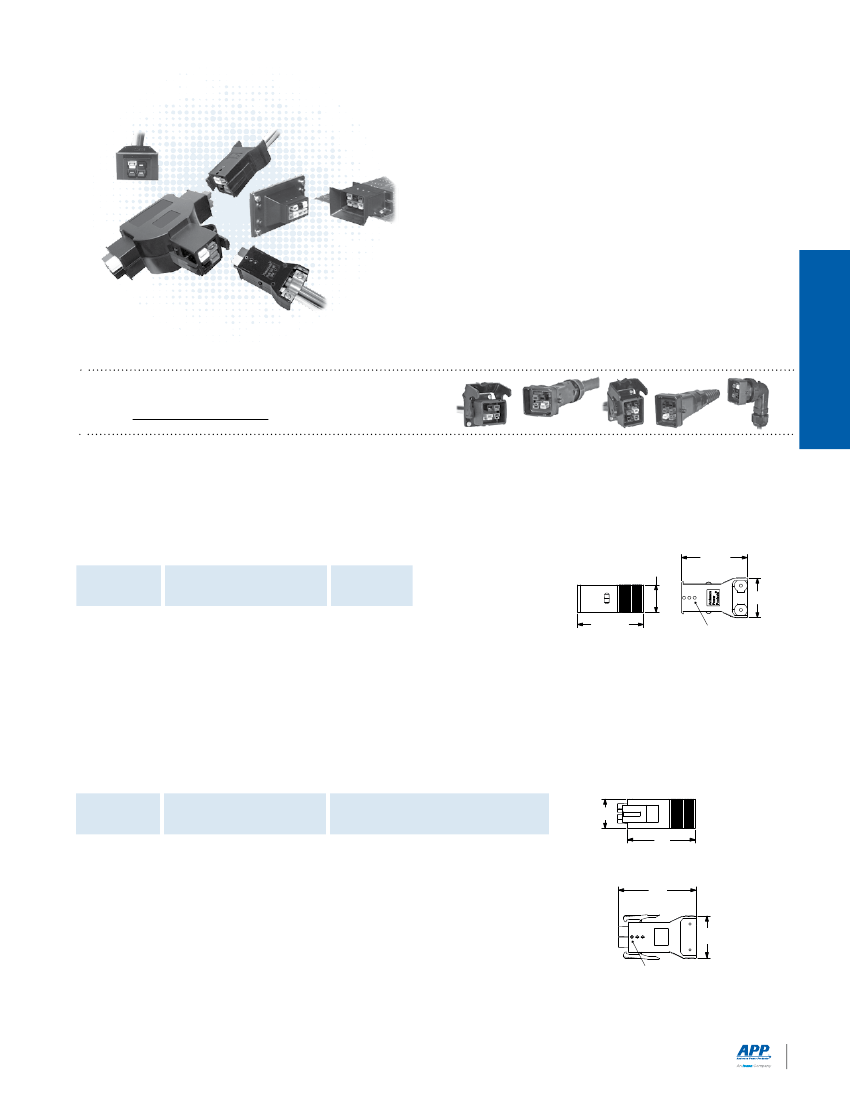

Powerpole
®
Pak Connectors
- PP15 to PP45
Plug shell
with latch
Snap-in
Powerpole
®
Pak connector shells enclose stacked
groupings of PP15-45 sized housings in a durable black
shell for a finished connector appearance and additional
features. Inline, panel mount, and blindmate configurations
are available. Plug shells offer the option of integral latches
and strain relief to help secure your connection.
• Package Groupings of PP15-45 Connectors
Provides a finished appearance while protecting
the individual
connectors with an outer shell
Allows one connection system to meet multiple needs
Secures your connection and wires
Blindmate
• Inline, Panel Mount, “T” or Blindmate Configurations
Powerpole
®
Pak
SECTION 2
T-Pak
Plug shell
without latch
• Optional Latching and Strain Relief
For environmentally sealed connector shells to hold Powerpole
®
15-180 connectors, see SPEC Pak
®
product series on our
website, www.andersonpower.com
| Powerpole
®
Pak ORDERING INFORMATION |
Plug Shell without Latch
Can mate inline with other plug shells with or without latches, or mate to a panel
mount receptacle. For use with Powerpole
®
wire connectors only. Cable Clamp
and Hardware Pak or Retaining Pins must be ordered separately.
Dimensions
-A-
Description
-------------- Part Numbers --------------
inches mm
Minimum Quantity ... 1,000
500
25 .............................
Black, 2-4 Poles
1461G1-BK -
1461G1 1.24
31.50
Black, 5-6 Poles
-
1461G2-BK 1461G2 1.56
39.62
Black, 7-8 Poles
-
1461G3-BK 1461G3 1.87
47.50
Powerpole
®
housings and contacts are sold separately.
See page 20 for ordering information.
[ 21.59 ]
0.85
[ 53.09 ]
2.09
A
[ 49.28 ]
1.94
Retaining Pin
Side View
Top View
NOTE: Retaining pins are used to secure and position
Powerpole
®
housings in one of three positions in plug shells.
Plug Shell with Latch
Max wire O.D. for 2-4 pole plug shells is 0.60 inches [15.2mm²].
For all other plug shells is 0.63 inches [ 16.0 mm²].
Can mate inline with other plug shells without latches, or mate to a panel mount receptacle. For use
with Powerpole
®
wire connectors only. Cable Clamp and Hardware Pak or Retaining Pins must
be ordered seperately.
Dimensions
-B-
-C-
-D-
Description
------------- Part Numbers -------------- inches mm
inches mm
inches mm
Minimum Quantity ..... 1,000
500
25 ................................................................................
Black, 2-4 Poles
1460G1-BK -
1460G1 1.94 49.28 2.25
57.15 1.24
31.50
Black, 5-6 Poles
-
1460G2-BK 1460G2 1.94 49.28 2.25
57.15 1.56
39.62
Black, 7-8 Poles
-
1460G3-BK 1460G3 1.94 49.28 2.25
57.15 1.87
47.50
Black, 9-10 Poles -
1460G4-BK 1460G4 2.51 63.75 2.82
71.63 1.84
46.74
[ 21.59 ]
0.85
Side View
B
Top View
C
D
Retaining Pin
All Data Subject To Change Without Notice
www.andersonpower.com
- 23 -

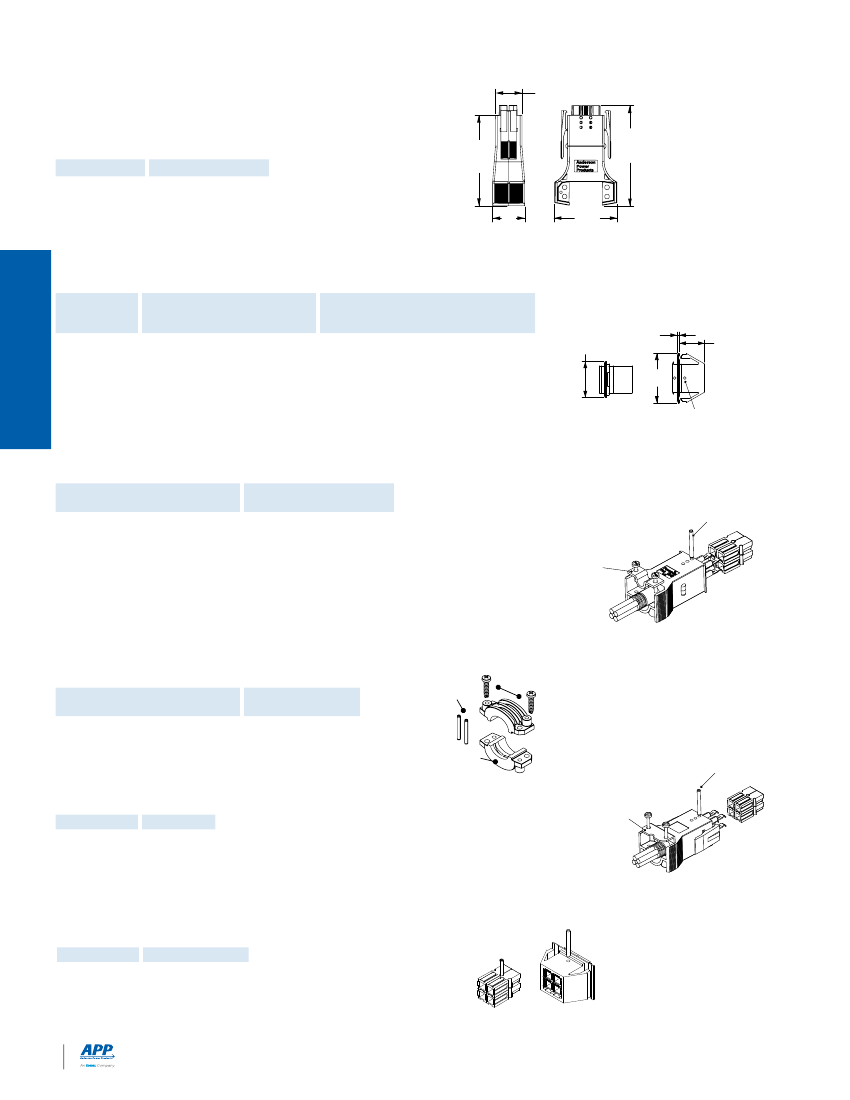

New 2X3 Powerpole
®
Pak offers an improved ergonomic shell for easier latch operation as
well as a plastic, non-conductive strain relief. The new strain relief can accommodate up
to a 6 conductor #10 AWG cable. Can mate to a panel mount receptacle. For use with
Powerpole
®
wire connectors only. Cable Clamp and Hardware Pak or Retaining Pins
must be ordered separately. To be used with 115G23 cable clamp only.
Description
-------- Part Numbers -------
Plug Shell with Latch & Non-Conductive Strain Relief
[ 21.5 ]
0.85
[ 73.5 ]
2.90
[ 81.5 ]
3.21
Minimum Quantity .. 1,000 25 ...
Black, 5-6 Poles
1460G23-BK 1460G23
Snap-in Receptacle Shell
[ 26.1 ]
1.03
[ 51.4 ]
2.02
NOTE: Max wire O.D. for
1460G23 is 0.80 inches
[20.3 mm²].
Mate to plug shells with or without latches, or mate to another panel mount receptacle to create a bulkhead to
bulkhead connection. For use with Powerpole
®
wire or PCB connectors. Order the number of retaining pins for
each receptacle as shown below separately.
Number of
Dimensions
Knock Out Size
Retaining Pins
-E-
- Width -
Description
---------------- Part Numbers ---------------- to Order
inches mm
inches mm
Minimum Quantity ... 1,000
500
25 ...............................................................................
Black, 2-4 Poles
1470G1-BK
-
1470G1 1
1.50 38.10 1.25 31.75
Black, 5-6 Poles
-
1470G2-BK 1470G2 2
1.88 47.75 1.62 41.15
Black, 7-8 Poles
-
1470G3-BK 1470G3 3
2.13 54.10 1.88 47.75
Black, 9-10 Poles -
1470G4-BK 1470G4 4
2.44 61.98 2.19 55.63
* Height = [25.4 mm] 1.0 in.
Powerpole
®
Pak
SECTION 2
[ 27.94 ]
1.10
[ 1.78 ]
0.07
[ 19.56 ]
0.77
E
Retaining Pin
NOTE: Retaining pins are used to secure and
position Powerpole
®
housings in one of two
positions in receptacle shells.
Cable Clamp & Hardware Pak
Includes cable clamp, 2 screws, and required amount of retaining pins for each configuration.
Screw Head
Cable
Description
Type
Type
------------ Part Numbers ------------
Minimum Quantity ................................... 1,000
500
25 ...
2-4 Poles
Straight Slot
Bundled 115G1-BK -
115G1
5-6 Poles
Straight Slot
Bundled 115G2-BK -
115G2
7-8 Poles
Straight Slot
Bundled 115G3-BK -
115G3
9-10 Poles
Straight Slot
Bundled -
115G4-BK 115G4
2-4 Poles
Philips
Bundled 115G7-BK -
115G7
5-6 Poles
Philips
Bundled 115G8-BK
-
115G8
Retaining Pin
Cable Clamp
With Screws
Plug Shell Without Latch Shown
Shell, housing and contacts
are sold separately.
Cable Clamp & Hardware Pak
Includes 2 cable clamp halves, 2 screws and 2 retaining pins. To be used with
1460G23 Plug Shell only.
Description
Screw Head
Type
Cable
Type
------ Part Numbers ------
1,000
115G23-BK
25
115G23
Retaining
Pins
Screws
Minimum Quantity ............................……
5-6 Poles
Philips
Bundled
Clamp
Retaining Pin
Flexible Conduit Clamp & Hardware Pak
Description
- Part Number -
Minimum Quantity ...... 100 ......
2-4 Poles
110G10
Includes cable clamp, 2 screws, and need amount of retaining pins for each configuration.
Conduit Clamp
With Screws
Plug Shell With Latch Shown
Shell, housing and contacts
are sold separately.
Retaining Pin for Snap-in Receptacle
Order the number of retaining pins for each receptacle shown in the Snap-in Receptacle
Shell ordering information. Pins are also required for the plug side when the Cable Clamp &
Hardware Pak is not ordered.
Description
----- Part Number ------
Minimum Quantity ..... 1,000
100 ...
Retaining Pin 110G9-BK 110G9
Shell and housing are
sold separately.
- 24 -
www.andersonpower.com
All Data Subject To Change Without Notice
Industrial Control Electronics
京公网安备 11010802033920号
EEWORLD
