50-29-1041

Description
Pin & Socket Connectors 093 Shrd PiSkt Hdrs 4Ckt
CategoryThe connector    The connector
File Size27KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

50-29-1041 Online Shopping

Suppliers Part Number Price MOQ In stock
50-29-1041 - - View Buy Now

50-29-1041 Overview

Pin & Socket Connectors 093 Shrd PiSkt Hdrs 4Ckt

50-29-1041 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
Other featuresPOLARIZED, SHROUDED
body width0.34 inch
subject depth0.42 inch
body length0.97 inch
Body/casing typeSOCKET
Connector typeRECTANGULAR POWER CONNECTOR
Contact arrangementS0P4
Contact to complete cooperationNOT SPECIFIED
Contact point genderFEMALE AND/OR MALE
Contact materialNOT SPECIFIED
Contact styleRND PIN-SKT
DIN complianceNO
Durability25 Cycles
empty shellYES
Filter functionNO
IEC complianceNO
maximum insertion force15.1232 N
Insulator colorBLACK
insulator materialPOLYESTER
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
OptionsGENERAL PURPOSE
GuidelineCSA, UL
reliabilityCOMMERCIAL
Shell materialPOLYESTER
Terminal pitch5.0292 mm
Termination typeSOLDER
Total number of contacts4
UL Flammability Code94V-0
Base Number Matches1

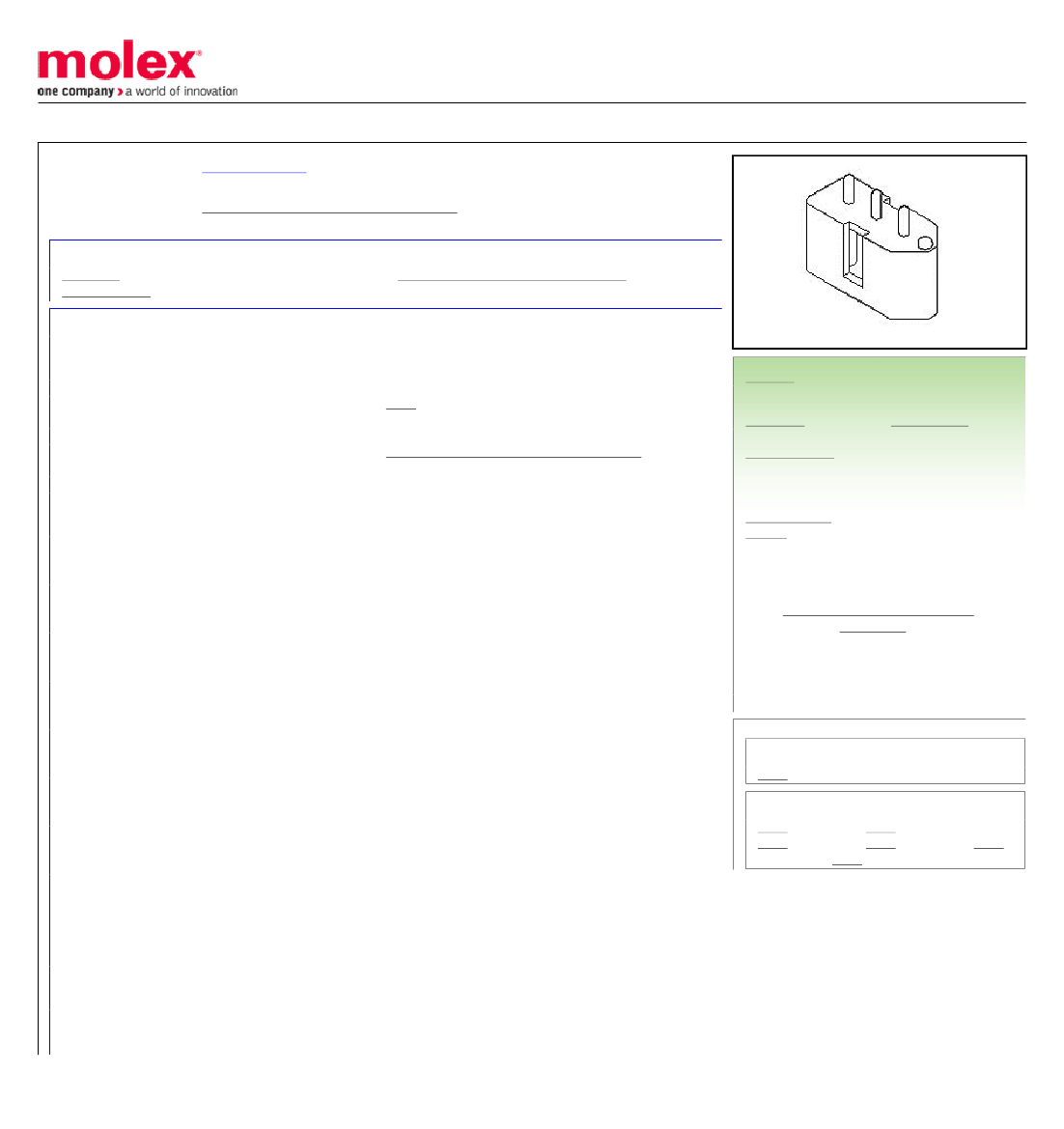

This document was generated on 02/20/2018
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
Documents:
3D Model
Drawing (PDF)
Agency Certification
CSA
General
Product Family
Series
Application
Comments
Overview
Product Name
UPC
Physical
Breakaway
Circuits (Loaded)
Circuits (maximum)
Color - Resin
Durability (mating cycles max)
Flammability
Glow-Wire Capable
Material - Plating Mating
Material - Plating Termination
Material - Resin
Net Weight
Number of Rows
Orientation
PCB Locator
PCB Retention
PCB Thickness - Recommended
Packaging Type
Pitch - Mating Interface
Polarized to PCB
Shrouded
Stackable
Surface Mount Compatible (SMC)
Temperature Range - Operating
Termination Interface: Style
Electrical
Current - Maximum per Contact
Voltage - Maximum
Material Info
Engineering Number
Reference - Drawing Numbers
Sales Drawing
0050291041
Active
Standard .093" Pin and Socket Connectors
2.36mm Diameter Standard .093" Pin and Socket Header, Shrouded, 4 Circuits
RoHS Certificate of Compliance (PDF)
LR19980
PCB Headers
3099
Power, Wire-to-Board
Solder Type|Round Pin
Standard .093" Pin and Socket Connectors
Standard .093"
800754389334
No
4
4
Black
25
94V-2
No
Tin
Tin
Polyester
1.009/g
1
Vertical
Yes
None
1.60mm
Bag
5.03mm
Yes
Fully
No
No
-40°C to +105°C
Through Hole
5.0A
250V
3099-04A1
SD-3099-4*
Series image - Reference only
EU ELV
Not Relevant
EU RoHS
China RoHS
Compliant
REACH SVHC
Not Contained Per
-ED/01/2018 (15
January 2018)
Halogen-Free
Status
Not Low-Halogen
Need more information on product
environmental compliance?
Email productcompliance@molex.com
Please visit the Contact Us section for any
non-product compliance questions.
China ROHS
ELV
RoHS Phthalates
Green Image
Not Relevant
Not Contained
Search Parts in this Series
3099 Series
Mates With
1490 Receptacle, 1292 Receptacle,
1396 Receptacle, 1375 Receptacle, 1360
Receptacle, 1261 Receptacle
