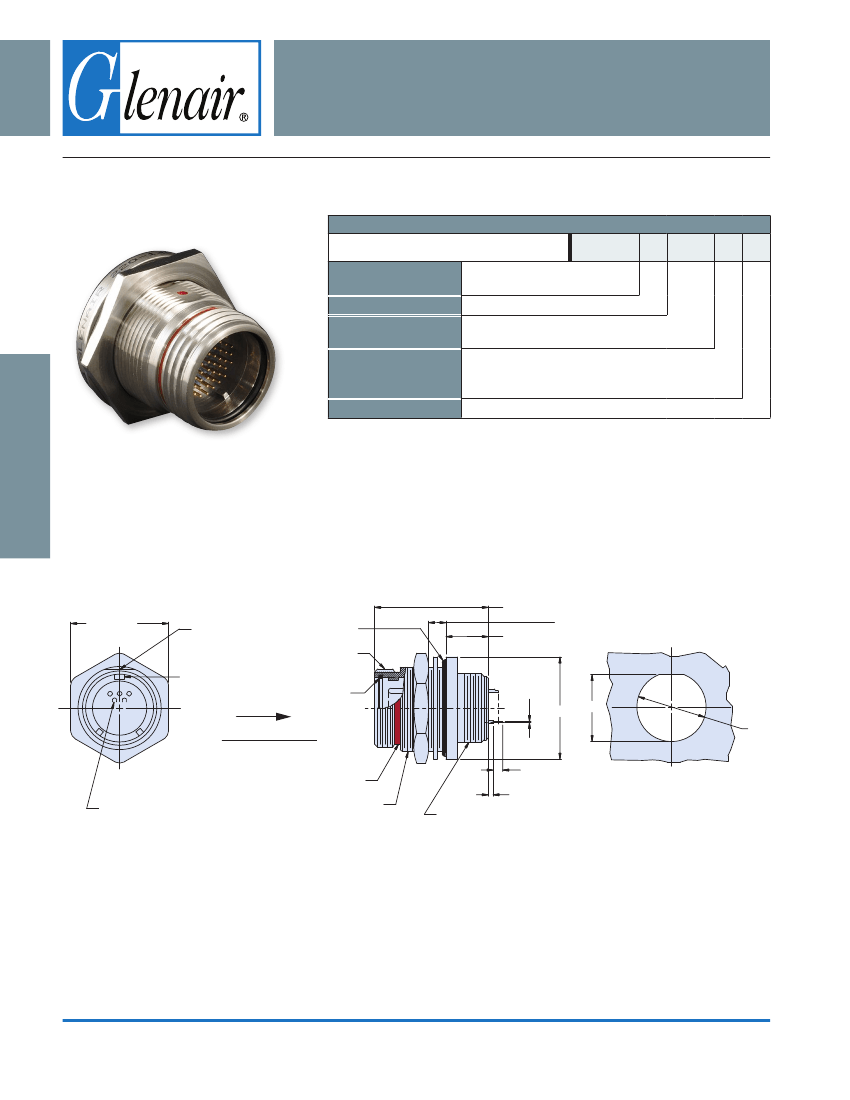

220-04 and 220-14
High-Pressure Environmental/Hermetic Jam Nut
Receptacle with Accessory Threads, Rear Mount
SERIES 22 RECEPTACLE IN STANDARD OR SCOOP-PROOF SHELL WITH PIN OR SOCKET CONTACTS
How To Order
Sample Part Number
Series and Shell Style
Class
Shell Size-
Insert Arrangement
Contact Style
Polarization
220-04
- Standard
220-14
- Scoop-Proof
H
= Hermetic
E
= Environmental
See page A-6
P
= Pins
S
= Sockets
C
= Pin, P.C. Term (Hermetic Only, See Table VI)
D
= Socket, P.C. Term (Hermetic Only, See Table VI)
N, 1, 2, 3, 4
See page A-6
Geo-Marine
®
Connectors
220-04
E
24 -61
P
N
B
Prior to use, lubricate O-rings with high grade
silicone lubricant (Moly-kote M55 or equivalent).
B Jam Nut
Master Key
Indicator
Red Dot
(See Note I)
Polarizing
Keys
220-04
1.82 Max
220-14
2.07 Max
Flange O-Ring
G Thread
.059 Max
.50 Max Panel
Accommodation
Piston
O-Ring
Hermetic Only
See Table IV
øP
ØA
E
ØC
Direction of Pressure
Capability-See Note 2
Color Band For Visual
Indication Of Full Mate
For Insert Arrangement, See
page A-6 & Part Number Development
D Thread
F Thread
(Modified Major)
.125
Typ
.050
Typ
Recommended Panel Cutout
© 2014 Glenair, Inc.
Series 22 Geo-Marine
®
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-10
E-Mail: sales@glenair.com
220-04 and 220-14
High-Pressure Environmental/Hermetic Jam Nut
Receptacle with Accessory Threads, Rear Mount
Table II: Dimensions
A
Dia
1.25 (31.8)
1.38 (35.1)
1.50 (38.1)
1.63 (41.4)
1.75 (44.5)
1.88 (47.8)
2.00 (50.8)
2.12 (53.8)
B
Flats
1.125 (28.6)
1.250 (31.8)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
1.875 (47.6)
2.000 (50.8)
2.125 (54.0)
C Dia
±.005±(0.1)
.885 (22.5)
1.010 (25.7)
1.135 (28.8)
1.260 (32.0)
1.385 (35.2)
1.510 (38.4)
1.635 (41.5)
1.760 (44.7)
D Thread
Class 2A
7/8 - 20 UNEF
1 - 20 UNEF
1 1/8 - 16 UN
1 1/4 - 16 UN
1 3/8 - 16 UN
1 1/2 - 16 UN
1 5/8 - 16 UN
1 3/4 - 16 UN
Table II: Dimensions (continued)
Shell
Size
10
12
14
16
18
20
22
24
E
±.005 ±(0.1)
.835 (21.2)
.960 (24.4)
1.085 (27.6)
1.210 (30.7)
1.335 (33.9)
1.460 (37.1)
1.585 (40.3)
1.710 (43.4)
F Thread
Class 2A
5/8 - 24 UNEF
3/4 - 20 UNEF
7/8 - 20 UNEF
1 - 20 UNEF
1 1/8 - 16 UN
1 1/4 - 16 U N
1 3/8 - 16 UN
1 1/2 - 16 UN
G Thread
Class 2A
.750 - .1P - .1L
.875 - .1P - .1L
1.000 - .1P - .1L
1.125 - .1P - .1L
1.250 - .1P - .1L
1.375 - .1P - .1L
1.500 - .1P - .1L
1.625 - .1P - .1L
Table IV
Contact Size
22D
20
16
12
Ø P
0.021
0.018
0.024
0.028
0.0635
0.0615
0.095
0.093
Table V: Replacement O-Ring
Part Numbers *
Shell Size Piston O-Ring Flange O-Ring
10
12
14
16
18
20
22
24
2-014
2-016
2-018
2-020
2-022
2-024
2-026
2-028
2-021
2-023
2-025
2-027
2-029
2-030
2-031
2-032
* Parker O-ring part numbers. Compound
N674-70 or equivalent.
© 2014 Glenair, Inc.
Series 22 Geo-Marine
®
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-11
E-Mail: sales@glenair.com
Geo-Marine
®
Connectors
B
Discrete Device
