MIL-DTL-38999
Hermetic Connectors
MS27470
Jam Nut Mount Hermetic Receptacle
MIL-DTL-38999 Series I
How To Order:
MS
B
Shell Style
MS27470
-
Jam Nut Mount, Series I
Connector Material / Finish
D
- Carbon Steel - Fused Tin Finish
E
- Stainless Steel - Passivate Finish
N
- Stainless Steel - Nickel Finish
Contact Termination
P
- Pin, Solder Cup
S
- Socket, Solder Cup
X
- Pin, Eyelet
Z
- Socket, Eyelet
C
- Pin, PCB
D
- Socket, PCB
Flex Feedthrough
Flex Feedthrough
MS27470
Class
Y-
Hermetic
Y
11
N
35
P
A
Alternate Key
Position
A, B, C, D
(Omit for Normal)
Shell Size
9,11,13,15,17,19,21,23,25
Insert Arrangement
MIL-DTL-38999 Series I
Hermetic Inserts Per
MIL-STD-1560;
See Pages B-2 - B-4
K Dia
L Max
.920
.910
G
.125/.062
Panel
Thickness
.150
O-Ring
.175/.125
Solder Cup
Contact (P & S)
Feedthrough
Contact (C & D)

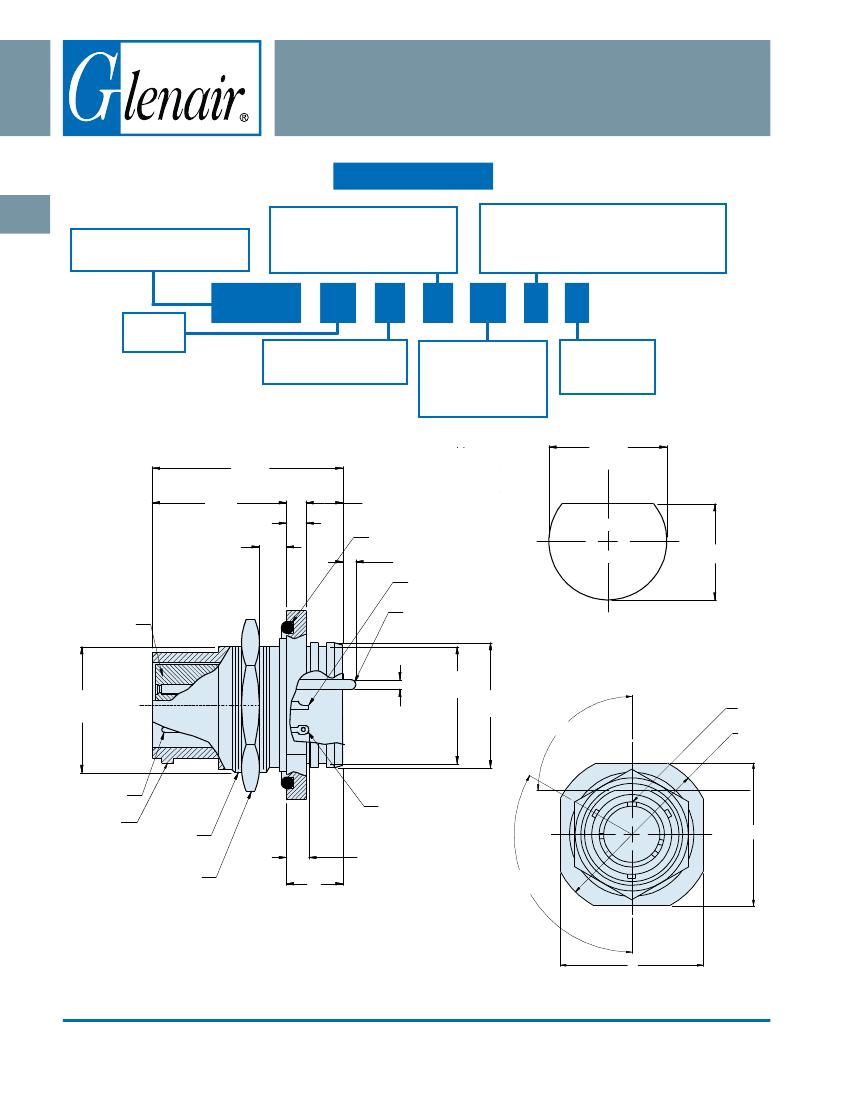

Recommended Panel Cut-Out
N
Socket Face
D
Flat
E
DIA
P
(See Table ll)
F
DIA
90°/85°
Master
Keyway
B DIA
Pin Face
Contrasting
Color Pin Ends
(3 Places)
A
Thread
Nut
Per MS27514
M
Max
Eyelet
Contact (X & Z)
C
.141 Max (P & X)
.172 Max (S & Z)
120°
TYP
C
Dimensions in Inches (millimeters) are subject to change without notice.
© 2013 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-18
E-Mail: sales@glenair.com
