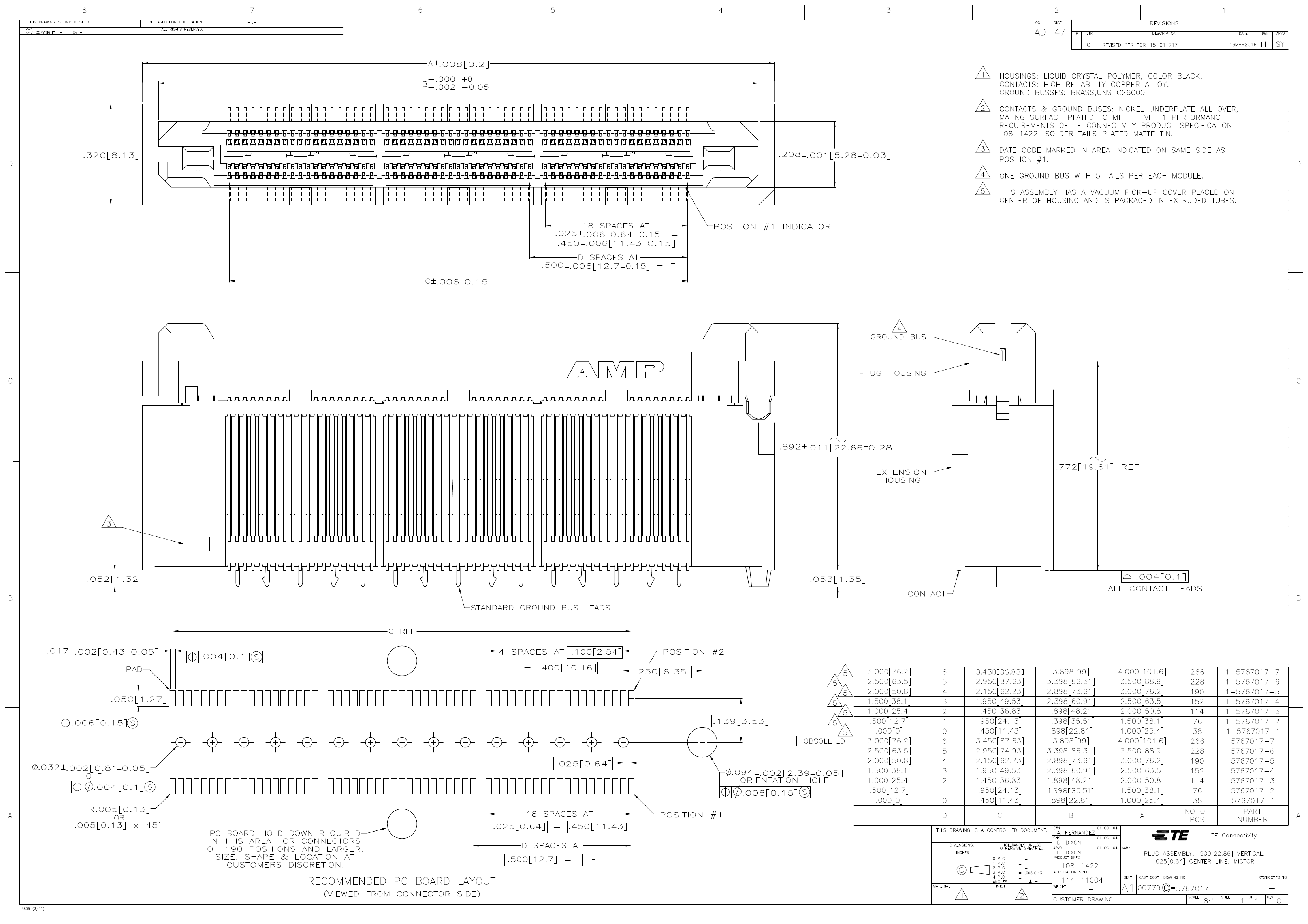

MICT,900PLUG,38,ASSY,.025,REC
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Connector System | Board to Board |
| Connector type | with hood |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| series | MICTOR |
| Ground element type | Ground bus |
| lugs | yes |
| Number of signal positions | 38 |
| Stackable | yes |
| Number of columns | 19 |
| Number of power supply locations | 1 |
| PCB mounting direction | vertical |
| Number of Positions | 38 |
| Board-to-board configuration | mezzanine |
| Rows | 2 |
| Impedance (Ω) | 38 |
| Dielectric withstand voltage (VAC) | 500 |
| Voltage (VDC) | 1 |
| Voltage (VAC) | 30 |
| Insulation resistance (MΩ) | 2 |
| Data rate (Gb/s) | 10 |
| Differential signaling | yes |
| Plating thickness of bus bar bonding area | 500 |
| Terminal base material | copper alloy |
| PCB terminal termination area plating materials | tin |
| Terminal configuration | double beam, double beam |
| Solder tail terminal plating material surface coating | matte |
| Terminal contact plating material | gold |
| Terminal Contact Plating Thickness (µin) | 29.9212 |
| Terminal type | Public end |
| Contact Current Rating (Max) (A) | 11.5 |
| Terminal contact part plating material surface coating | matte |
| Terminal layout | Direct plug-in |
| PCB terminal termination area plating thickness | 3.81 – 6.35 µm [ 149.9997 – 249.9995 µin ] |
| PCB Termination Methods | surface mount |
| PCB mounting fixation type | Positioning post |
| joint alignment | with |
| Joint alignment type | polarization |
| PCB installation and fixation | with |
| PCB mounting alignment | with |
| Connector mounting type | board mounting |
| PCB Mount Alignment Type | lugs |
| joint fixation | Without |
| Centerline (Pitch) | .64 mm [ .025 in ] |
| Shell color | black |
| Shell material | matte |
| Shell entry method | top |
| Stacking height (mm) | 22.86, 22.96, 31.9 |
| stack height (in) | .9, 1.255 |
| high | 22.66 mm [ .892 in ] |
| Tail length (mm) | .76 |
| length | 63.45 mm [ 2.498 in ] |
| width | 8.128 mm [ .32 in ] |
| Working group temperature range | -55 – 125 °C [ -67 – 257 °F ] |
| Assembly process characteristics | Vacuum cover |
| pick and place cover | Without |
| Circuit Application | Signal |
| Applicable to | Female components |
| UL flammability rating | UL 94V-0 |
| Obtain CSA certification | yes |
| UL rating | Certified |
| Agencies/Standards | CSA |
| CSA file number | 1195944 |
| UL file number | E28476 |
| Encapsulation method | box and tube, tube |
| Package quantity | 21 |
