TECHNICAL DATA SHEET
1/4

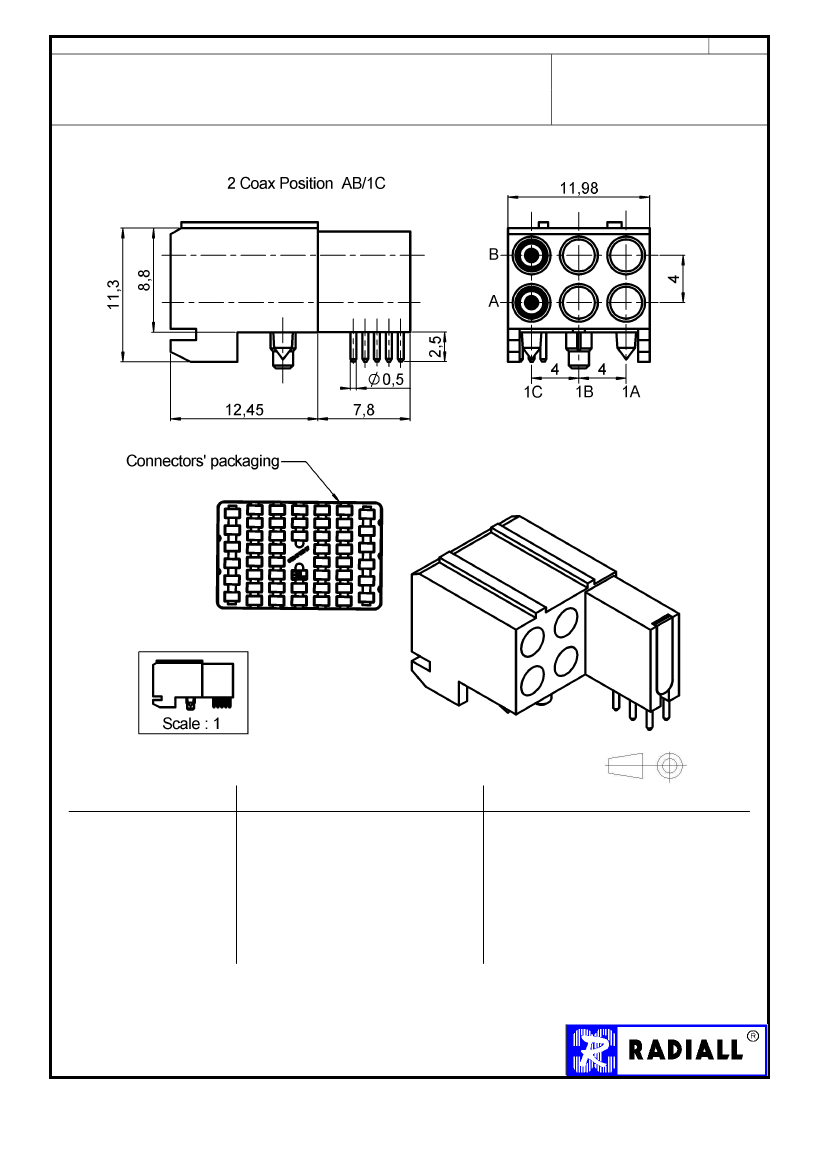

R/A FEMALE MODULE 2 SOLDER TYPE INSERTS
2.5MM FOR PCB
R694.252.103
Series :
MCC2
All dimensions are in mm.
.
pn
.
ao
COMPONENTS
BODY
CENTER CONTACT
OUTER CONTACT
INSULATOR
GASKET
OTHERS PARTS
-
-
MATERIALS
BRASS
BERYLLIUM COPPER
BRASS
PEEK , ULTEM
-
LIQUID CRISTAL POLYMER
-
-
NICKEL 2
NPGR
NPGR
PLATING (
µm
)
-
-
-
Issue :
0625 D
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
2/4
R/A FEMALE MODULE 2 SOLDER TYPE INSERTS
2.5MM FOR PCB
PACKAGING
Standard
50
Unit
‘W’ option
Other
Contact us
R694.252.103
Series :
MCC2
SPECIFICATION
ELECTRICAL CHARACTERISTICS
ENVIRONMENTAL
Impedance
Operating temperature
-25/+125
° C
50
Ω
Frequency
Hermetic seal
0-6
GHz
NA
Atm.cm3/s
VSWR
1.15*
+
0,0000
x F(GHz) Maxi Panel leakage
NA
Insertion loss
0.2
√F(GHz)
dB Maxi
RF leakage
-(
AD
- F(GHz)) dB Maxi
Voltage rating
500
Veff Maxi
Dielectric withstanding voltage
750
Veff mini
Insulation resistance
5000
MΩ mini
OTHER CHARACTERISTICS
Assembly instruction
Others :
*VSWR optimized between DC to 3GHz
MECHANICAL CHARACTERISTICS
Center contact retention
Axial force – Mating end
Axial force – Opposite end
Torque
Recommended torque
Mating
Panel nut
6
N mini
6
N mini
NA
N.cm mini
NA
N.cm
NA
N.cm
Mating life
Weight
500
Cycles mini
88,7660
g
Issue :
0625 D
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.

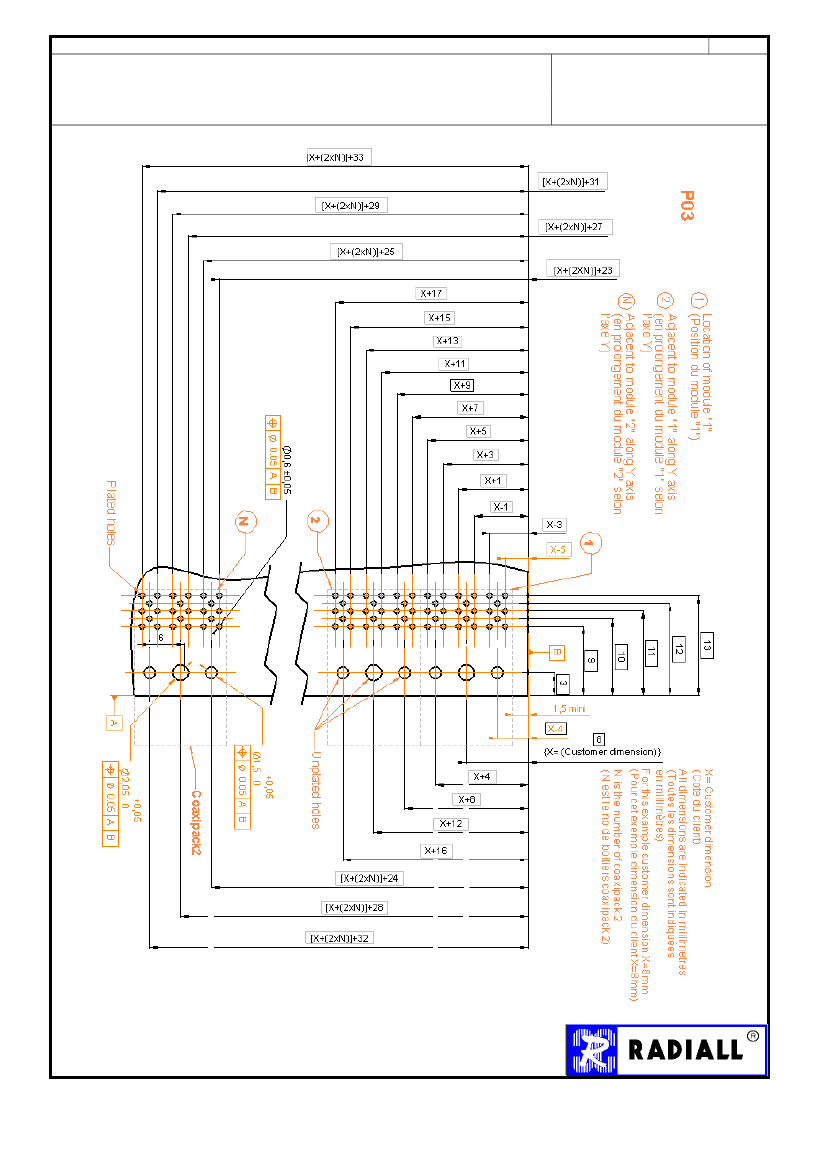

TECHNICAL DATA SHEET
3/4
R/A FEMALE MODULE 2 SOLDER TYPE INSERTS
2.5MM FOR PCB
R694.252.103
Series :
MCC2
Issue :
0625 D
In the effort to improve our products, we reserve the right to make changes judged to be
necessary.
TECHNICAL DATA SHEET
4/4
R/A FEMALE MODULE 2 SOLDER TYPE INSERTS
2.5MM FOR PCB

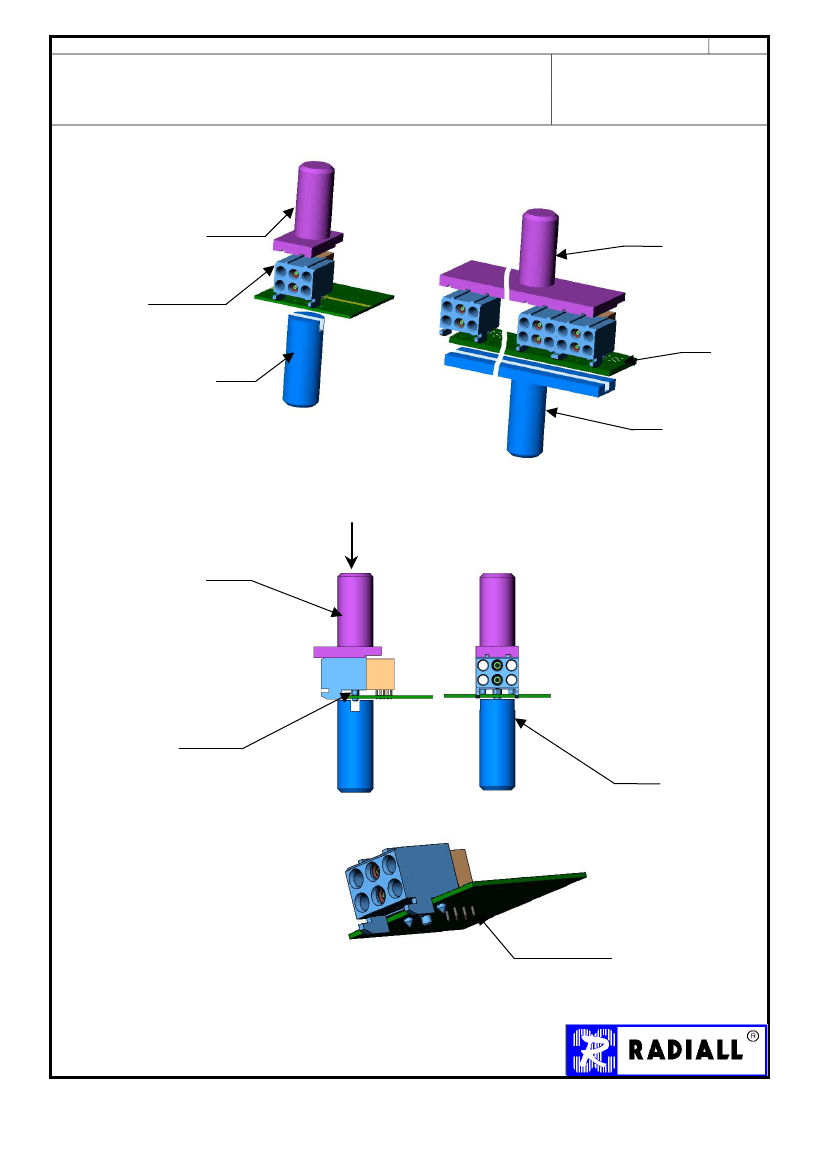

Place the coax connector(s) on the PCB
R694.252.103
Series :
MCC2
Or
Punch
Punch
CONNECTOR
PCB
Nest
Nest
Place correctly the PCB between the punch and the nest of the press.
In case of multiple housing configuration , use a punch and a nest large enough to cover all the housings.
Press on the plastic housing(s) with the punch until the complete insertion of the fixing stud into the
PCB.
Press 100N
Punch
Fixing stud
Nest
Solder the legs on board
Solder legs
Radiall do not recommend to use more than 3 modules on the same motherboard and can’t be held liable of any
connection defect when more than 3 modules are implemented on the board.
