74061-1011 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 74061-1011

74061-1011: DescriptionHigh Speed / Modular Connectors VHDM BACKPLANE 80P board-to-board hdr; CategoryThe connector The connector; File Size31KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric View All

74061-1011 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74061-1011	-	-	View	Buy Now

74061-1011 Overview

High Speed / Modular Connectors VHDM BACKPLANE 80P board-to-board hdr

74061-1011 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PANEL MOUNTABLE, POLARIZED, NO OF SHIELD CONTACTS: 10
body width	0.85 inch
subject depth	0.484 inch
body length	1.063 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	18 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.3892 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.089 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	GUIDE PIN
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	15
Number of rows loaded	8
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.143 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	90
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

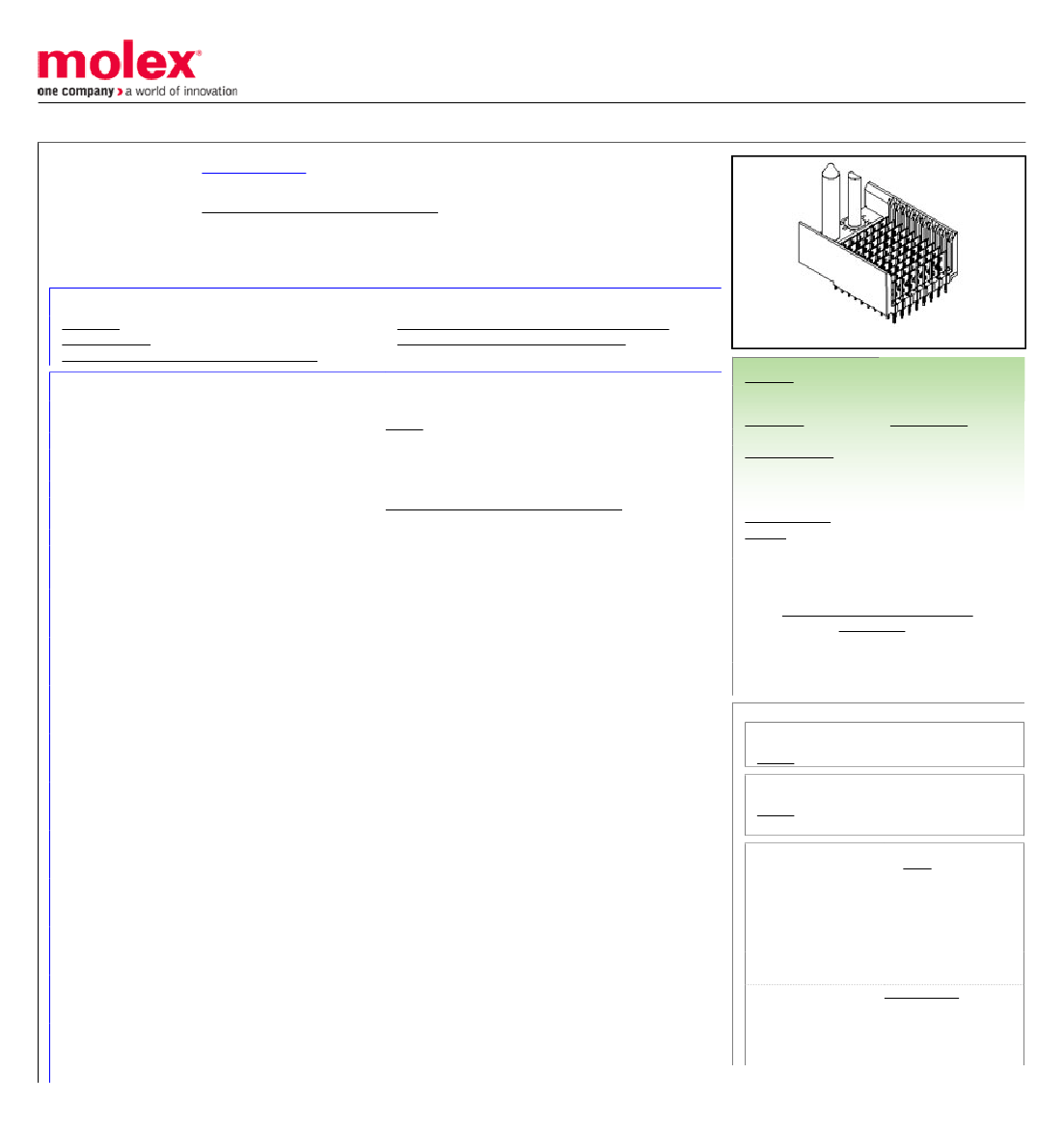

Preview

Download Datasheet

View All

This document was generated on 09/30/2016

PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION

Part Number:

Status:

Overview:

Description:

0740611011

Active

VHDM® Backplane Connector Systems

2.00mm Pitch VHDM® Single-Ended Board-to-Board Backplane Header, Vertical,

8-Row, Guide Pin Signal Module, Pin End Version, 80 Circuits, Pin Length 4.75mm.

Series:74075 Enables designers to create custom loaded connectors utilizing standard

pin lengths 4.25, 4.75, 5.15 and 6.25mm25, 4.75, 5.15 and 6.25mm

Documents:

3D Model

Drawing (PDF)

Product Specification PS-74031-999 (PDF)

General

Product Family

Series

Application

Application Tooling Documents

Comments

Component Type

Overview

Product Name

UPC

Physical

Circuits (Loaded)

Circuits (maximum)

Color - Resin

Durability (mating cycles max)

First Mate / Last Break

Guide to Mating Part

Keying to Mating Part

Material - Metal

Material - Plating Mating

Material - Plating Termination

Material - Resin

Net Weight

Number of Columns

Number of Pairs

Number of Rows

Orientation

PC Tail Length

PCB Locator

PCB Retention

PCB Thickness - Recommended

Packaging Type

Pitch - Mating Interface

Pitch - Termination Interface

Plating min - Mating

Plating min - Termination

Polarized to PCB

Surface Mount Compatible (SMC)

Temperature Range - Operating

Termination Interface: Style

Electrical

Packaging Specification PK-74061-003 (PDF)

RoHS Certificate of Compliance (PDF)

Series image - Reference only

EU ELV

Not Relevant

Backplane Connectors

74061

Backplane

TM-622010999

Keying Position A

PCB Header

VHDM® Backplane Connector Systems

VHDM®

800753021860

Black

200

Yes

Beryllium Copper, High Performance Alloy (HPA),

Stainless Steel

Gold

Tin-Lead

High Temperature Thermoplastic

9.318/g

Open Pin Field

Vertical

2.50mm

None

1.80mm

Tube

2.00mm

1.00mm

0.762µm

Yes

105°C max

Through Hole - Compliant Pin

EU RoHS

China RoHS

Compliant

REACH SVHC

Not Contained Per -

ED/21/2016 (20 June

2016)

Halogen-Free

Status

Low-Halogen

Need more information on product

environmental compliance?

Email productcompliance@molex.com

Please visit the Contact Us section for any

non-product compliance questions.

China ROHS

ELV

Green Image

Not Relevant

Search Parts in this Series

74061 Series

Mates With

74040 VHDM® Board-to-Board

Daughtercard Receptacle

Application Tooling

FAQ

Tooling specifications and manuals are

found by selecting the products below.

Crimp Height Specifications are then

contained in the Application Tooling

Specification document.

Global

Description

Product #

Insertion Module

0622020209

for Standard Shield

Signal Header, 8-

Row by 10-Wide,

20.00mm

Recommended Resources

Coarse to fine conversion circuit

Touch type multiple animal sound circuit

Series thyristor flasher that can be connected to various loads

M50110P/Ap/BP/CP (VCR, TV and audio equipment) 30-function infrared remote control transmitter circuit

High performance audio signal oscillator

Calibrating current relay circuit using portable light transformer

How to draw the split inner electrical layer when learning Altium 15?: According to the forum, I opened the inner layer, place---- line, ad15 can directly draw the segmentation area on the inner layer, but why is the effect of drawing directly according to P>>L a box? Do...; zqdl8 PCB Design

Post some photos of robots to arouse your desire to DIY robots: As we all know, China's industrial automation technology is still very backward in the world. My own understanding is due to three reasons: first, it may be that the education department does not pay ...; wanghongyang Robotics Development

A frustrating GPIO problem encountered by naked 2440: 0x00FF0 ... *)OALPAtoVA(S3C2440A_BASE_REG_PA_IOPORT, FALSE); s2440IOP->GPFDAT &=0xFB; mdelay(1);//If I remove this delay, s2440IOP->GPFDAT &=0xFB will be invalid. Adding a delay will make it effective...; gooogleman MCU

Problems encountered when building platform: Problems that occur when building platform makeimg: FATAL ERROR: Cannot open D:\WINCE420\PUBLIC\SMDK2410vga\RelDir\SAMSUN~1\postproc\platform.bib makeimg: FATAL ERROR: Cannot open D:\WINCE420\PUBLIC\S...; aabbccddee2 Embedded System

How to set the conditional macro definition _POCKET_PC in the EVC project to take effect?: In EVC, the following conditional macro definition is defined, which means: when _POCKET_PC is defined, some code is executed, and when it is not defined, other code is executed. #ifdef _POCKET_PC ......; hellen_mao Embedded System

My Journey of MCU Development (Part 2): After mastering Keil and Protel 99, I officially entered the industry. Previously, my main job was to develop 8051 assembly programs. The company's main product was IC card readers (non-CPU cards, usi...; bigbat Talking about work
