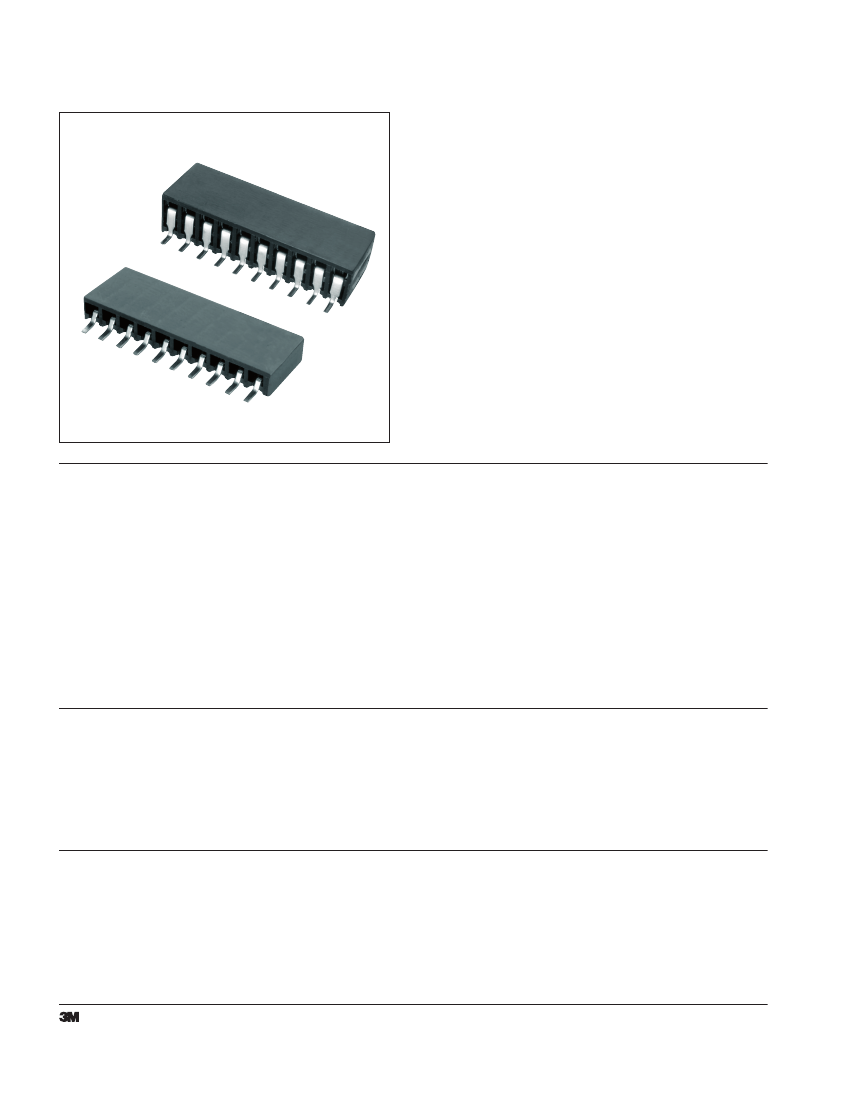

2.54 mm and 2.54 mm x 2.54 mm, Side Entry, Surface Mount
960 Series
•
High temperature dielectric
•
“No lead” reflow solder compatible
•
Single- and dual row design, 4–30 pins or 8–60 pins
•
Mates with pin-strip header products
•
RoHS Compliant. See the Regulatory Information
Appendix (RIA) in the “RoHS compliance” section of
www.3Mconnectors.com for compliance information
(RIA E1 & C1 apply)
1/
Date Modified: November 19, 2012
17
Physical
Insulation
Material:
Flammability:
Color:
Contact
Material:
Plating
Underplating:
Wiping Area:
Solder Tail Area:
Copper Alloy
Environmental
Temperature Range:
-25 °C to +105 °C
Processing Temperature:
max. 260 °C (Profile per J-STD-020C)
Moisture Sensitivity Level:
1 (per J-STD-020C)
UL File No.: E68080
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
D
Current Rating:
2 A
Insulation Resistance:
> 5 x 10
8
Ohm at 100 V
DC
Withstanding Voltage:
1000 V
DC
IS
Electrical
C
O
1.25–2.5 µm [50–100 µ"] Nickel
Flash Gold
1–3 µm [40–118 µ"] Matte Tin
N
T
IN
High Temperature Thermoplastic
UL 94V-0
Black
U
E
D
TS-2189-D
Sheet 1 of 2
3M
™
Boardmount Socket
2.54 mm and 2.54 mm x 2.54 mm, Side Entry, Surface Mount
960 Series
IS
Ordering Information
C
9601xx-8100
(1 Row)
Contact
9602xx-8100
Quantity
(2 Row)
Tape Width
[mm]
4–6
7–8
N
Tape & Reel Option
T

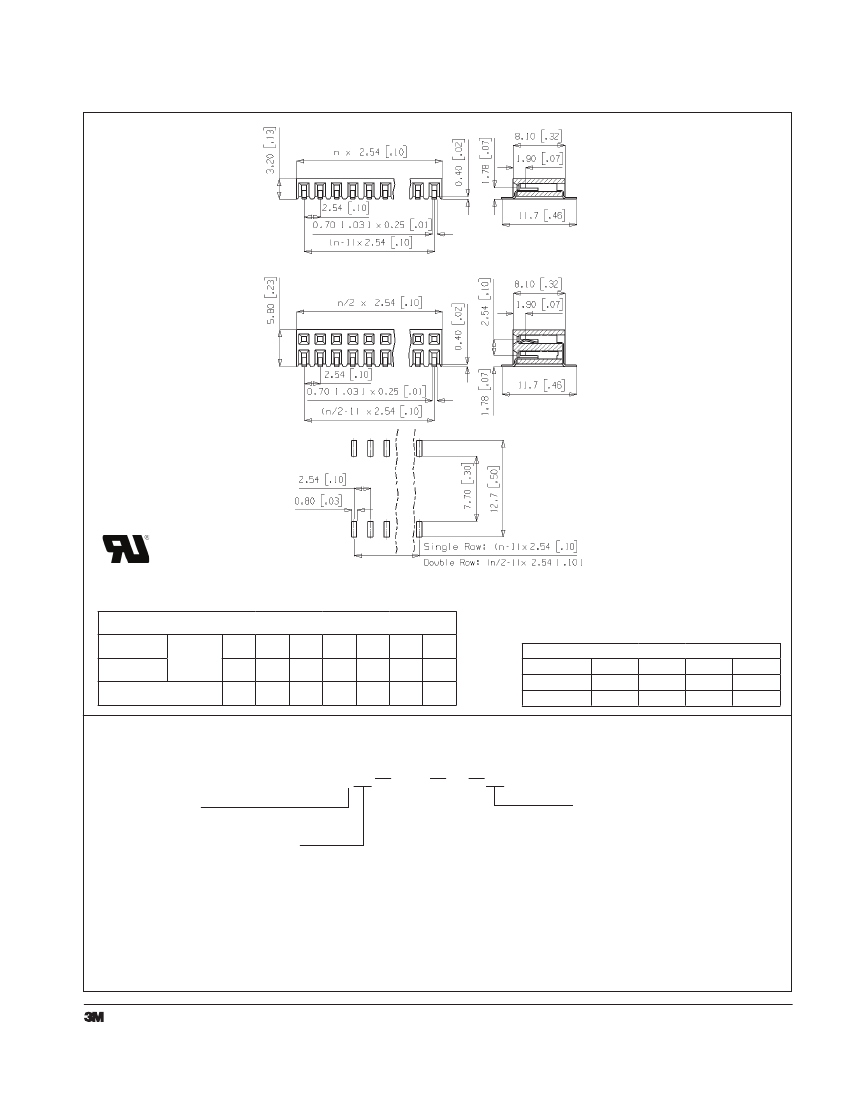

PCB Layout
IN
U
E
n = No. of Contacts
9–13 14–17 18–22 23–29
30
60
104
D
Tolerance Unless Noted [mm]
Nominal Size
0.5–3
3–6
6–30
Linear Dim
+/- 0.1
+/- 0.1
+/- 0.2
Radii
+/- 0.2
+/- 0.5
+/- 1
1/
O
8–12 14–16 18–26 28–34 36–44 46–58
24
32
44
56
72
88
30–120
+/- 0.3
+/- 1
960XXX
8100
AR
XX
(RIA E1 & C1 Apply)
Packaging:
TP = Tube without Pad
TR = Tape & Reel
D
Rows:
1 = 1 Row
2 = 2 Row
Contact Quantity:
04–30 Pins / 1 Row
08–60 Pins / 2 Row
17
TS-2189-D
Sheet 2 of 2
Interconnect Solutions
www.3Mconnectors.com
3M is a trademark of the 3M Company
For technical, sales or ordering information
call your Local 3M Service Center
