Low-Profile, Ultraminiature Lightweight SMT Coaxial Connectors - 0.94 or 1.2 mm Mated Height
X.FL Series
●Connector
mated condition
Mated height comparison (compared to conventional company products)
X.FL-LP-040
（
X.FL-LP-032 09
）
X.FL-LP P
）
（
-068
0.89 0.95MAX
）
（
0.94 1.0MAX
）
（
1.2 1.3MAX
）
（
X.FL-PR-SMT1-2
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
X.FL-R-SMT-1 X.FL-R-SMT-1 X.FL-R-SMT-1
Fig. 1

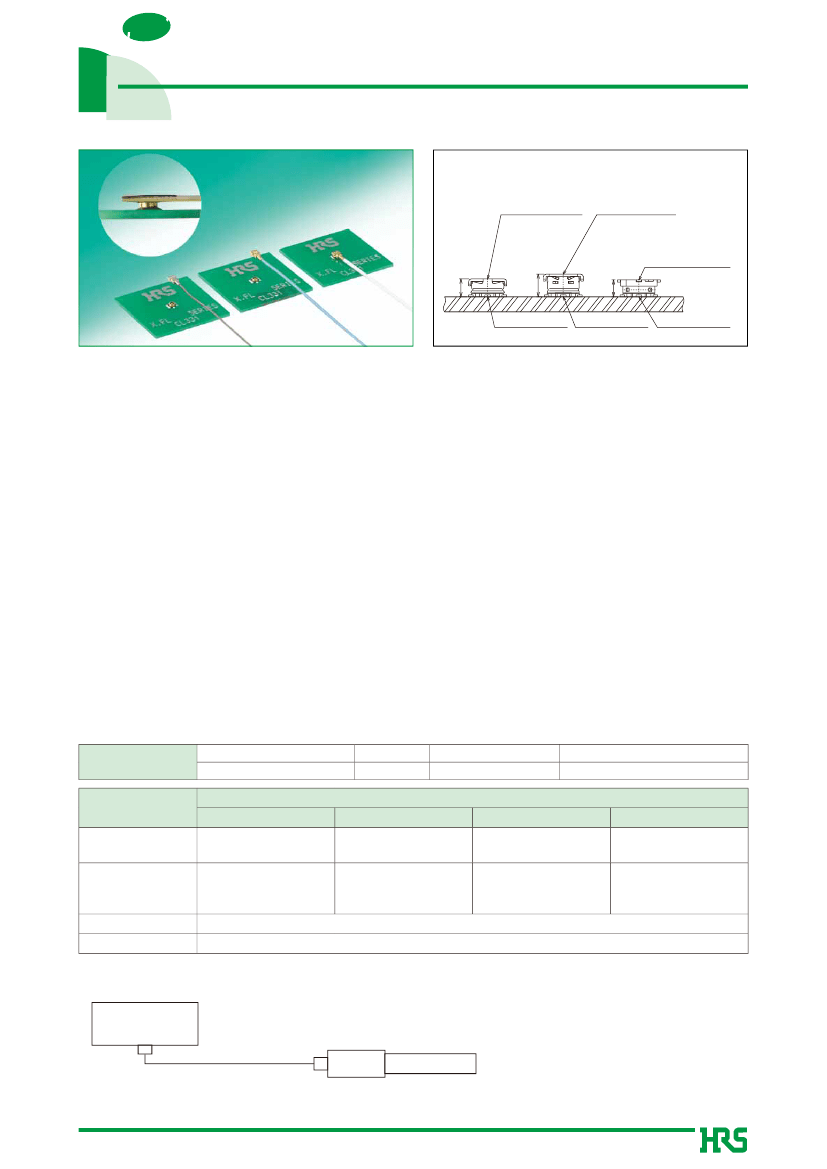

■Features
1. A Low mated height of 0.94 or 1.2
mm (maximum of 1.0 or 1.3 mm)
When connected this series delivers a world class
low mated height of 1.0 or 1.3 mm (see Figure 1).
4. High frequency transmission
This series offers the high performance needed to
meet the requirements of many different
miniature devices, featuring a DC to 6 GHz
capacity. X.FL-LP(P)-068 supports up to 12 GHz.
2. Minimal mounting area required
The receptacle requires a footprint of only 3.4 mm
2
,
which is the same footprint as our W.FL and W.
FL2 series. In addition, the same land patterns can
be used. (Note: The X.FL series has no mating
compatibility with the W.FL2 and W.FL series.)
5. Automatic board placement
This product is available in embossed
packaging; this allows the plug and receptacles
to be automatically mounted.
3. Ultra lightweight
The world’s smallest and lightest class of coaxial
connectors
Receptacle: 3.2 mg
Right angle plug: 22.0 mg (068),14.4 mg (040), and 15.7 mg (032)
Plug receptacle: 5.5 mg
6. T h e u s e o f u l t r a - f i n e c o a x i a l
(fluorinated resin insulated) cables
The use of ultra-fine coaxial (fluorinated resin
insulated) cables on these connectors offer the
ability to complete connections in small,
confined spaces with a smooth, easy operation.
7. Simple connector mating / unmating
Dedicated tools are available to ensure that proper
mating/unmating of this connector takes place.
■Product
Specifications
Ratings
Nominal characteristic impedance
Frequency range
50ø
DC~6GHz
Operating temperature range -40°C to +90°C (RH 90% or less)
Storage humidity range
-30°C to +70°C (RH 90% or less)
Specifications (for each plug type)
X.FL-LP-040
X.FL-LP-032(09)
X.FL-LP(P)-068
X.FL-PR-SMT1-2
(Center) Maximum of 20 mø (Center) Maximum of 25 mø (Center) Maximum of 25 mø (Center) Maximum of 25 mø
(Outer) Maximum of 10 mø (Outer) Maximum of 25 mø (Outer) Maximum of 10 mø (Outer) Maximum of 15 mø
1.3 or less (DC to 3 GHz)
1.4 or less (3 to 6 GHz)
1.3 or less (DC to 3 GHz)
1.4 or less (3 to 6 GHz)
1.3 or less (DC to 3 GHz)
1.4 or less (3 to 6 GHz)
1.7 or less (6 to 12 GHz)
1.3 or less (DC to 3 GHz)
1.5 or less (3 to 6 GHz)
Item
1. Contact
resistance
2. V.S.W.R. (*)
3. Insulation resistance
4. Withstanding voltage
Minimum of 500 M
Ω
, 100 V DC
200 V AC, 1 minute
*V.S.W.R. Measurement System (plug type)
The above V.S.W.R. specification values were measured using the measurement system shown below.
Network Analyzer
Test Set
Test Port
D.U.T
Test Port Cable
Termination
Note 1:Cable type connectors were measured with SMA
conversion adapters attached to both ends of the
harness product of a suitable 100 cm cable.
Note 2:Board type connectors were mounted to a 50
glass epoxy board and measurements were
conducted with SMA conversion adapters
attached.
2014.1
1
X.FL Series●Low-Profile, Ultraminiature Lightweight SMT Coaxial Connectors - 0.94 or 1.2 mm Mated Height
■Cable
Assembly (Plug)

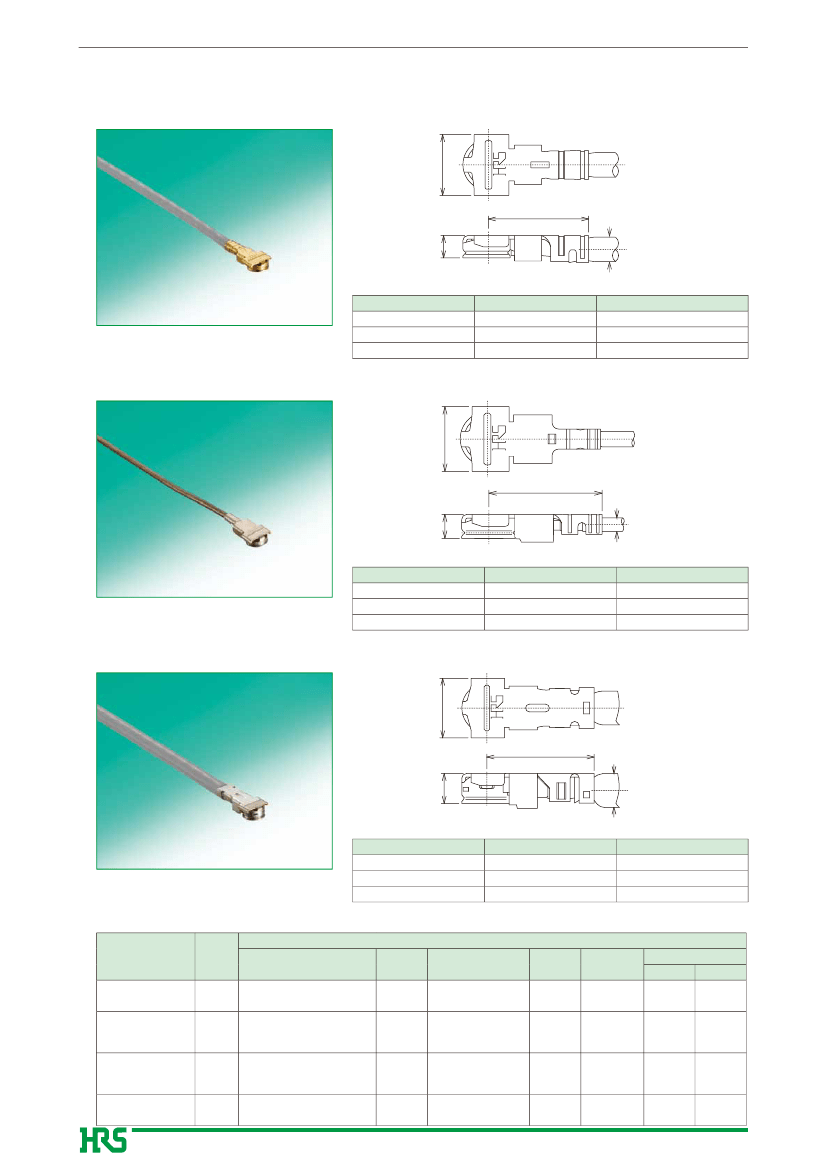

●X.FL-LP-040
(Applicable cable: outer diameter
Ø0.81
or
Ø0.64)
2
3.3
0.74
Ø0.81 or Ø0.64
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Material / Finishes
Part
Shell
Insulator
Female contact
Material
Phosphor bronze
LCP resin
Phosphor bronze
Finish and remarks
Gold plated
Black, UL94V-0
Gold plated
●X.FL-LP-032
(09) (Applicable cable: outer diameterØ0.5)
2
3.5
0.74
Ø0.5
Material / Finishes
Part
Shell
Insulator
Female contact
Material
Phosphor bronze
LCP resin
Phosphor bronze
Finish and remarks
Partially gold plated
Black, UL94V-0
Gold plated
●X.FL-LP
(P) -068 (Applicable cable: outer diameterØ1.13)
2
3.6
Ø1.13
1
Material / Finishes
Part
Shell
Insulator
Female contact
Material
Phosphor bronze
LCP resin
Phosphor bronze
Finish and remarks
Partially gold plated
Black, UL94V-0
Gold plated
●Cable
Guide
Description
Cable
Type
04
044
Cable Specification
Dielectric
Jacket
Nominal Nominal attenuation
Outer Conductor
Diameter
Diameter Impedance 3GHz
6GHz
7/0.05 (36 AWG)
Ø
0.40 Single-layer braided wire
Ø
0.81
50
5.6dB/m 8.3dB/m
Tin plated
Silver plated annealed copper wire
FEP
FEP
Fiber or paper covered
7/0.05 (36 AWG)
Ø
0.44
Ø
0.64
copper winding wire
50
5.85dB/m 8.59dB/m
Silver plated annealed copper wire
PFA
PFA
Tin plated
Fiber or paper covered
7/0.04 (38 AWG)
Ø
0.32
Ø
0.5
50
6.13dB/m 9.09dB/m
copper winding wire
Silver plated copper alloy wire
PFA
PFA
Tin plated
7/0.08 (32 AWG)
Ø
0.68 Single-layer braided wire
Ø
1.13
50
3.7dB/m 5.3dB/m
Silver plated annealed copper wire
FEP
Tin plated
FEP
Center Conductor
Ø
0.81 mm Coaxial
Cable
Ø
0.64 mm Coaxial
Cable
Ø
0.5 mm Coaxial
Cable
032
068
Ø
1.13 mm Coaxial
Cable
2
X.FL Series●Low-Profile, Ultraminiature Lightweight SMT Coaxial Connectors - 0.94 or 1.2 mm Mated Height
How to Specify Plug Cable Assembly
The dimensions of a cable assembly of the X.FL series should be specified as follows:
[Double-Ended Cable Assembly]
L mm
）
（
[Single-Ended Cable Assembly]
L mm
）
（
Single ended assemblies come with a blunt cut on the
non-terminated end. Please contact us if special strip
requirements are needed.
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
■Product
Number Structure
Refer to the charts below for determining specific part number characteristics.
Please select connectors listed in this catalog when placing orders and be sure to check the latest delivery specifications at
the time of ordering the product.
●Used
Plug: X.FL-LP-040
◇Ø0.81
Coaxial Cable
Double-Ended
X.FL - 2LP - 04K
「」
TV - A -
(L)
❶
❷
❸
❹
❺
❻
Single-Ended
X.FL - LP - 04K
「」
TV - A -
(L)
❶
❷
❸
❹
❺
❹
Cable color
❻
1: White, 2: Black
L length in mm
❶
Series name: X.FL series
❷
Assembly type LP: Single-ended, 2LP: Double-ended
❸
Cable type
04K: Ø0.81 coaxial cable
❺
Cable outer conductor TV: Tin plated braided wire
❻
Total length L (mm)
◇Ø0.64
Coaxial Cable
Double-Ended
X.FL - 2LP - 044N
「」
TS - A -
(L)
❶
❷
❸
❹
❺
❻
Single-Ended
X.FL - LP - 044N
「」
TS - A -
(L)
❶
❷
❸
❹
❺
❻
1: White, 2: Black
❹
Cable color
TS: Tin plated fiber or paper
❺
Cable outer conductor
covered copper winding wire
❻
Total length L (mm)
L length in mm
❶
Series name: X.FL series
❷
Assembly type LP: Single-ended, 2LP: Double-ended
❸
Cable type
044N: Ø0.64 coaxial cable
Plug: X.FL-LP-032 (09)
Ø0.5
coaxial cable
Double-Ended
X.FL - 2LP9 - 032H
「」
TS - A -
(L)
❶
❷
❸
❹
❺
❻
Single-Ended
X.FL - LP9 - 032H
「」
TS - A -
(L)
❶
❷
❸
❹
❺
❻
1: White, 2: Black
❹
Cable color
TS: Tin plated fiber or paper
❺
Cable outer conductor
covered copper winding wire
❻
Total length L (mm)
L length in mm
❶
Series name: X.FL series
❷
Assembly type LP9: Single-ended, 2LP9: Double-ended
❸
Cable type
032H: Ø0.5 coaxial cable
3
X.FL Series●Low-Profile, Ultraminiature Lightweight SMT Coaxial Connectors - 0.94 or 1.2 mm Mated Height
Plug: X.FL-LP (P)-068
Ø1.13
coaxial cable
Double-Ended
X.FL - 2LP P - 068W
「」
TV - A -
(L)
❶
❷
❸
❹
❺
❻
❼
Single-Ended
X.FL - LP P - 068W
「」
TV - A -
(L)
❶
❷
❸
❹
❺
❻
❼
1: Grey, 2: Black, 3: White
❺
Cable color
❻
Cable outer conductor TV: Tin plated braided wire
❼
Total length L (mm)
L length in mm
❶
Series name: X.FL series
❷
Assembly type LP: Single-ended, 2LP: Double-ended
❸
Connection type
❹
Cable type
Batch connection type
068W:
Ø
1.13 coaxial cable
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
●Standard
Tolerances for (L)
L (mm)
Standard Tolerances (mm)
35
≦
L
≦
200
±4
200
＜
L
≦
500
±8
Note: Minimum available length (L) is 35 mm.
L (mm)
500
＜
L
≦
1000
1000
＜
L
Standard Tolerances (mm)
±12
±1.5%
■Receptacles

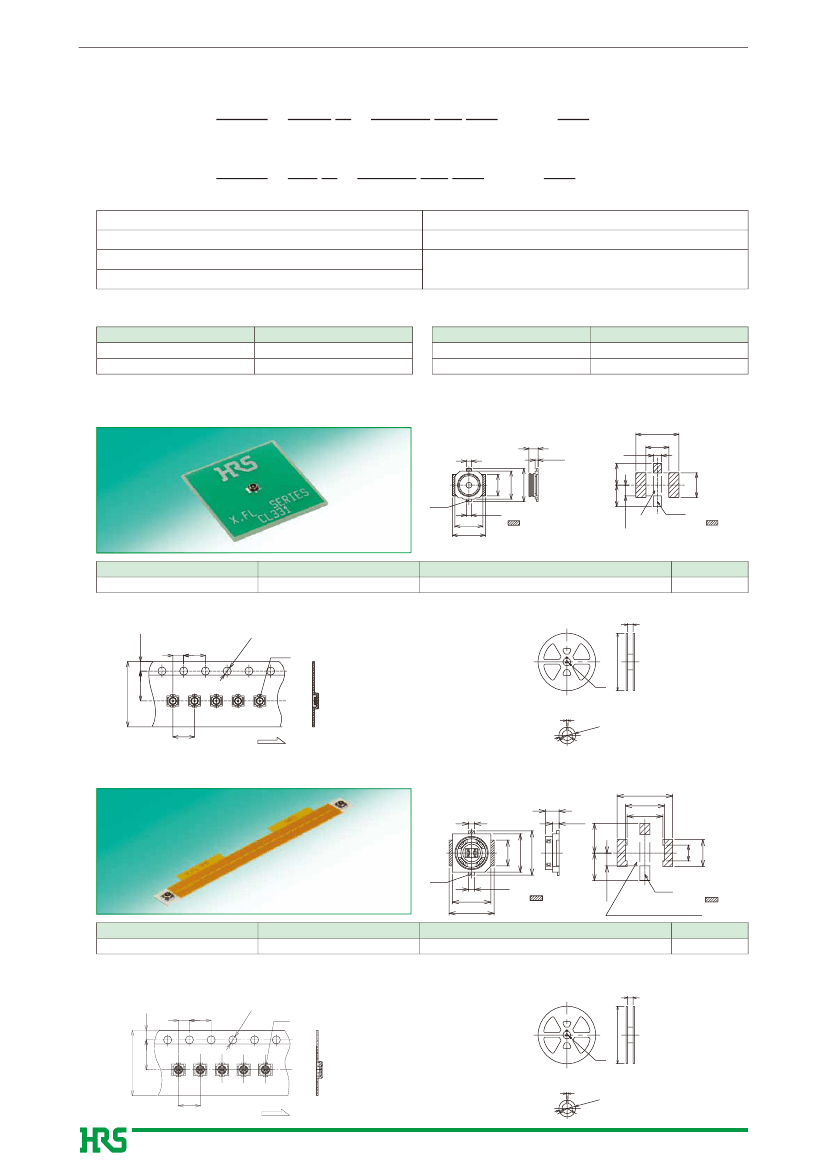

Recommended PCB Mounting Pattern (*1)
0.56
0.3
1.3
1.7
2
0.18
1.3 1.3
0.5
2.6
1.4
1.7
2
GND
0.65
SIG
0.3
SIG
No conductive
traces in this area
1.5
GND
*1) The pattern is the same as the W.FL and W.FL2 connectors.
Part No.
X.FL-R-SMT-1（80）
HRS No
CL331-0701-8-80
Packaging
Reel packaging 10,000 pieces per reel
13.5
φ
330
RoHS
○
●Embossed
Carrier Tape Dimensions (JIS-C-0806 compliant)
●Reel
Dimensions
1.75
2 4
φ
1.5
SIG
A
A
2
φ
13
12
5.5
4
Unreeling direction
■Plug
Receptacles
Recommended PCB Mounting Pattern
0.69
0.3
1.3
1.94
2.24
0.33
1.5
2.8
1.97
1.8
0.8
1.35
0.65
SIG
No conductive
traces in this area
SIG
1.94
2.28
0.3
GND
1.4
GND
Part No.
X.FL-PR-SMT1-2（80）
HRS No
CL331-0713-7-80
Packaging
Reel packaging 10,000 pieces per reel
RoHS
○
●Embossed
Carrier Tape Dimensions (JIS-C-0806 compliant)
●Reel
Dimensions
1.75
13.5
φ
330
12
5.5
Ø1
2
4
.5
SIG
A
A
Unreeling direction
2
4
φ
13
4
X.FL Series●Low-Profile, Ultraminiature Lightweight SMT Coaxial Connectors - 0.94 or 1.2 mm Mated Height

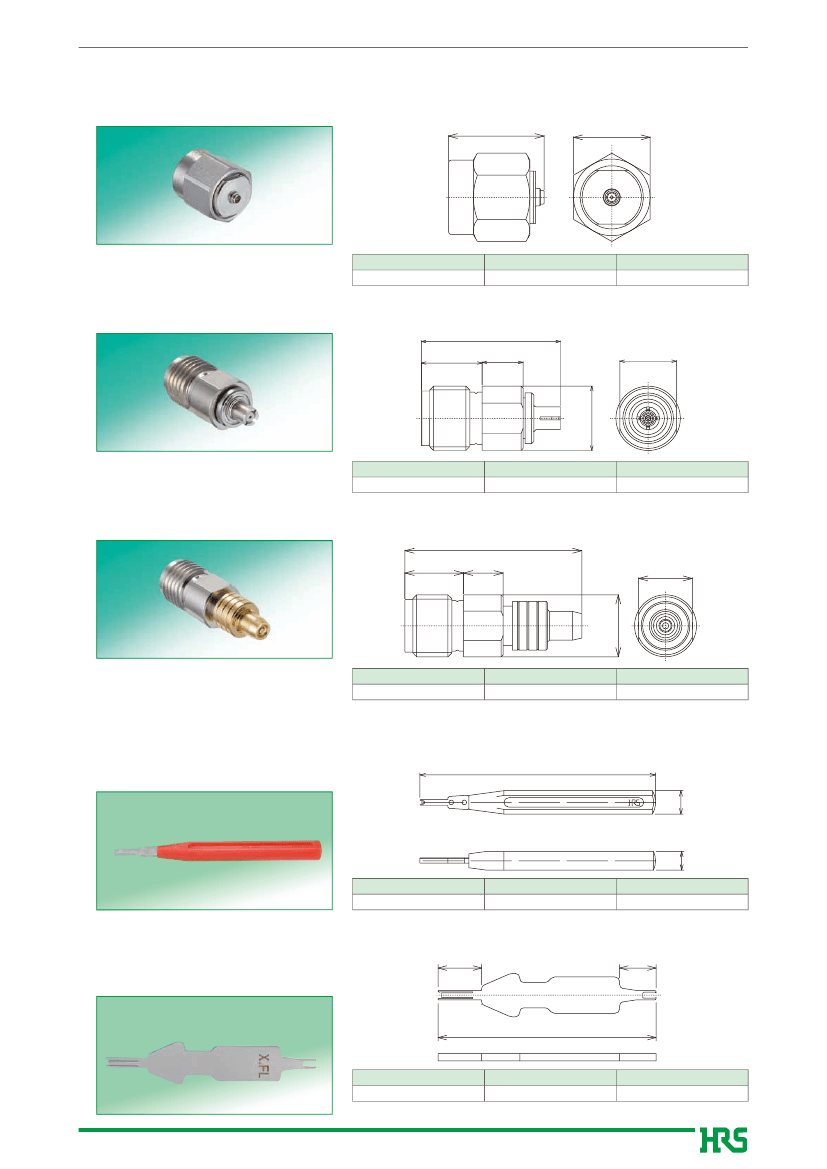

■Conversion
Adapters
●SMA
Conversion Adapter (Mating portion - X.FL side: jack - SMA side: plug)
（
9.98
）
8HEX
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Note: The X.FL side mating portions has a lower lock
retention force than the regular product, so that
the adapter cannot be used for purposes other
than performance measurements.
Part No.
HRMP-X.FLJ
HRS No
CL311-0435-1
RoHS
○
●SMA
Conversion Adapter (Mating portion - X.FL side: plug - SMA side: jack)
13.74
6
（
4.05
）
5.6
Note: The X.FL side mating portions has a lower
lock retention force than the regular product, so that
the adapter cannot be used for purposes other than
performance measurements.
Part No
HRMJ-X.FLP
HRS No
CL311-0436-4
φ
6.35
RoHS
○
●SMA
Conversion Adapter (Mating portion - X.FL side: plug (w/o lock) - SMA side: jack)
（
18.12
）
6
（
4.05
）
5.5
Note: This connector is used by compressing the
mating portion of X.FL side onto the X.F L-R-S M T-1
portion.
Part No.
HRMJ-X.FLP-ST3
HRS No
CL311-0450-5
φ
6.35
RoHS
○
BTool
●Plug
Mating Tool (Space-Saving Type)
This tool is used for mating a plug.
（
100
）
JAPAN
Part No.
W.FL-LP-IN
※
HRS No
CL331-0323-2
RoHS
○
*This tool can be also used for the X.FL series.
●Plug
Mating and Unmating Tool
Mating side
Unmating side
This is a combination tool that has both of
the mating and unmating tool at either end.
（
60
）
Part No.
X.FL-LP-IN.OUT1
HRS No
CL331-0715-2
RoHS
○
8
X.FL
φ
10
5
京公网安备 11010802033920号
EEWORLD
