856-10-003-30-051000: DescriptionHeaders & Wire Housings 3P 1R SURFACE MT .097 HEIGHT TARGET; CategoryThe connector The connector; File Size575KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

856-10-003-30-051000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	856-10-003-30-051000	-	-	View	Buy Now

856-10-003-30-051000 Overview

Headers & Wire Housings 3P 1R SURFACE MT .097 HEIGHT TARGET

856-10-003-30-051000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	856
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	3

Preview

Download Datasheet

View All

SPRING-LOADED

CONNECTORS

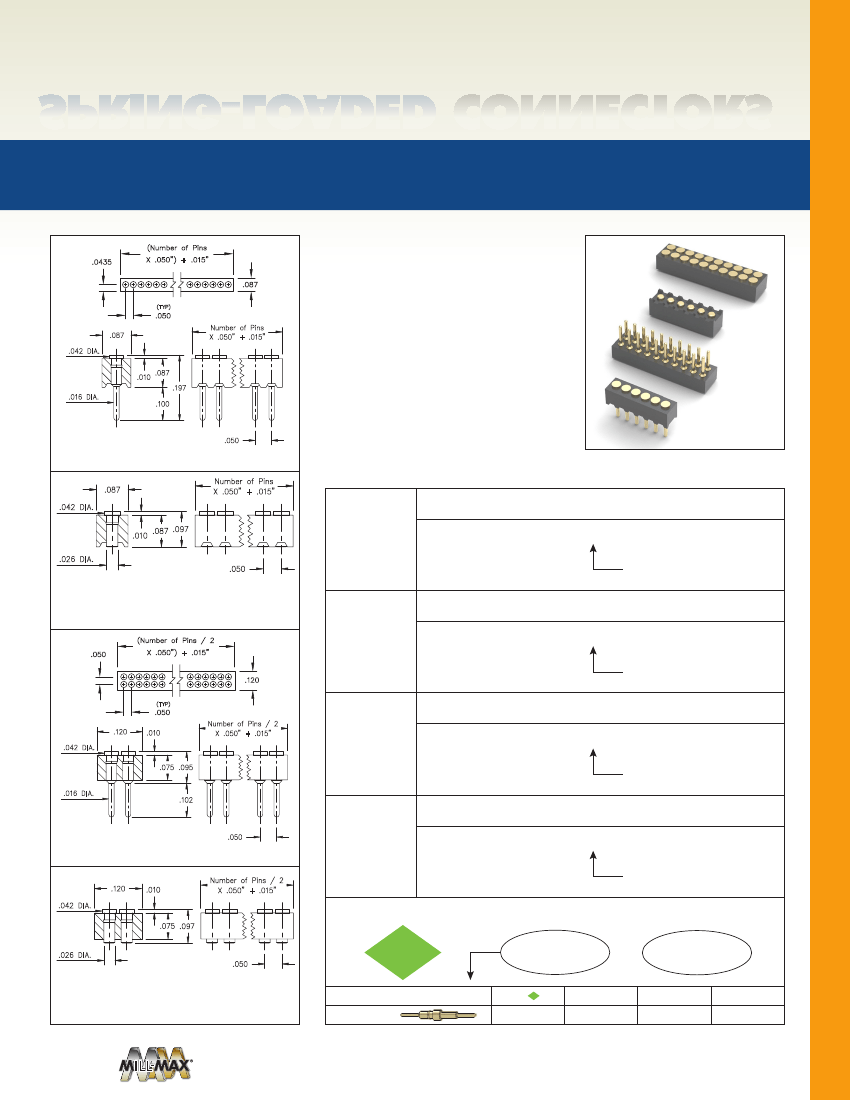

SERIES 856, 857 • .050” GRID TARGET CONNECTORS

FOR SPRING-LOADED ASSEMBLIES • SINGLE AND DOUBLE ROW STRIPS

• Series 856 and 857 Target Connectors, SMT &

through-hole, supplied in single and double

row strips

• Target Connectors provide an excellent gold-

plated conductive mating surface for spring

loaded connectors. These series are offered

with a flat face for making contact with our

standard .019” dia. spring pin plungers

• Target connectors use MM #1933 (through-

hole) and #1935 (surface mount) pins. See

page 223.2 for details

FIG. 1

• Insulators are high temperature thermoplastic

ORDERING INFORMATION

Series 856...051

Flat face / Solder Tails

856-10-0_ _-10-051000

Specify number of pins

01-20

FIG. 1

Coplanarity .005”. For Pin counts >20 positions, consult

Technical Support.

FIG. 2

Series 856...051

Flat face / Surface Mount

856-10-0_ _-30-051000

FIG. 2

Series 857...051

Specify number of pins

02-20

Flat face / Solder Tails

857-10-0_ _-10-051000

PAGE 22 | SPRING-LOADED CONNECTORS

FIG. 3

Series 857...051

Specify number of pins

04-40

Flat face / Surface Mount

857-10-0_ _-30-051000

FIG. 3

FIG. 4

Specify number of pins

04-40

2011/65/EU

RoHS - 2

XX=Plating Code

See Below

10

μ”

Au

For

Electrical, Mechanical

& Enviromental Data,

See page 264

Coplanarity .005”. For Pin counts >40 positions, consult

Technical Support.

FIG. 4

SPECIFY PLATING CODE XX=

Pin Plating

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
