FCU10UC40 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FCU10UC40

FCU10UC40: DescriptionRectifier Diode, 1 Phase, 2 Element, 10A, 400V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size205KB，1 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric Compare View All

FCU10UC40 Overview

Rectifier Diode, 1 Phase, 2 Element, 10A, 400V V(RRM), Silicon,

FCU10UC40 Parametric

Parameter Name	Attribute value
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

Preview

Download Datasheet

View All

10A Avg.

Item

くり返しピーク逆電圧

Repetitive Peak Reverse Voltage

平

均

整

流

電

流

Average Rectified Forward Current

実

効

順

電

流

R.M.S. Forward Current

サ

ー

ジ

順

電

流

Surge Forward Current

動 ½ 接合温度範囲

Operating Junction Temperature Range

保

存

温

度

範

囲

Storage Temperature Range

締

付

ト

ル

ク

Mounting torque

400 Volts

Symbol

RRM

F(RMS)

FSM

stg

tor

50Hz、正弦全波、抵抗負荷

50Hz Full Sine Wave, Resistance Load

FRED

Conditions

400

Tc＝105℃

11.1

50Hz正弦全波，１サイクル，非くり返し

50Hz Full Sine Wave,1cycle, Non-repetitive

FCU10UC40

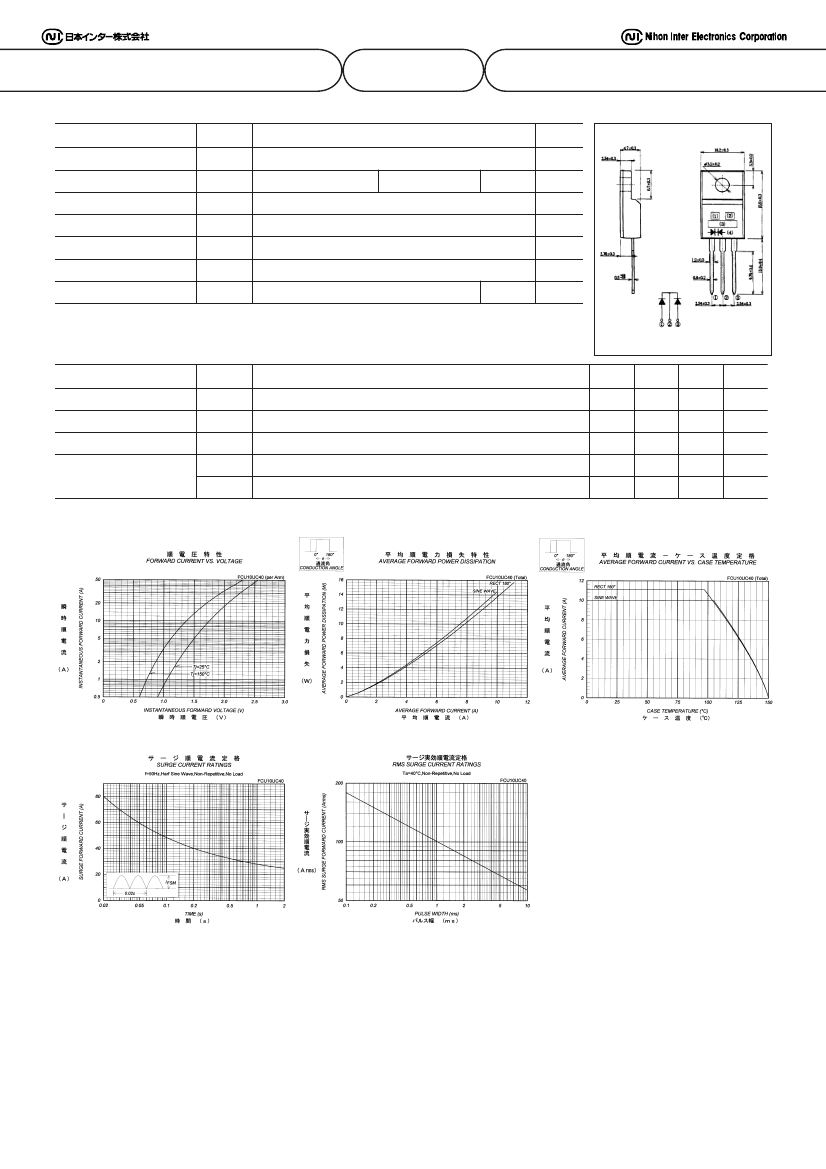

■OUTLINE DRAWING(mm)

Unit

℃

0.5

N½m

■最大定格 Maximum Ratings

−40∼＋150

推奨値

Recommended Value

■電気的・熱的特性 Electrical/ Thermal Characteristics

Item

ピ

ー

ク

逆

電

Peak Reverse Current

ピ

ー

ク

順

電

Peak Forward Voltage

逆

回

復

時

Reverse Recovery Time

熱

抵

Thermal Resistance

流

圧

間

■APPROX. NET WEIGHT:1.8 g

Symbol

t rr

th(j-c)

th(c-f)

Conditions

＝25℃, V

＝V

RRM

＝25℃, I

＝5A,

一素子あたり

Per Diode

一素子あたり

Per Diode

Min.

−

Typ.

−

1.30

−

Max.

1.50

1.5

Unit

μA

℃/W

＝5A, −di/dt＝50 A/μs, Tj＝25℃

接合部½ケース間

Junction to Case

ケース・フィン間

Case to Fin

抗

■定格・特性曲線

FIG.1

FIG.2

FIG.3

FIG.4

FIG.5

FCU10UC40 Related Products

	FCU10UC40
Description	Rectifier Diode, 1 Phase, 2 Element, 10A, 400V V(RRM), Silicon,
package instruction	R-PSFM-T3
Reach Compliance Code	unknown
ECCN code	EAR99
application	FAST RECOVERY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	80 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
Maximum reverse recovery time	0.03 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1
