MAGNUM
®
Top & Bottom Marking Strips
Double Row Terminal Blocks (TB100, TB200, TB300, TB345 SERIES)
Single & Double Row
Filtered Connectors

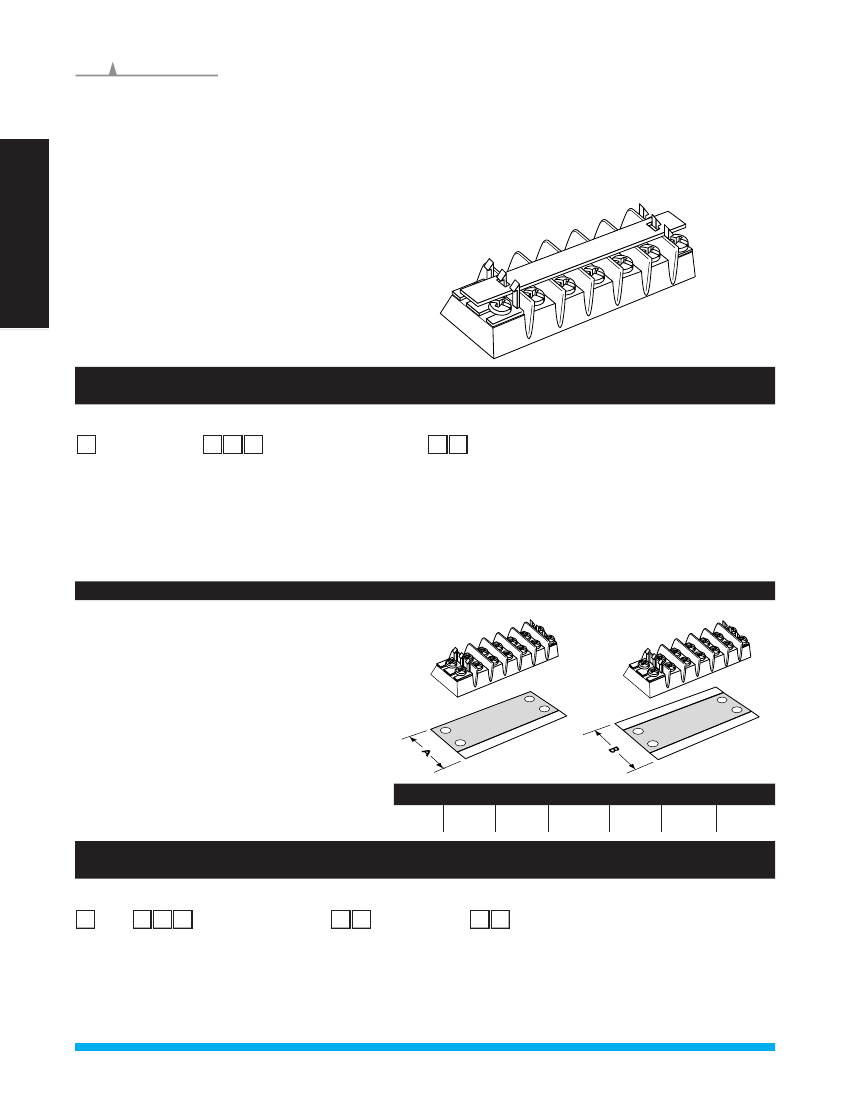

TOP MARKER STRIPS
Top mounting marker strips are available in white (opaque)
plastic. Two cover clips are supplied with each marker
strip.
All top marker strips must be ordered separately. Consult
factory for special legends.
Example: 12 position cover, TB200, .032” x .312”, with no
legends . . . Part No. is X20312.
Example: 12 position cover, TB200HB, .060” x .500”, with
no legends . . . Part No. is X23312HB.
Euro-MAG Series
PCB – Spring Clamp
Part Numbering System
Series
Top Marker Strip
Poles
X
133
- TB100 (.060 thk x .500w)
103
- TB100 (.032 thk x .312w)
233
- TB200 (.060 thk x .500w)
233TB
- TB200HB (.060 thk x .500w)
203
- TB200 (.032 thk x .312w)
203HB
- TB200HB (.032 thk x .312w)
333
- TB300 & TB345 (.060 thk x .500w)
303
- TB300 & TB345 (.032 thk x .380w)
02
to
36
(TB100)
02
to
30
(TB200/TB200HB)
02
to
24
(TB300/TB345)
Note: Marking Strips are not available on
TB400 Series.
Base & Rail Mount
Connectors
BOTTOM MARKER STRIPS;
Bottom mounting marker strips are made of black PVC,
.030” thick. Space is available to handle most marking sit-
uations. All marker strips must be ordered separately.
To order, specify part number, required legends and (BF)
bottom forward, (BR) bottom reverse, (TF) top forward, or
(TR) top reverse. Consult factory for specials.
Space for marking
one side
Space for marking
two sides
Power Distribution Blocks
Example: 13 position strip, TB100 with no legends, space
for marking one side . . . Part No. is X10513.
Position for legends (one side, two sides) can be specified
standard. Standard legend height is .125”. Standard leg-
ends are 0-99 and A-Z. Special legends are available on
special order. Drawing(s) must be submitted to ensure
accuracy of part required.
TB100
Dim. A
Dim. B
1.13”
1.38”
TB200
1.37”
1.62”
TB200HB
1.62”
1.81”
TB300
1.58”
1.81”
TB345
1.58”
1.81”
TB400
N/A
N/A
Part Numbering System
Series
Bottom Marker Strip
Poles
Orientation
WIRE MANAGEMENT PRODUCTS
X
105
101
205
201
295
291
305
301
-
-
-
-
-
-
-
-
TB100 – marking one side
TB100 – marking both sides
TB200 – marking one side
TB200 – marking both sides
TB200HB – marking one side
TB200HB – marking both sides
TB300 & TB345 – marking one side
TB300 & TB345 – marking both sides
02
to
36
(TB100)
02
to
30
(TB200/TB200HB)
02
to
24
(TB300/TB345)
BF
– bottom forward
BR
– bottom reverse
TF
– top forward
TR
– top reverse
Note: Marking Strips are not available on TB400 Series.
36
