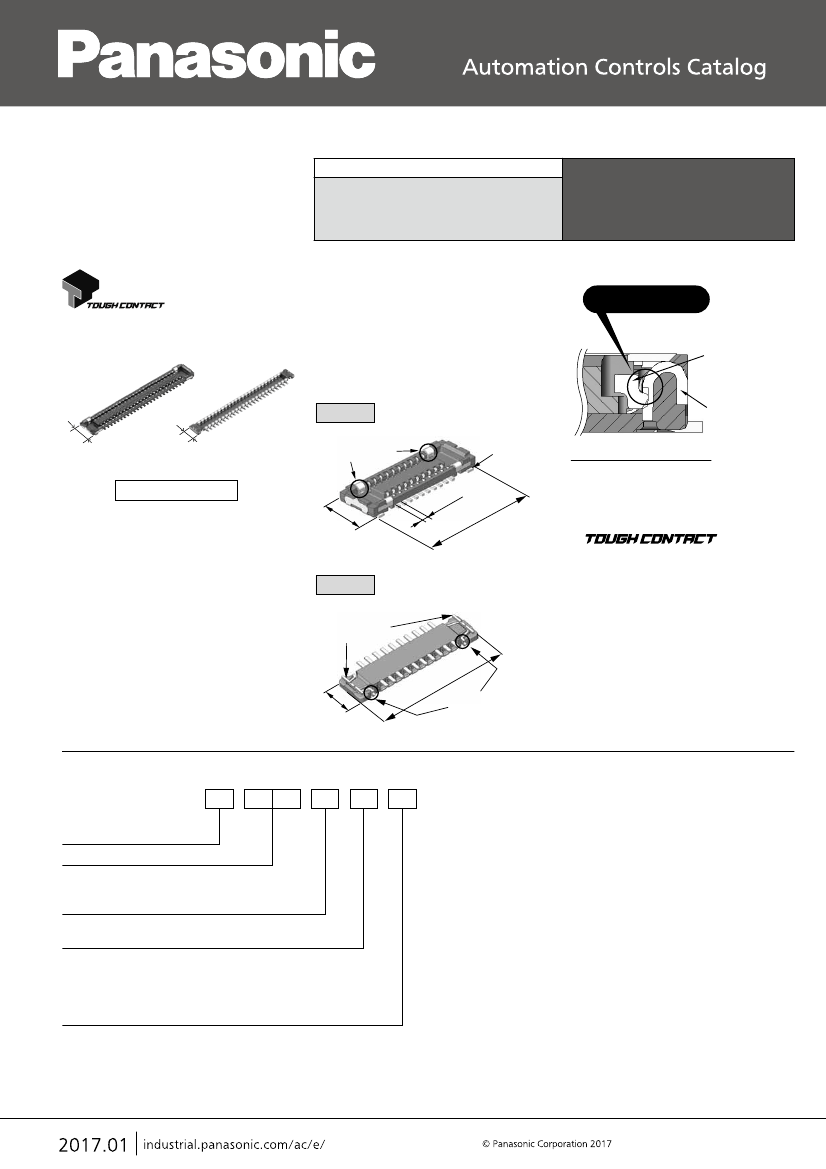

For board-to-FPC
Narrow Pitch Connectors
(0.35mm pitch)
A35US
Proprietary Fine Fitting
construction
High unmating force is maintained
while soldering terminals on socket
and header are held in place.
Soldering terminal
on header
FEATURES
1. 0.6 mm Mated Height with 2.2 mm
width.
2. Proprietary Fine Fitting
Construction
Our proprietary design provides a
comfortable and “tact” feel while
providing a secure connection.
Socket
2.
2
m
m
1.
Soldering terminalt
on socket
Top view
Soldering terminals
at each corner
Socket
8m
m
Header
Fine Fitting structure
Cross section showing mating
with soldering terminals
RoHS compliant
2.2
mm
0.3
5m
m
6.0
0m
m
(20
pin
)
Header
Bottom view
Soldering terminals
at each corner
3. A slim 2.2 mm (width) design
provides space-saving benefits. The
actual footprint is reduced by 20%,
when compared to a 40 pin A4S.
4. “
” structure
provides a slim and low-profile design
resistant to various environmental
conditions.
5. Soldering terminals enhance
mounting strength.
1.
8
m
5.3
m
m
0m
(20
)
pin
APPLICATIONS
Board-to-FPC connections in hand
held devices that require compact
design and enhanced functionality.
Fine Fitting structure
ORDERING INFORMATION
AXG
7: Socket
8: Header
Number of pins (2 digits)
Mated height
<Socket>/<Header>
0: 0.6 mm
Functions
4: Without positioning bosses / Fine fitting construction
Surface treatment (Contact portion / Terminal portion)
<Socket>
7: Base: Ni plating, Surface: Au plating (for Ni barrier available)
<Header>
4: Base: Ni plating, Surface: Au plating
0
4
–1–
ACCTB65E 201701-T
Narrow pitch connectors
A35US
(0.35mm pitch)
PRODUCT TYPES
Mated height
Number of pins
10
12
16
20
0.6mm
24
30
34
40
44
50
60
Part number
Socket
AXG710047
AXG712047
AXG716047
AXG720047
AXG724047
AXG730047
AXG734047
AXG740047
AXG744047
AXG750047
AXG760047
Header
AXG810044
AXG812044
AXG816044
AXG820044
AXG824044
AXG830044
AXG834044
AXG840044
AXG844044
AXG850044
AXG860044
10,000 pieces
20,000 pieces
Inner carton (1-reel)
Packing
Outer carton
Notes: 1. Order unit:
For volume production: 1-inner carton (1-reel) units
For samples, please contact our sales office.
2. Please contact us for connectors having a number of pins other than those listed above.
SPECIFICATIONS
1. Characteristics
Item
Rated current
Rated voltage
Electrical
characteristics
Dielectric strength
Insulation resistance
Contact resistance
Composite insertion force
Composite removal force
Contact holding force
(Socket contact)
Ambient temperature
Soldering heat resistance
Storage temperature
Specifications
0.30A/pin contact (Max. 5 A at total pin contacts)
60V AC/DC
150V AC for 1 min.
Min. 1,000MΩ (initial)
Max. 90mΩ
Max. 1.300N/pin contact
×
pin contacts (initial)
Min. 0.215N/pin contact
×
pin contacts
Min. 0.20N/pin contact
–55°C to +85°C
Peak temperature: 260°C or less (on the surface of
the PC board around the connector terminals)
300°C within 5 sec. 350°C within 3 sec.
–55°C to +85°C (product only)
–40°C to +50°C (emboss packing)
Measuring the maximum force.
As the contact is axially pull out.
No icing or condensation.
Infrared reflow soldering
Soldering iron
No icing or condensation.
Conformed to MIL-STD-202F, method 107G
Order Temperature (°C)
0
1
–55
−3
2
3
85
+3
0
4
0
–55
−3
Time (minutes)
30
Max. 5
30
Max. 5
No short-circuiting or damage at a detection current of 1 mA
when the specified voltage is applied for one minute.
Using 250V DC megger (applied for 1 min.)
Based on the contact resistance measurement method
specified by JIS C 5402.
Conditions
Mechanical
characteristics
Environmental
characteristics
Thermal shock resistance
(header and socket mated)
5 cycles,
insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
Humidity resistance
(header and socket mated)
Saltwater spray resistance
(header and socket mated)
H
2
S resistance
(header and socket mated)
Lifetime
characteristics
Unit weight
Insertion and removal life
120 hours, insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
24 hours, insulation resistance min. 100MΩ,
contact resistance max. 90mΩ
48 hours, contact resistance max. 90mΩ
30 times
60 pin contacts Socket: 0.02g Header: 0.01g
Conformed to IEC60068-2-78
Bath temperature 40°C±2°C,
humidity 90% to 95% R.H.
Conformed to IEC60068-2-11
Bath temperature 35°C±2°C,
saltwater concentration 5%±1%
Bath temperature 40°C±2°C,
gas concentration 3 ppm
±1
ppm,
humidity 75% to 80% R.H.
Repeated insertion and removal speed of max. 200 times/
hours
2. Material and surface treatment
Part name
Molded
portion
Contact and
Post
Material
LCP resin
(UL94V-0)
Surface treatment
—
Contact portion: Base: Ni plating, Surface: Au plating
Terminal portion: Base: Ni plating, Surface: Au plating (except the terminal tips)
The terminals close to the portion to be soldered have nickel barriers (exposed nickel portions).
Soldering terminals: Sockets: Base: Ni plating, Surface: Pd+Au flash plating (except the terminal tips)
Headers: Base: Ni plating, Surface: Au plating
Copper alloy
–2–
ACCTB65E 201701-T
Narrow pitch connectors
A35US
(0.35mm pitch)

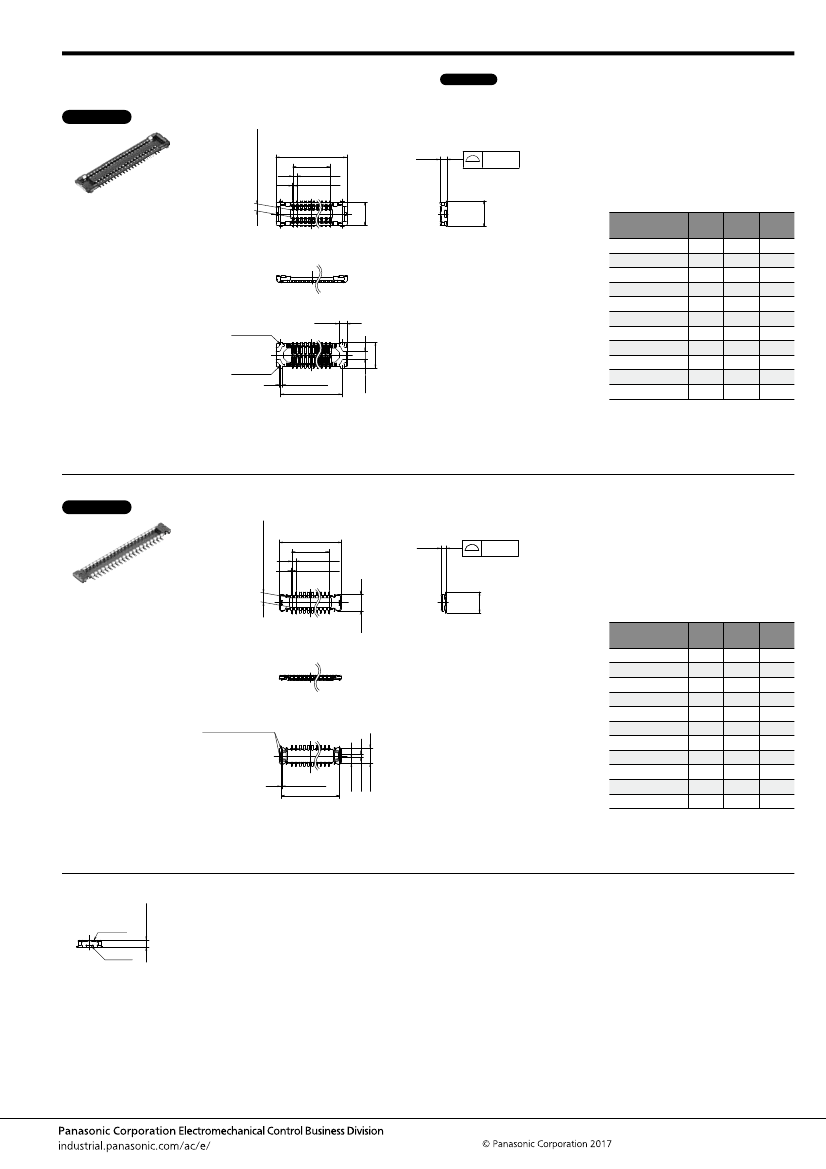

DIMENSIONS
(Unit: mm)
Socket (Mated height: 0.6 mm)
CAD Data
0.60 (Suction face)
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
Terminal coplanarity
A
B±0.1
0.35±0.05
0.12±0.03
1.96
0.59
0.08
(Contact and Metal bracket)
2.20
Dimension table (mm)
Number of pins/
dimension
10
12
16
20
24
A
4.25
4.60
5.30
6.00
6.70
7.75
8.45
9.50
10.20
11.25
13.00
B
1.40
1.75
2.45
3.15
3.85
4.90
5.60
6.65
7.35
8.40
10.15
C
3.45
3.80
4.50
5.20
5.90
6.95
7.65
8.70
9.40
10.45
12.20
(0.68)
Y (Note)
2.20
30
34
40
44
50
60
0.30±0.03
C±0.1
0.66
Z (Note)
General tolerance:
±0.2
Note: Since soldering terminals are built into the body, the Y and Z parts are connected electrically.
Header (Mated height: 0.6 mm)
CAD Data
0.80 (Suction face)
A
B±0.1
0.35±0.05
0.12±0.03
Terminal coplanarity
0.46
0.08
(Post and Metal bracket)
1.80
1.42
Dimension table (mm)
Number of pins/
dimension
10
12
16
20
24
30
34
40
44
50
60
A
3.55
3.90
4.60
5.30
6.00
7.05
7.75
8.80
9.50
10.55
12.30
B
1.40
1.75
2.45
3.15
3.85
4.90
5.60
6.65
7.35
8.40
10.15
C
3.17
3.52
4.22
4.92
5.62
6.67
7.37
8.42
9.12
10.17
11.92
Soldering terminals
0.48
0.32
1.28
Soldering terminals
0.08±0.03
C±0.1
General tolerance:
±0.2
Socket and Header are mated
0.60±0.1
Header
Socket
–3–
ACCTB65E 201701-T
Narrow pitch connectors
A35US
(0.35mm pitch)
EMBOSSED TAPE DIMENSIONS
(Unit: mm)
• Specifications for taping
(In accordance with JIS C 0806-3:1999. However, not applied to
the mounting-hole pitch of some connectors.)
Tape I
(A
+0.3
)
−0.1
(B)
(1.75)
Leading direction after packaging
380 dia.
(4.0)
(C±1)
Label
Top cover tape
Embossed carrier tape
• Specifications for the plastic reel
(In accordance with EIAJ ET-7200B.)
Embossed mounting-hole
(2.0)
Taping reel
4.0
5
1.
.1
+0 0
a.
di
• Dimension table
(Unit: mm)
Type/Mated height
Socket
Header
Number of pins
Max. 30
34 to 60
Max. 34
40 to 60
Type of taping
Tape I
Tape I
Tape I
Tape I
A
16.0
24.0
16.0
24.0
B
7.5
11.5
7.5
11.5
C
17.4
25.4
17.4
25.4
Quantity per reel
10,000
10,000
10,000
10,000
• Connector orientation with respect to embossed tape feeding direction
Type
Direction
of tape progress
Socket
Common for A35US
Header
Note: There is no indication on this product regarding top-bottom or left-right orientation.
–4–
ACCTB65E 201701-T
Narrow pitch connectors
A35US
(0.35mm pitch)
For board-to-FPC
Connectors for
inspection usage
(0.35mm pitch)
A35US
APPLICATIONS
Ideal for module unit inspection and
equipment assembly inspection
Note: Mating retention force cannot be
warranted.
Please avoid using for applications other
than inspection.
FEATURES
1. 3,000 mating and unmating cycles
2. Same external dimensions and foot
pattern as standard type.
3. Improved mating
Insertion and removal easy due to a
reduction in mating retention force. This
is made possible by a simple locking
structure design.
2.
2
m
m
1.
Socket
8m
m
Header
RoHS compliant
TABLE OF PRODUCT TYPES
✩:
Available for sale
Product name
A35US
for inspection
10
✩
12
✩
16
✩
20
✩
24
✩
Number of pins
30
✩
34
✩
40
✩
44
✩
50
✩
60
✩
Notes: 1. Please inquire about number of pins other than those shown above.
2. Please inquire with us regarding availability.
3. Please keep the minimum order quantities no less than 50 pieces per lot.
4. Please inquire if further information is needed.
PRODUCT TYPES
Socket
Specifications
Without positioning bosses
Part No.
AXG7E∗∗06
Header
Specifications
Without positioning bosses
Part No.
AXG8E∗∗06
Note: When placing an order, substitute the “∗” (asterisk) in the above part number with the number of pins for the specific connector.
–5–
